Managed PoE+ network switch designed for IP CCTV surveillance systems, providing reliable Gigabit Ethernet connectivity, camera power, and centralized network management.
The AXIS T85 Series Edge Switch is designed for professional video surveillance and IP networking applications. It connects network cameras, recording servers, and other Ethernet devices while supplying power to compatible cameras through Power over Ethernet Plus (PoE+).
The switch provides a web-based management interface with network topology visualization, device status monitoring, traffic monitoring, cable diagnostics, and remote camera reboot functionality. Advanced networking features include VLAN, Quality of Service (QoS), network security, and spanning tree protocol. Selected models support SFP fiber uplinks for backbone connectivity.
Key SpecificationsParameter
Specification
Brand
Axis Communications
Product series
AXIS T85 Series
Product type
Managed Edge Network Switch
Ethernet ports
Model-dependent: 8, 16 or 24 PoE+ ports
Ethernet speed
Gigabit Ethernet on supported ports
PoE standard
IEEE 802.3at PoE+
PoE power budget
Model-dependent
Fiber connectivity
SFP uplink slots on supported models
Management
Web-based graphical user interface
Network features
VLAN, QoS, security and spanning tree
Monitoring
Network topology, traffic and cable diagnostics
Application
IP CCTV surveillance and enterprise networking
Specifications vary by model. Refer to the manufacturer's official AXIS T85 Series documentation for the exact datasheet.
Common UsesIP CCTV camera connectivity and power supply.
Network distribution at security cabinets and building access points.
Fiber backbone connection to the central surveillance network.
Network management and troubleshooting for CCTV installations.
Important model check: I could not verify ATEN EN2326 as an ATEN product. The EN2326 datasheet identifies it as an nVent ENLOGIC EN2 Series Input-Metered PDU, rated at 16 A, 200–240 V AC, single-phase.

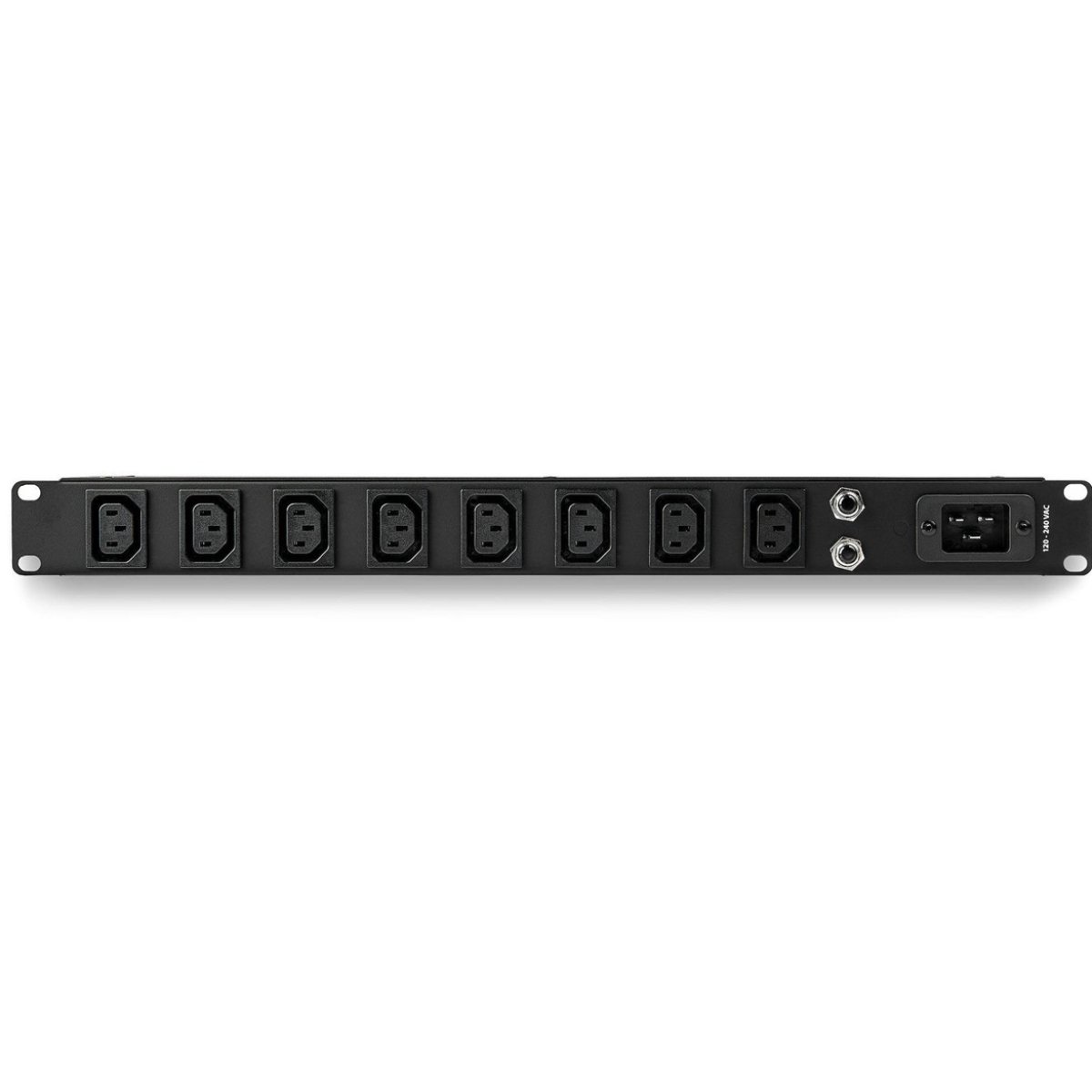

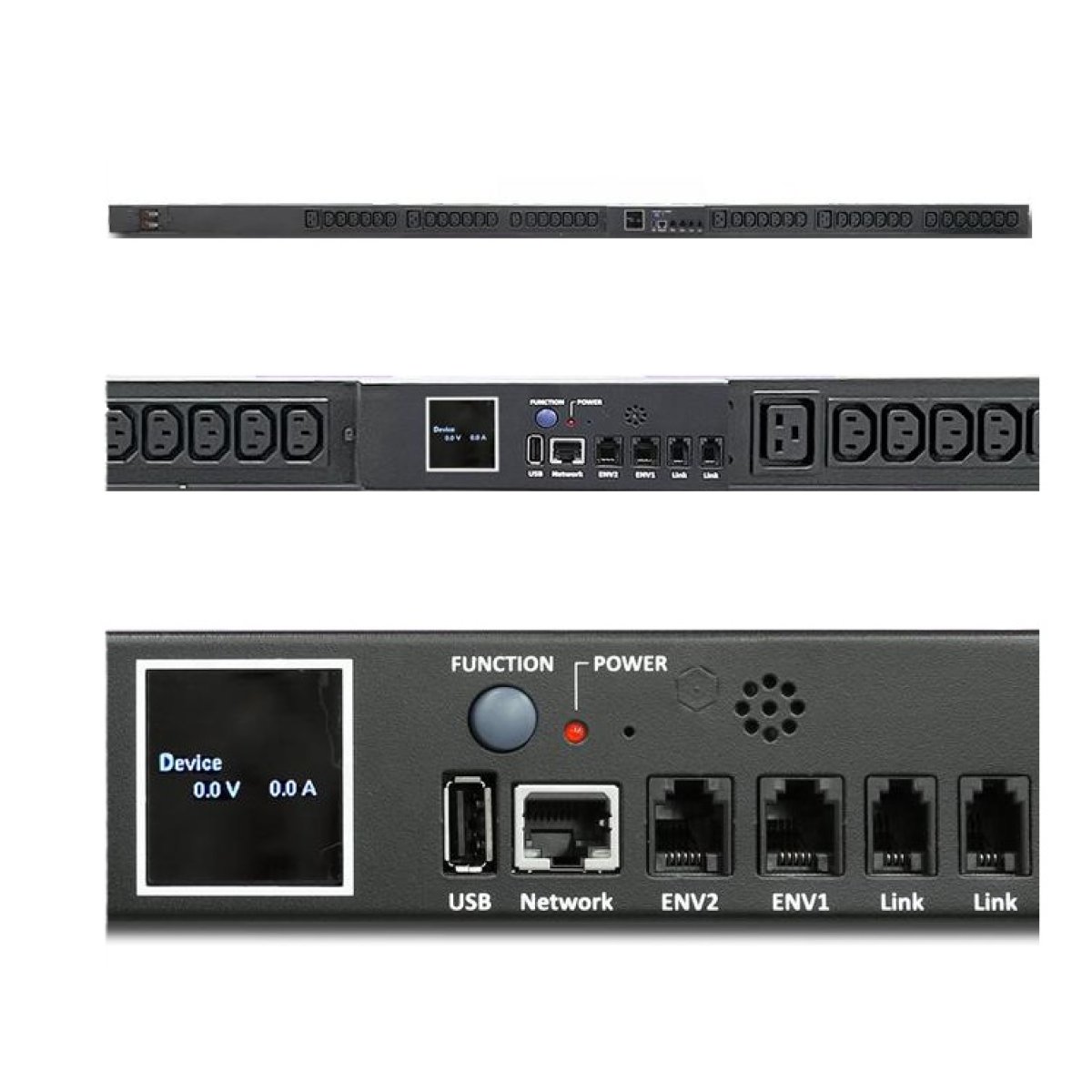

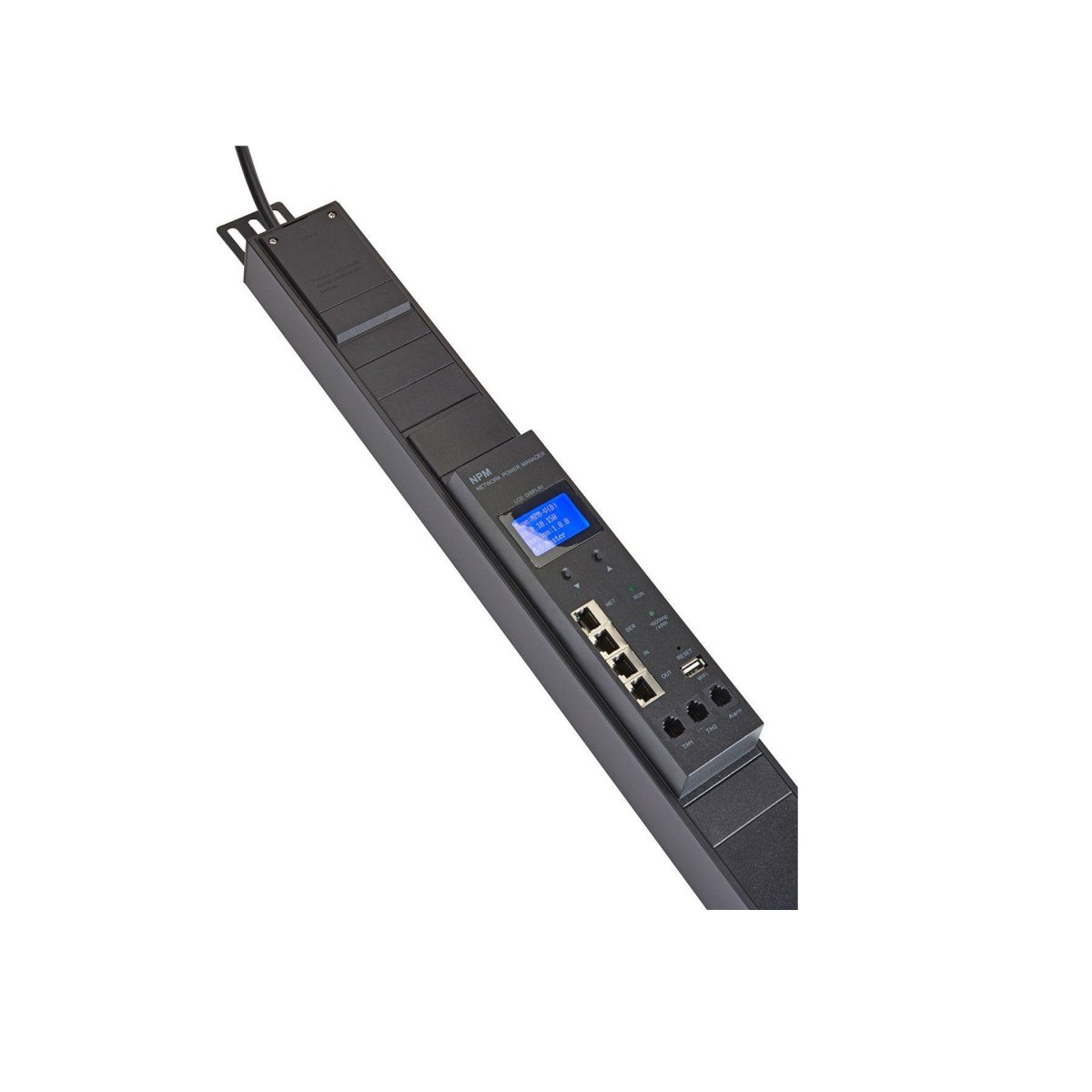

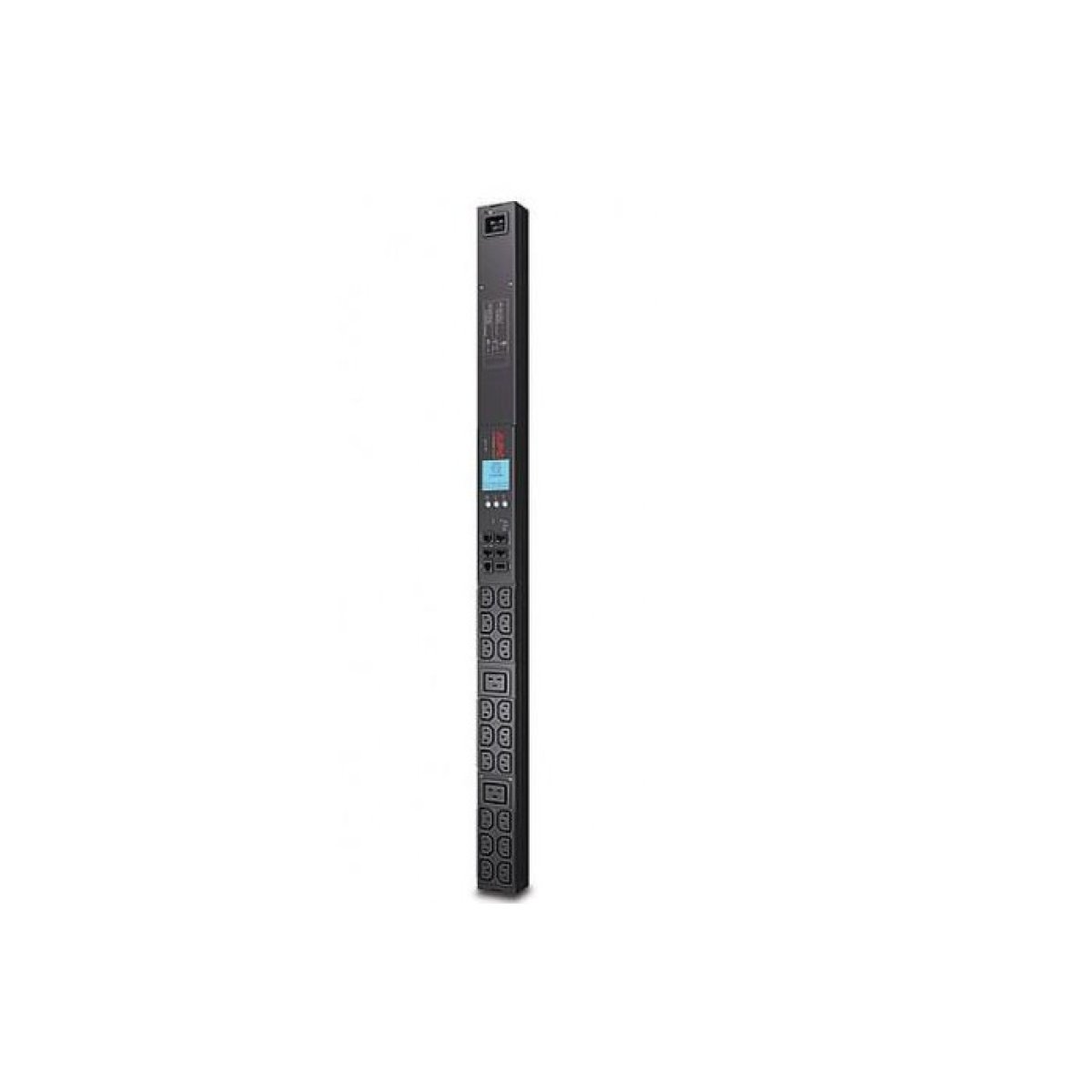

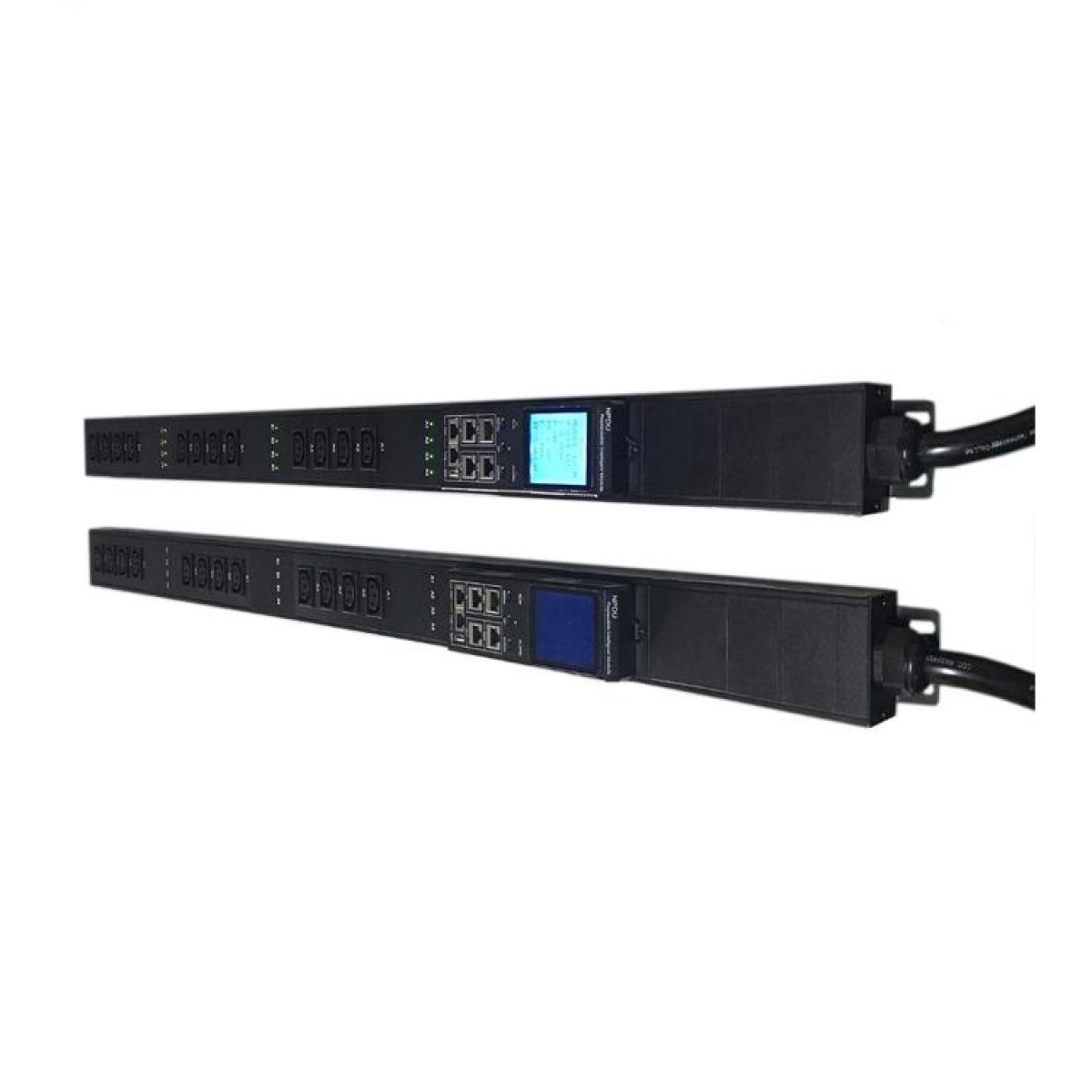

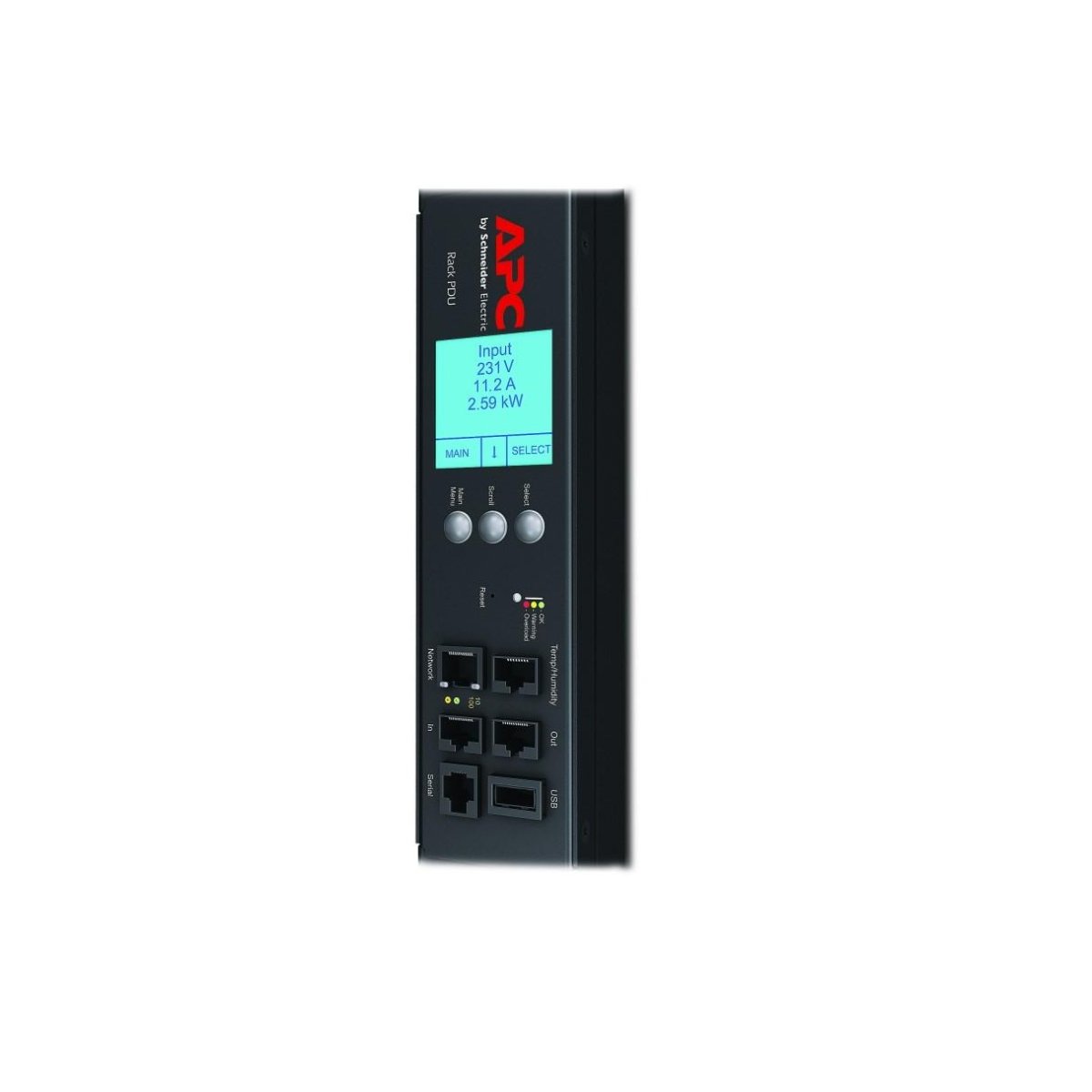

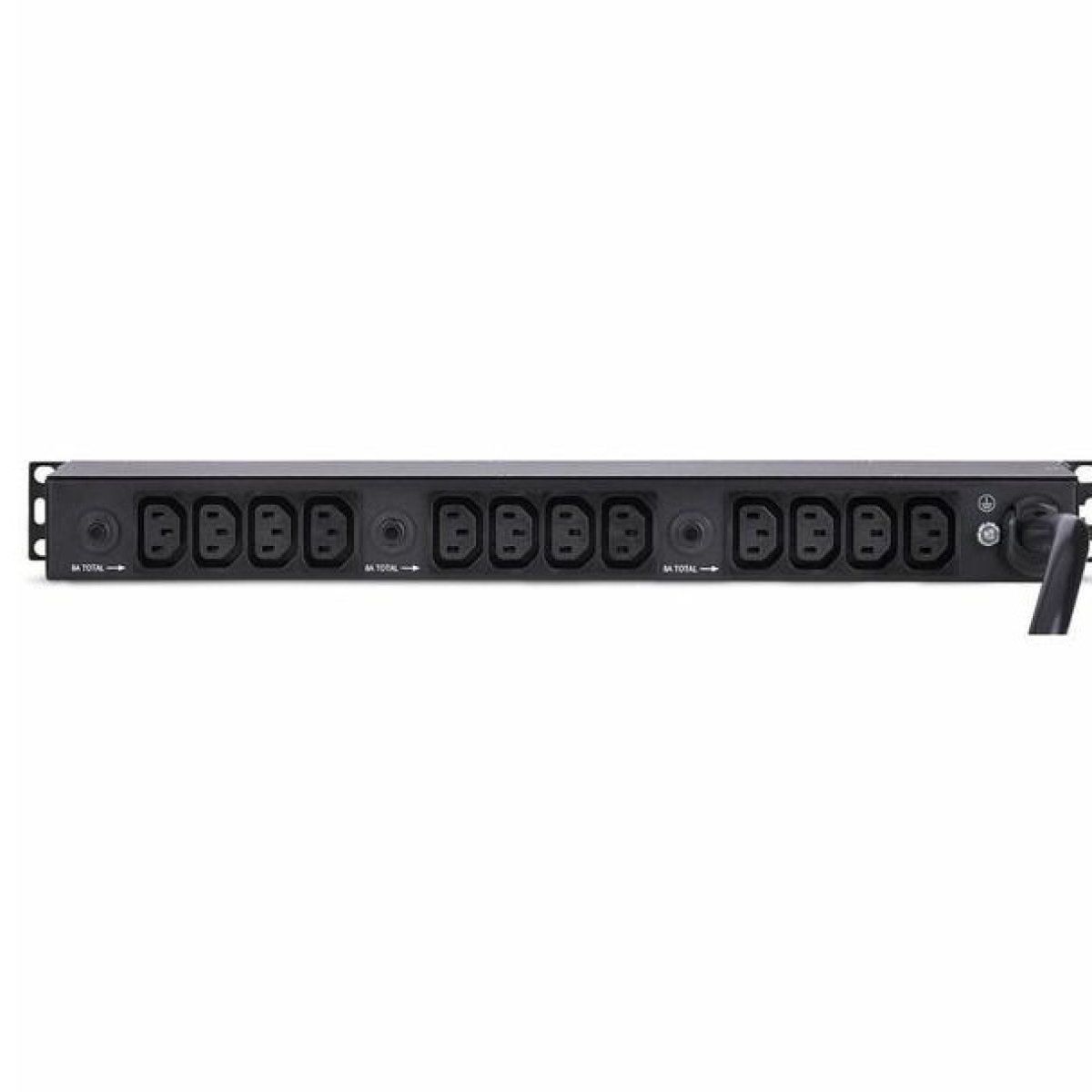

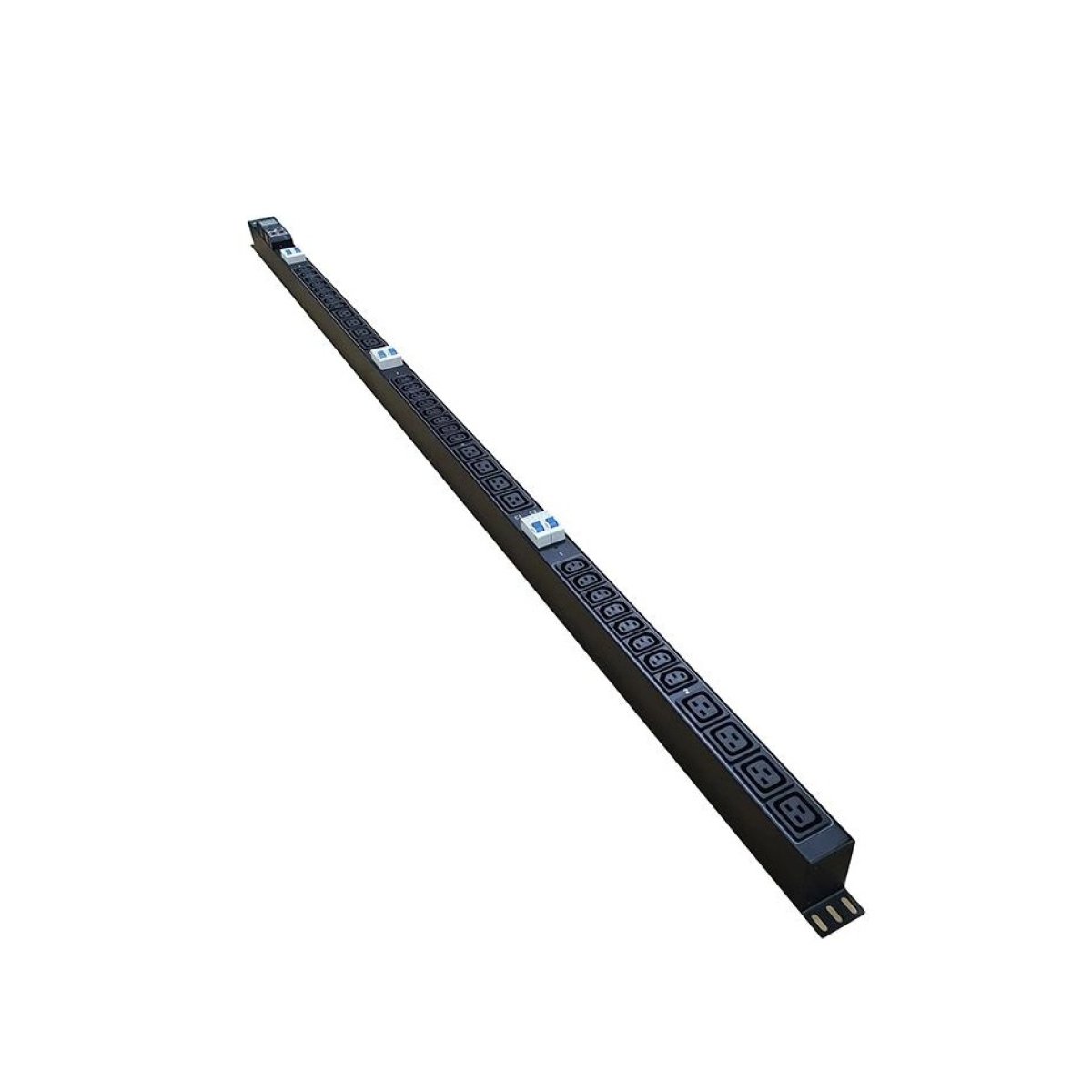

Rack-mounted intelligent Power Distribution Unit (PDU) designed to distribute electrical power to servers, network switches, storage equipment, and other IT devices, with power monitoring and remote outlet switching.
Detailed DescriptionThe ENLOGIC EN2326 is an input-metered rack PDU that provides controlled power distribution and monitoring for data center and server-room applications. It measures input voltage, current, power, power factor, and energy consumption. Network connectivity enables remote monitoring and outlet switching, helping administrators manage connected equipment and monitor power usage.
Key SpecificationsParameter
Specification
Brand
nVent ENLOGIC
Model
EN2326
Product type
Intelligent Input-Metered PDU
Input voltage
200–240 V AC
Input current
16 A
Power supply
Single-phase
Maximum input power
3.68 kVA
Output voltage
220–240 V AC
Outlets
20 × IEC C13, 4 × IEC C19
Power monitoring
Voltage, current, kVA, kW, power factor, kWh
Metering accuracy
±1%
Remote outlet switching
Supported
Network connectivity
Gigabit Ethernet and secondary Ethernet
Mounting
Rack-mounted
Common applications
CCTV server racks, network racks, data centers and IT equipment cabinets
