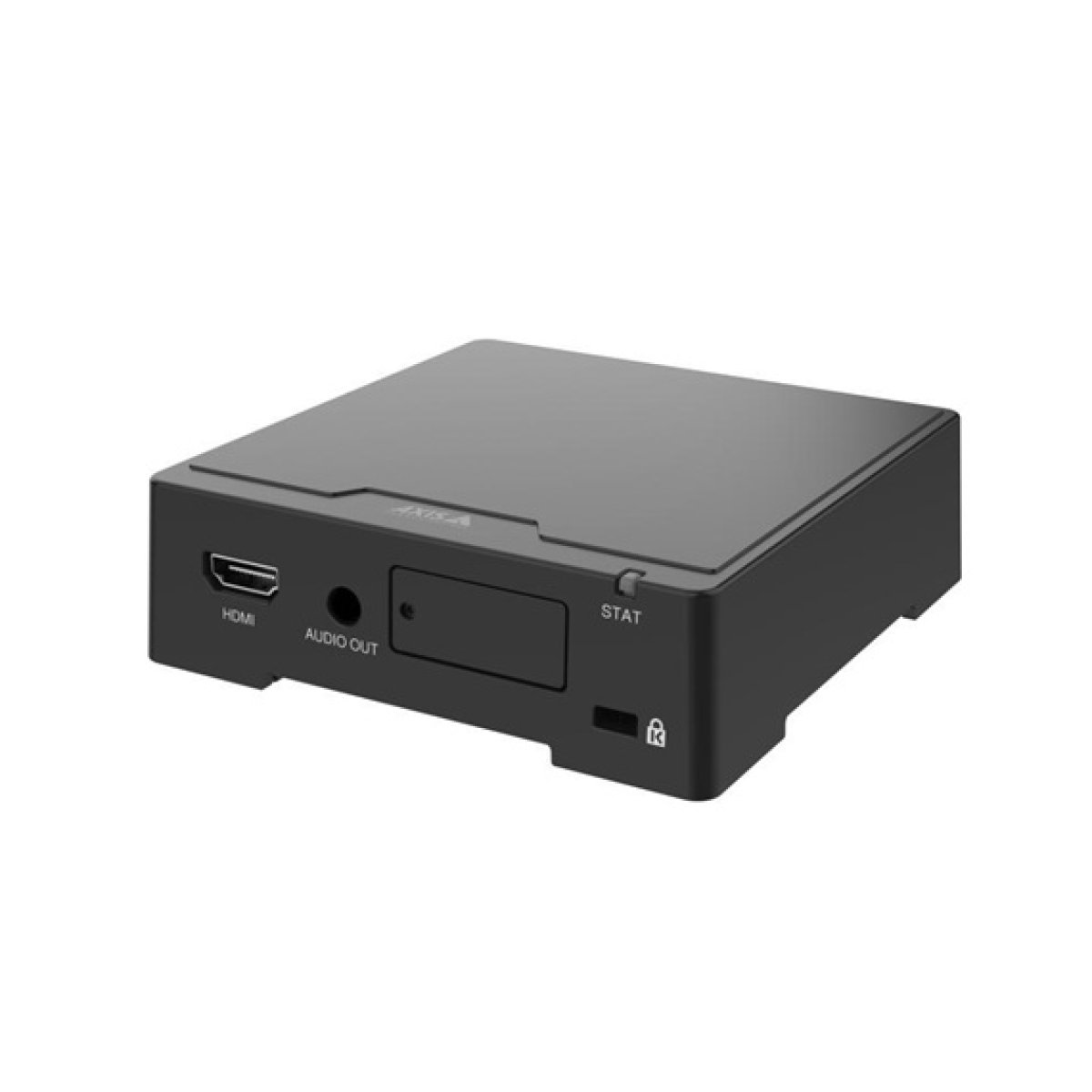

The AXIS D1110 Video Decoder 4K is a compact network video decoder that displays live IP-camera video on an HDMI monitor without requiring a dedicated PC. It supports 4K output and multi view monitoring.
The D1110 is designed for security control rooms, reception areas and remote monitoring stations. It can display camera streams in sequence or show multiple streams in a multi view layout, with up to 16 streams in one multi view according to Axis. It supports HDMI displays, network connectivity, PoE or DC power, and audio output. It can operate with compatible video management systems or in supported standalone scenarios.
Key specifications
Specification
Details
Model
AXIS D1110 Video Decoder 4K
Video output
1 × HDMI Type A
Maximum resolution
4K UHD, 3840 × 2160 at 25/30 fps
Multiview
Up to 16 video streams in one view
Video compression
H.264 and H.265
Network
10/100/1000 Mbps Ethernet
Power supply
PoE or 10–28 V DC
USB
2 × USB Type-A
Audio
3.5 mm line output and HDMI audio
Local storage
microSD card slot
Enclosure
IP30-rated aluminum
Operating temperature
0°C to 40°C
Weight
Approx. 500 g
Warranty
5 years, subject to Axis warranty terms
Specifications: official Axis documentation.
Common uses
Displaying live CCTV video on HDMI monitors
Security reception and guard-room monitoring
Displaying camera sequences and multi view layouts
Connecting a public-view monitor without a dedicated PC
Remote monitoring stations
Displaying Axis cameras through compatible VMS platforms
