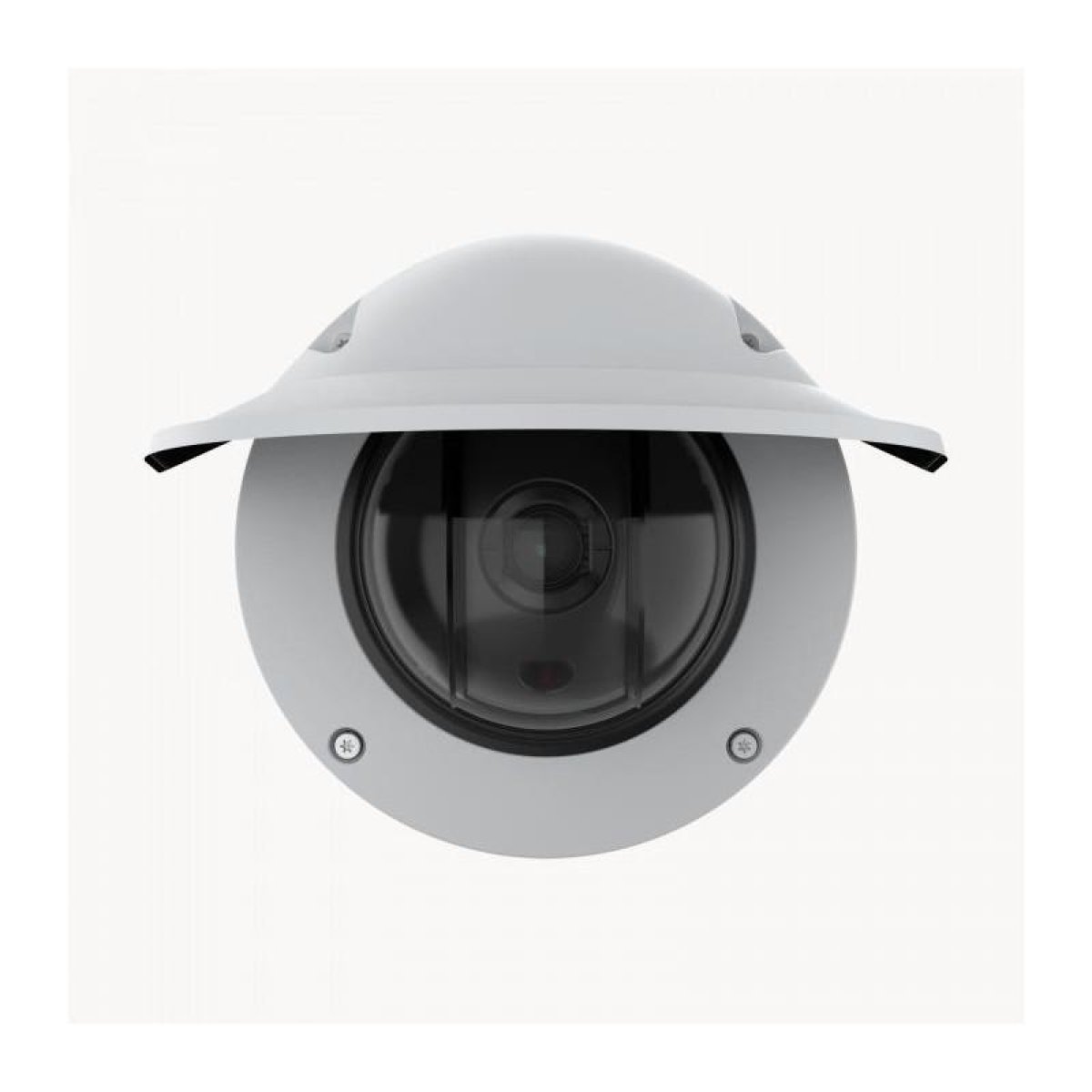

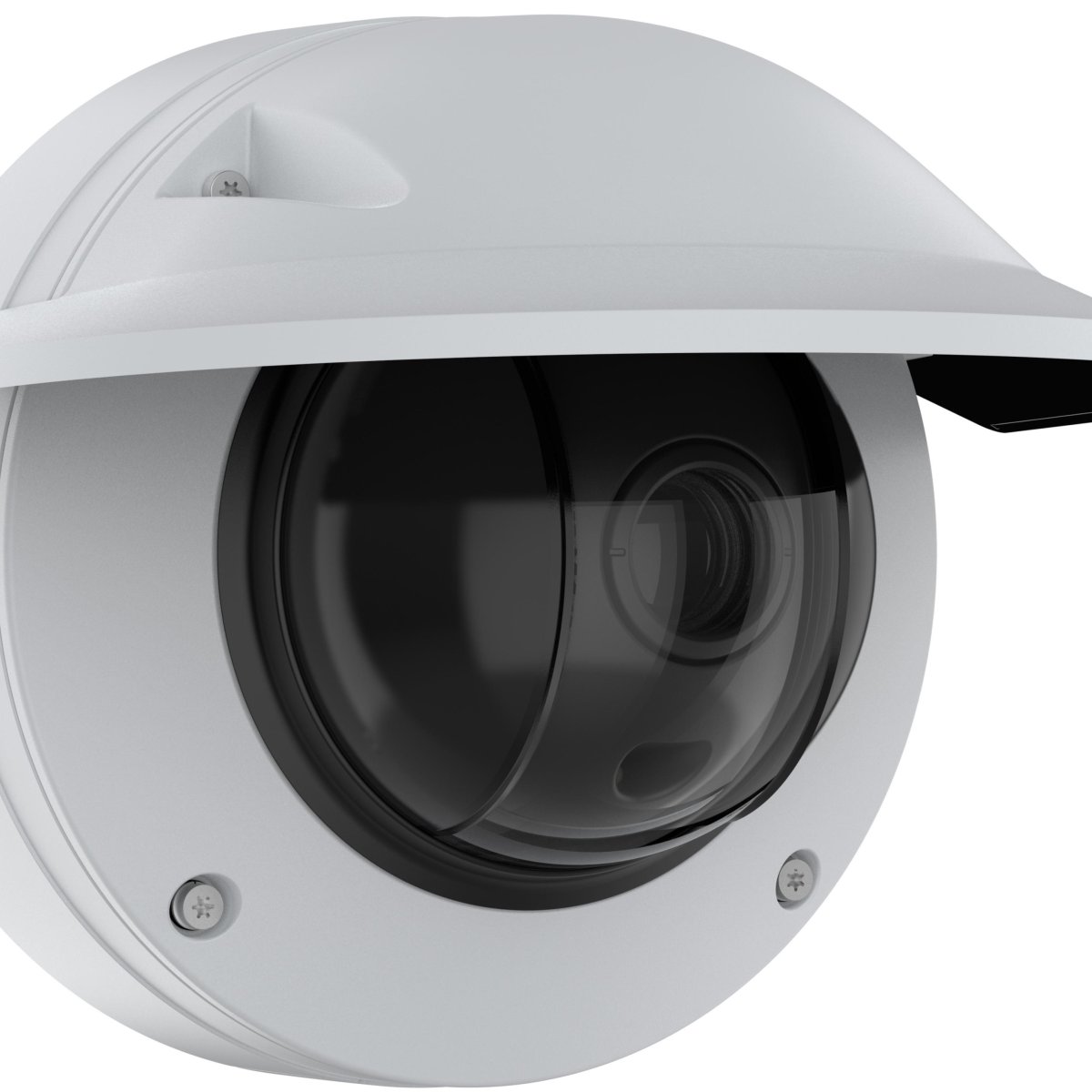

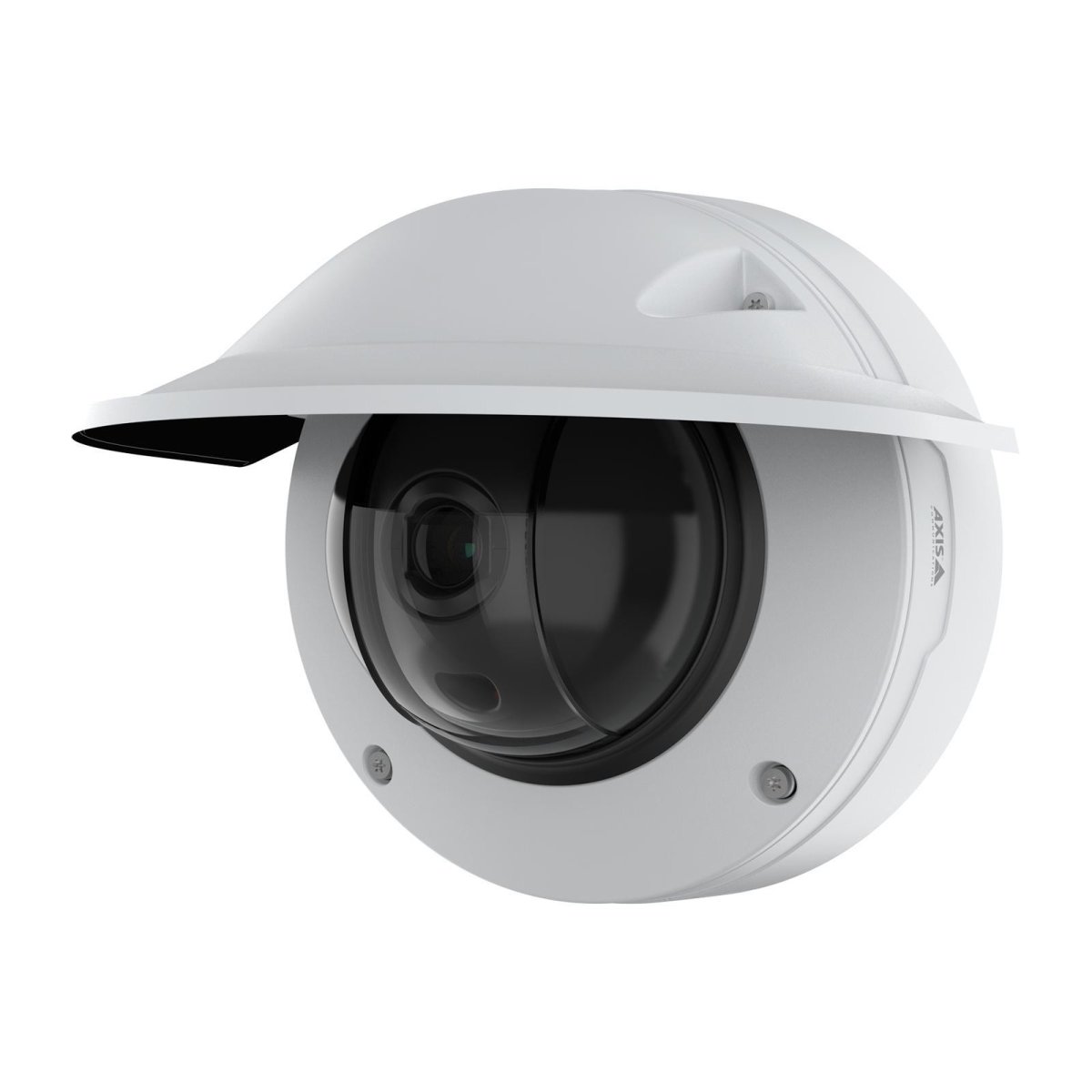

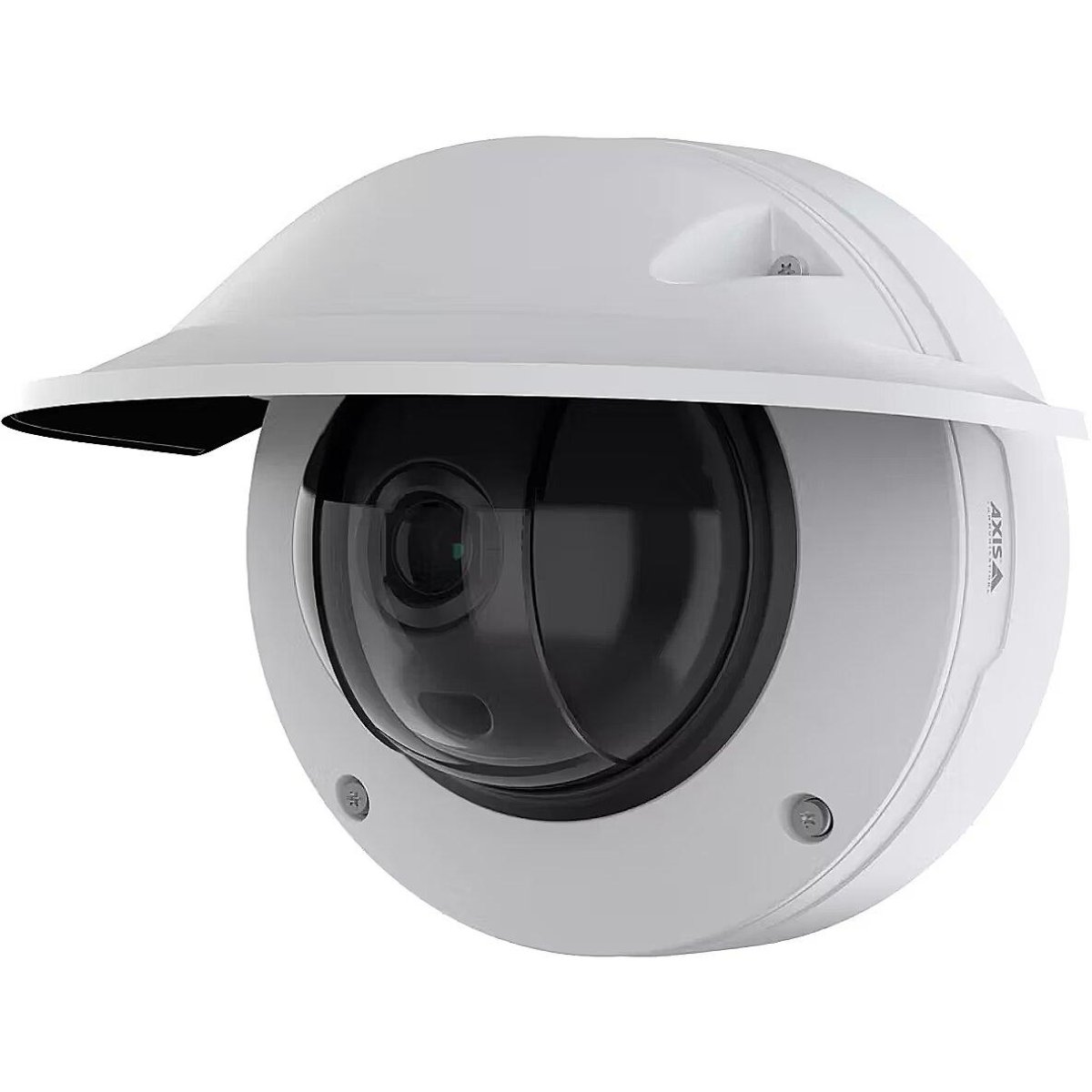

The AXIS Q3536-LVE is a high-performance outdoor fixed dome network camera designed for professional security surveillance. It features a 4 MP-class image resolution, advanced low-light imaging, wide dynamic range, built-in infrared illumination and a rugged vandal-resistant housing. It is suitable for demanding commercial, industrial and perimeter surveillance applications.
The camera uses a 1/1.8-inch progressive-scan CMOS sensor and ARTPEC-8 processing for high-quality video and intelligent analytics. Axis Lightfinder 2.0 supports low-light colour imaging, while Forensic WDR helps maintain detail in challenging lighting conditions.
Its motorized varifocal lens supports remote focus and zoom. Two lens variants are available: 9 mm for wider coverage and 29 mm for narrower, longer-range views. Integrated IR illumination supports surveillance in darkness, and built-in analytics can detect people and vehicles.
Technical specifications
Specification
Details
Camera type
Outdoor fixed dome IP camera
Image sensor
1/1.8-inch progressive-scan CMOS
Maximum resolution
2688 × 1512 (4 MP class)
Maximum frame rate
Up to 50/60 fps, depending on settings
Lens options
4.3–8.6 mm or 11.3–29.4 mm
Optical zoom
2× or 2.6×, depending on lens variant
Horizontal field of view
Approximately 103°–53° or 41°–15°
Low-light technology
Lightfinder 2.0
Wide Dynamic Range
Forensic WDR
Minimum illumination (colour)
0.06 lux (9 mm); 0.08 lux (29 mm)
Night vision
Integrated IR illumination
Video compression
H.264, H.265, Motion JPEG
Image stabilization
Electronic Image Stabilization
Analytics
AXIS Object Analytics, AXIS Video Motion Detection
Network
Ethernet IP connectivity
Power
PoE, IEEE 802.3at Class 4
Local storage
microSD card slot
Cybersecurity
Axis Edge Vault, signed OS, secure boot
Ingress protection
IP66, IP6K9K
Vandal resistance
IK10+
Operating temperature
−50°C to +55°C
Audio
Supported; external audio connections
ONVIF
Profiles G, M, S and T
