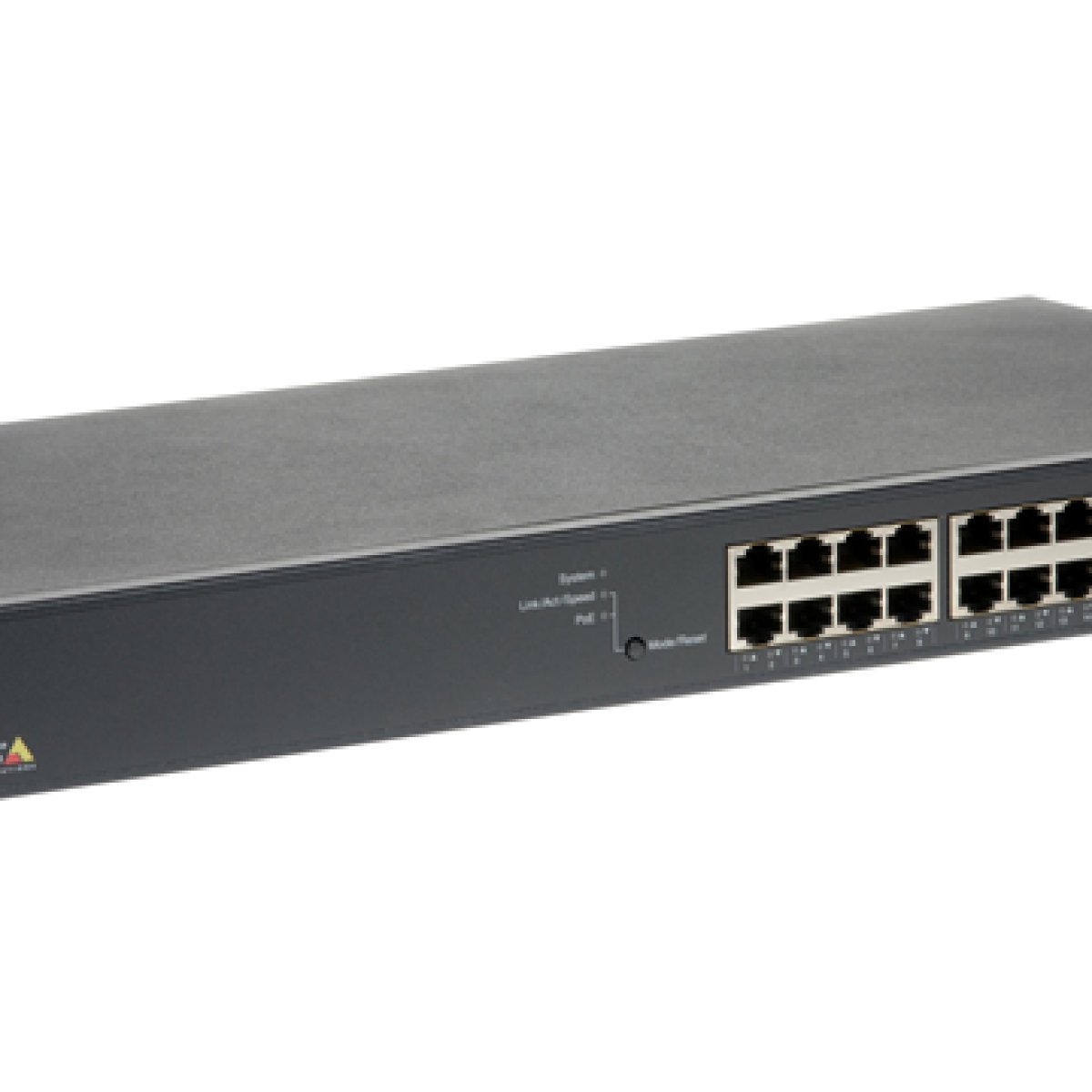

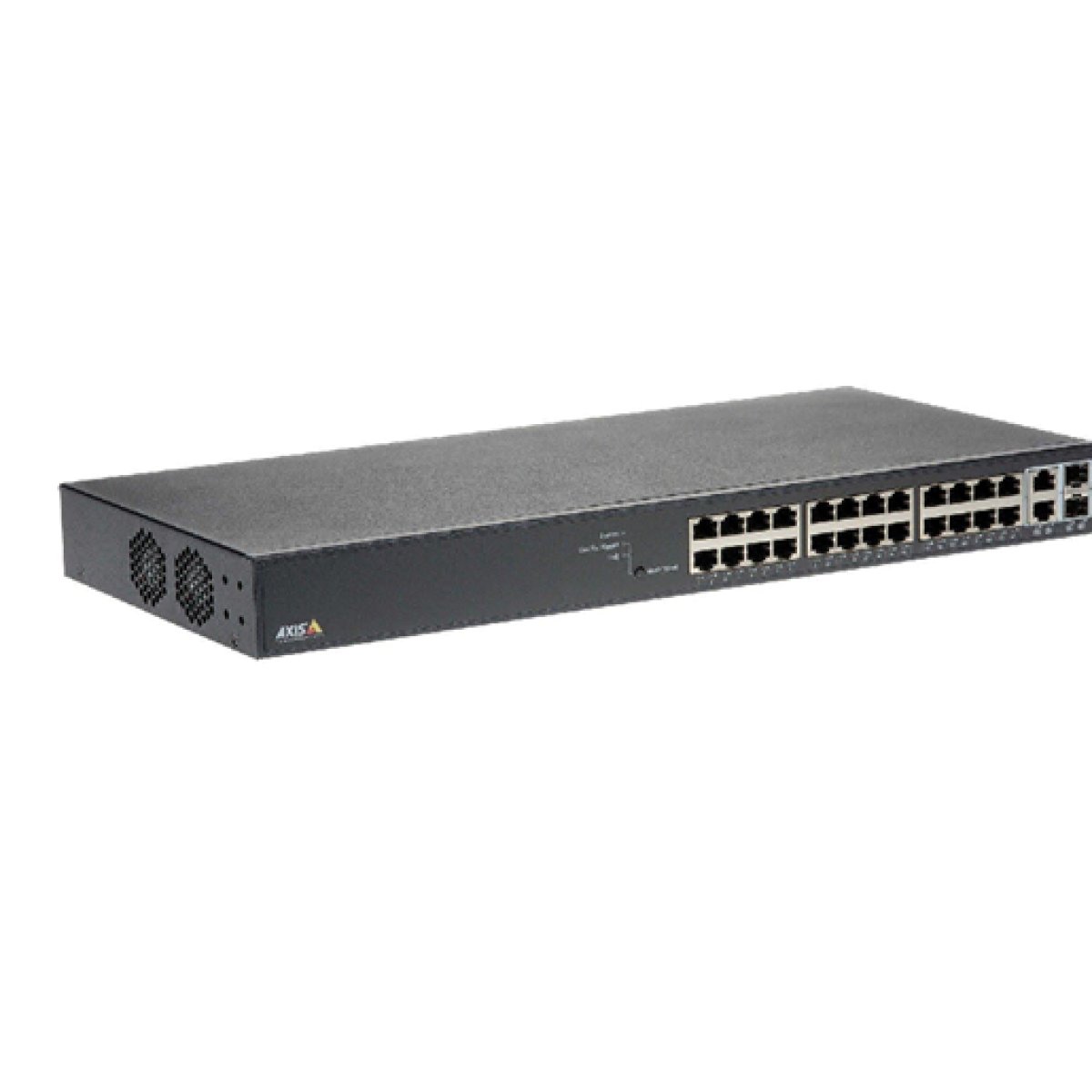

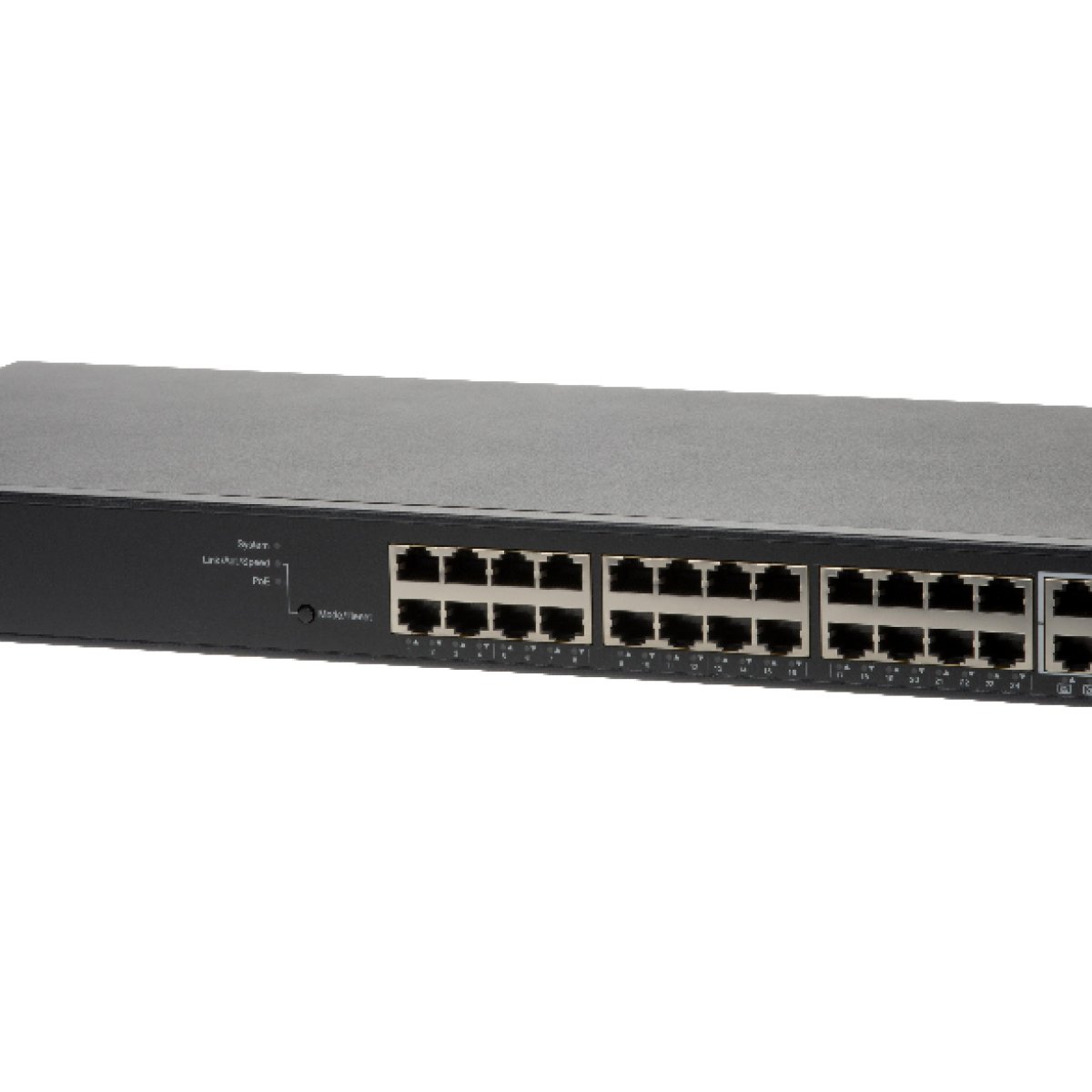

The AXIS T8524 PoE+ Network Switch is a 24-port Gigabit Ethernet switch designed to provide network connectivity and power to IP cameras and other compatible PoE devices.
The AXIS T8524 is a network switch designed for professional IP surveillance installations. It provides Ethernet connectivity and Power over Ethernet Plus (PoE+) to compatible devices through a single cable, simplifying installation and reducing the need for separate power adapters. It is suitable for CCTV networks in commercial buildings, offices, and security facilities.
Specification Details
Brand
Axis Communications
Model
AXIS T8524
Device Type
PoE+ Network Switch
Ethernet Ports
24 × Gigabit Ethernet
PoE Standard
IEEE 802.3at PoE+
Total PoE Budget
Up to 370 W
Uplink Ports
2 combination SFP/RJ45 ports
Network Speed
10/100/1000 Mbps
Application
IP surveillance networking
Confirm the exact hardware revision and specifications with the manufacturer's datasheet before procurement.
Common Uses
Connecting IP CCTV cameras to the surveillance network.
Supplying power to compatible PoE/PoE+ cameras.
Connecting network video recorders and video management servers through the network.
Building centralized CCTV networks for offices and commercial facilities.
Reducing separate power cabling for compatible surveillance devices.
