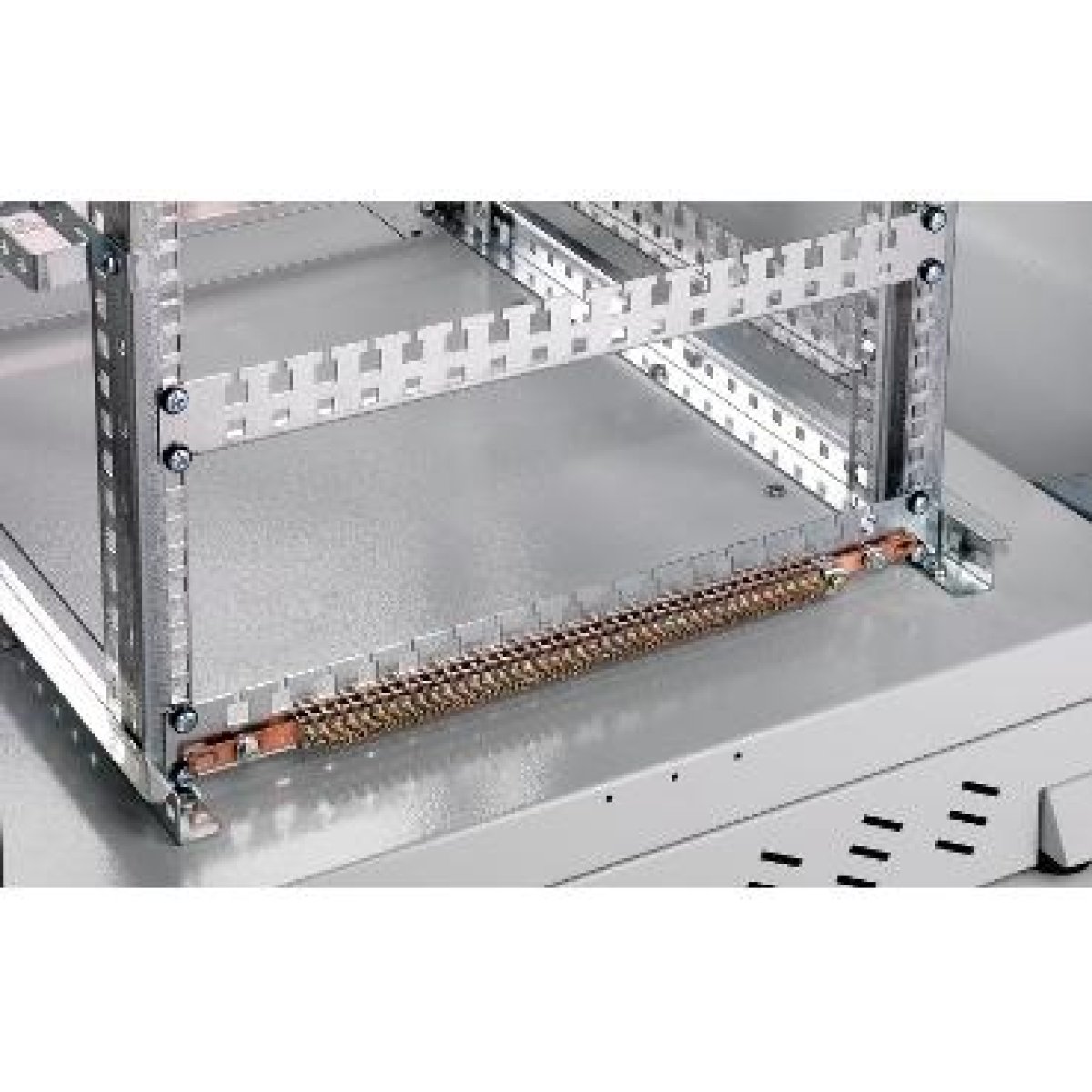

A cabinet earth bar is a conductive copper bar installed inside an electrical panel, server rack, or CCTV cabinet to provide a common grounding point for equipment enclosures, cable shields, and protective earth conductors.

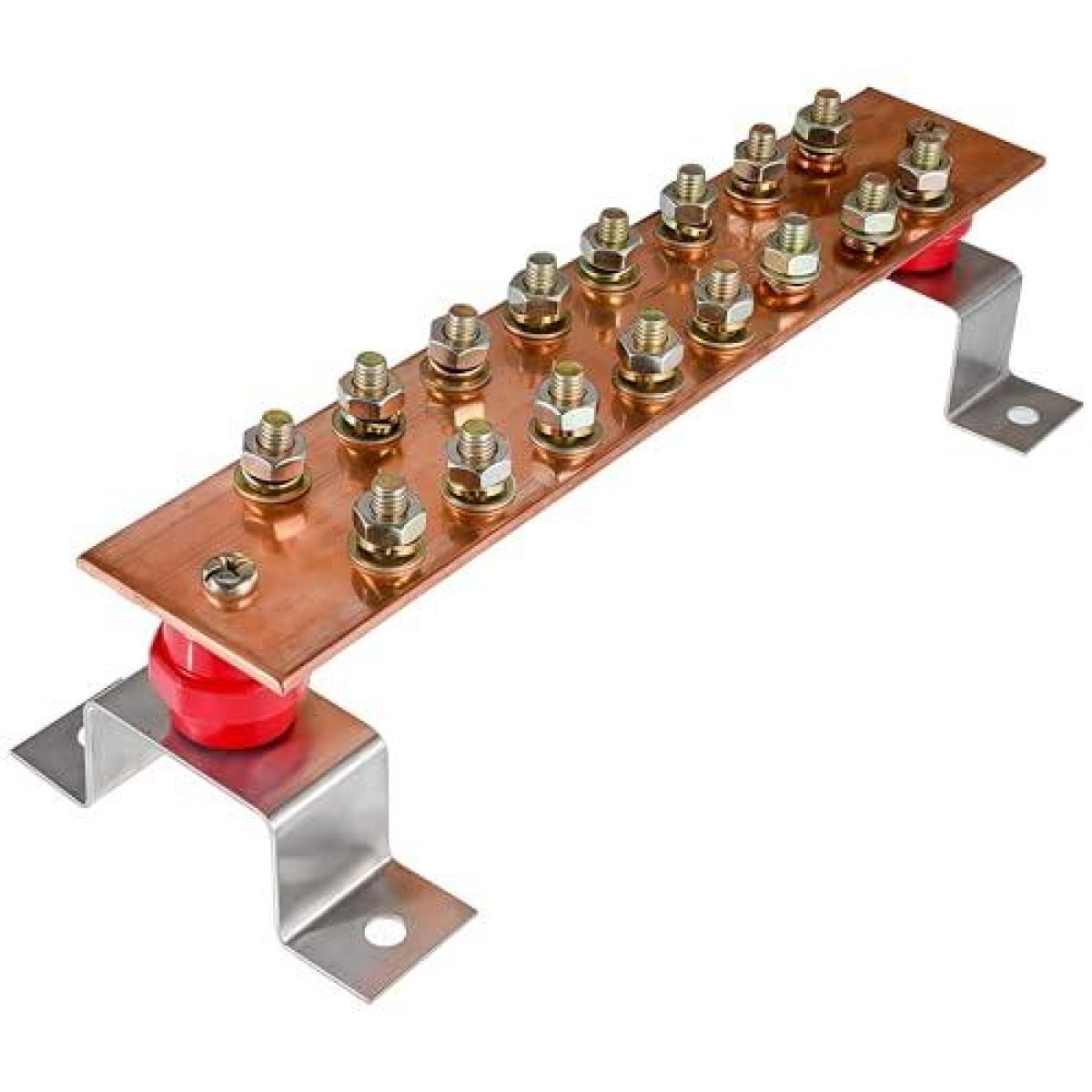

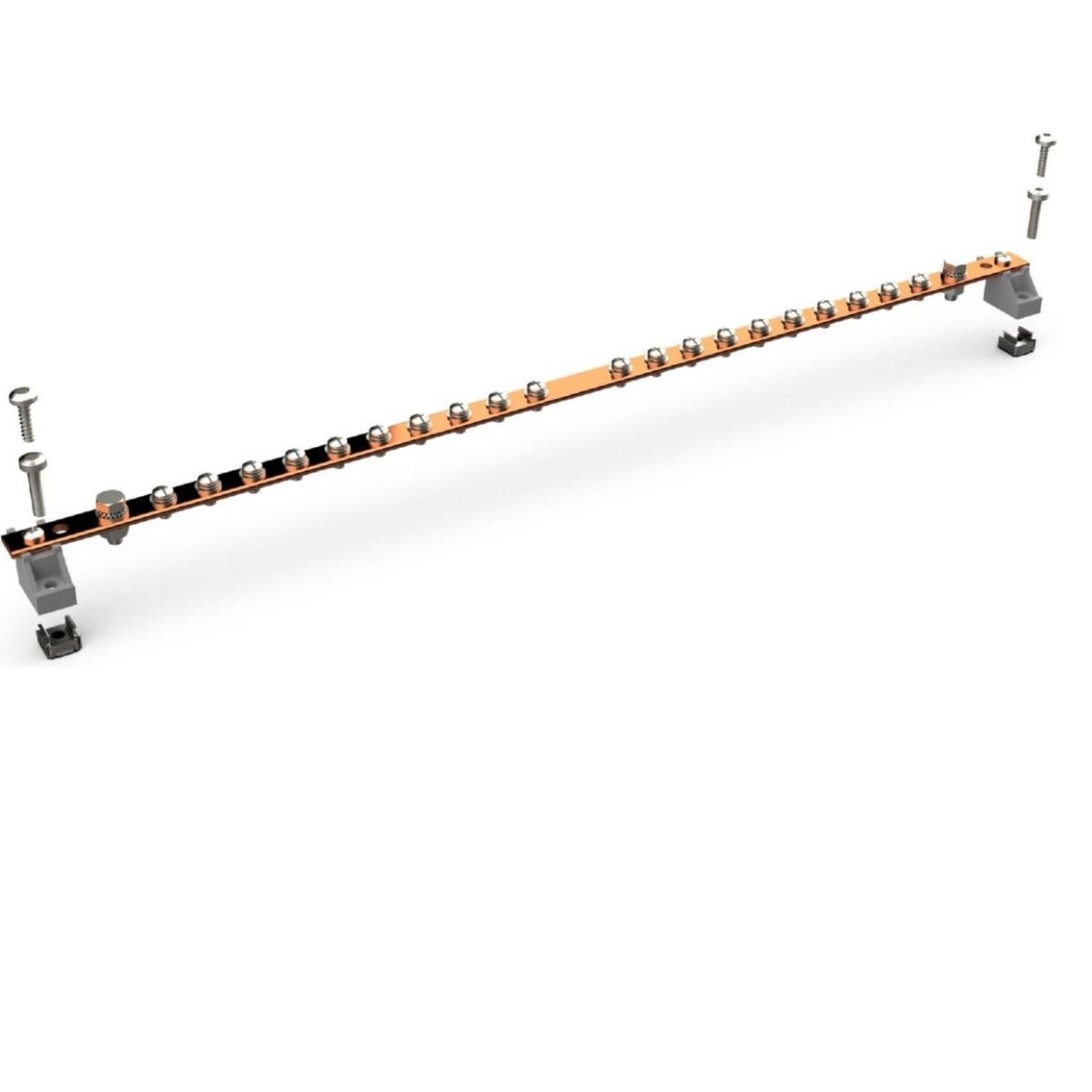

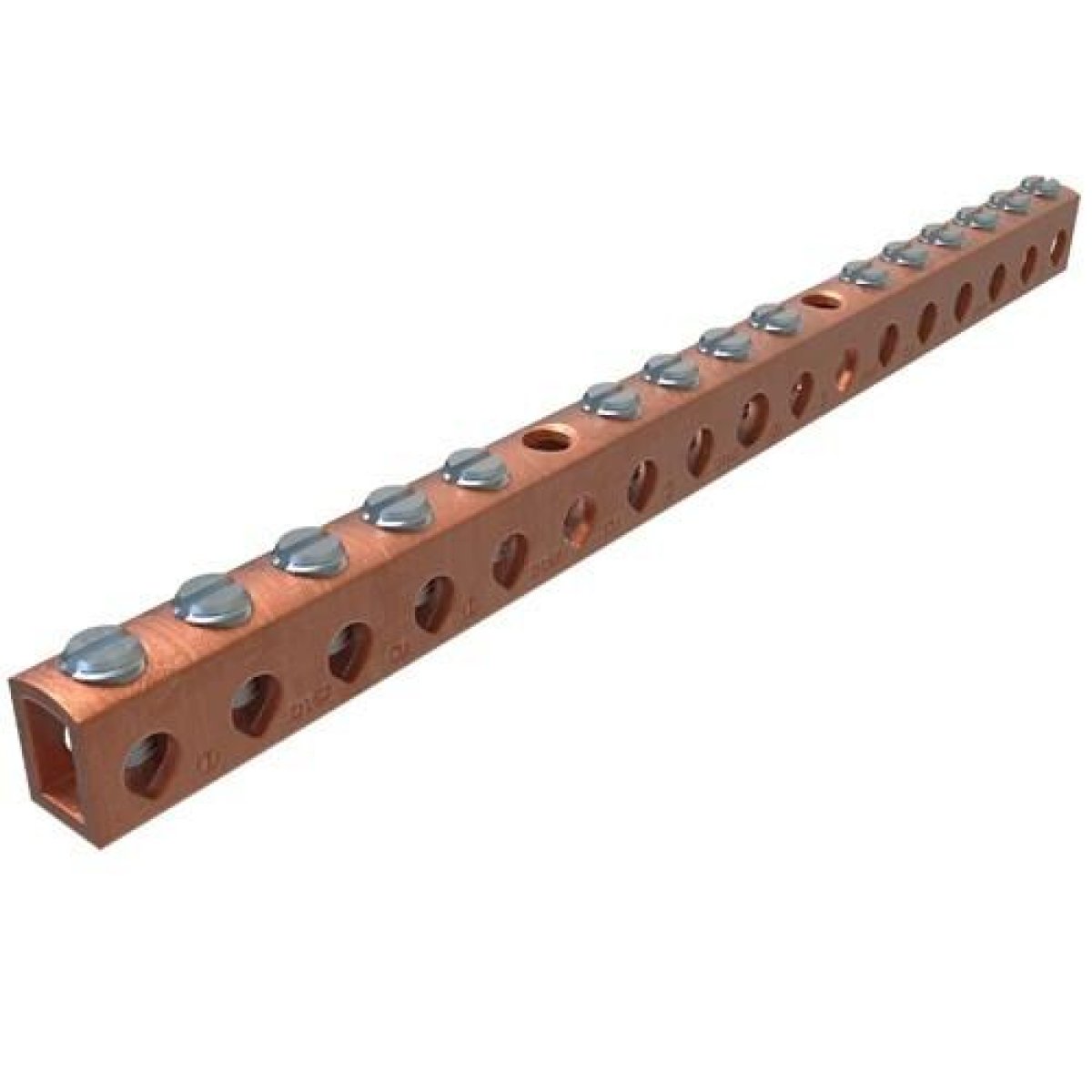

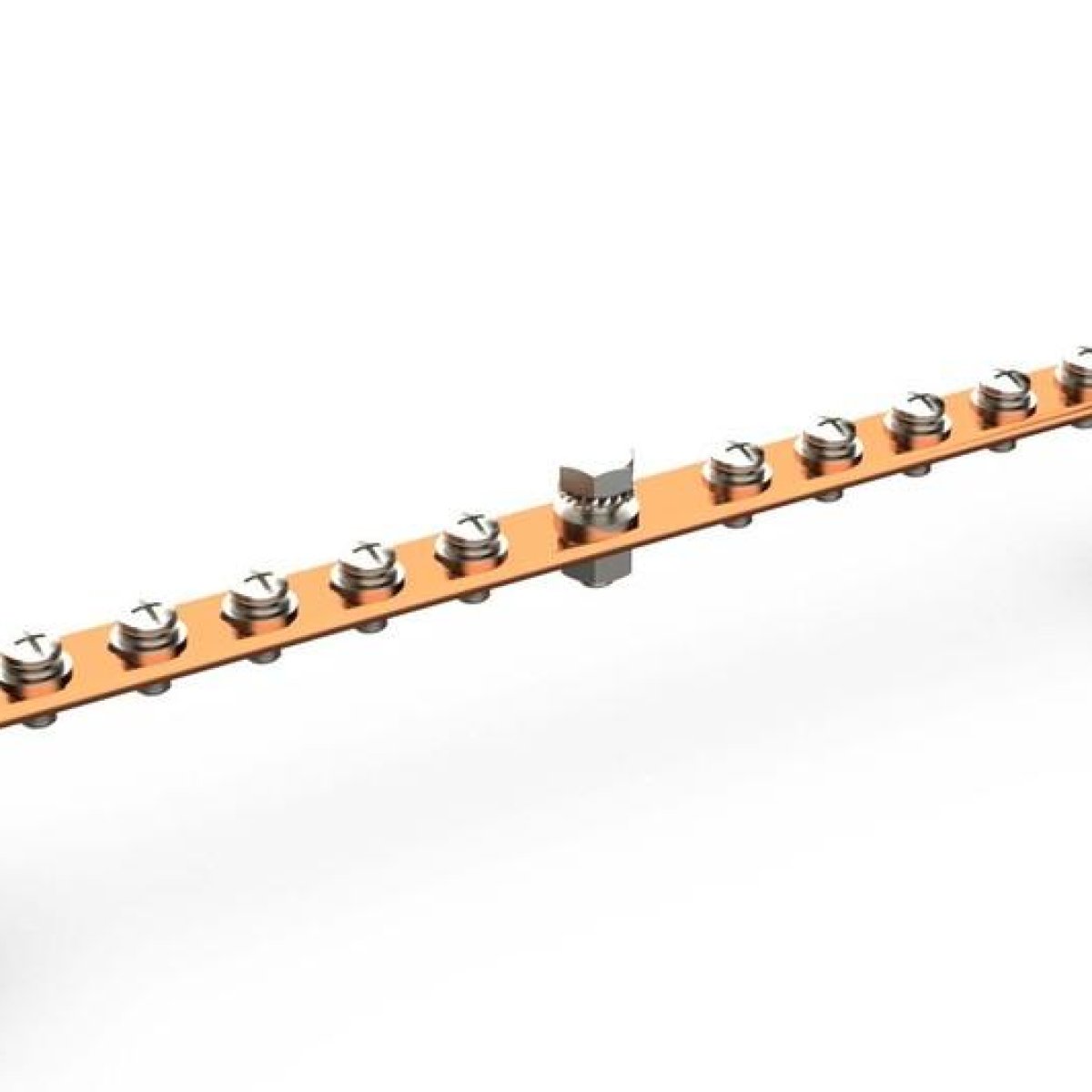

The cabinet earth bar is designed to provide an organized, low-resistance bonding point for electrical and electronic equipment. Manufactured from copper or tinned copper, it features multiple connection holes or terminals for securely terminating grounding wires.

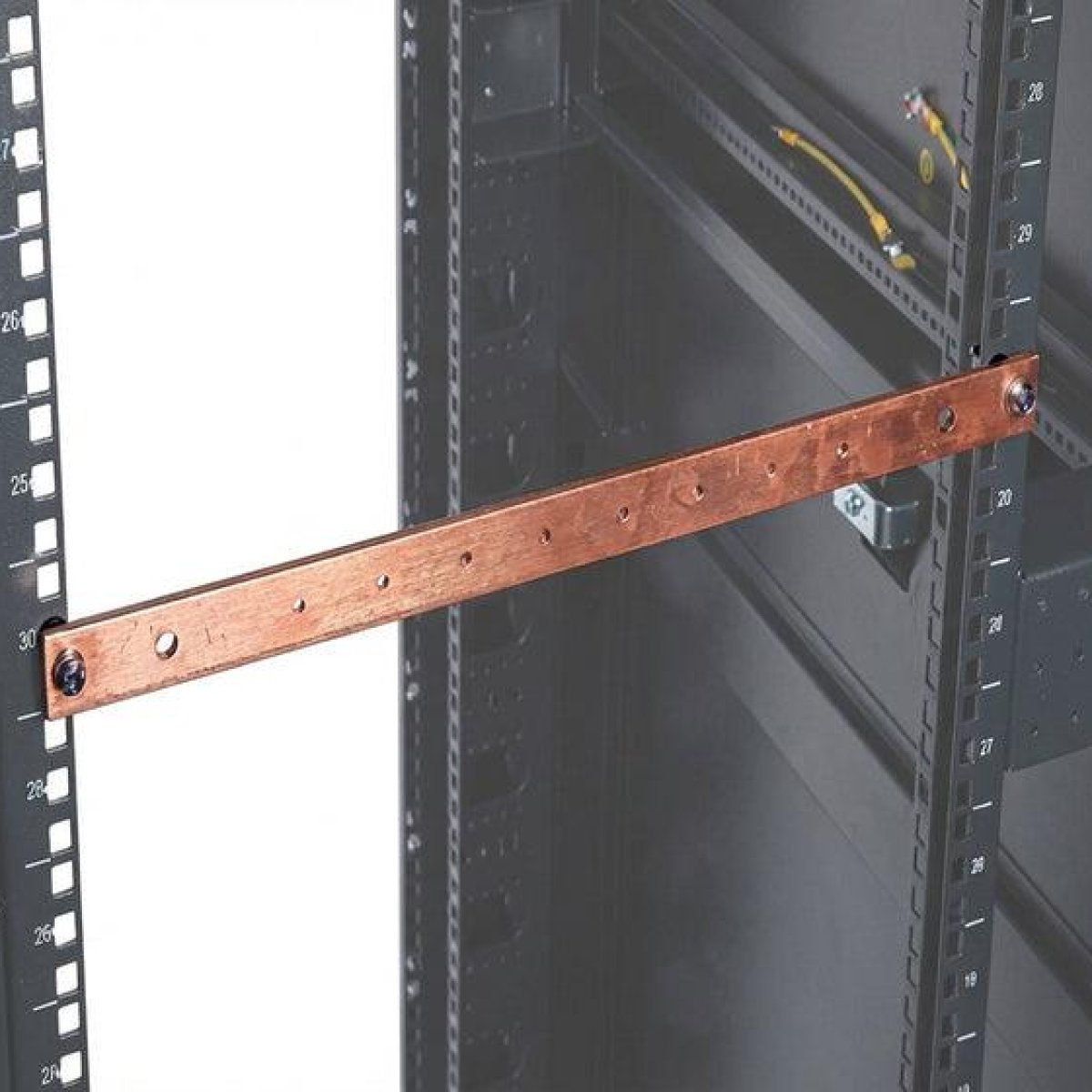

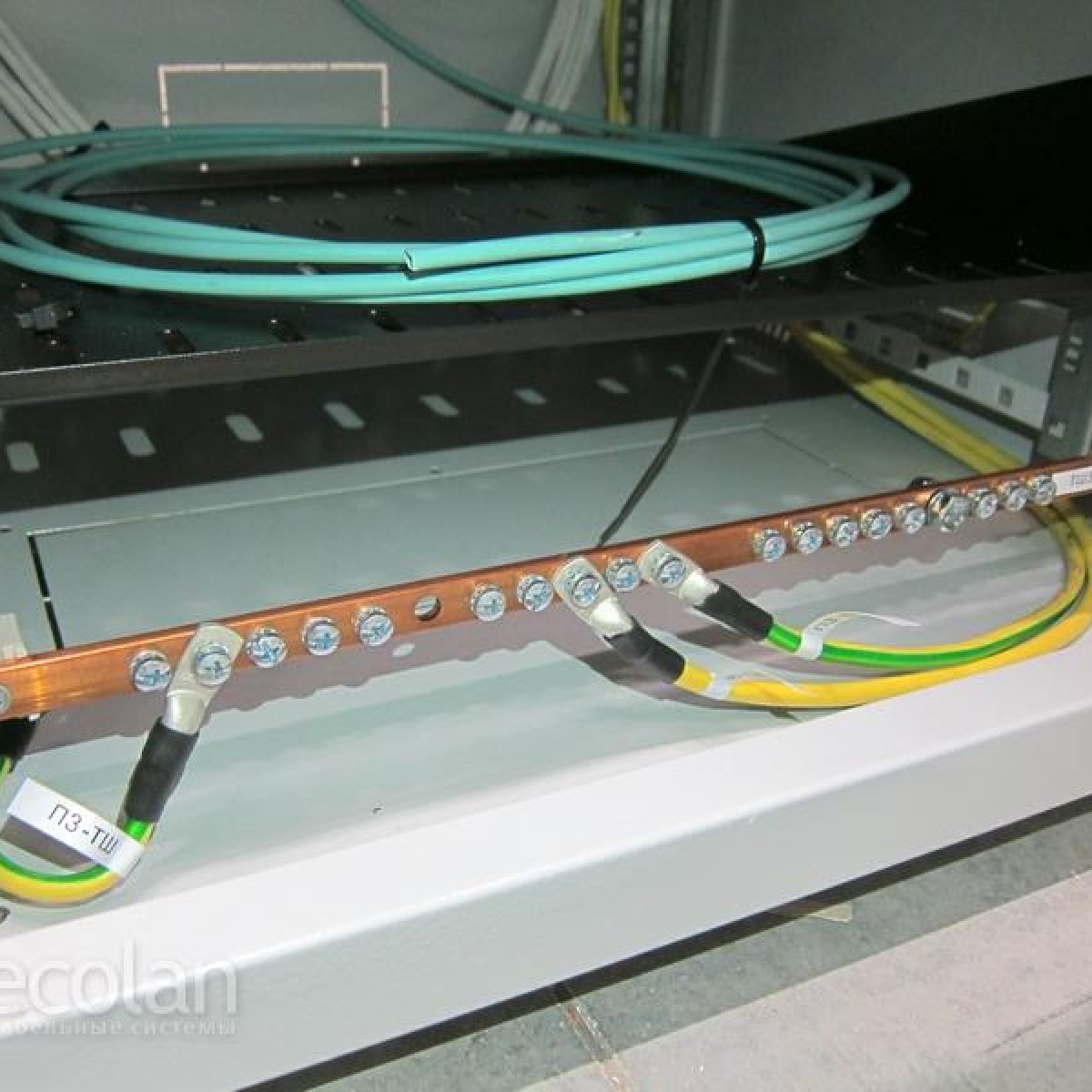

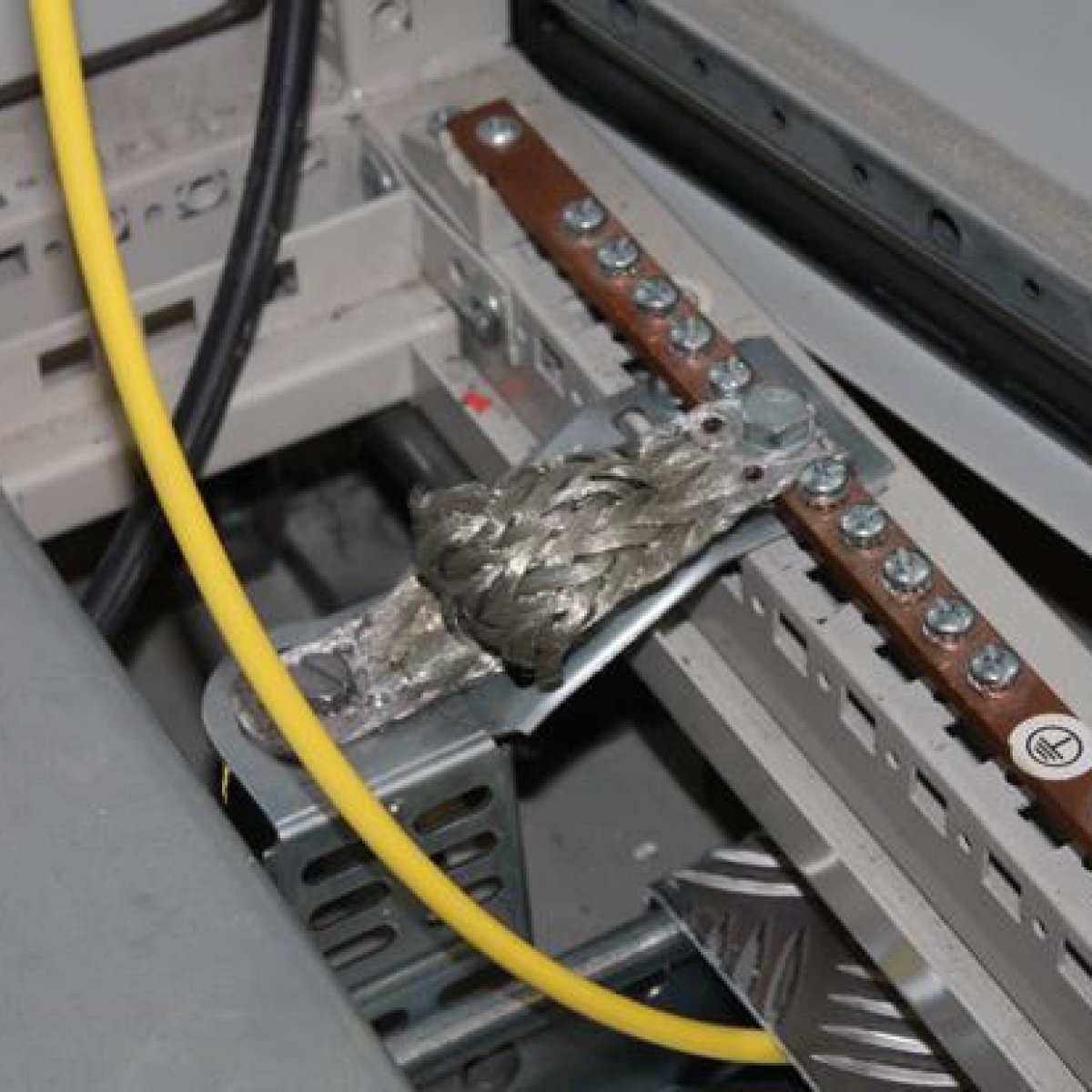

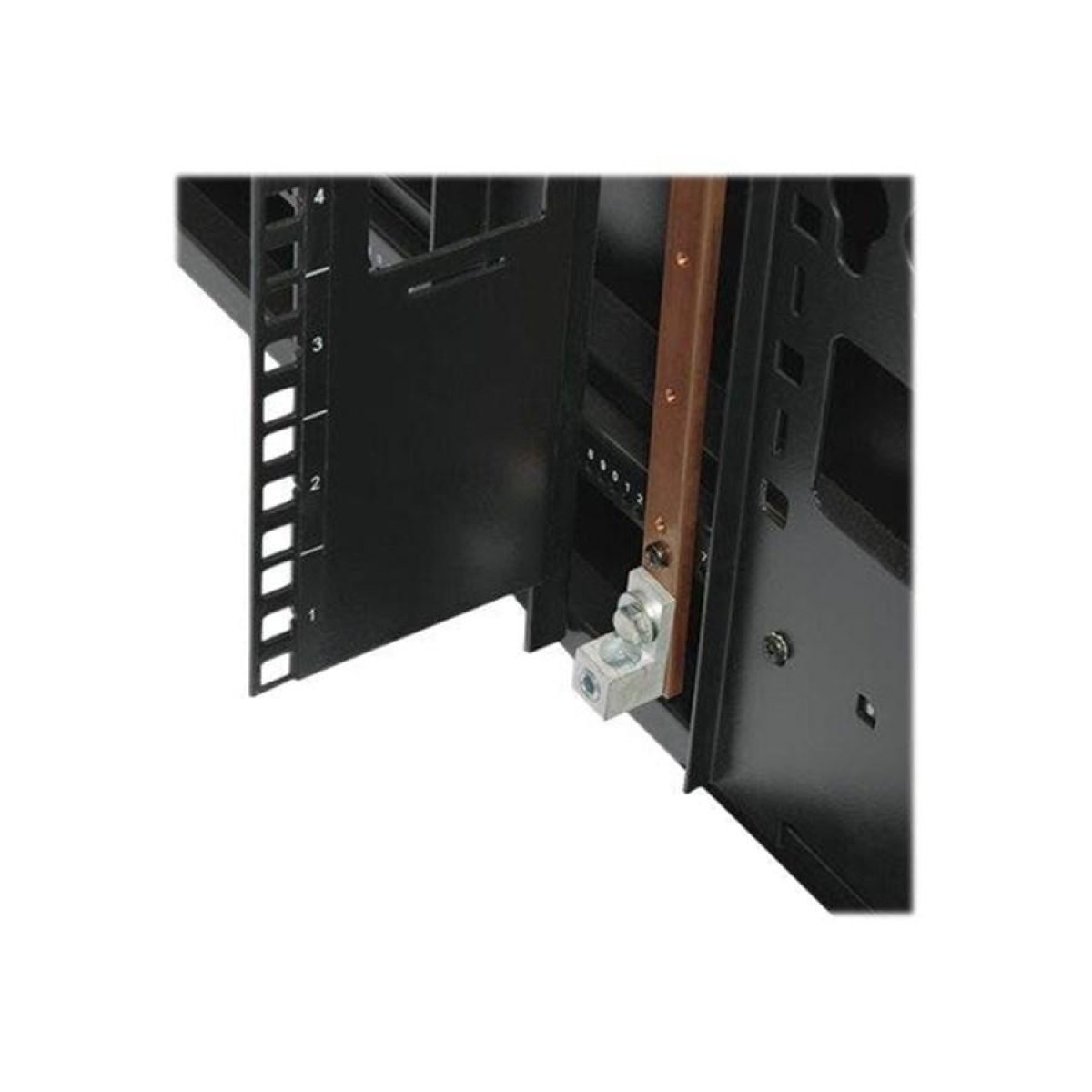

In CCTV surveillance and network installations, the earth bar helps bond metal cabinets, rack frames, cable trays, and other conductive components to the main earthing system. Proper installation supports electrical safety and helps manage grounding and bonding requirements.
Key Specifications
Specification
Details
Product Type
Cabinet Earth Bar / Grounding Busbar
Material
Copper / Tinned Copper
Mounting
Cabinet / Server Rack / Electrical Panel
Configuration
Flat bar with multiple connection points
Typical Size
150–300 mm length, project dependent
Thickness
Approximately 3–6 mm, model dependent
Connection
Screw / Bolt Terminals
Accessories
Insulated supports, mounting screws and bolts
Application
CCTV cabinets, server racks, network cabinets and electrical panels
