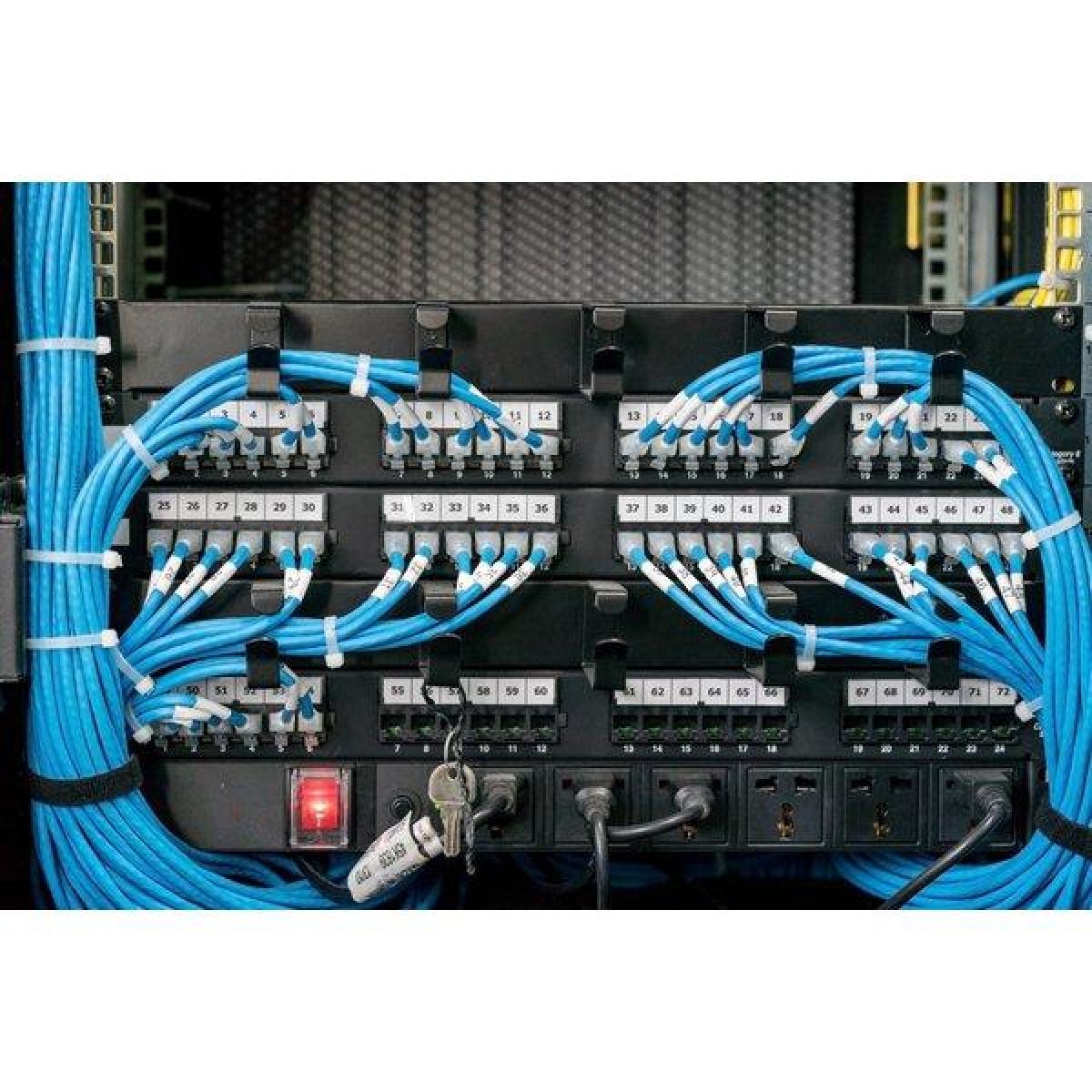

A Cabling and Port Management System organizes, identifies, routes, and manages network cables and connection ports in CCTV surveillance, server rooms, and structured cabling installations.

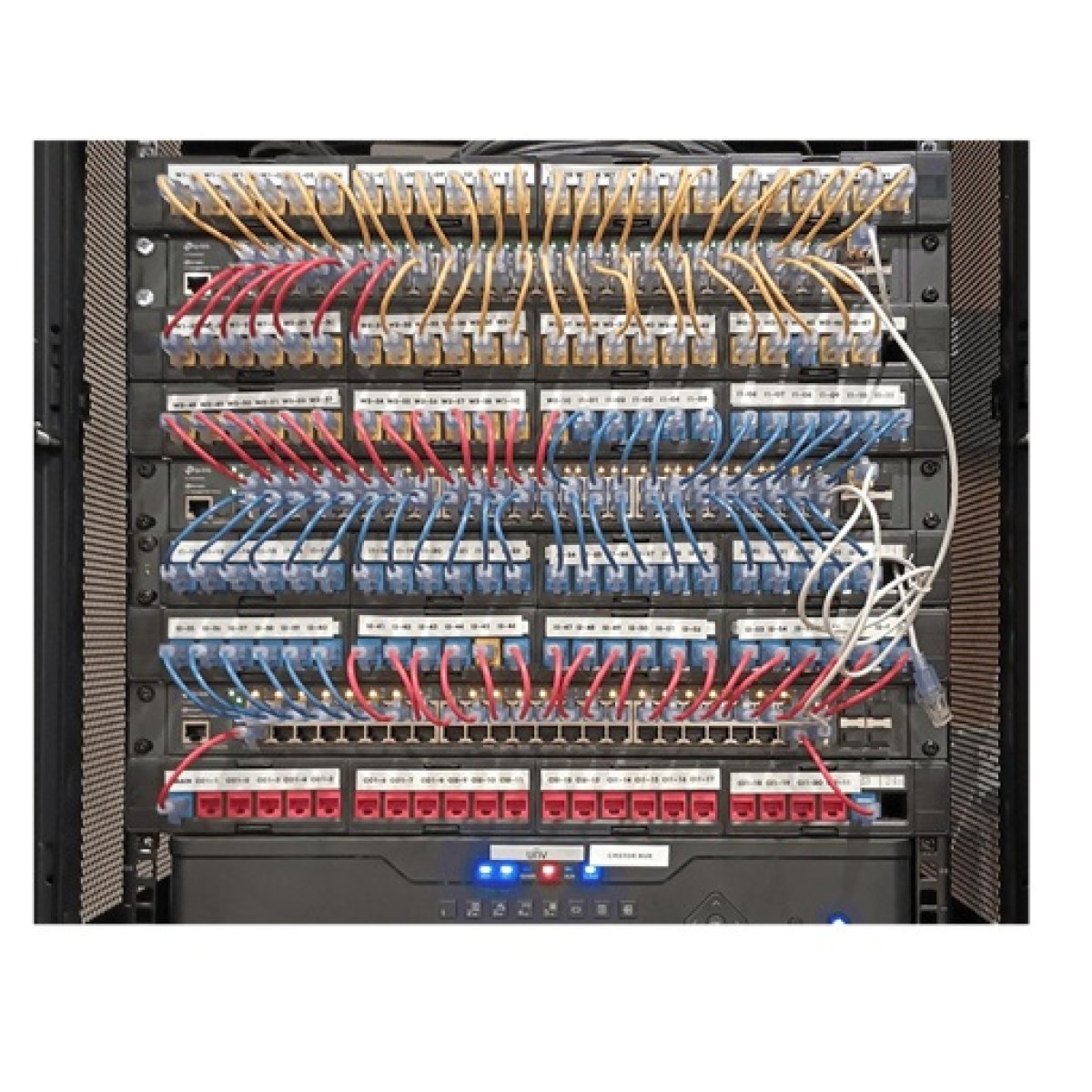

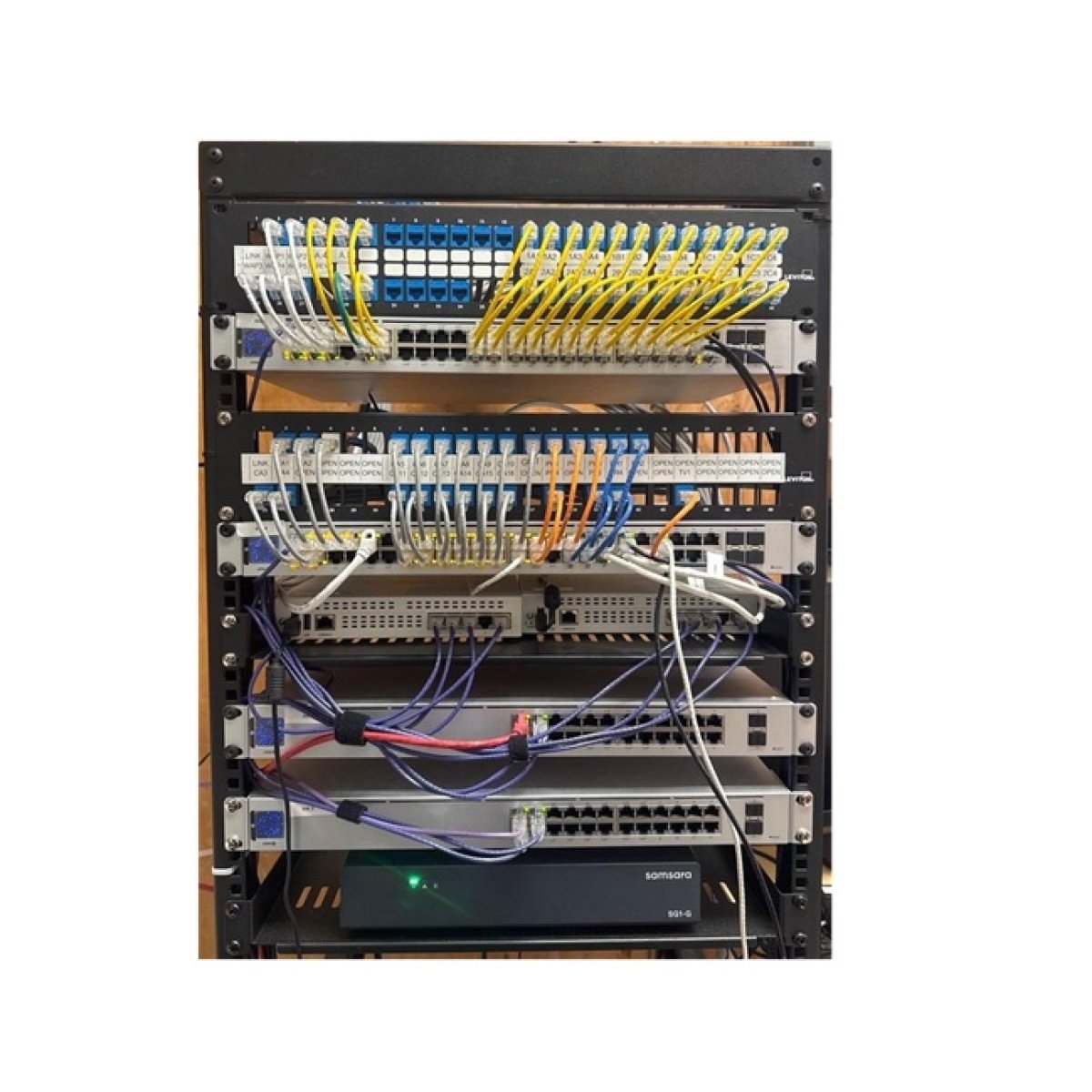

This system combines patch panels, cable managers, port labels, cable identification accessories, and documentation to provide an organized network infrastructure. It simplifies camera identification, troubleshooting, maintenance, and future expansion.
For your 86-camera CCTV project, each camera cable and corresponding switch port should have a unique identification number, such as CAM-001 through CAM-086, matching the CCTV layout, patch panel, network switch, and inspection schedule.
Key Specifications
Specification
Details
System type
Structured cabling and port management
Brand options
Panduit, ATEN-compatible accessories, and other specified brands

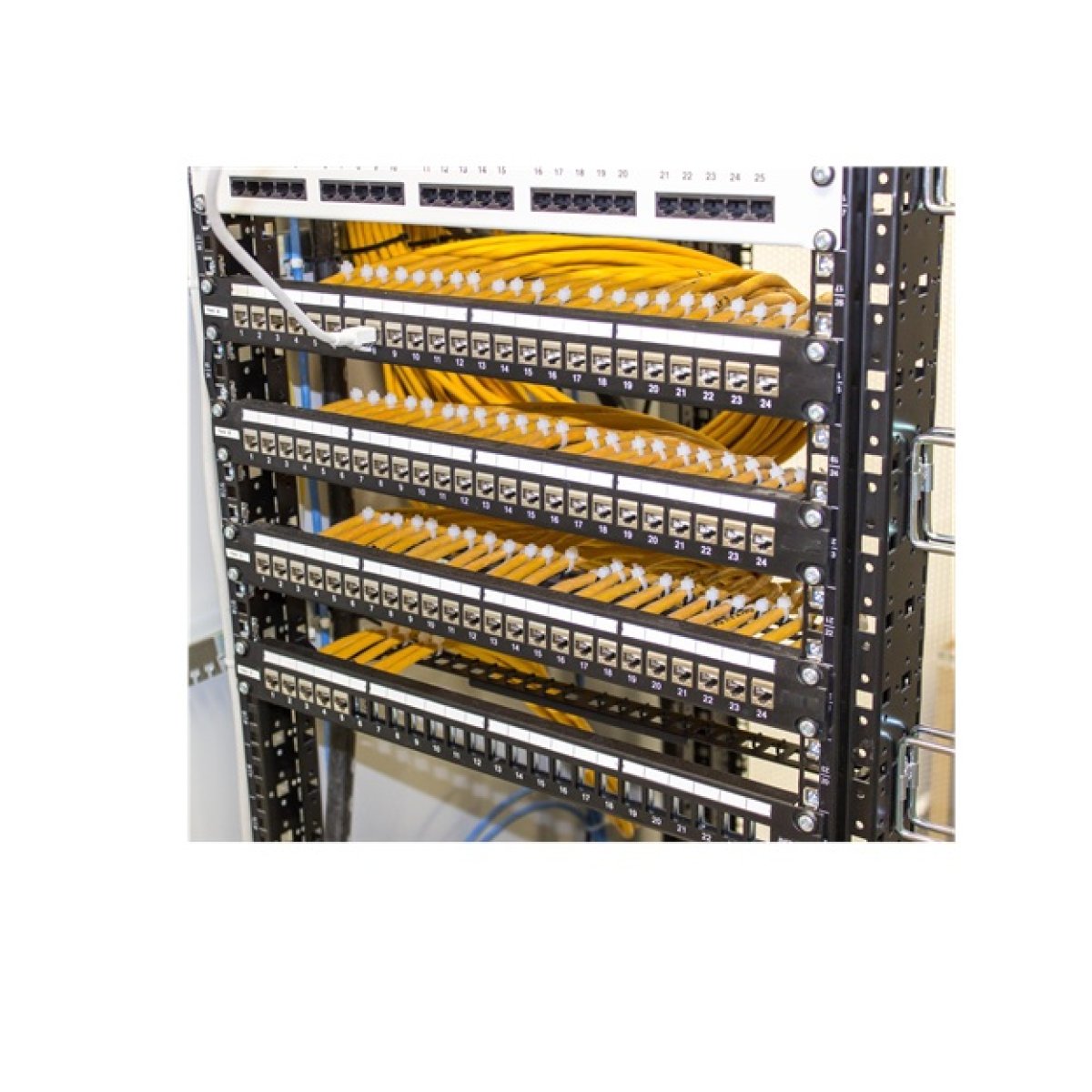

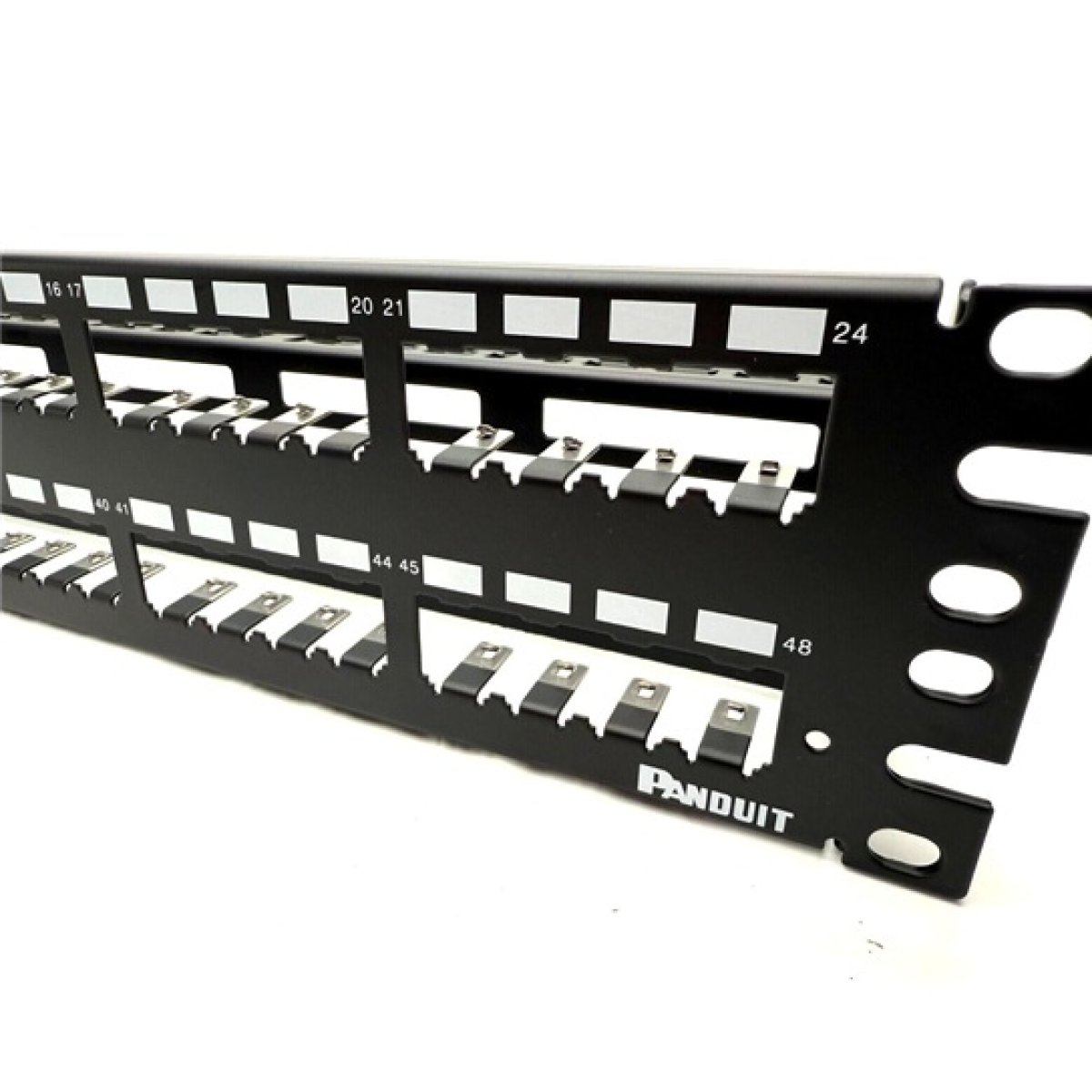

Patch panel capacity
24-port / 48-port
Cable types
Cat6, Cat6A, fiber-optic

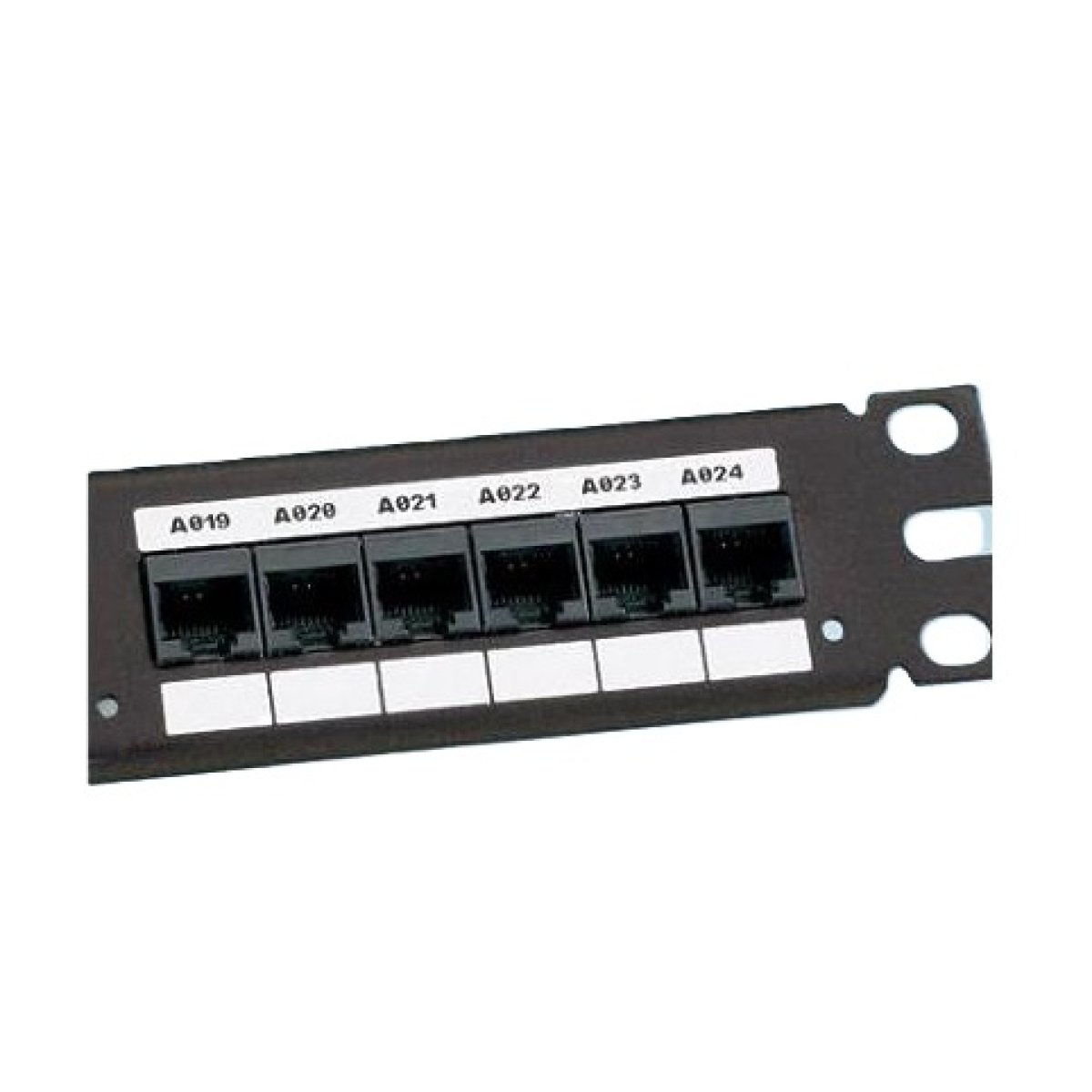

Port identification

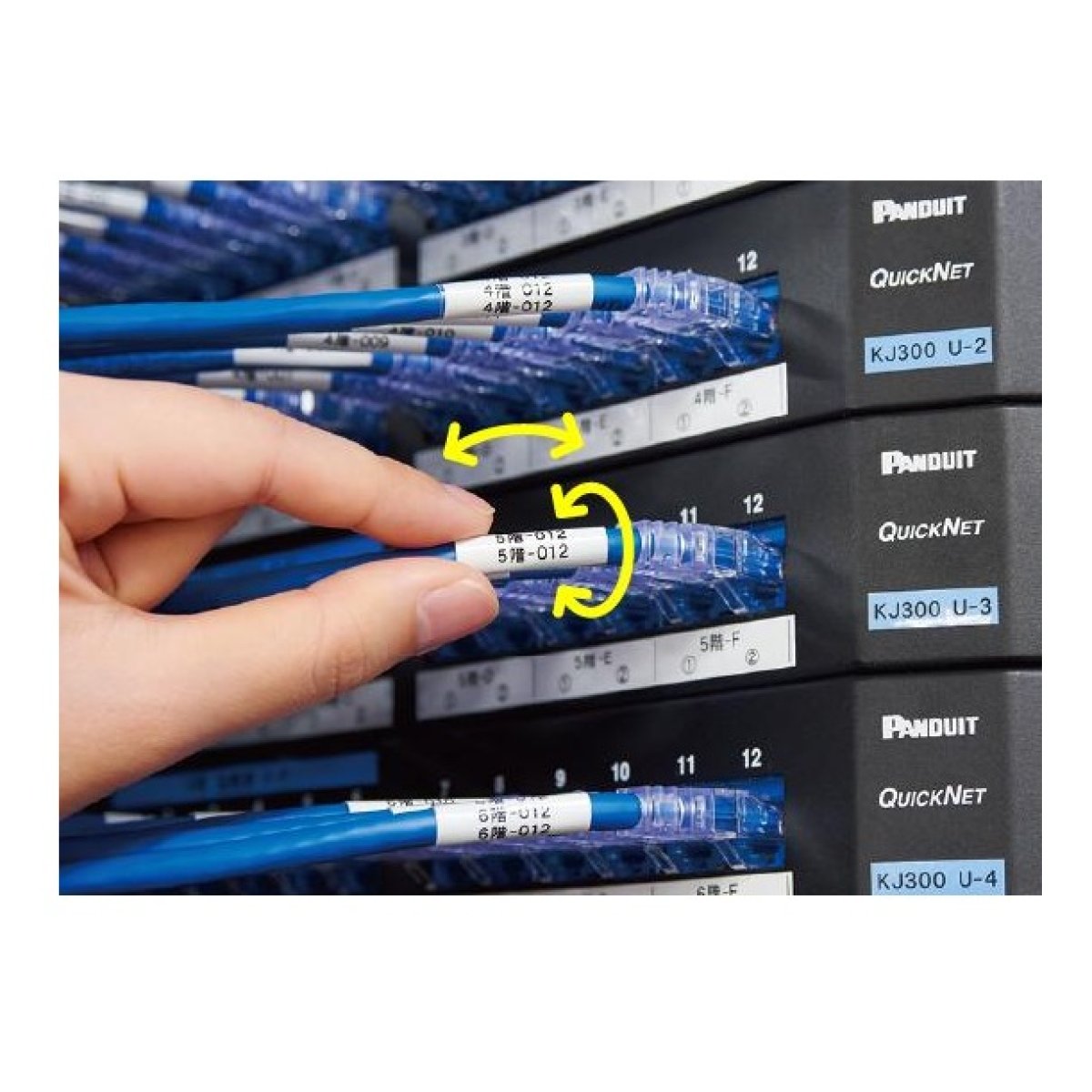

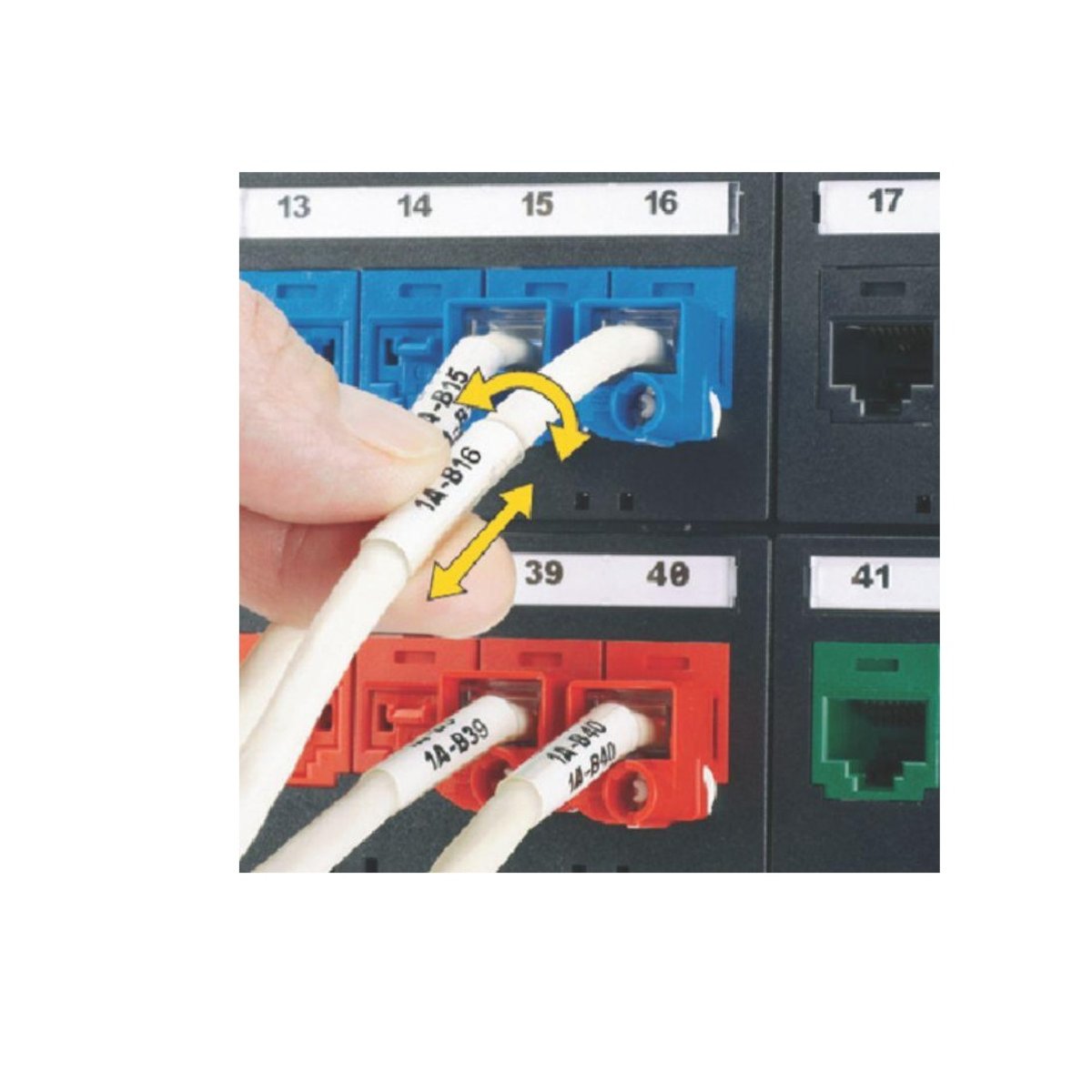

Printed labels and numbered ports

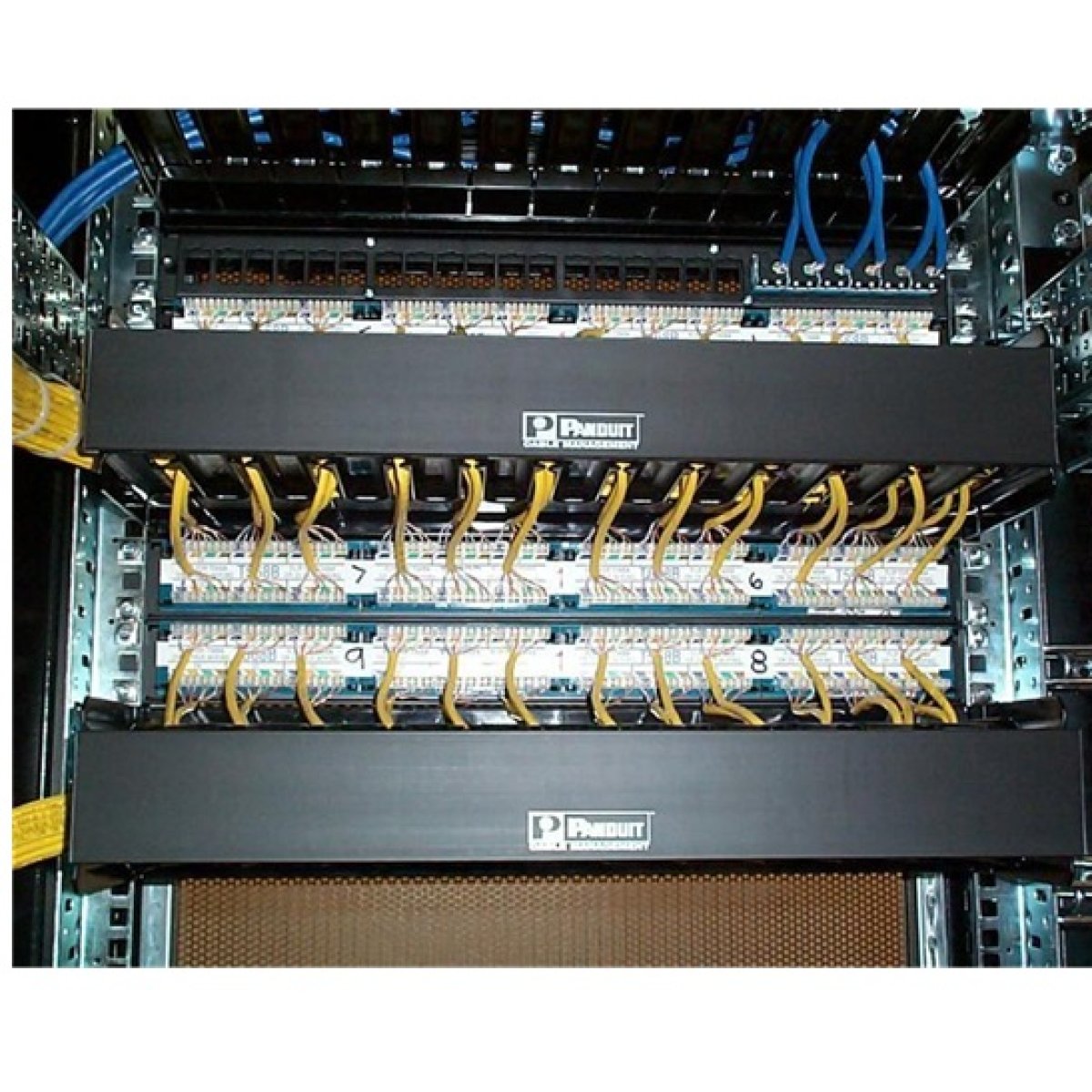

Cable management
Horizontal and vertical managers, cable rings
Documentation
Cable schedule, port map, and as-built records
Application
IP CCTV, LAN, server room, and data center
