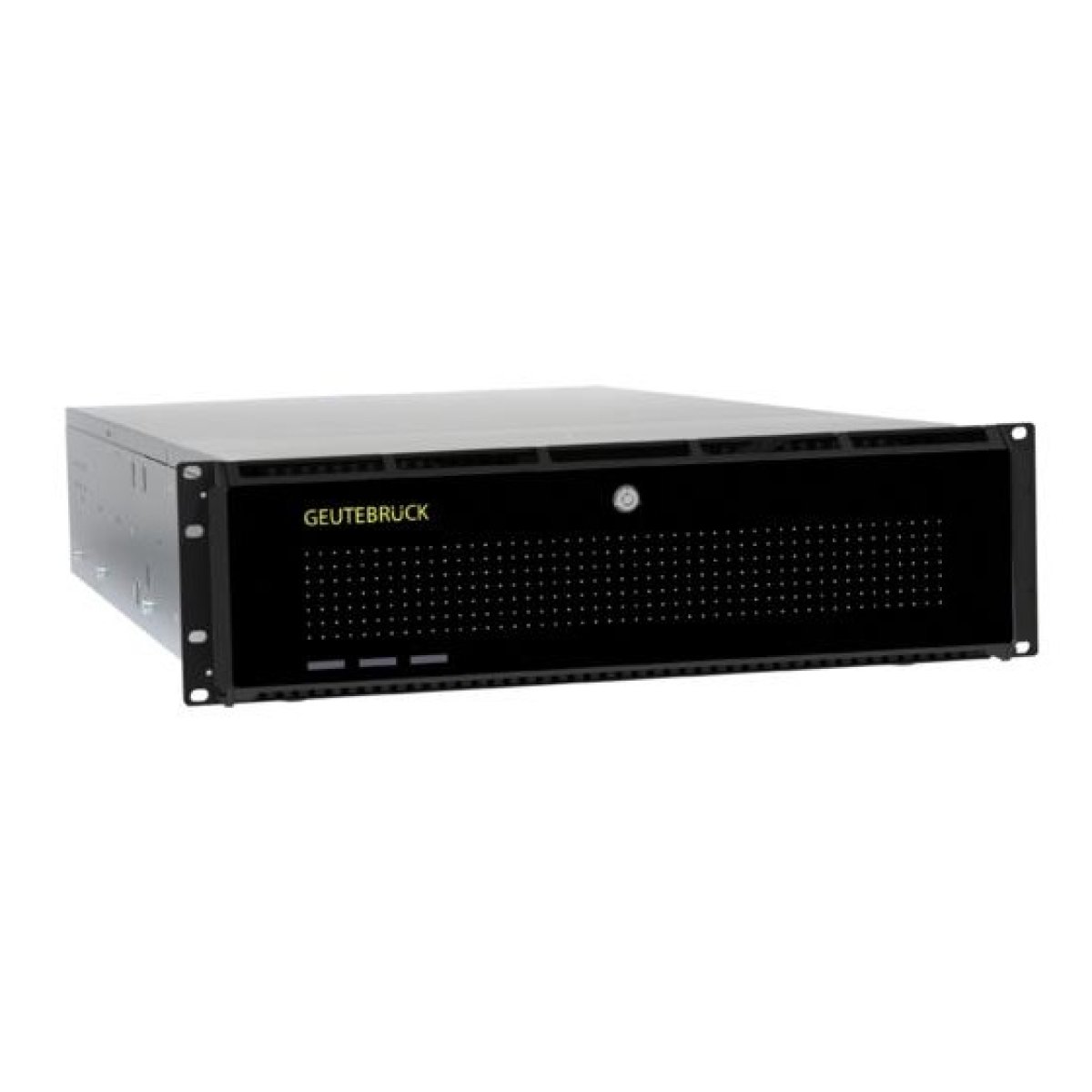

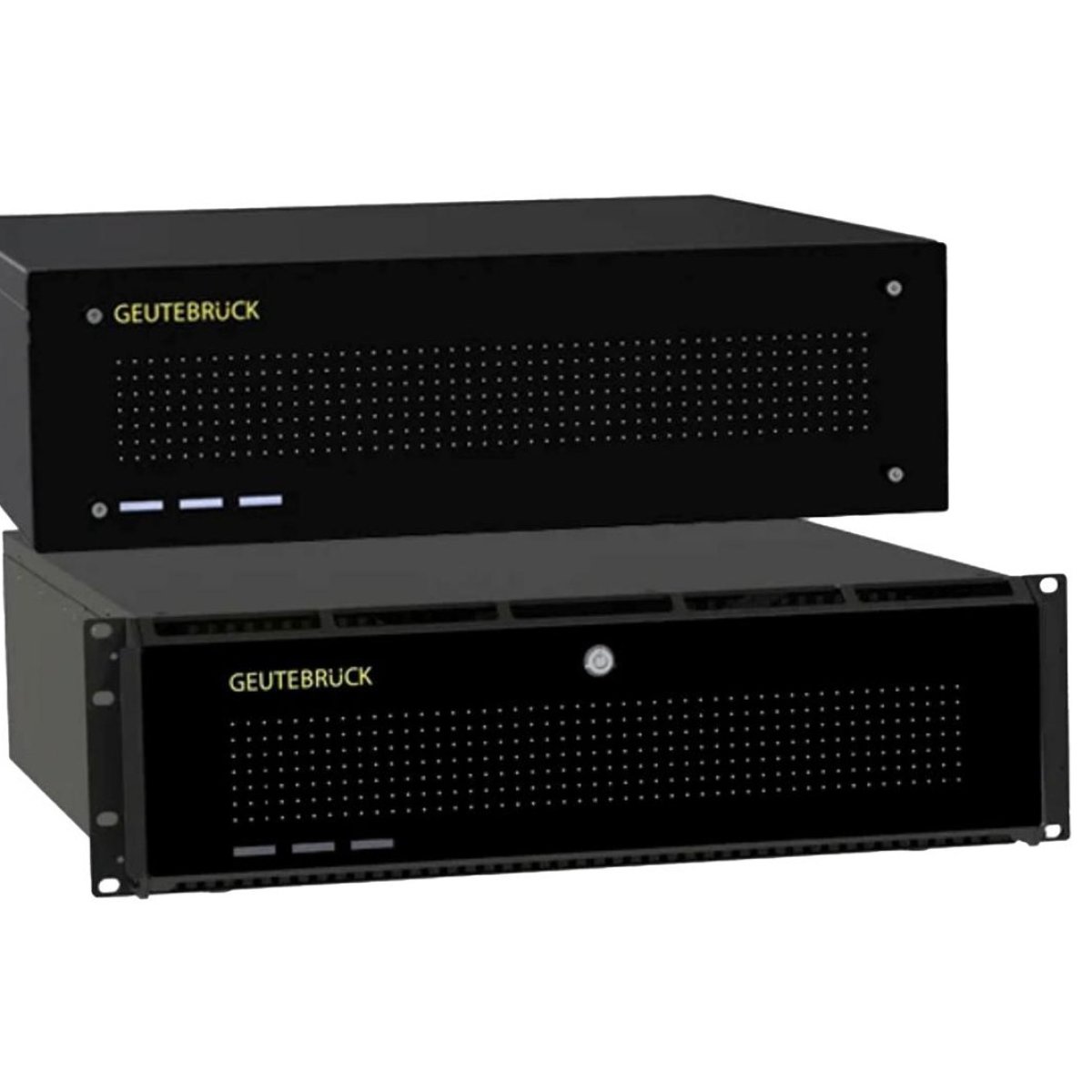

The GEUTEBRÜCK G-ST 8000+ G3/2U is a high-performance 2U rack-mounted CCTV recording and video management server designed for large-scale surveillance systems. It supports GEUTEBRÜCK G-Core software, high-throughput video recording, redundant power supplies, and external storage expansion for the required 450 TB usable capacity.
The GEUTEBRÜCK G-ST 8000+ G3/2U is a professional video recording and management server designed for continuous CCTV operation and centralized surveillance monitoring. It features a 12th-generation Intel Core i7 processor, 32 GB ECC DDR5 memory, expandable to 64 GB, hot-swappable hard drive bays, RAID storage support, and dual redundant 500 W power supplies.

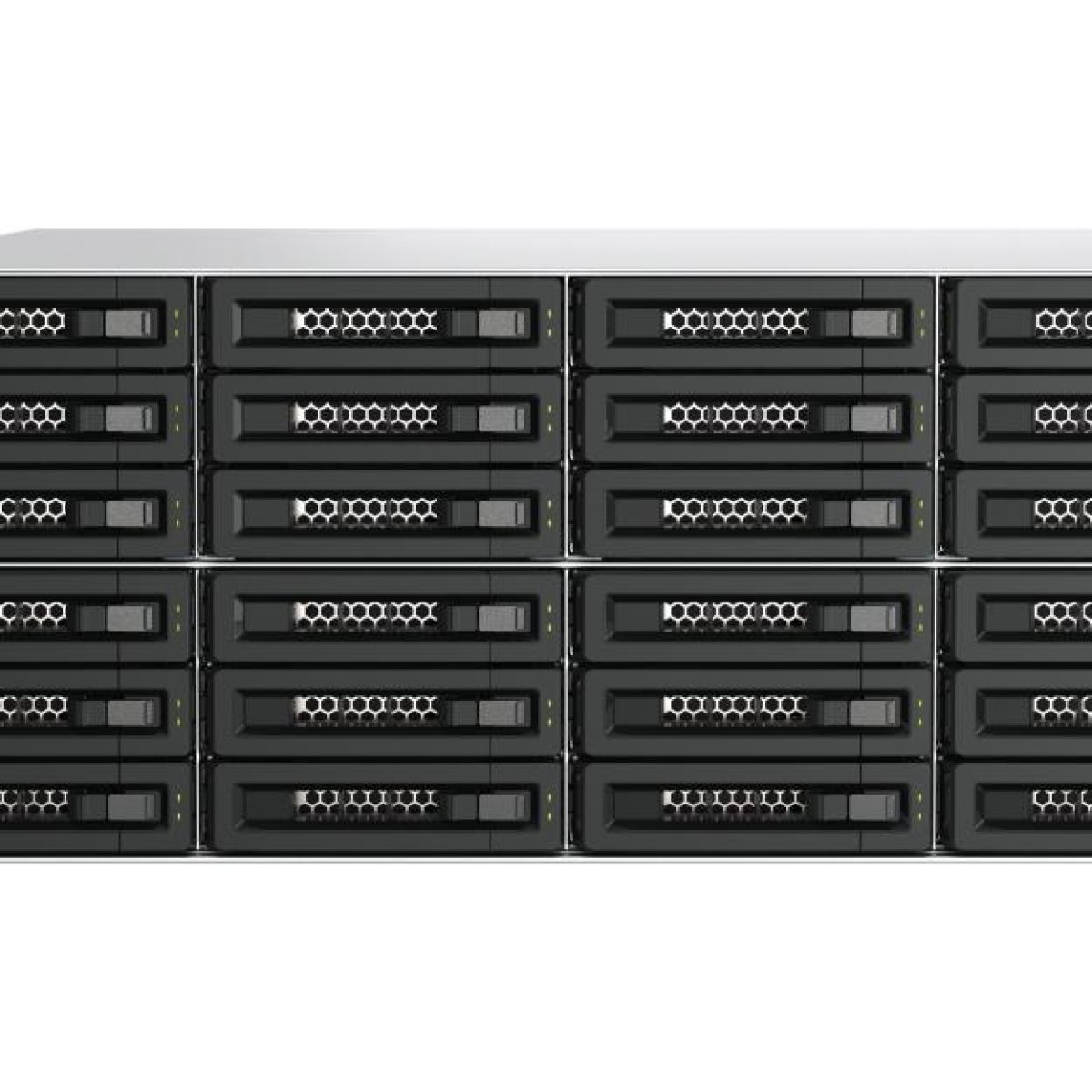

Designed for the proposed 86-camera surveillance project, the server supports high-throughput video recording and integration with GEUTEBRÜCK G-Core video management software. To meet the project's 450 TB usable storage requirement, an appropriately configured external RAID/JBOD storage expansion system is required. The solution is intended for reliable recording, video playback, centralized management, and long-term surveillance retention.
1. Manufacturer technical specifications
Parameter
Technical specification
Manufacturer
GEUTEBRÜCK GmbH
Model
G-ST 8000+ G3/2U
Product type
CCTV recording and video management server
Order number
0.60803
Processor
Intel Core i7, 12th-generation IoT
Memory
32 GB ECC DDR5; expandable to 64 GB
System drive
256 GB M.2 SSD; optional mirrored SSD RAID 1
Video storage
Up to 8 hot-swappable HDDs
Supported RAID
RAID 0, 1, 5, 6
Operating system
Microsoft Windows Server 2022 Standard IoT LTSC, CAL-less
Recording benchmark
Up to 790 Mbit/s; 96 channels
Playback benchmark
Up to 430 Mbit/s; 46 channels
Network interfaces
1 × 1 GbE management; 2 × 1/2.5 GbE
Video outputs
4 × DisplayPort 1.4a
Power supply
2 × 500 W redundant, hot-swappable
Typical power consumption
Approximately 220 W in the specified test configuration
Rack format
19-inch, 2U
Dimensions (W × H × D)
482 × 89 × 710 mm
Operating temperature
0°C to +40°C
Warranty
3 years; optional extension to 5 years
