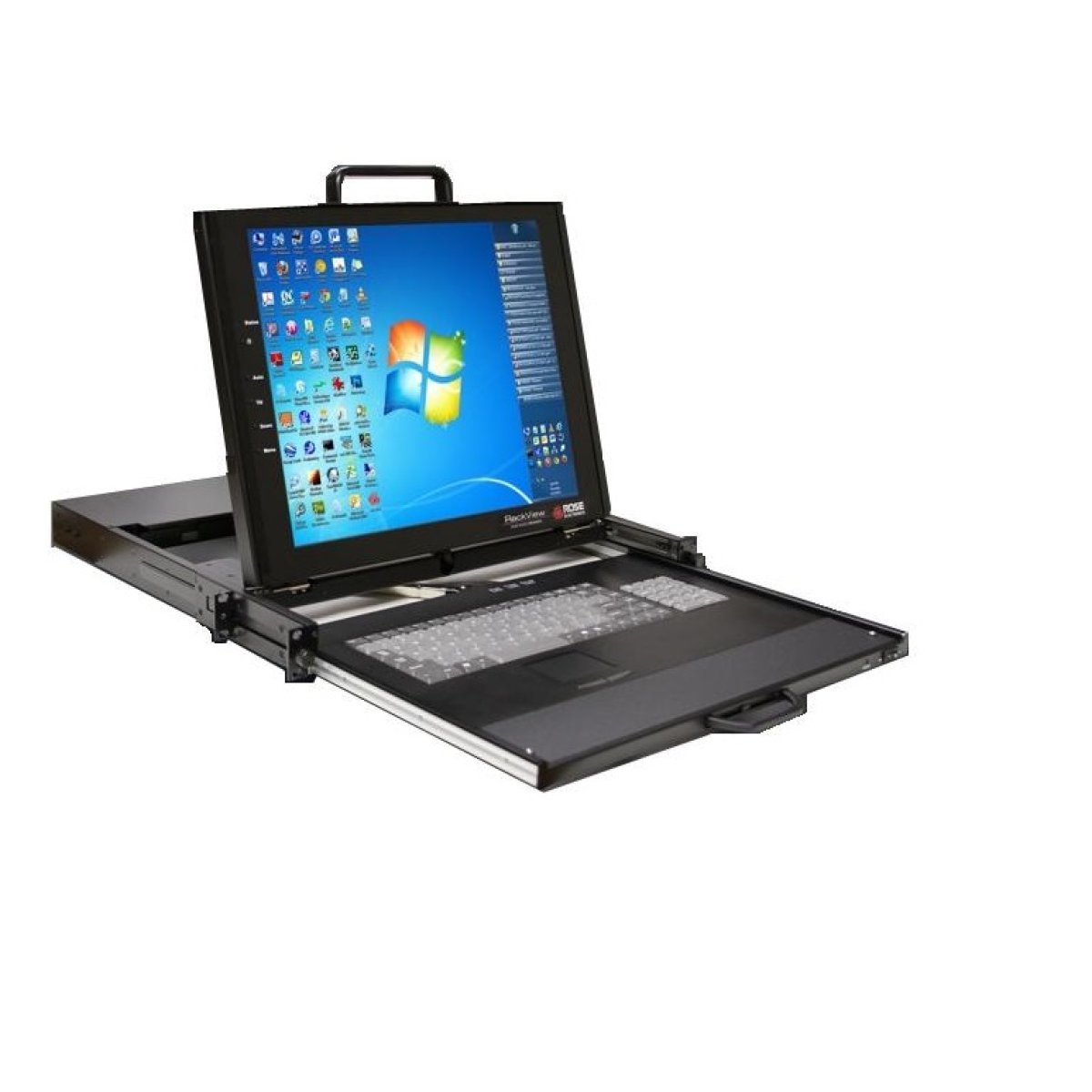

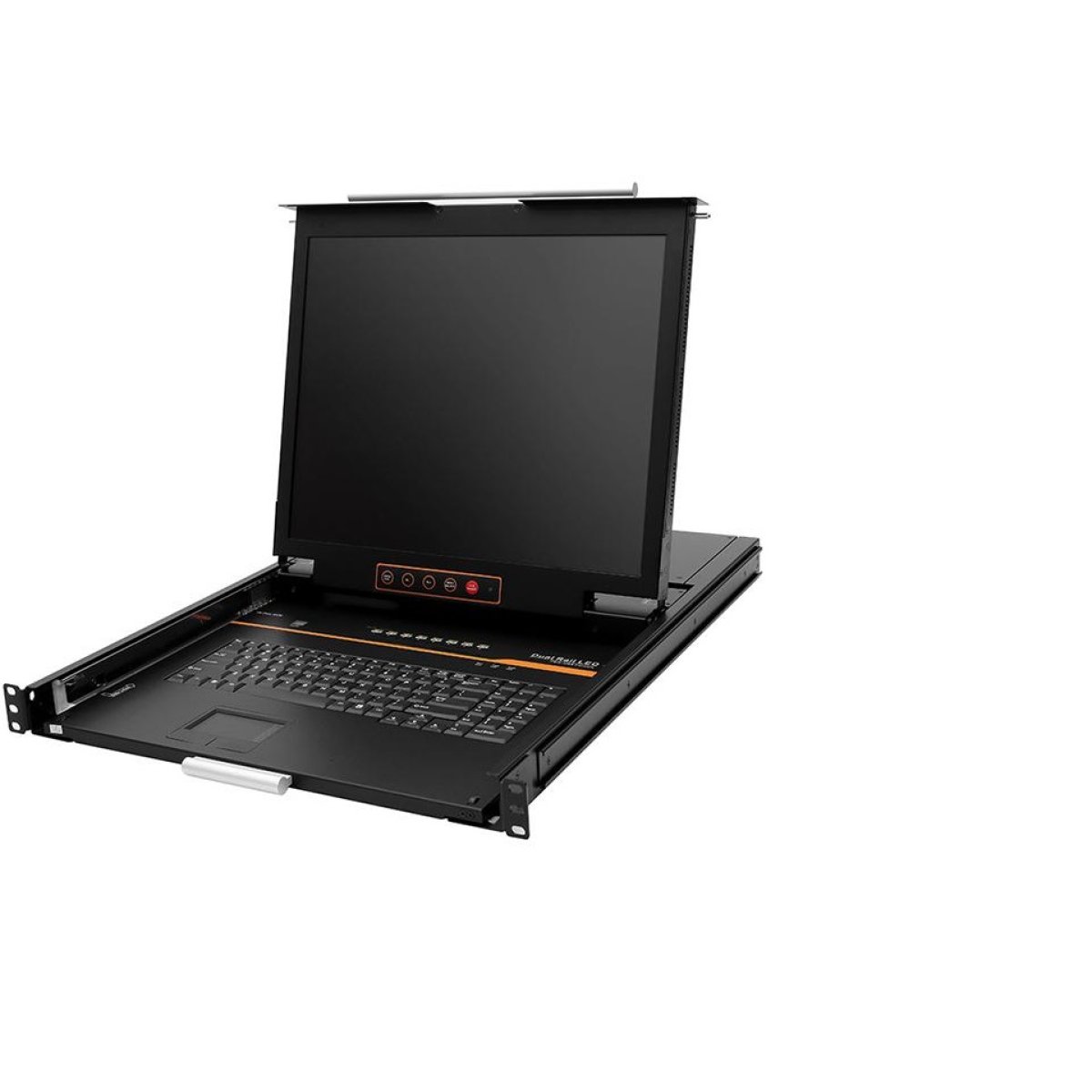

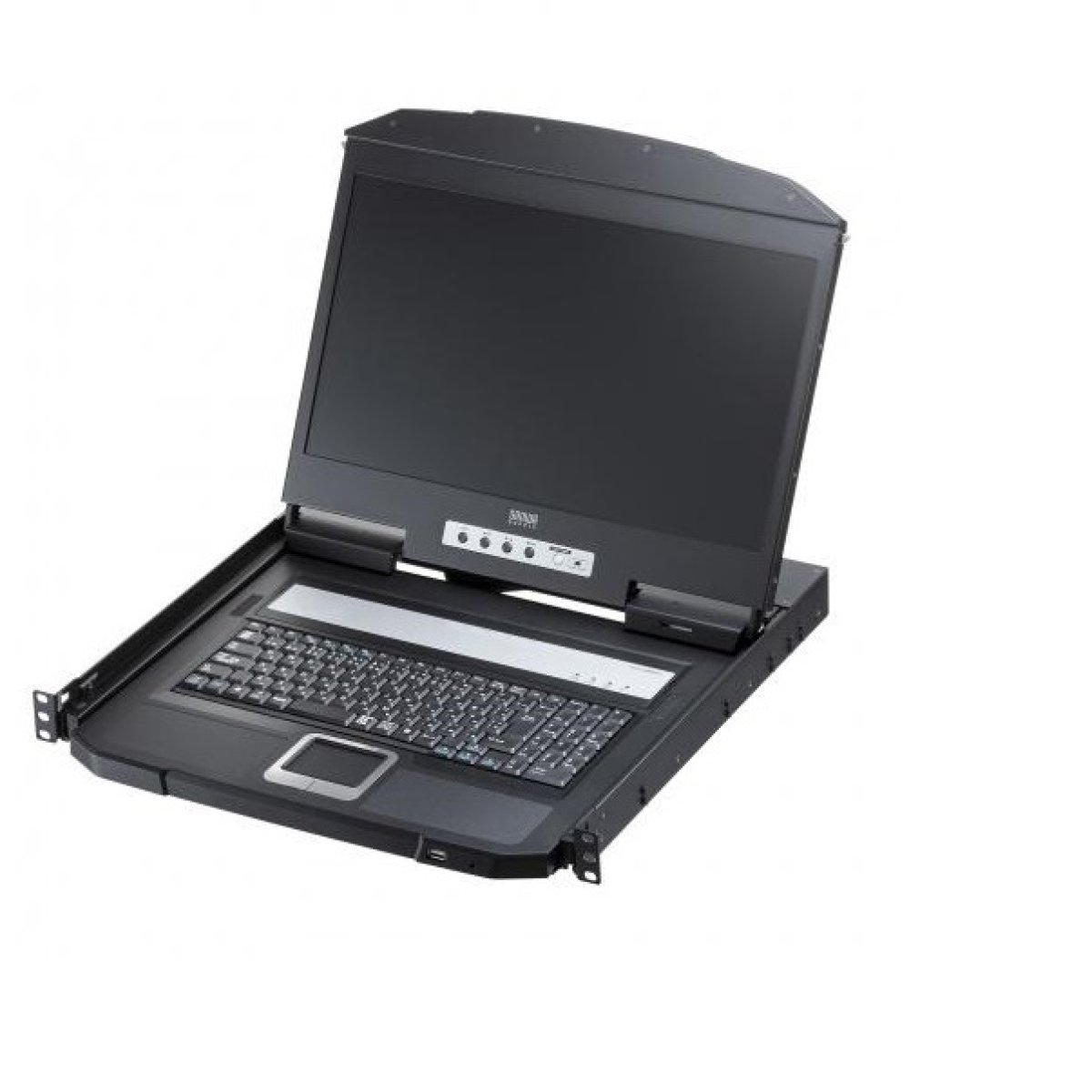

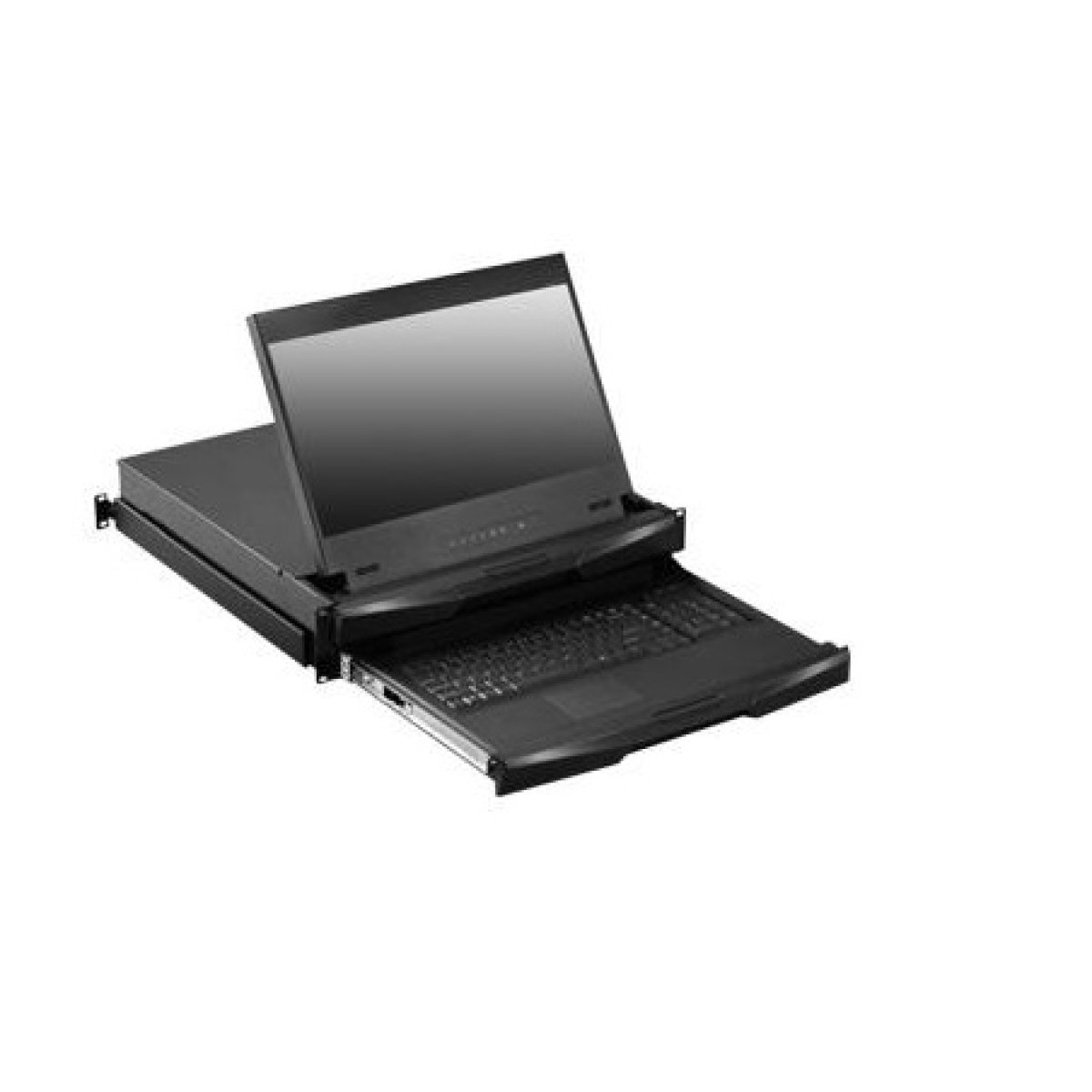

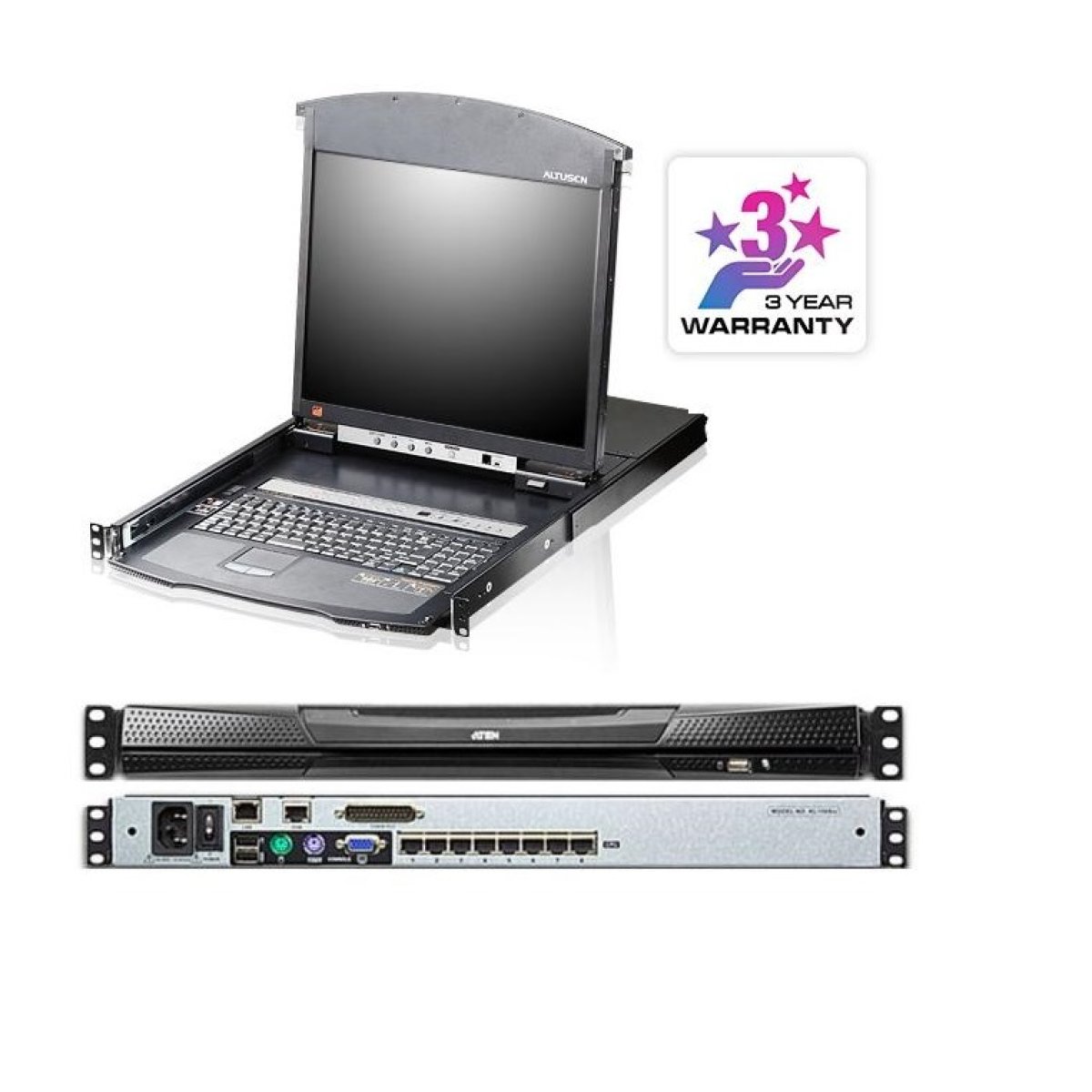

A rack-mount LCD maintenance console is a compact rack-mounted control unit combining an LCD display, keyboard, and touchpad in a sliding drawer. It provides local access to servers, network switches, and other rack-mounted equipment for configuration, monitoring, and troubleshooting.

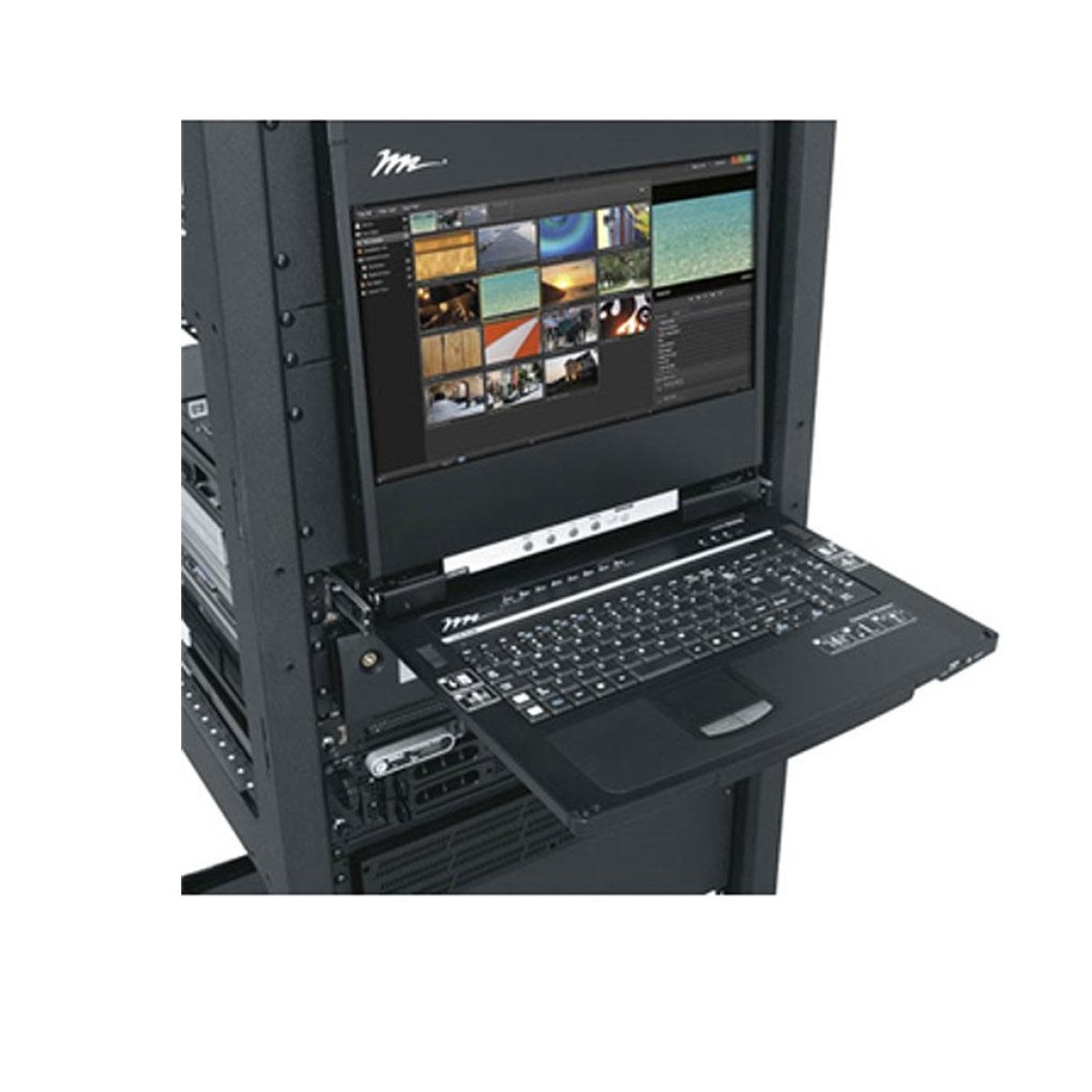

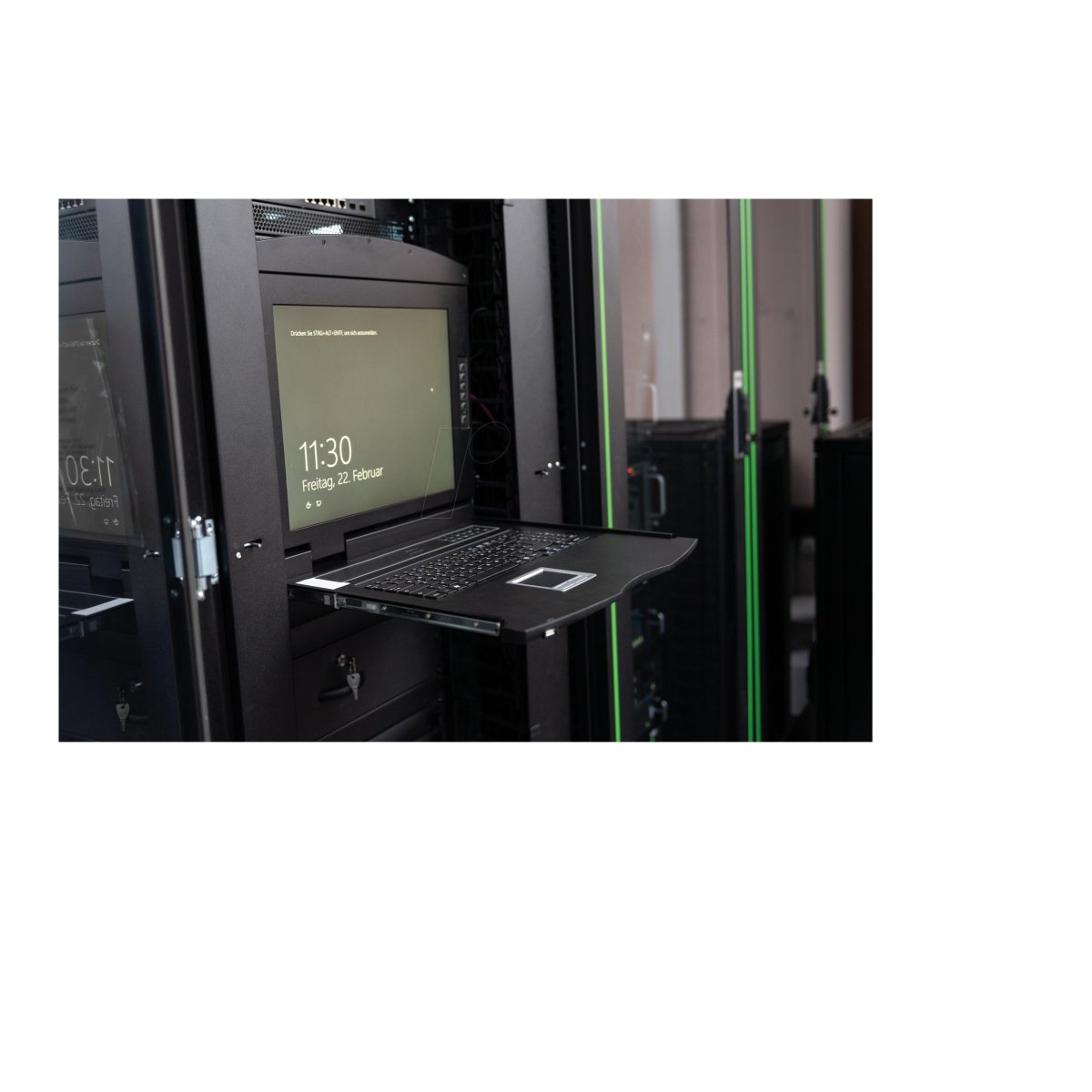

The LCD maintenance console is designed for data centers, CCTV control rooms, server rooms, and network cabinets. Its space-saving slide-out design allows technicians to operate connected equipment without requiring a separate monitor, keyboard, and mouse on the rack.

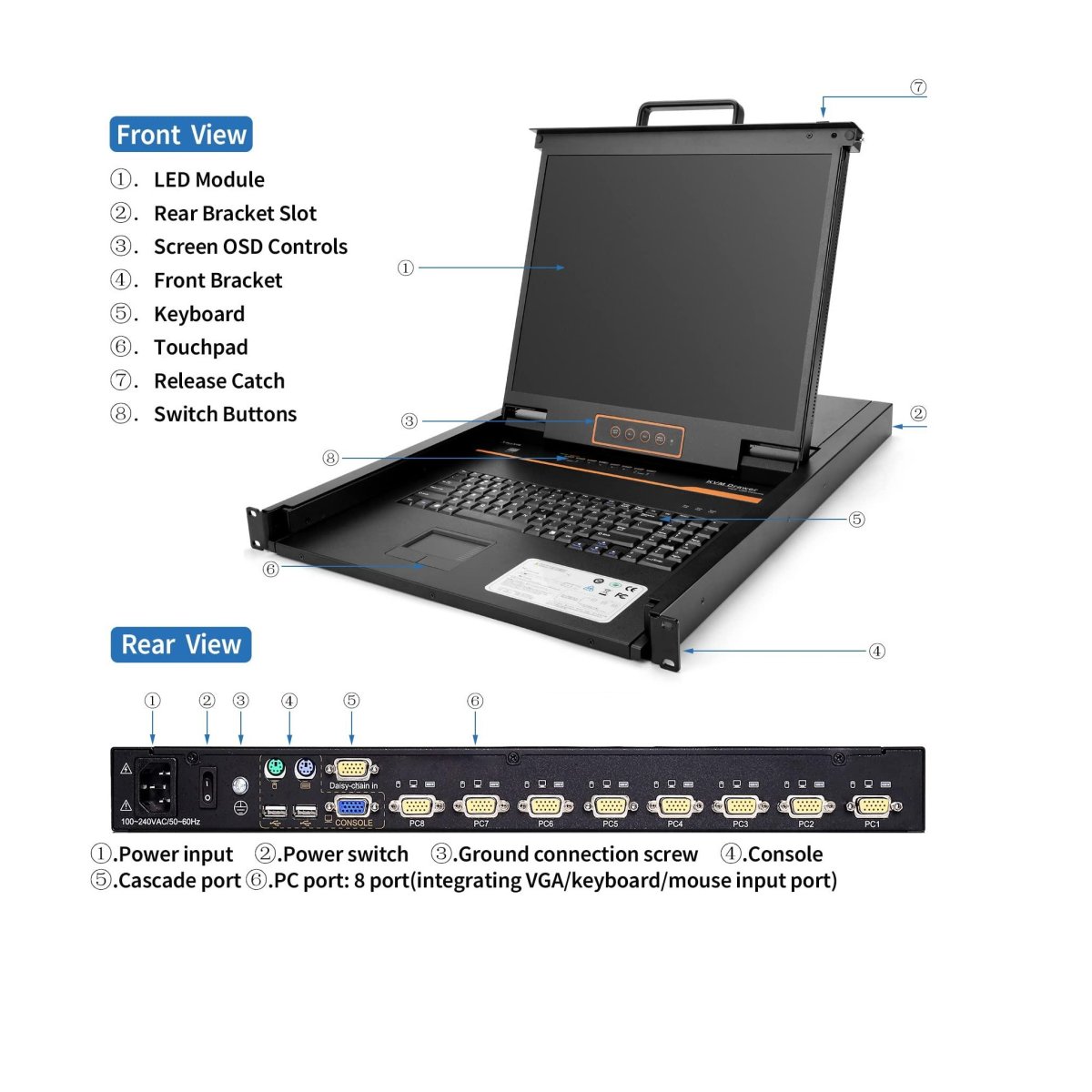

Depending on the model, it supports VGA, HDMI, DisplayPort, USB keyboard/mouse interfaces, and optional KVM switching to control multiple servers or devices from a single console.
Key Specifications
Specification
Details
Product Type
Rack-Mount LCD Maintenance Console
Rack Compatibility
Standard 19-inch server rack
Display Size
17-inch / 19-inch LCD, model dependent
Resolution
1280 × 1024 or model dependent
Integrated Controls
Keyboard and touchpad
Mounting Design

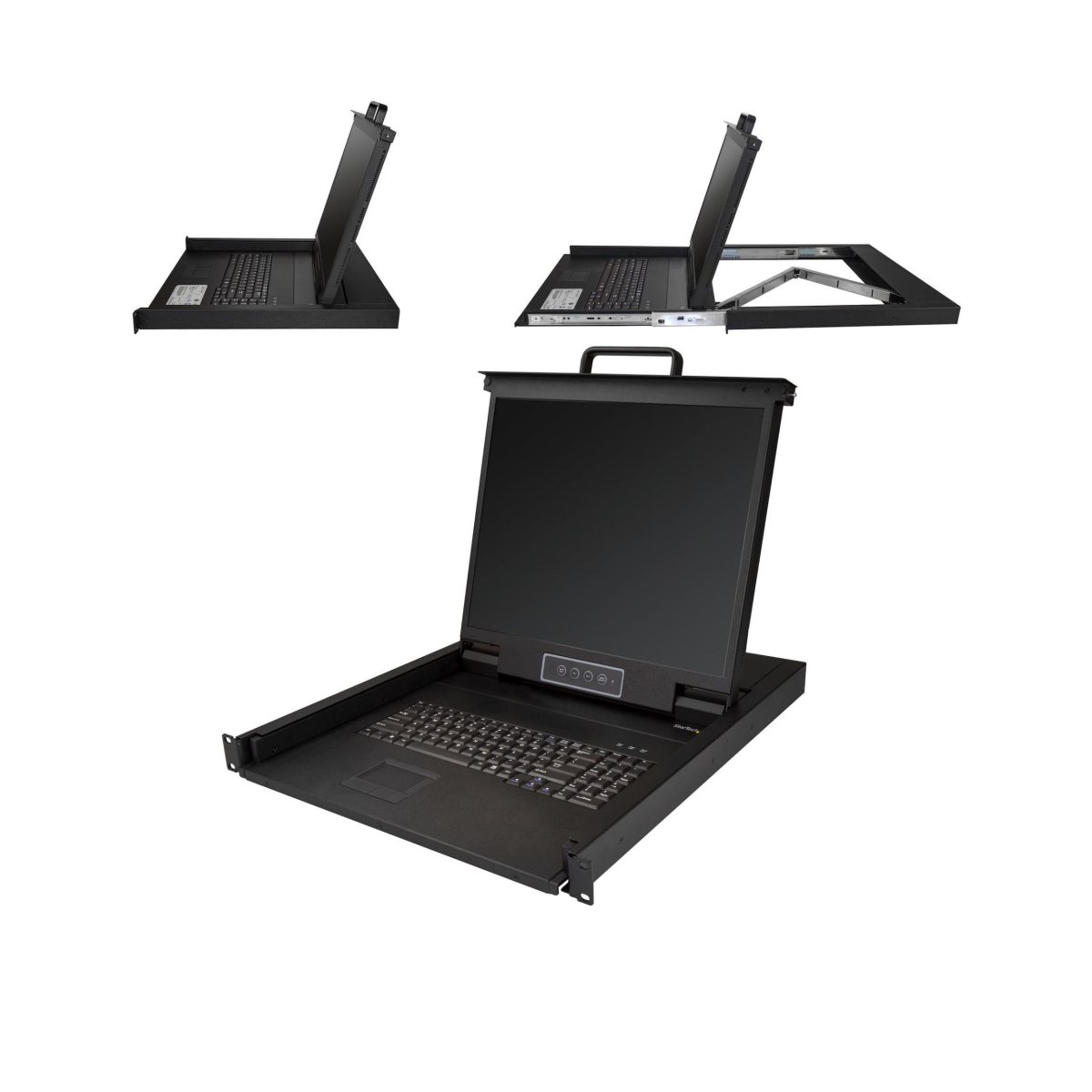

Sliding drawer with folding LCD
Interface
VGA / HDMI / DisplayPort, model dependent
USB Support
USB keyboard and mouse interface
KVM Function
Optional multi-server control
Power Supply
AC power, model dependent
Application
Server maintenance, network administration and CCTV system management
