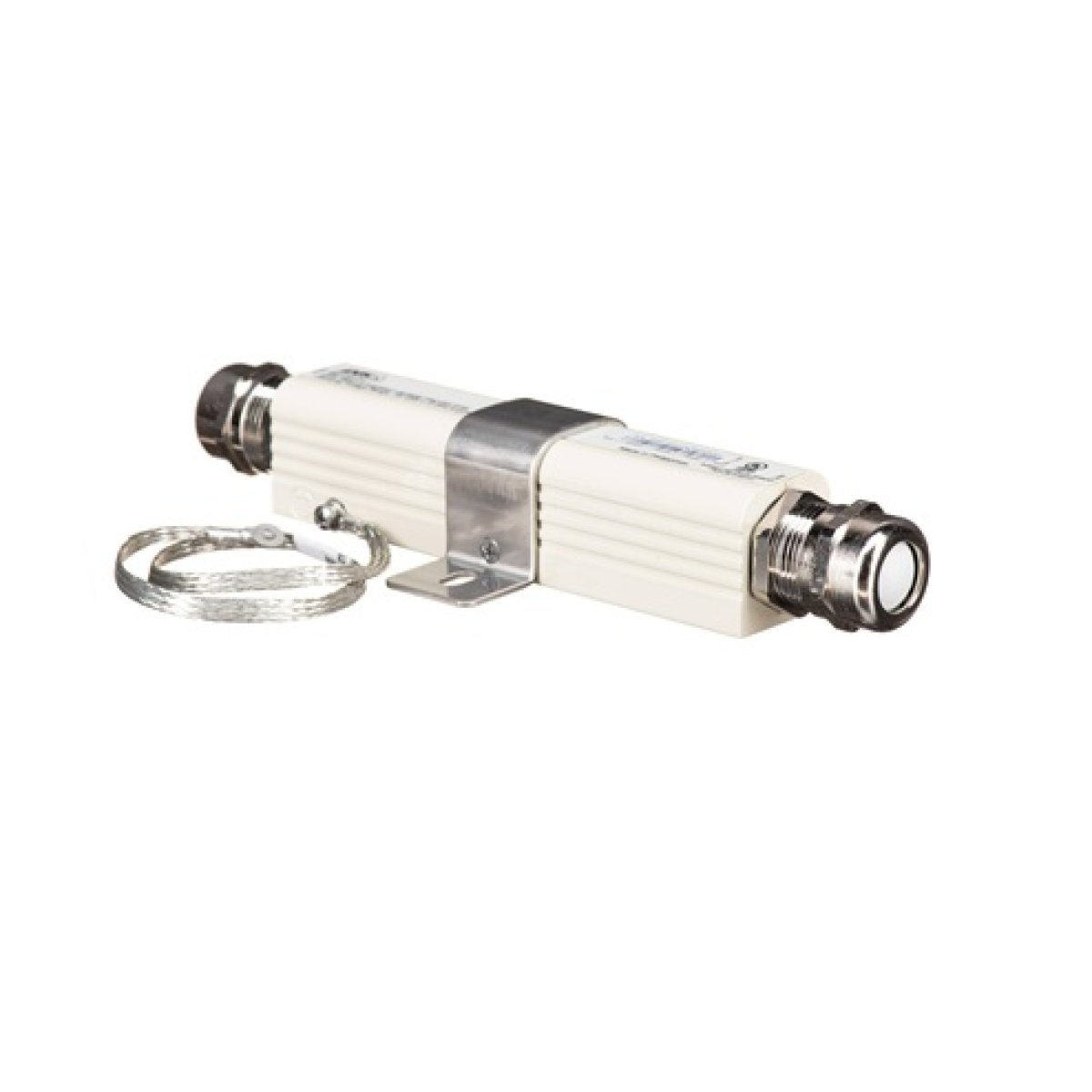

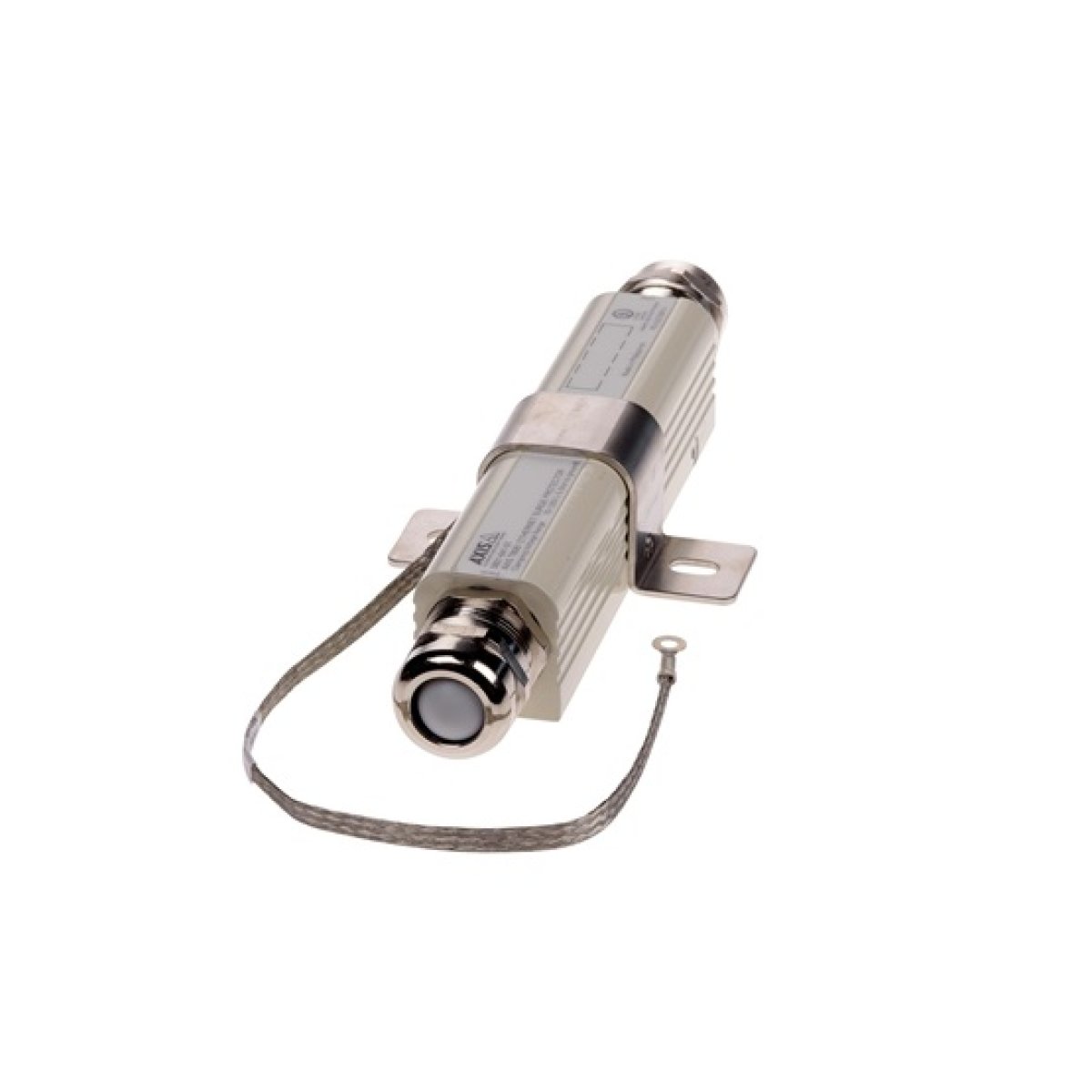

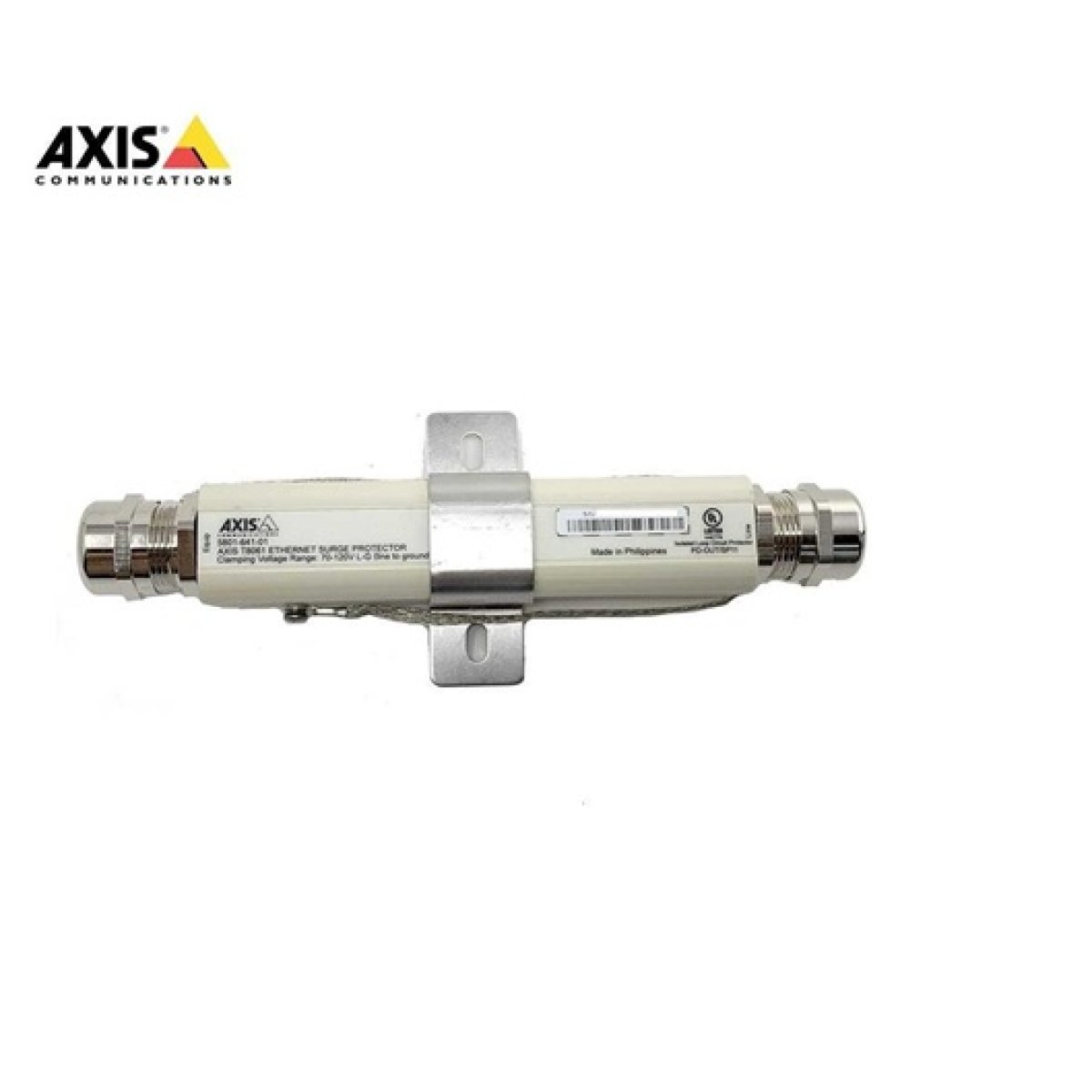

The AXIS T8061 Ethernet Surge Protector protects outdoor network cameras and other compatible PoE devices against transient voltage surges entering through Ethernet cables. Its weatherproof IP66-rated enclosure supports outdoor wall or pole mounting.
The AXIS T8061 is designed for outdoor IP surveillance installations where Ethernet cables are exposed to lightning-induced surges and electrical transients. It protects all eight Ethernet conductors, including PoE lines, while supporting network data transmission up to 1 Gbps.
It can be installed near an outdoor network camera or where an Ethernet cable enters a building. Proper grounding and shielded network cabling are important for effective protection.
Key Specifications
Parameter
Specification
Brand
Axis Communications
Model
AXIS T8061
Product type
Outdoor Ethernet surge protector
Surge protection
Up to 10 kV
Data rate
Up to 1 Gbps
Ethernet protection
All 8 lines, including PoE
Enclosure rating
IP66
Installation
Wall or pole mounted
Application
Outdoor IP cameras and PoE devices
Ordering part number
5801-641
Warranty
3 years, subject to manufacturer's terms
Source: Official Axis product information and datasheet.
Common Uses
Outdoor Axis PTZ and fixed network cameras.
Pole-mounted CCTV surveillance systems.
Building perimeter and boundary surveillance.
Ethernet cable entry points into buildings.
Outdoor PoE network devices exposed to surge risks.
