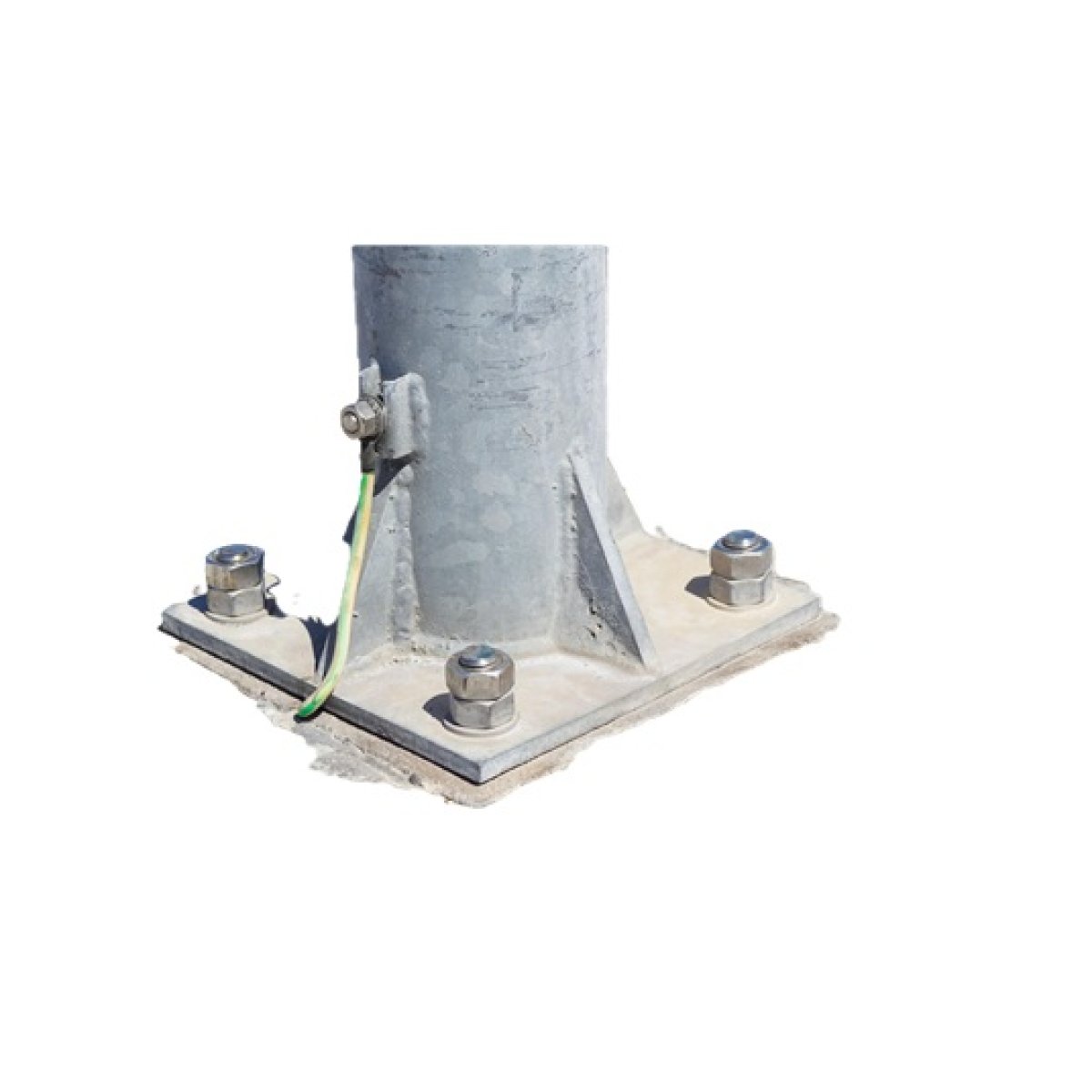

A Camera Pole Earthing Kit provides a protective grounding connection for outdoor CCTV camera poles to help reduce electrical shock hazards and safely manage fault currents and certain surge currents.

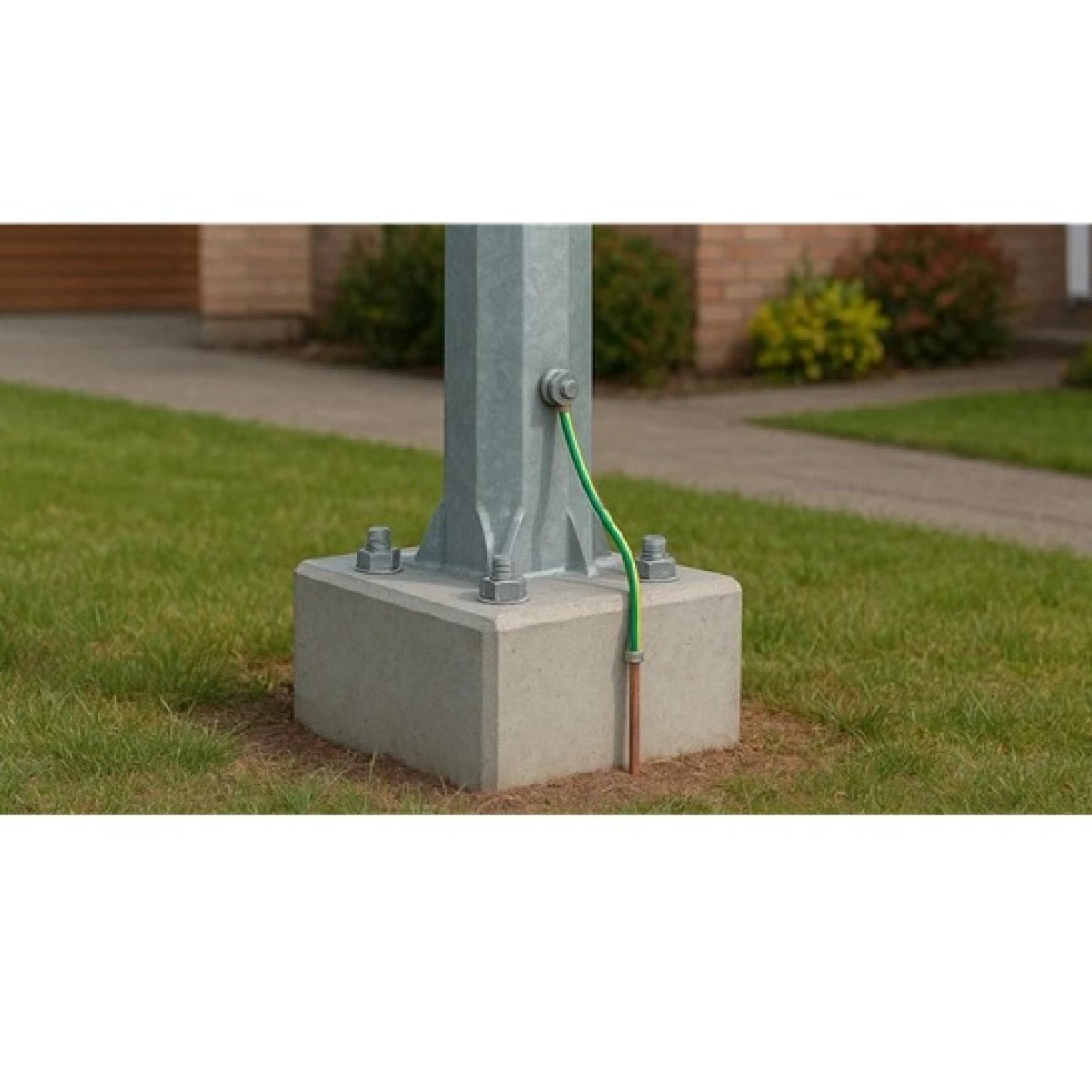

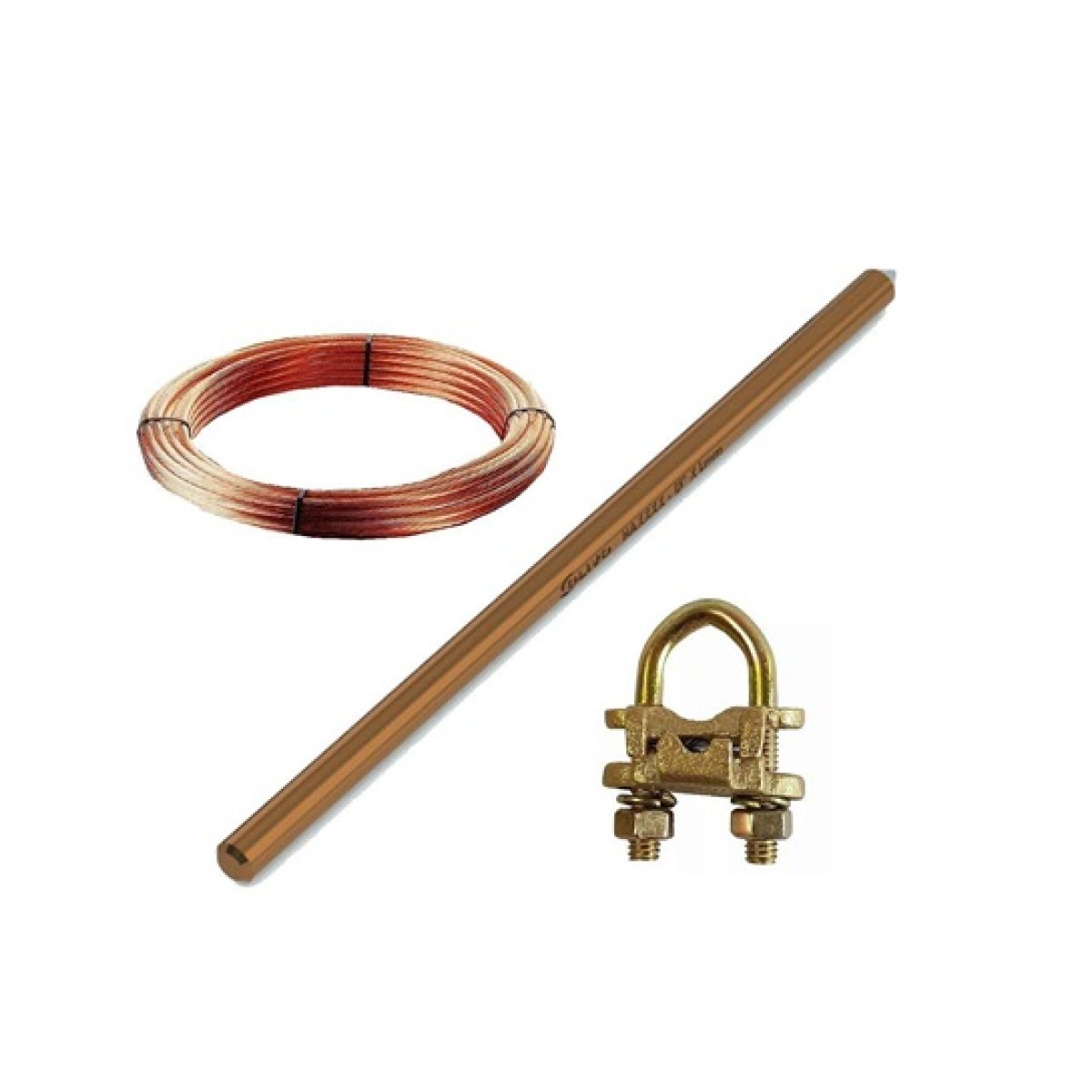

The kit includes an earth electrode, copper earthing conductor, clamps, cable lugs and installation accessories. It bonds the metallic camera pole to the designed protective earthing system and may be coordinated with lightning and surge protection devices where required.
Parameter
Specification

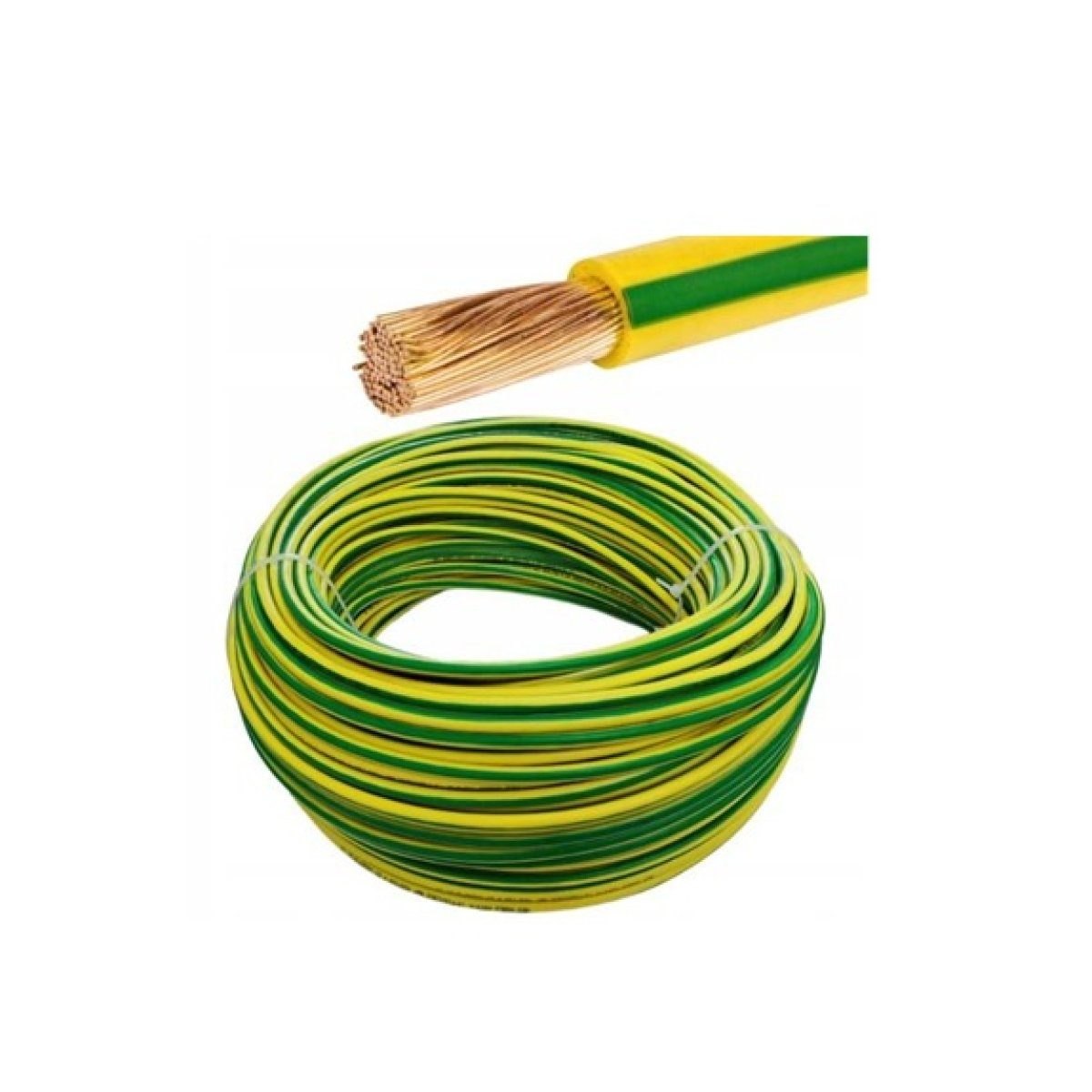

Earthing conductor
Copper cable, size as per approved design

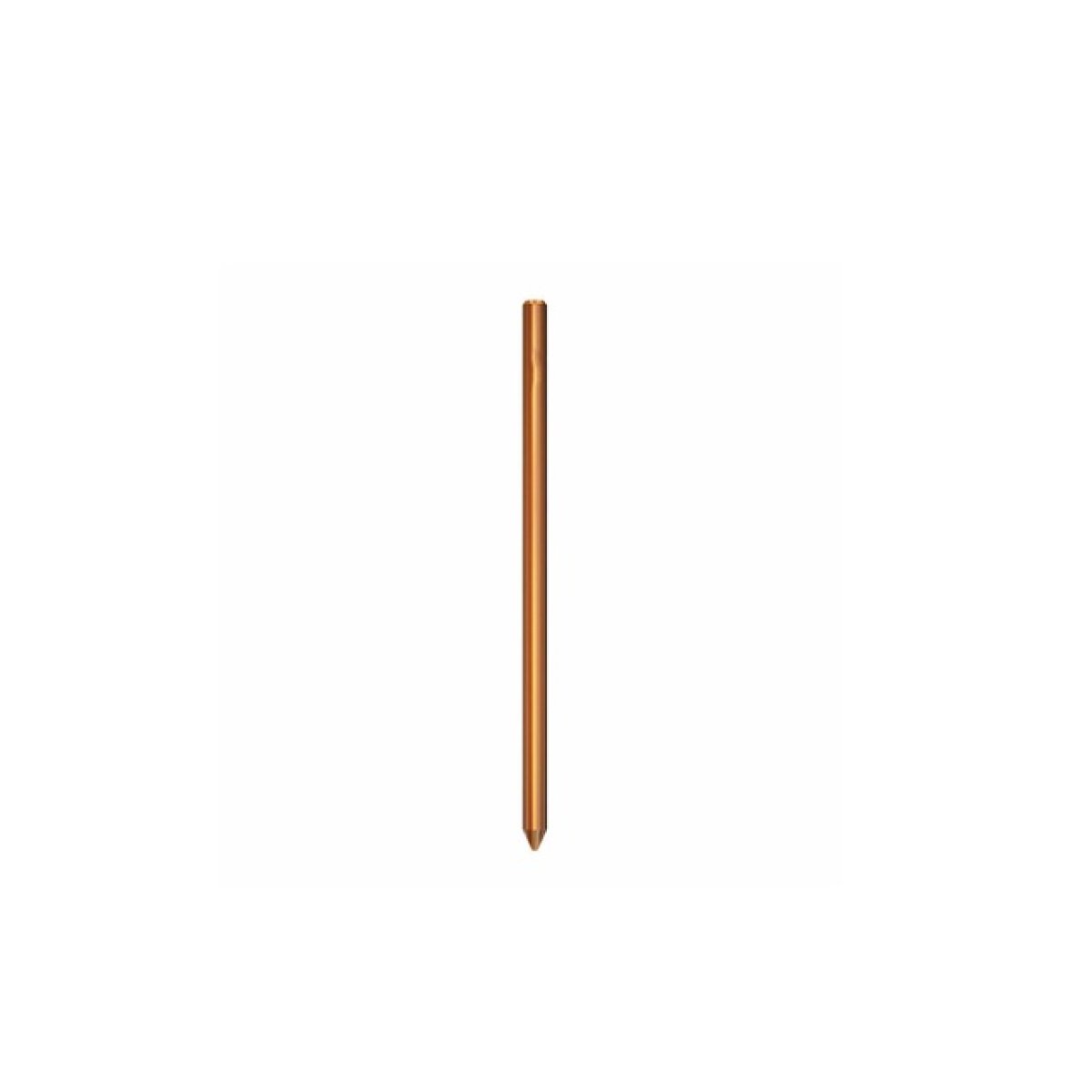

Earth electrode
Copper-bonded steel or approved copper electrode
Earth rod length
Typically 1.2–2.4 m, subject to site conditions

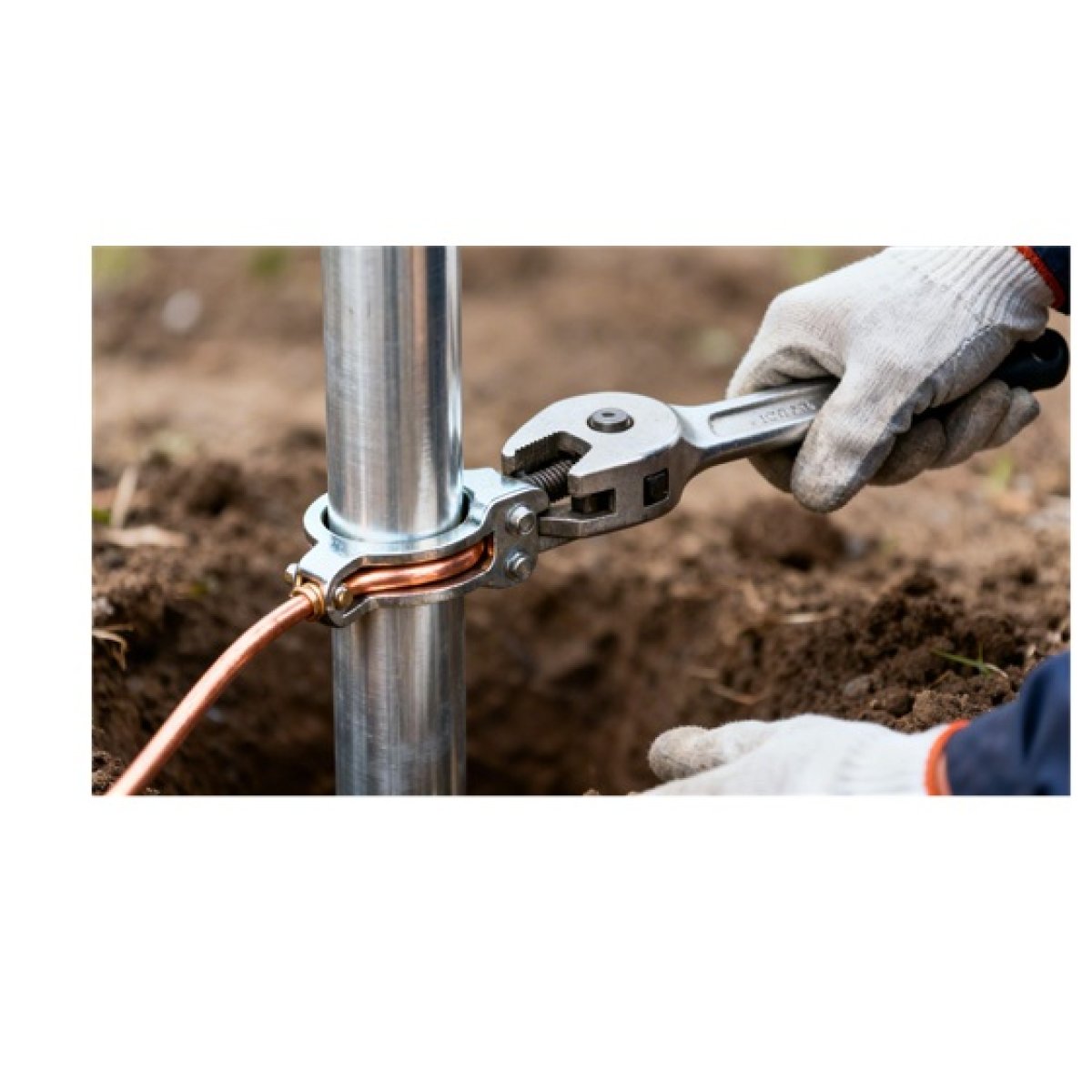

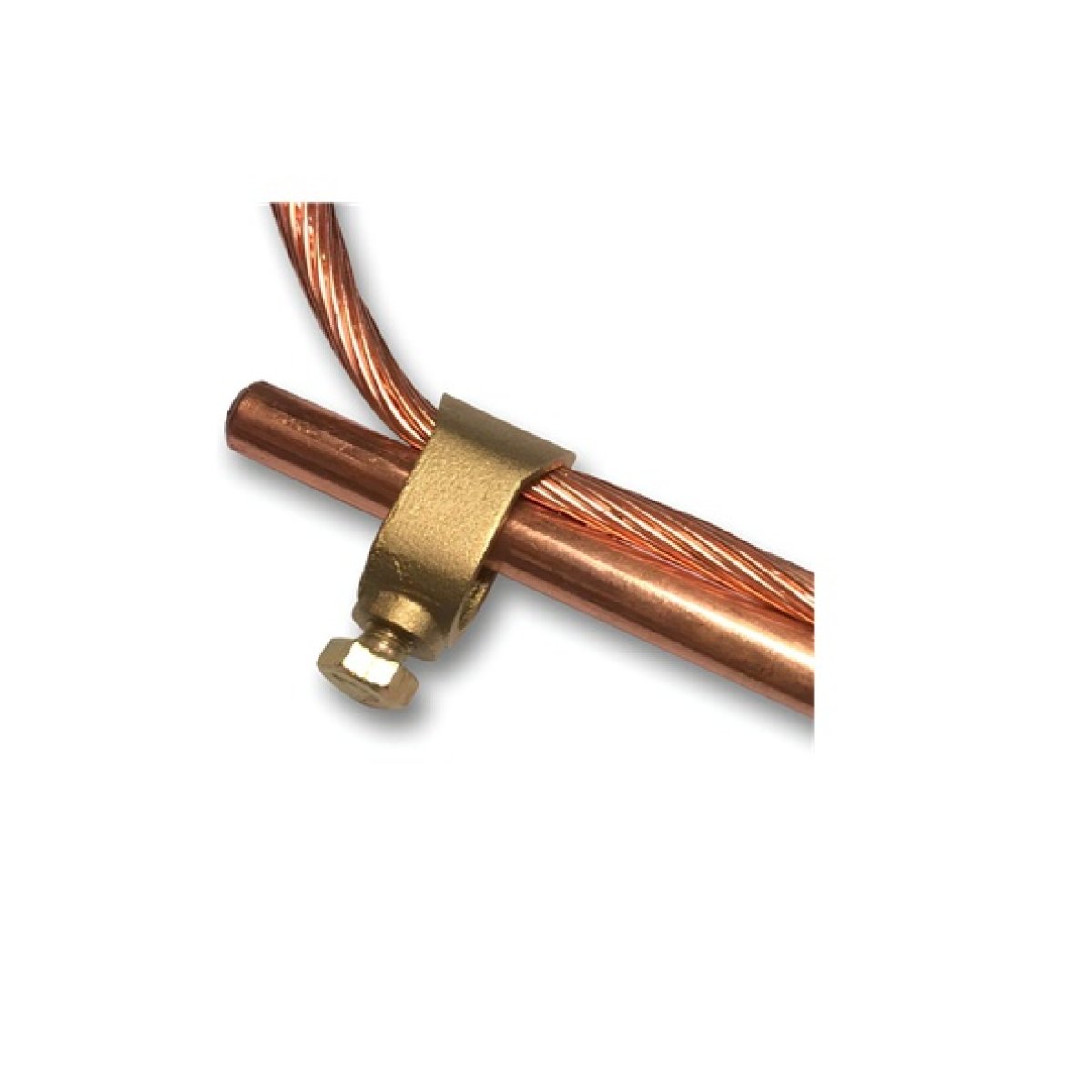

Earth clamps
Corrosion-resistant, compatible with electrode and conductor
Cable lugs
Copper or tinned copper
Pole connection
Dedicated earth stud or approved bonding clamp
Accessories

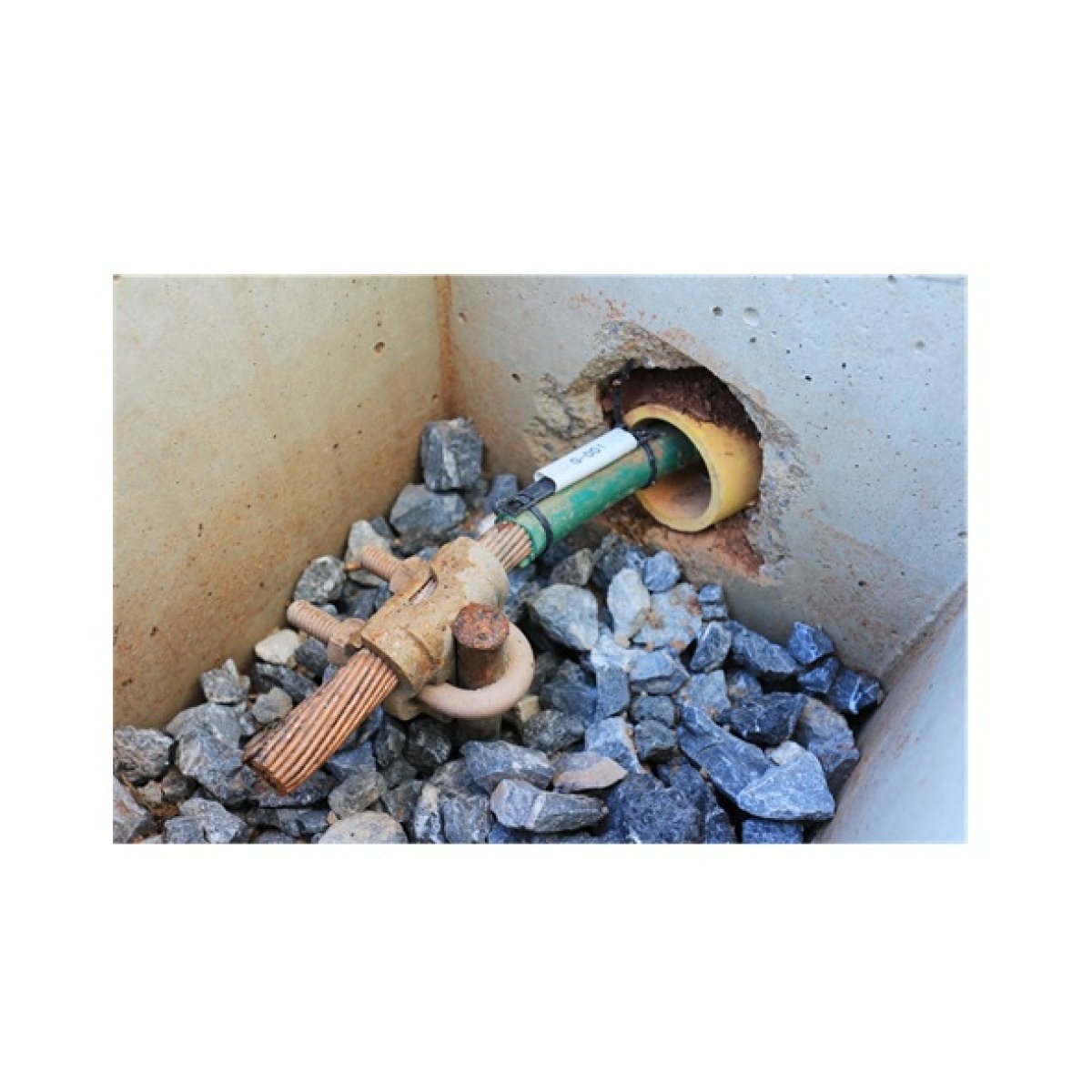

Inspection chamber, connectors and warning labels as required
Protection
Compatible with the site’s lightning and surge protection design
Outdoor CCTV PTZ, dome and bullet camera poles
Thermal and bispectral camera installations
Perimeter security surveillance systems
Gate, boundary-wall and road-monitoring poles
Outdoor security poles with network switches, lights or junction boxes
