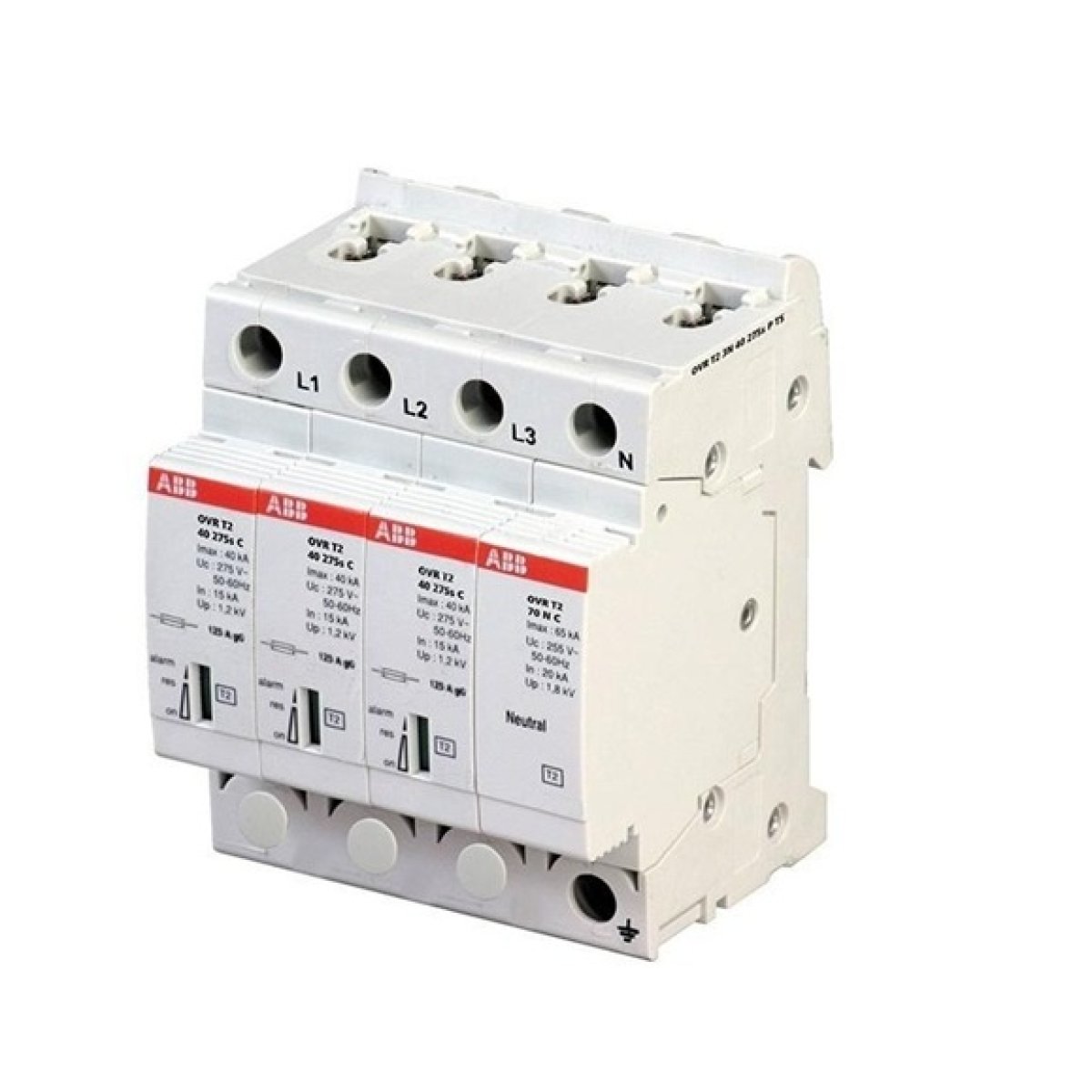

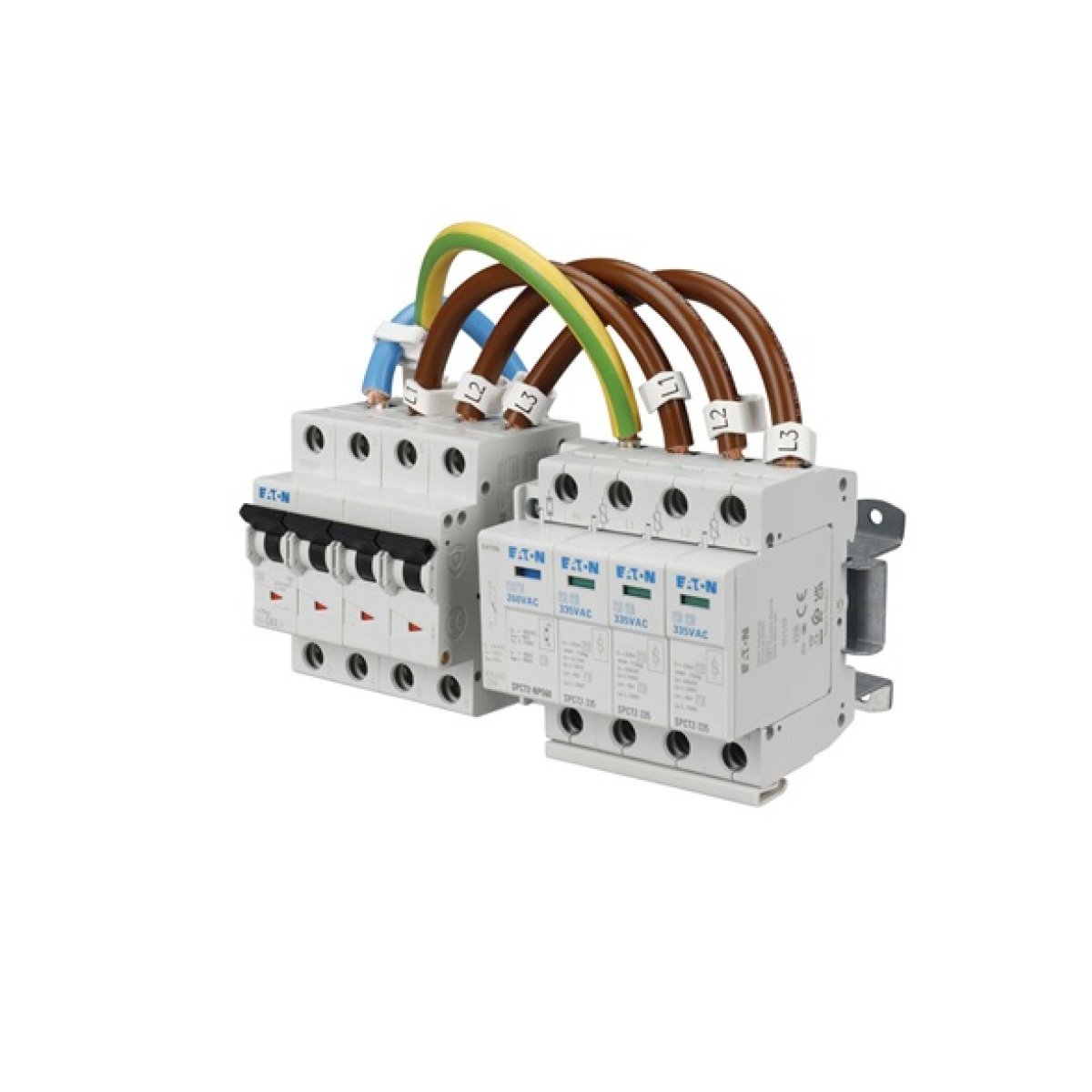

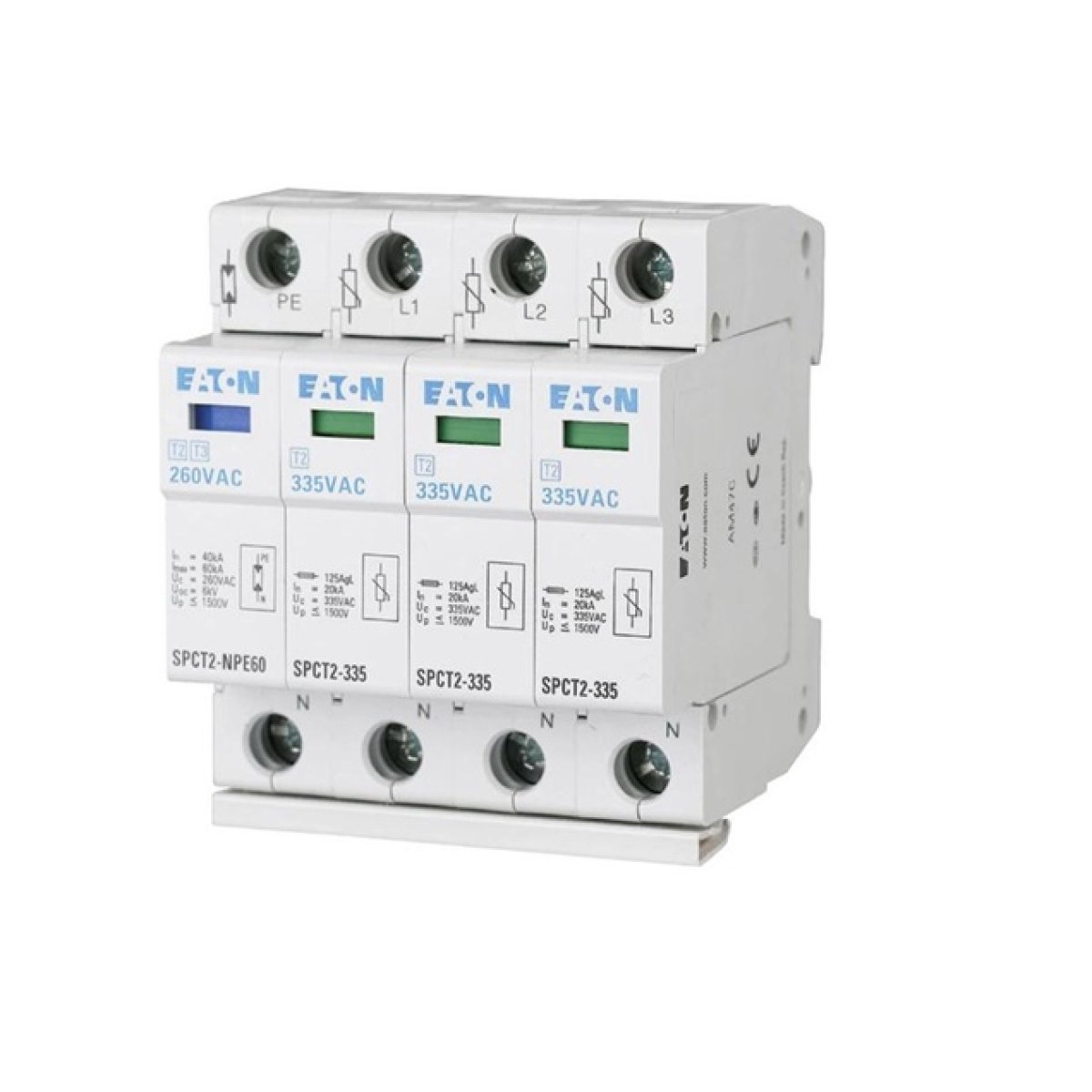

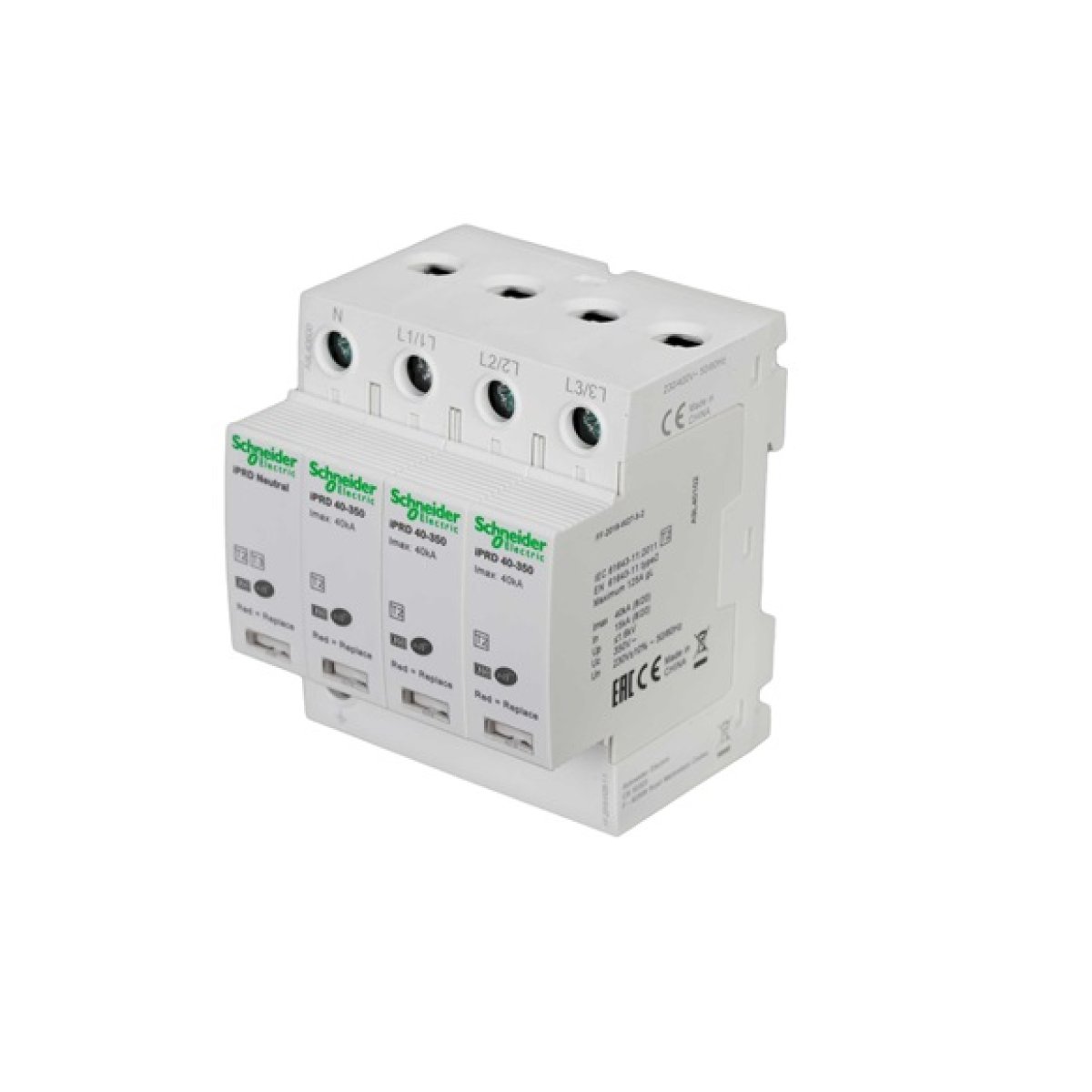

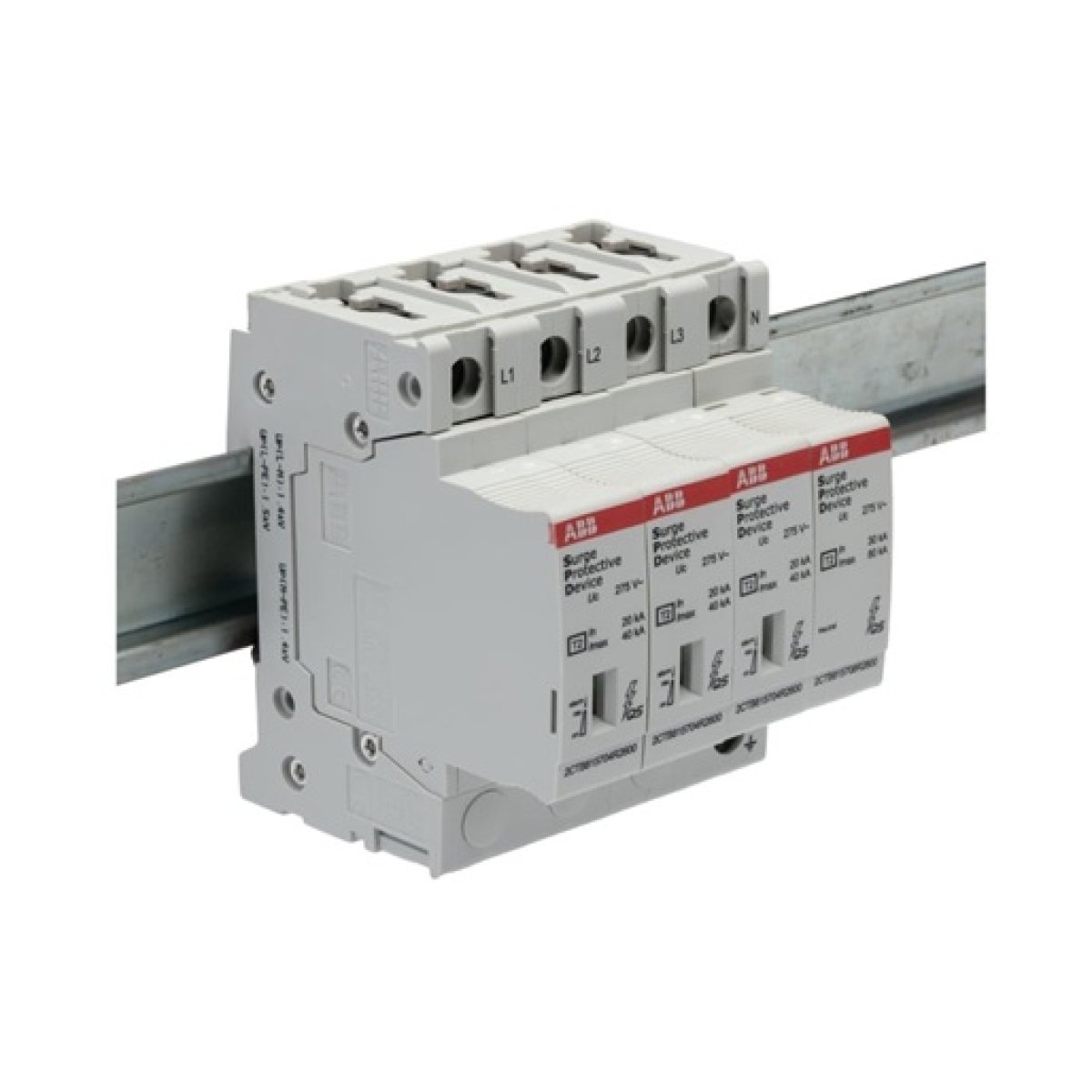

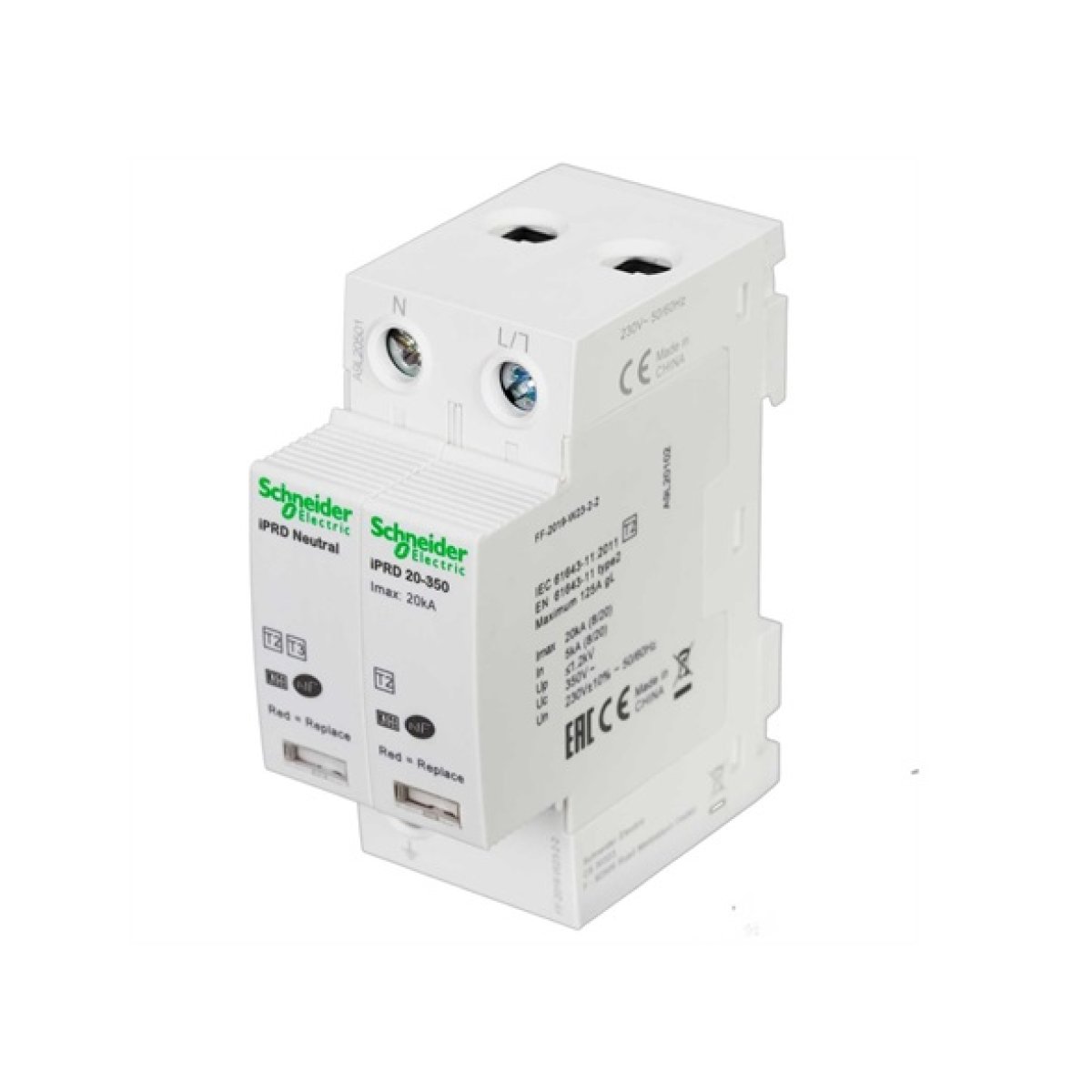

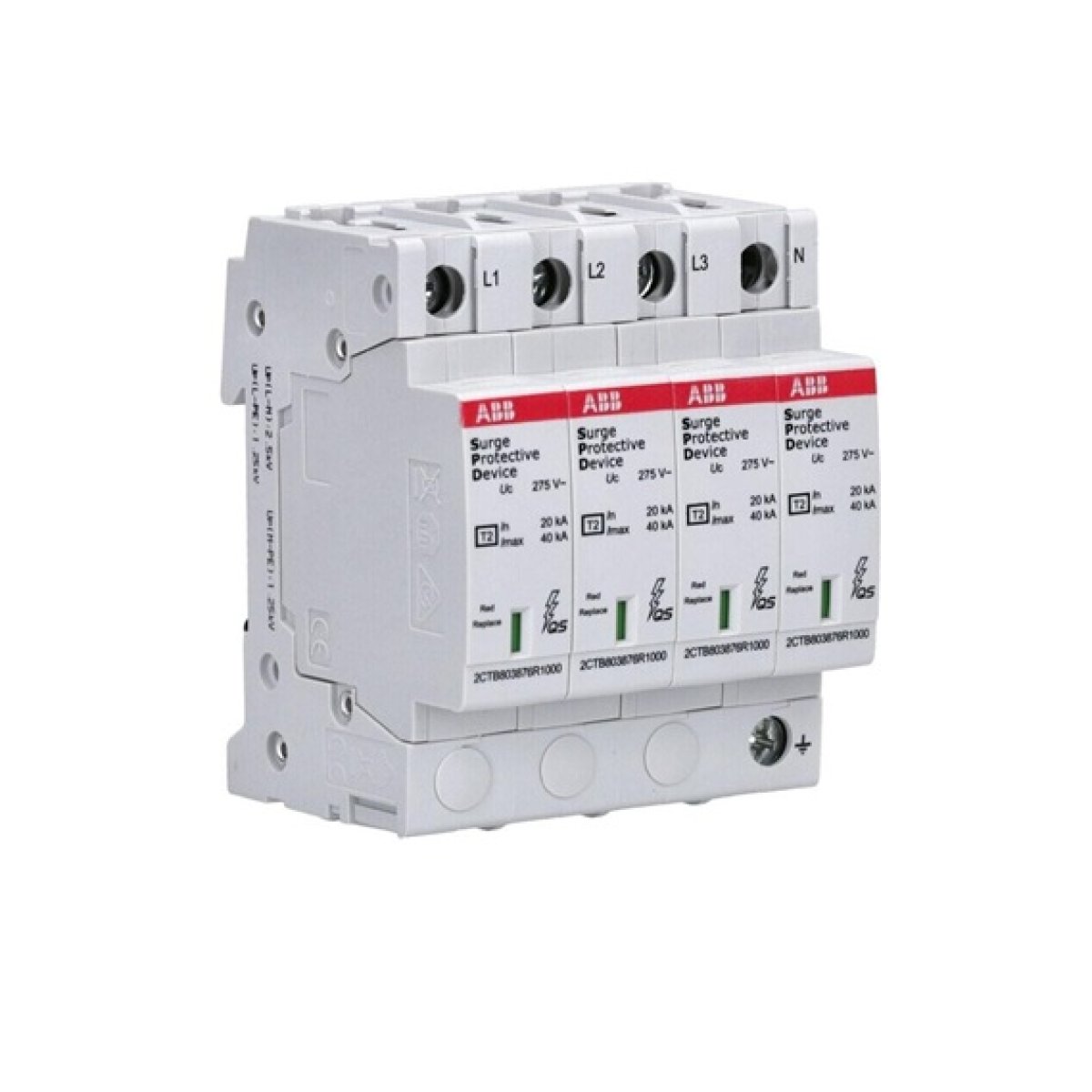

A Type 2 Surge Protection Device (SPD) protects distribution boards and connected electrical equipment against transient voltage surges caused by lightning-induced disturbances and electrical switching operations.
The Type 2 SPD is installed in a distribution board (DB) or sub-distribution board to limit transient overvoltages and divert surge currents safely to the earthing system. It provides secondary surge protection for electrical circuits and helps protect sensitive equipment, including CCTV cameras, network switches, servers, UPS systems, fire alarm panels and building automation devices.
Key Specifications
Parameter
Typical specification
SPD Type
Type 2
Standard
IEC 61643-11
Rated system voltage
230/400 V AC, as applicable
Maximum continuous operating voltage (Uc)
Typically 275 V AC for 230 V L–N protection
Nominal discharge current (In)
Commonly 20 kA
Maximum discharge current (Imax)
Commonly 40 kA
Voltage protection level (Up)
Model-dependent, typically ≤ 1.5–2.5 kV
Pole configuration
1P, 1P+N, 3P, 3P+N
Mounting
DIN rail
Protection status
Visual indicator; remote signalling optional
Specifications are representative selection options, not guaranteed values for every model. Confirm the manufacturer's datasheet and the site's electrical system before procurement.
Common Uses
Main and sub-distribution boards in commercial buildings.
CCTV surveillance and security system power circuits.
Server rooms, network racks and IT equipment supplies.
UPS input and output distribution, where appropriate.
Fire alarm and building management system circuits.
Industrial control panels and automation systems.
