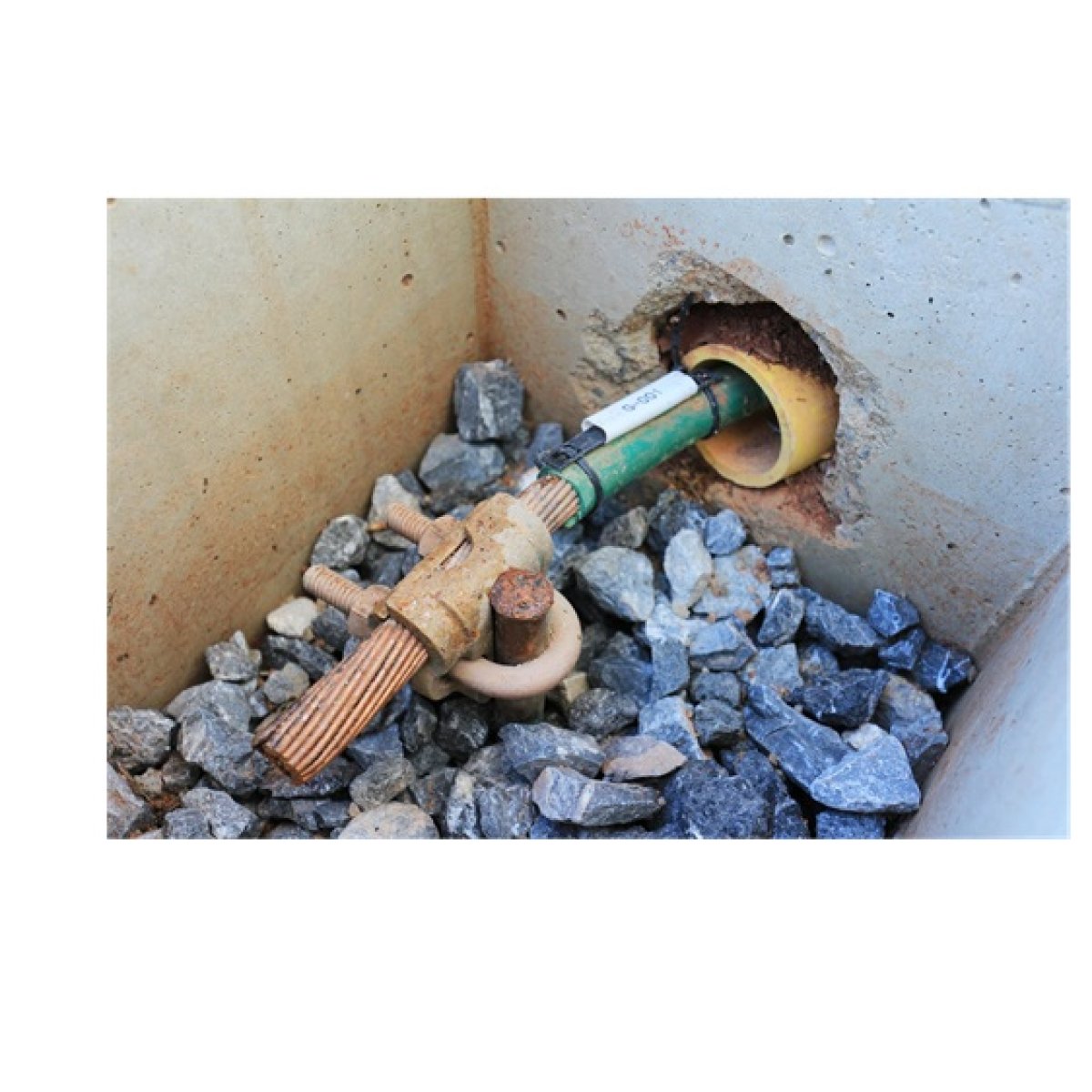

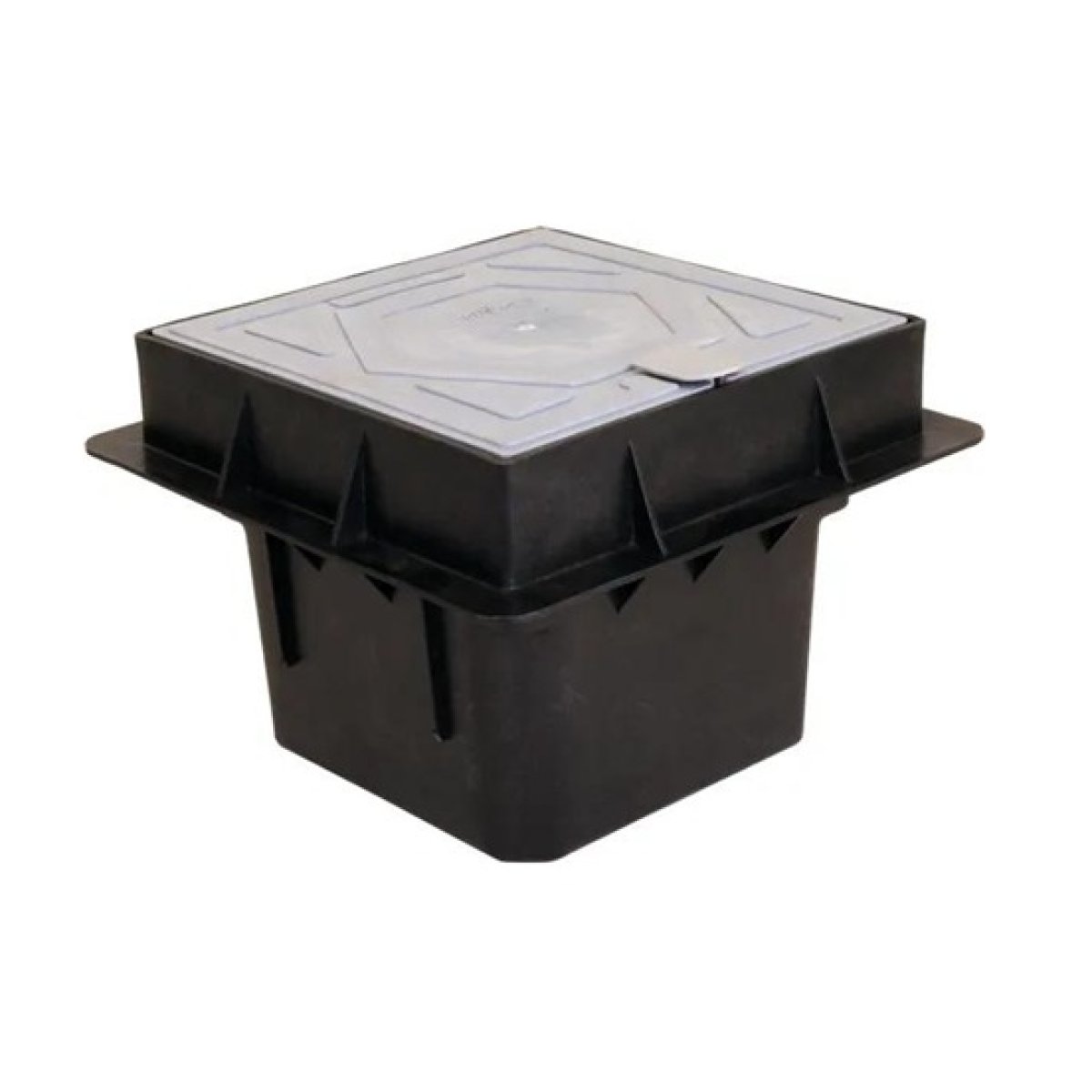

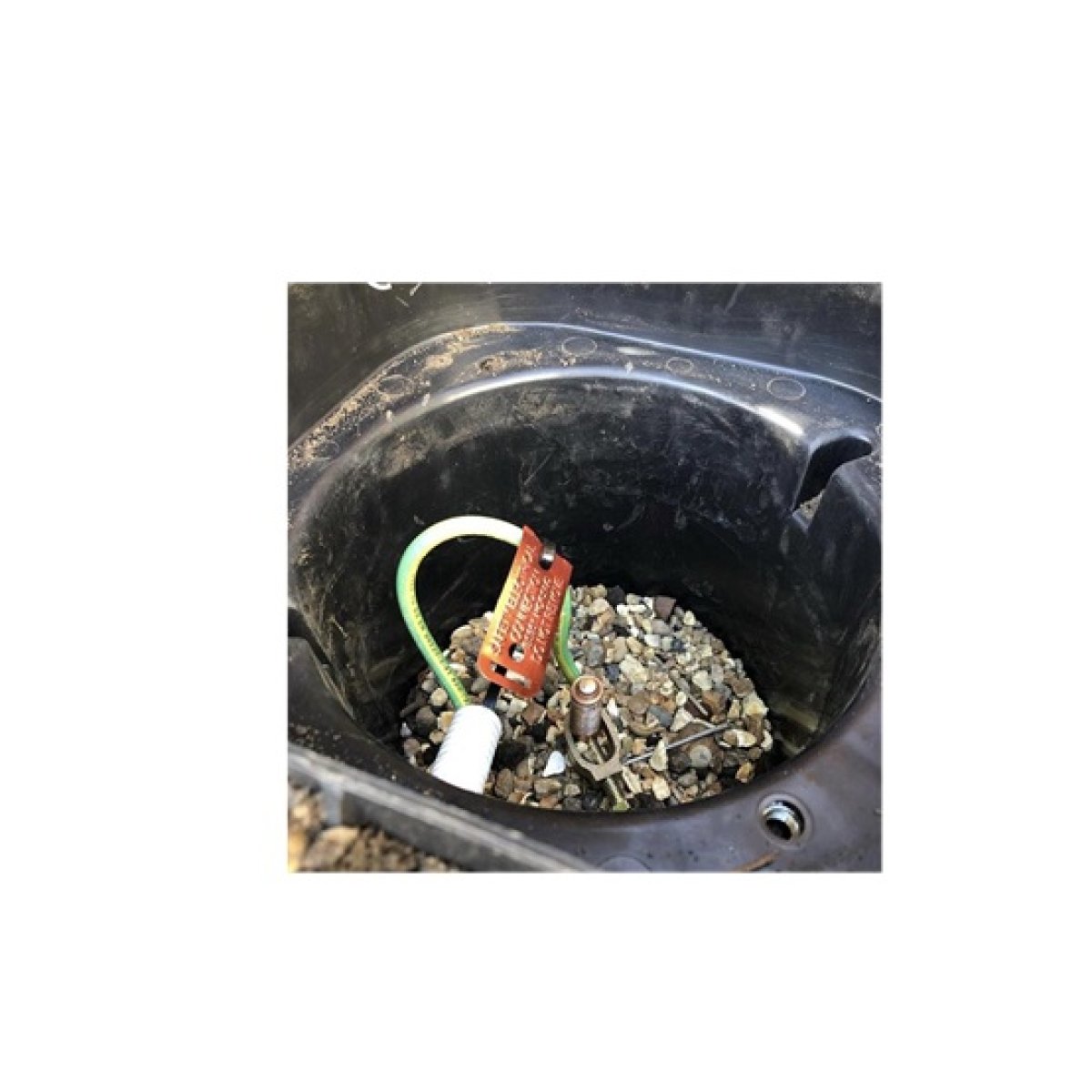

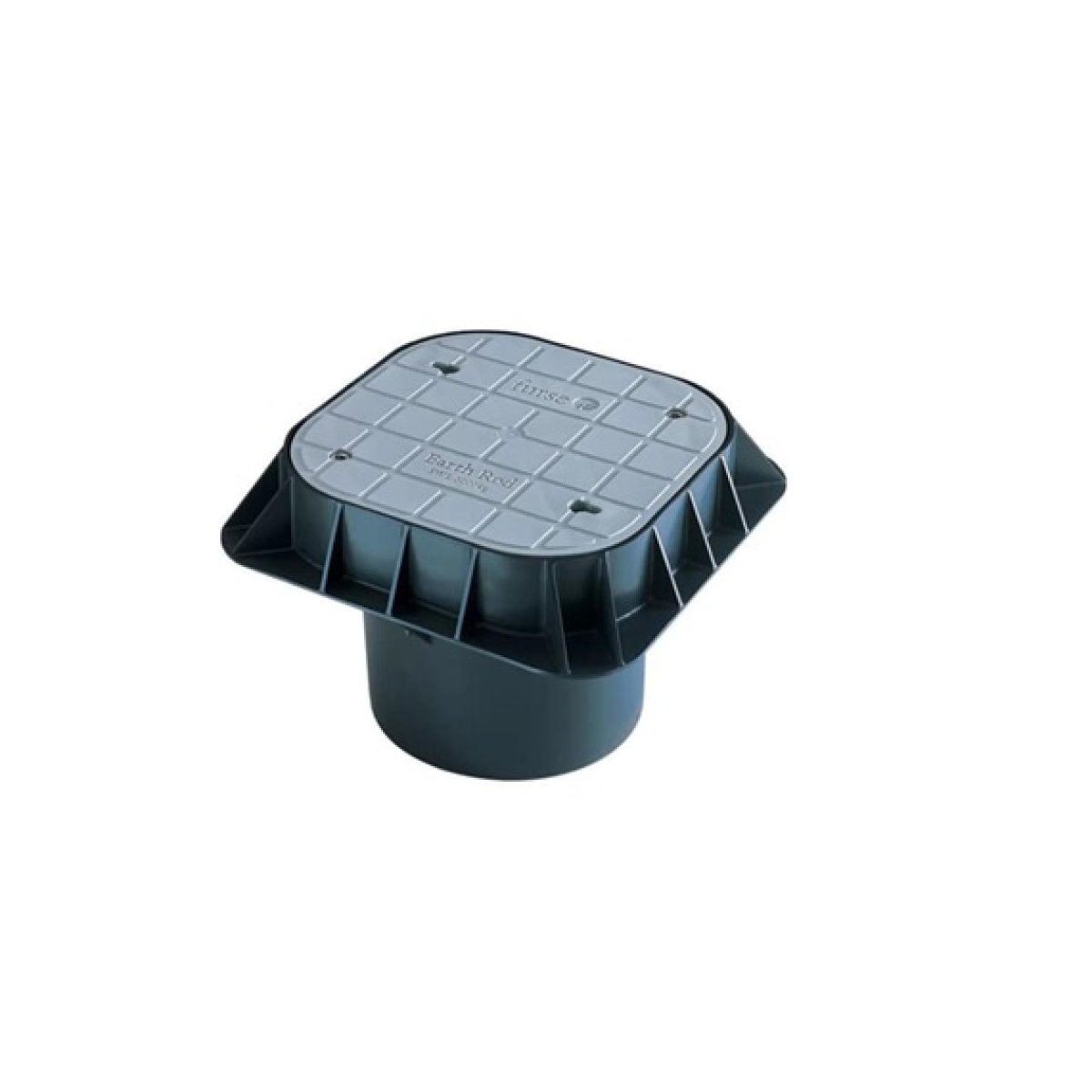

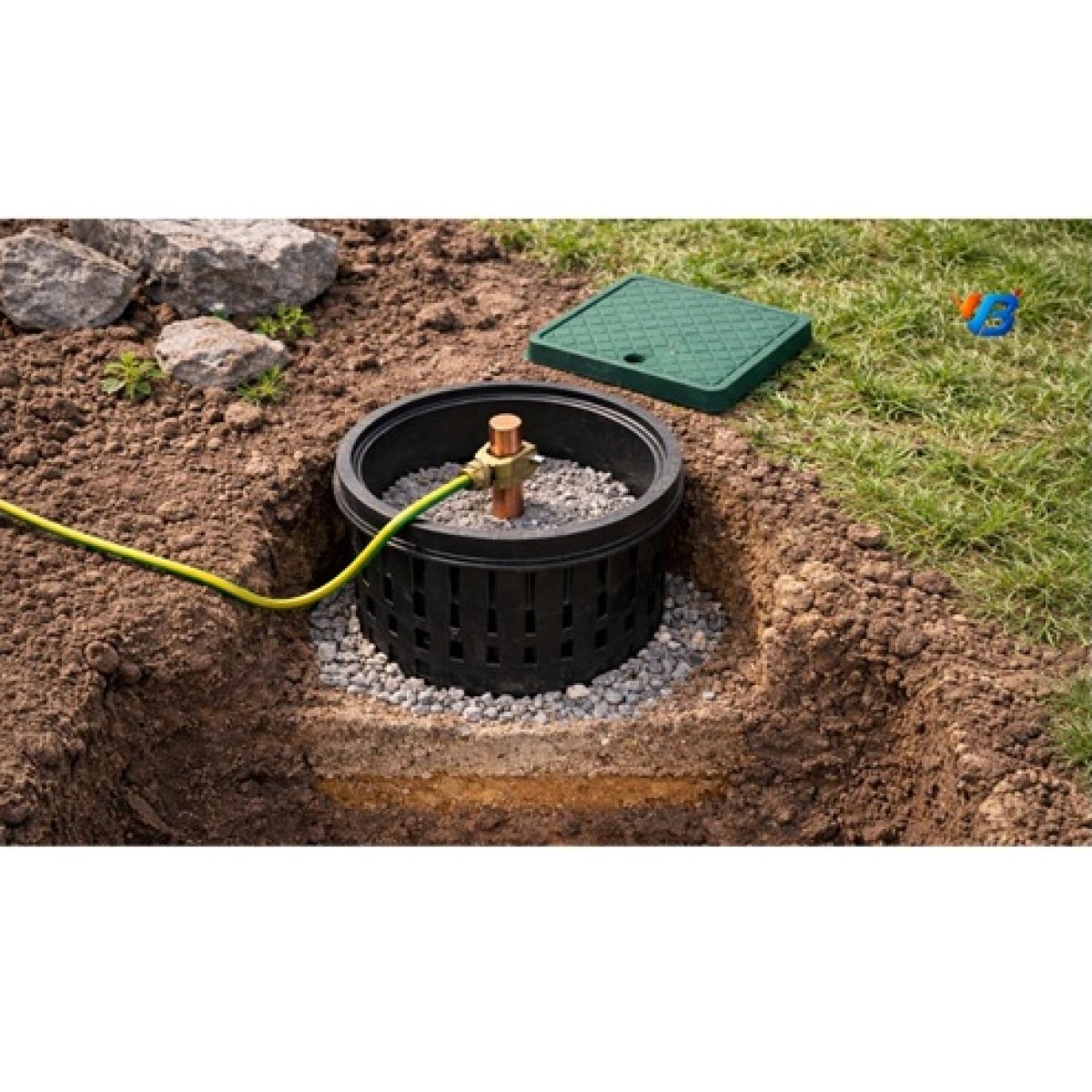

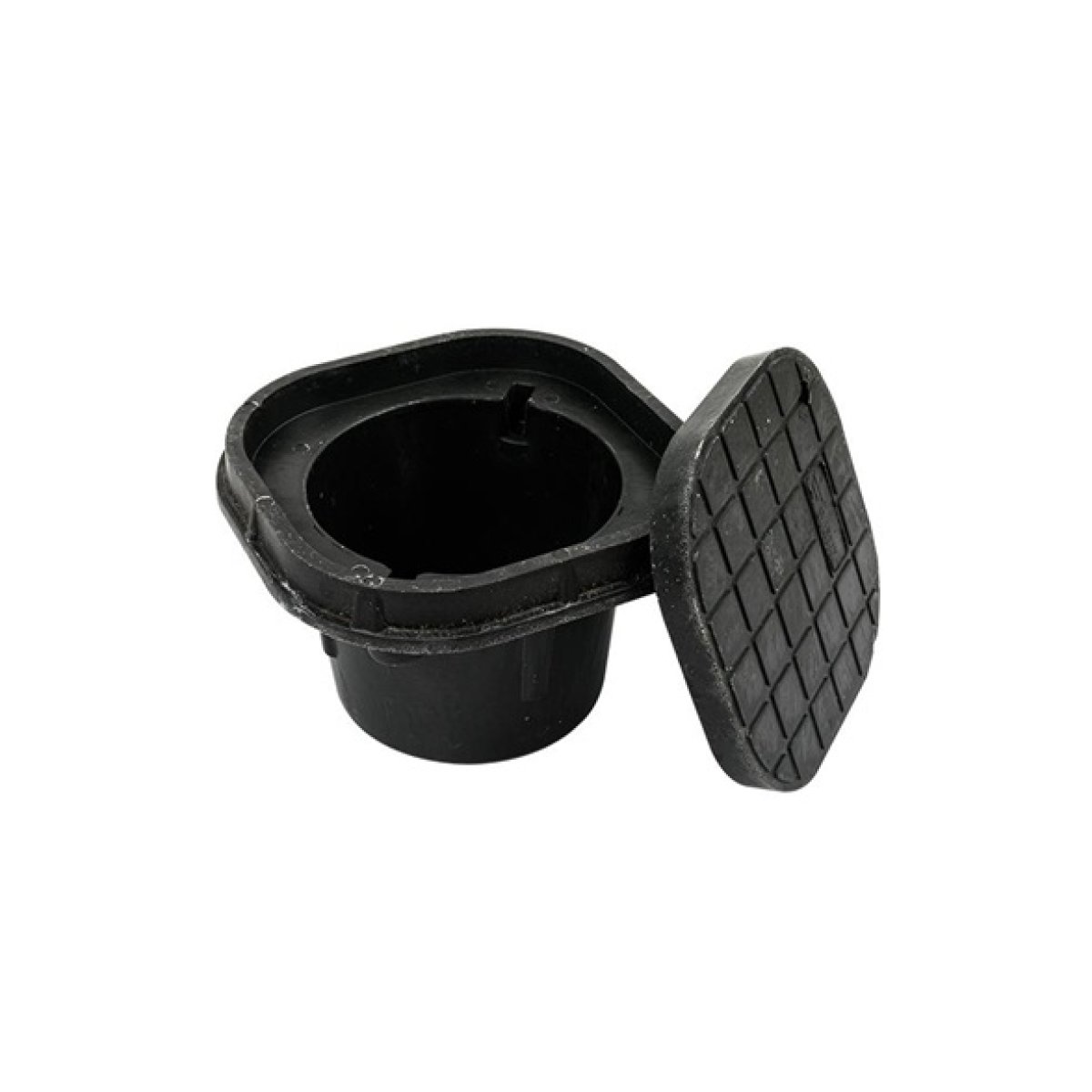

An Earth Pit & Inspection Chamber provides accessible protection and inspection access to an earthing electrode and its connections. It enables maintenance personnel to inspect the earthing system and perform earth resistance testing.

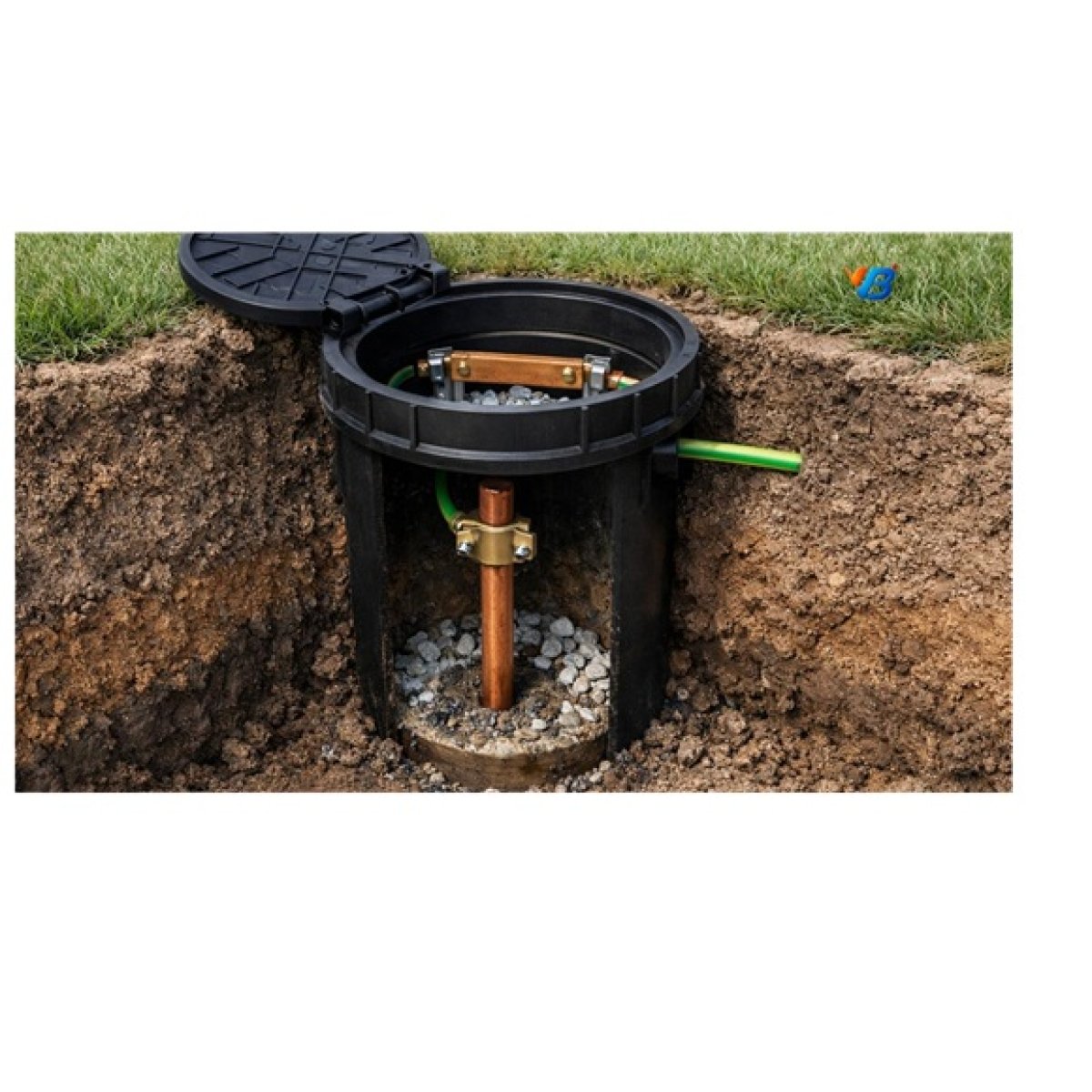

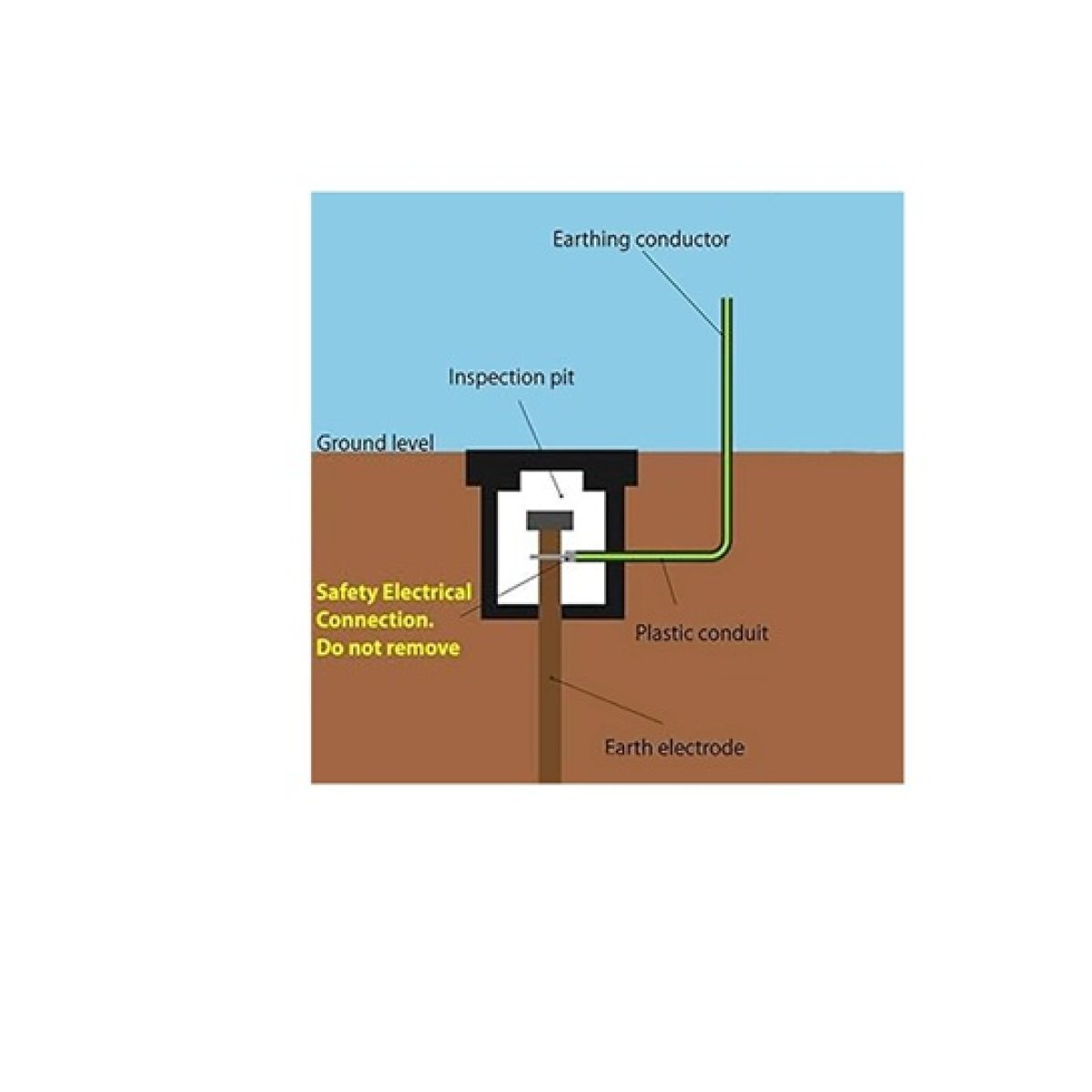

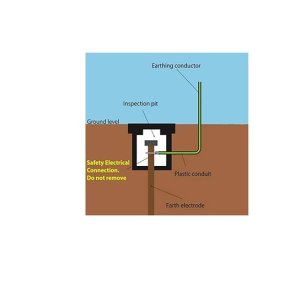

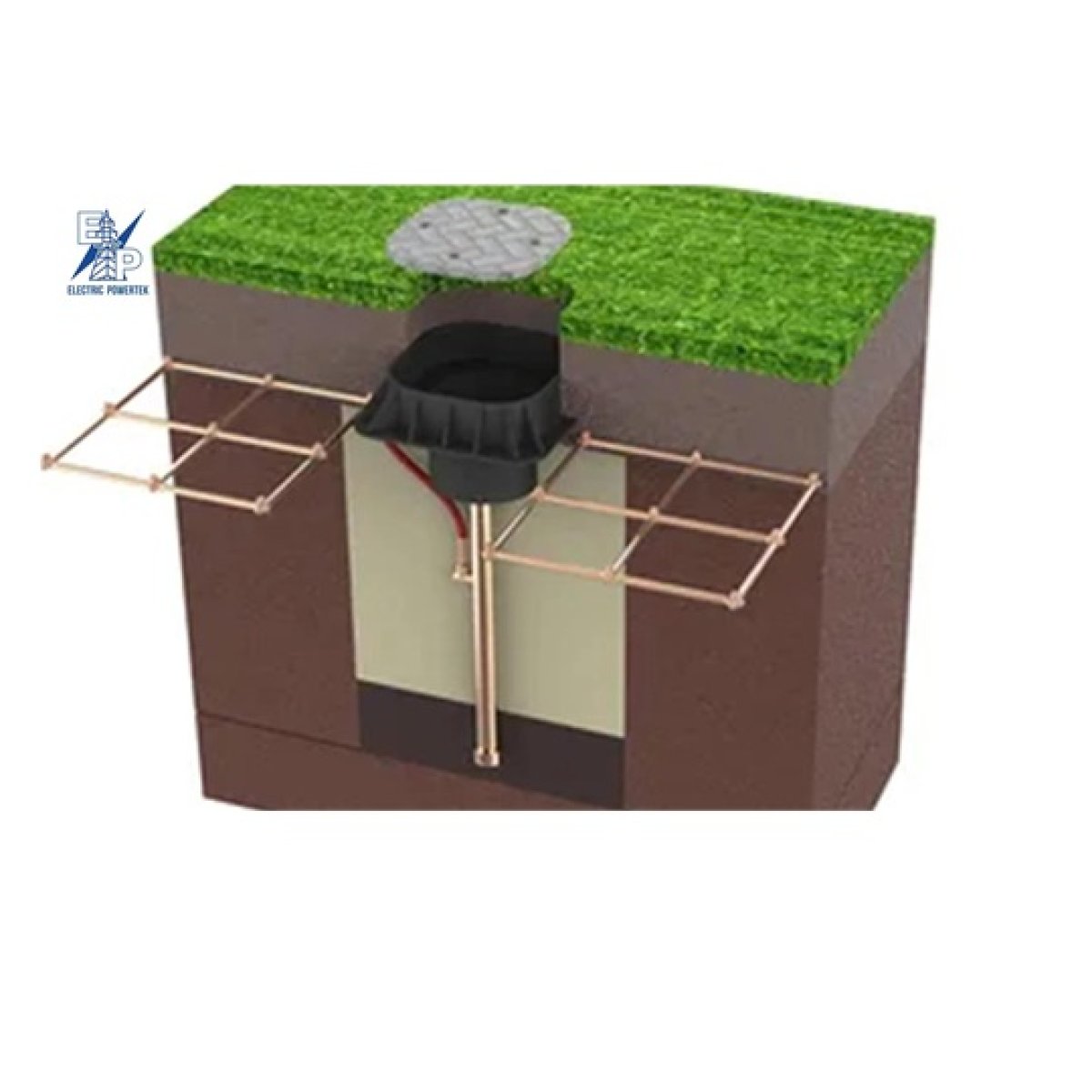

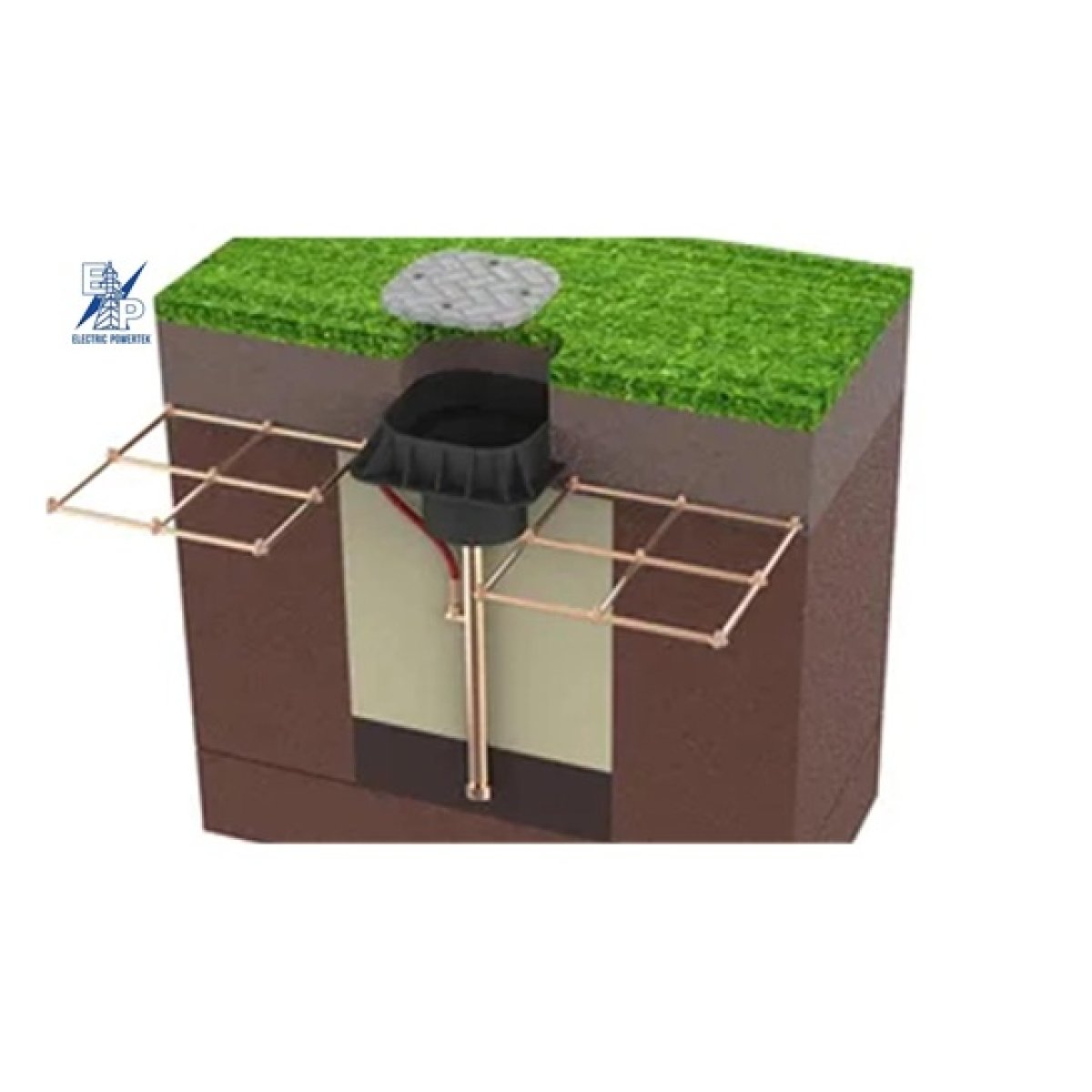

The earth pit is the ground location where an earth electrode, such as a copper-bonded steel rod, is installed to establish an electrical connection with the soil. The inspection chamber is positioned around the electrode connection and fitted with a removable cover to allow safe access for inspection, testing and maintenance.
It is commonly used in building electrical installations, lightning protection systems, CCTV surveillance projects, data centers and industrial facilities. The chamber helps protect the earth connection from accidental damage while keeping it accessible for periodic testing.
Key Specifications
Parameter
Typical specification
Product type
Earth Pit & Inspection Chamber

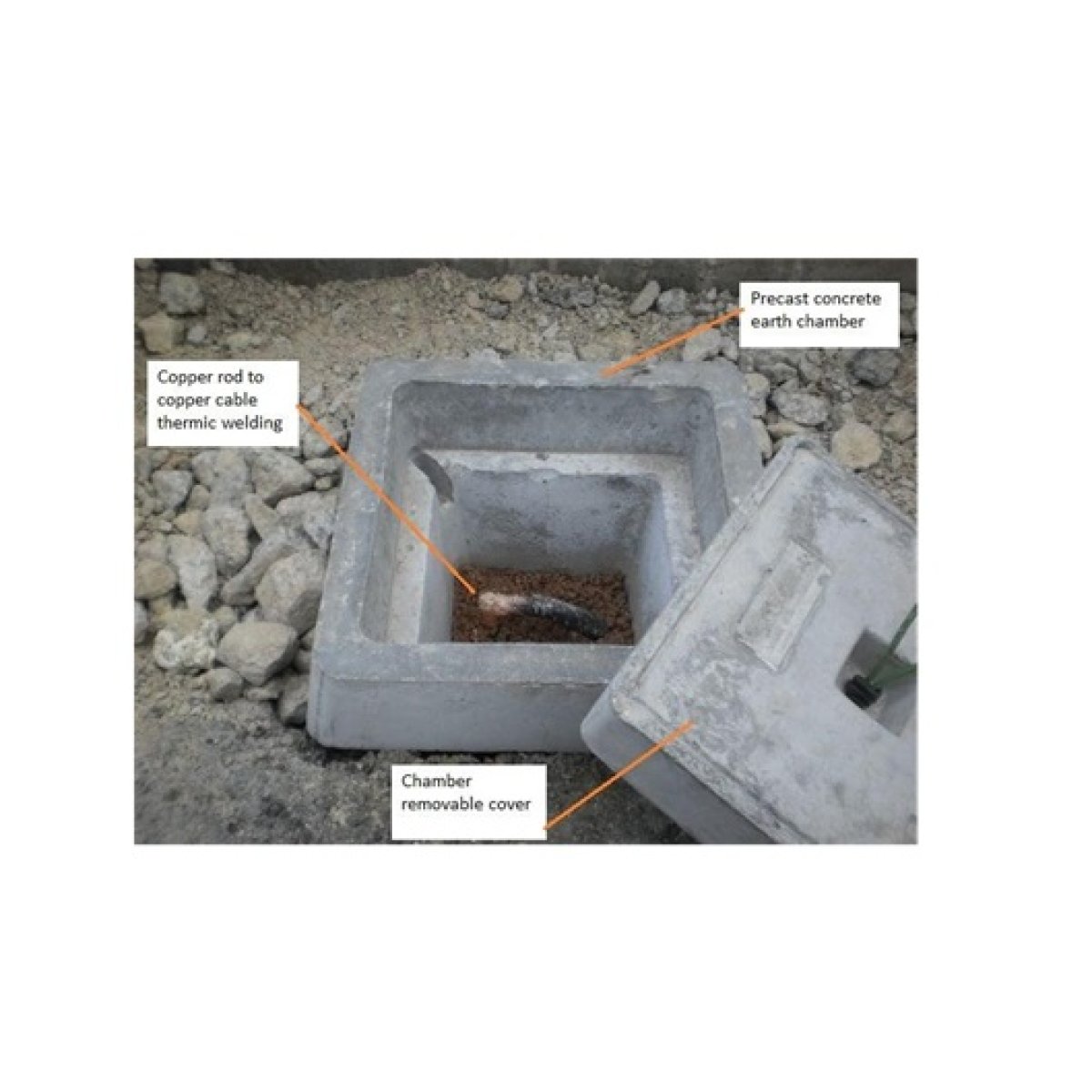

Chamber material
Concrete, polymer or heavy-duty plastic
Cover
Removable, load-rated where required
Typical chamber size
300 × 300 mm or 450 × 450 mm
Earth electrode
Copper-bonded steel rod or copper electrode
Connection
Earth clamp or approved test connection
Testing access
Accessible for earth resistance measurement

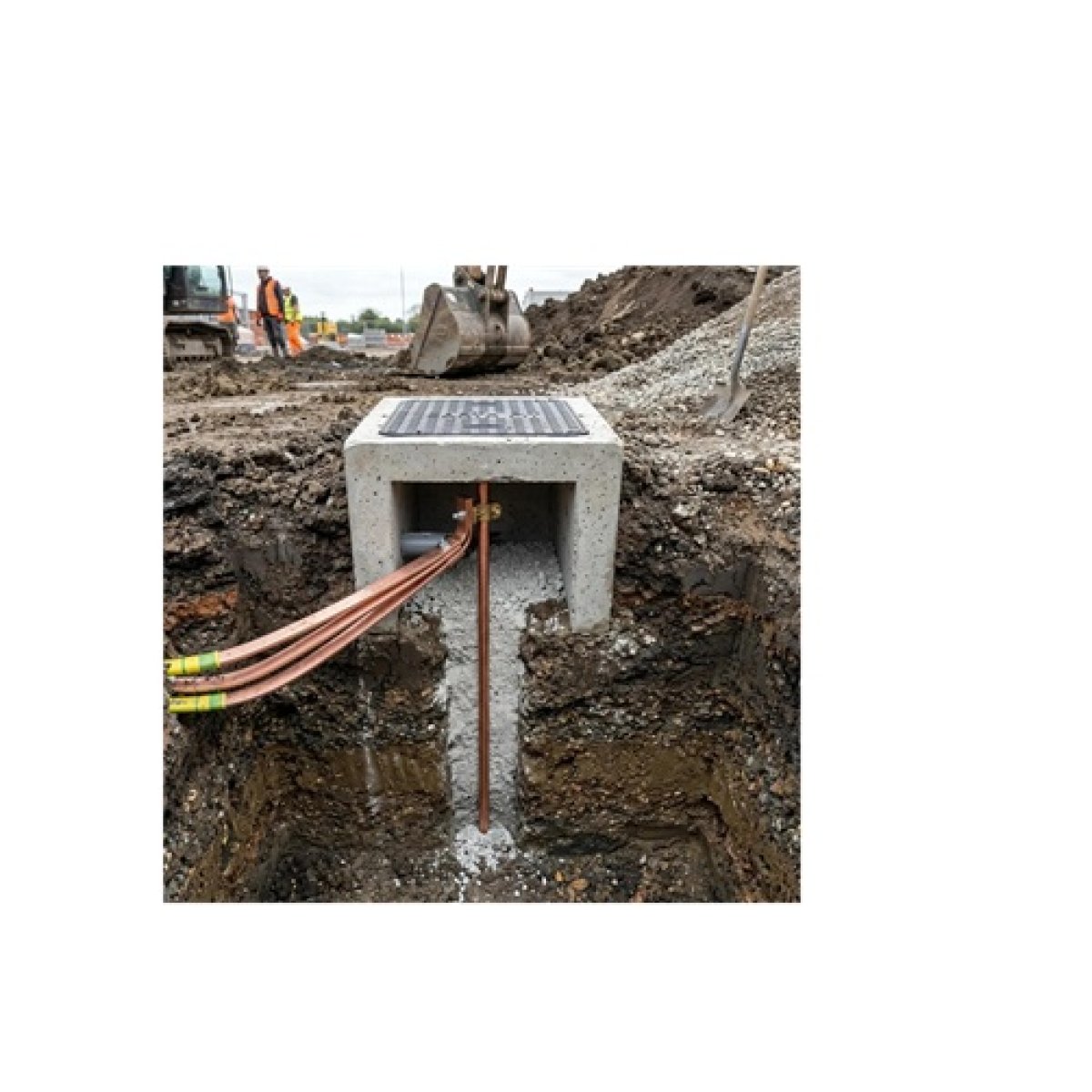

Installation
Flush with finished ground level where appropriate
Dimensions and materials are indicative; select according to the earthing design, site conditions, accessibility and expected surface loading.
Common Uses
Building main earthing systems.
Lightning protection and down-conductor earthing networks.
CCTV camera poles and outdoor surveillance installations.
Main earth bar and electrical distribution system connections.
Server rooms and telecommunications facilities.
Industrial plants and commercial buildings.
Periodic earth resistance testing and maintenance.
