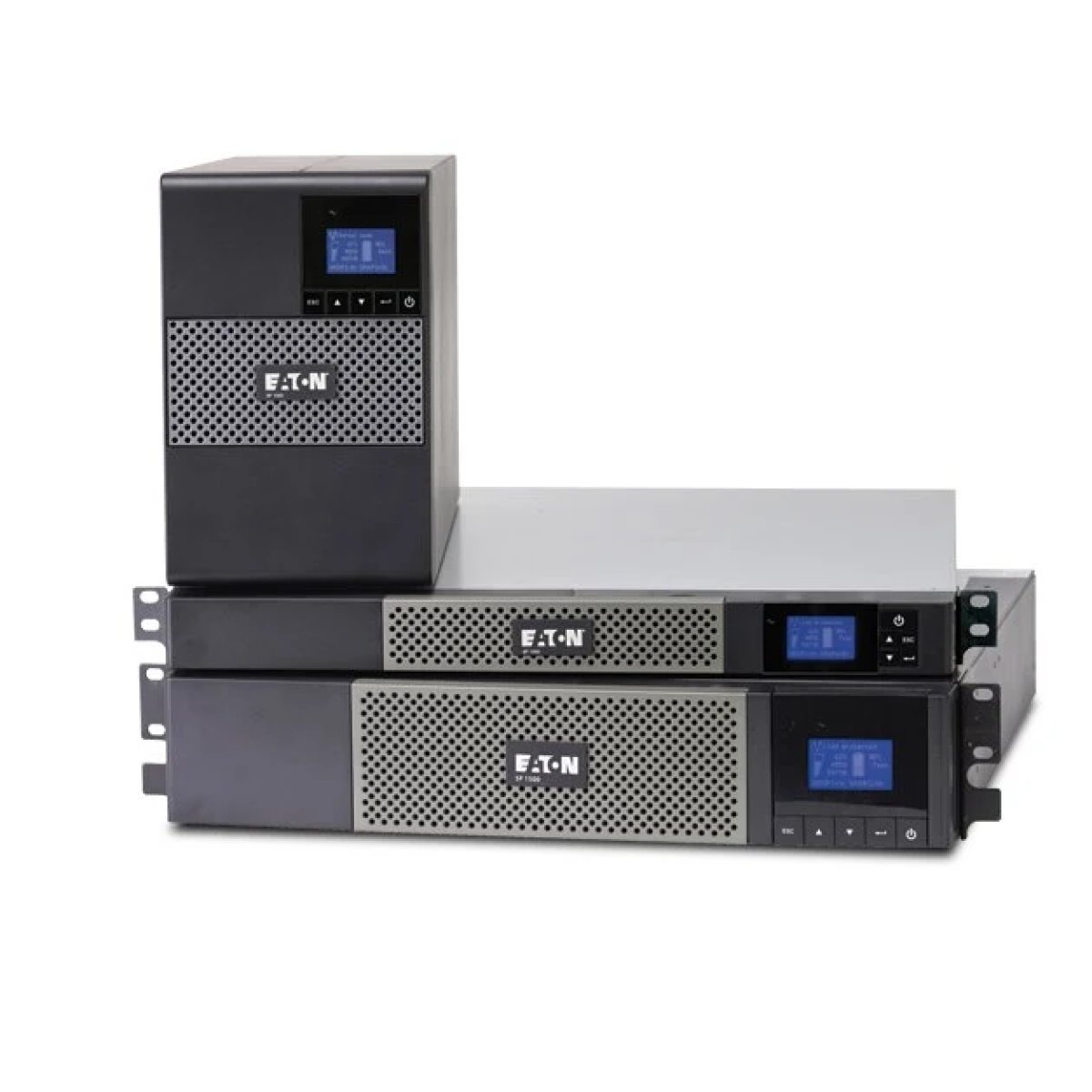

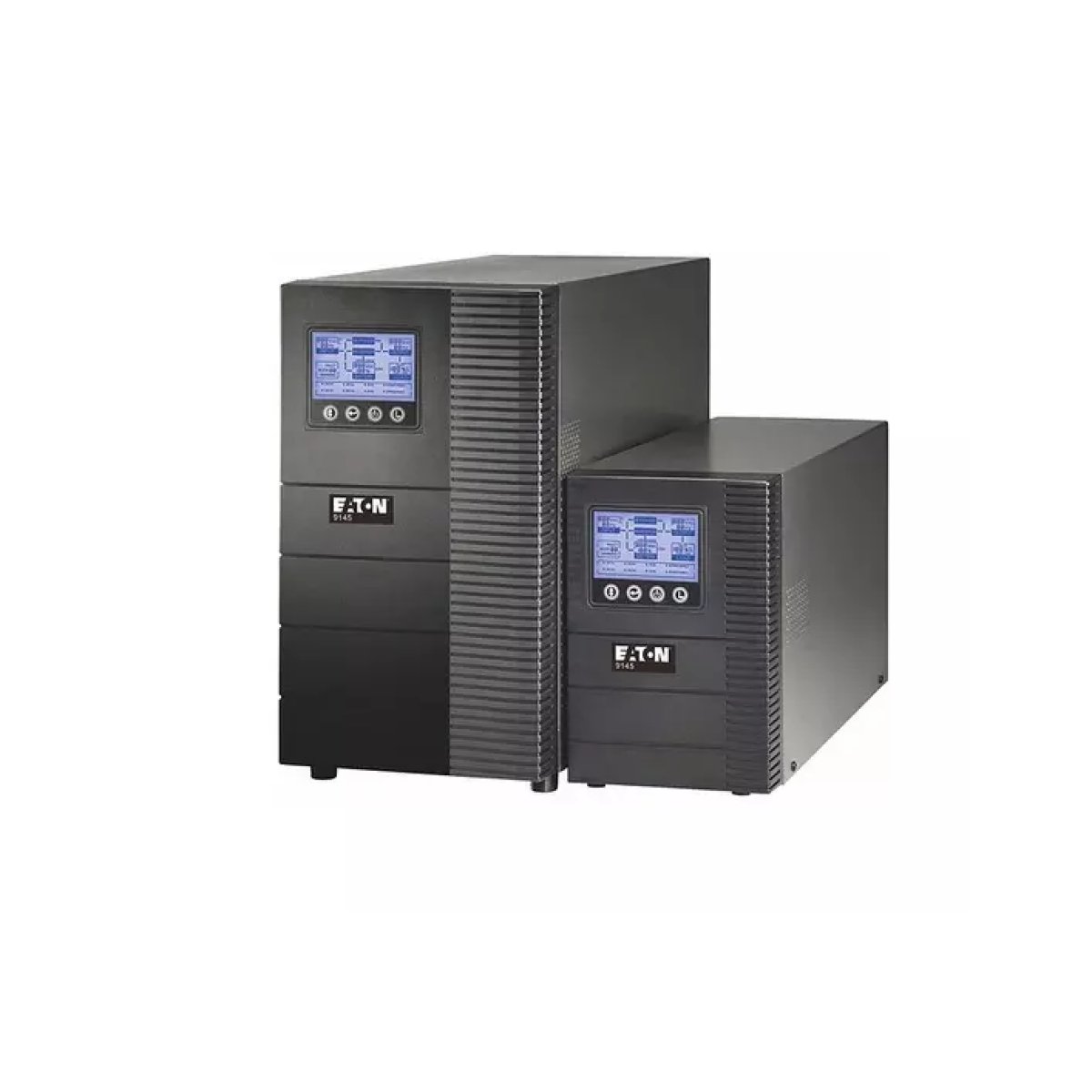

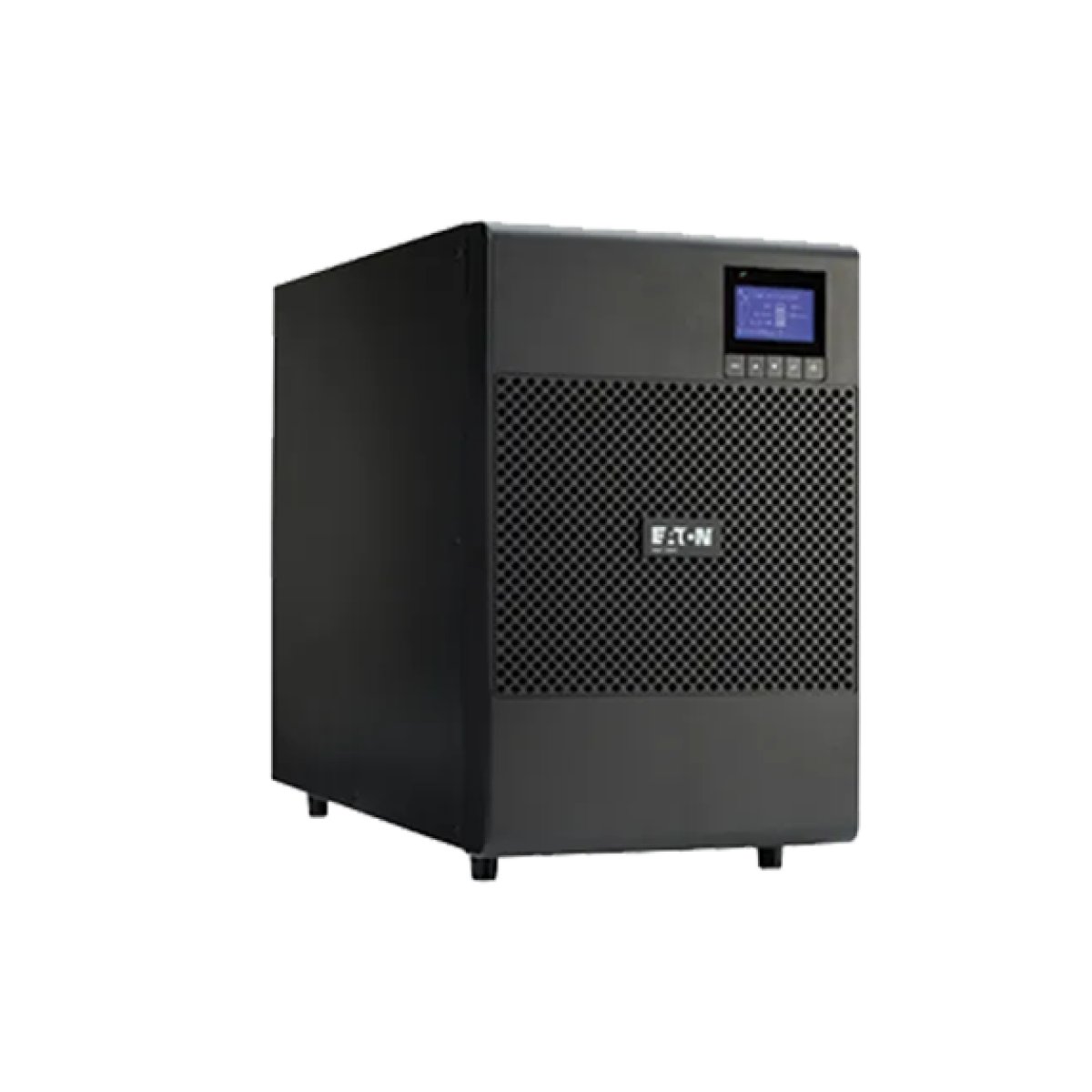

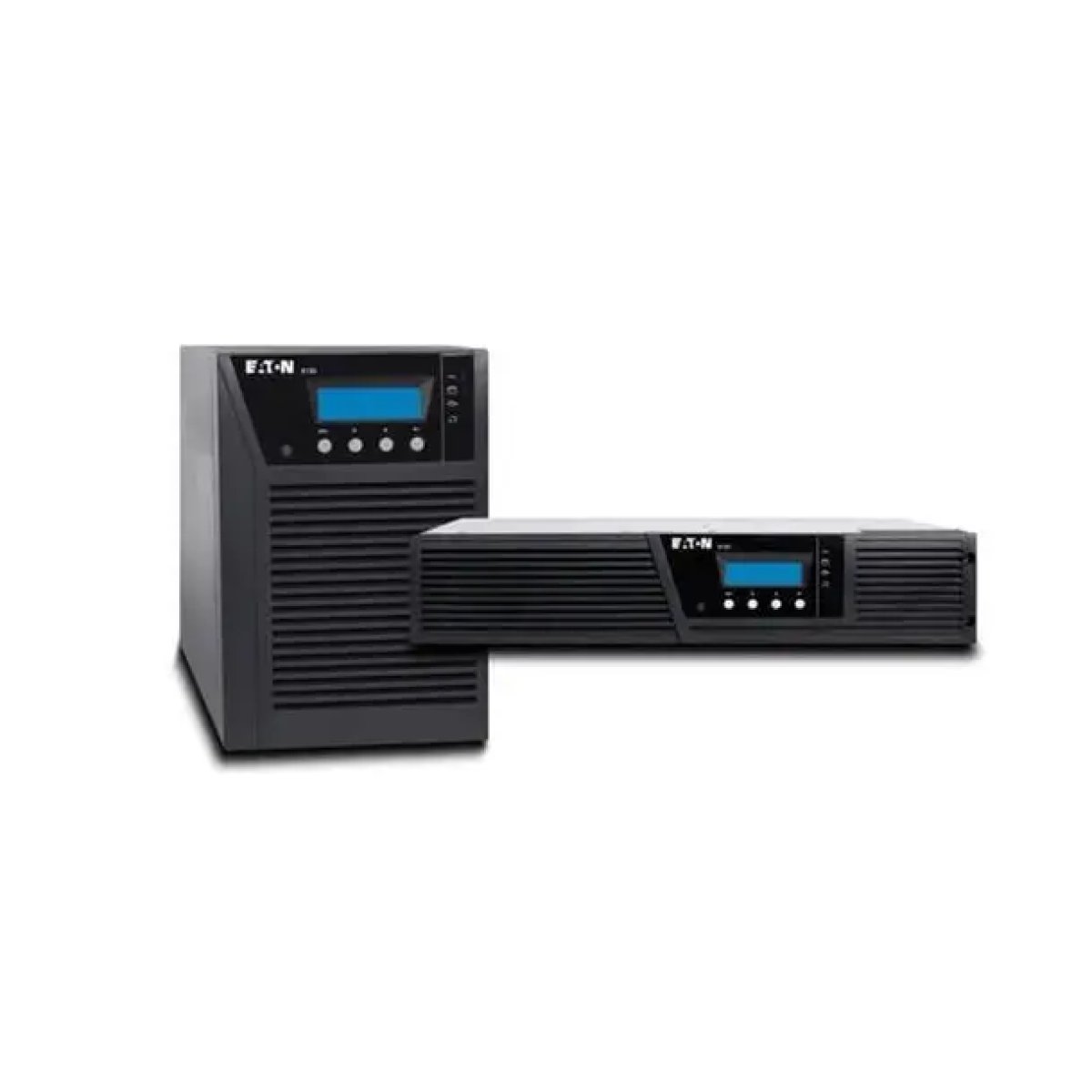

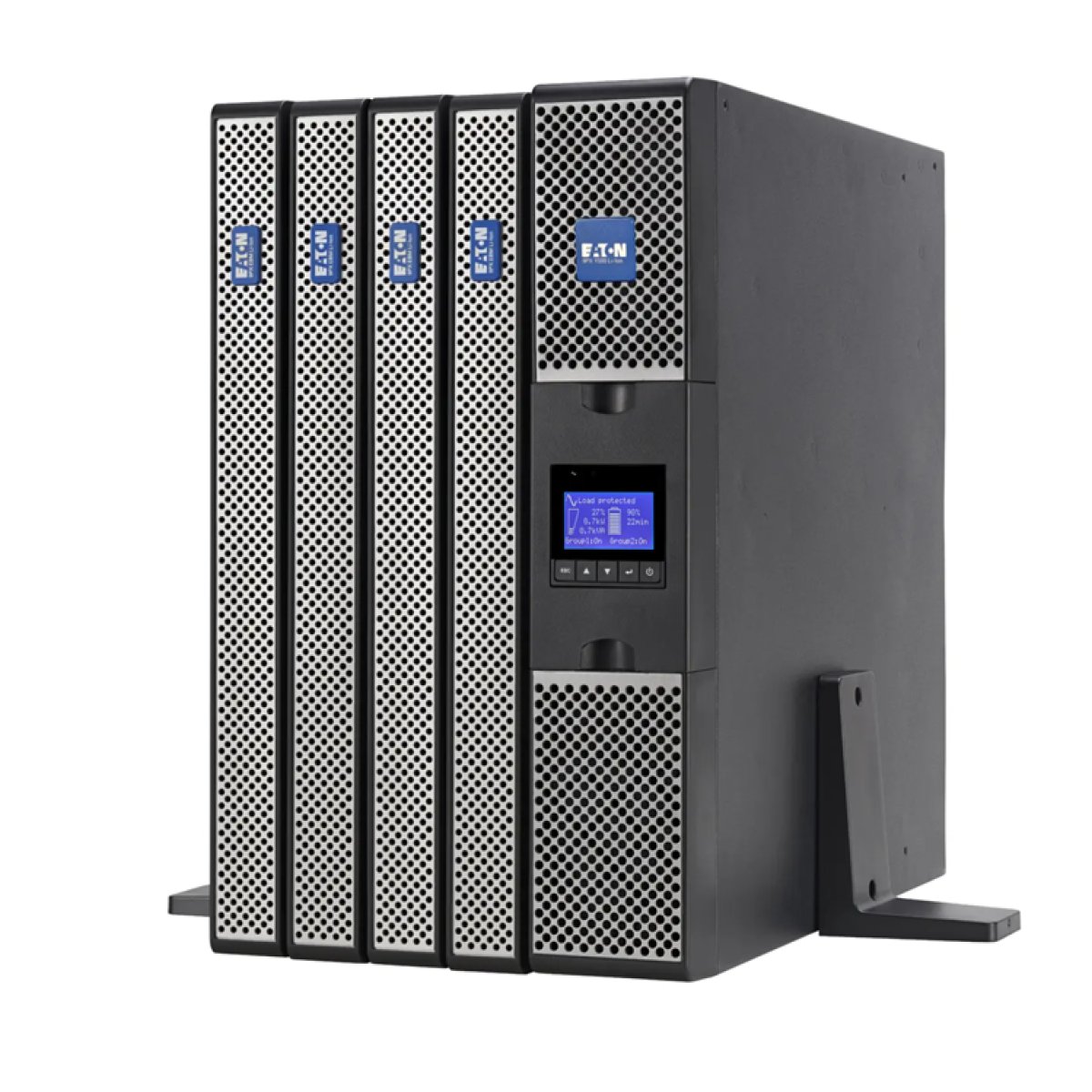

Eaton’s 2kVA and 3kVA single-phase online double-conversion UPS systems provide premium, clean, continuous power protection for mission-critical IT equipment, network infrastructure, and sensitive industrial or medical devices.Built with high power density, they safeguard systems against power outages, sags, surges, brownouts, and frequency fluctuations.
Topology: True online double-conversion architecture that constantly isolates connected equipment from utility power by converting incoming AC power to DC and then back to a clean AC output wave.

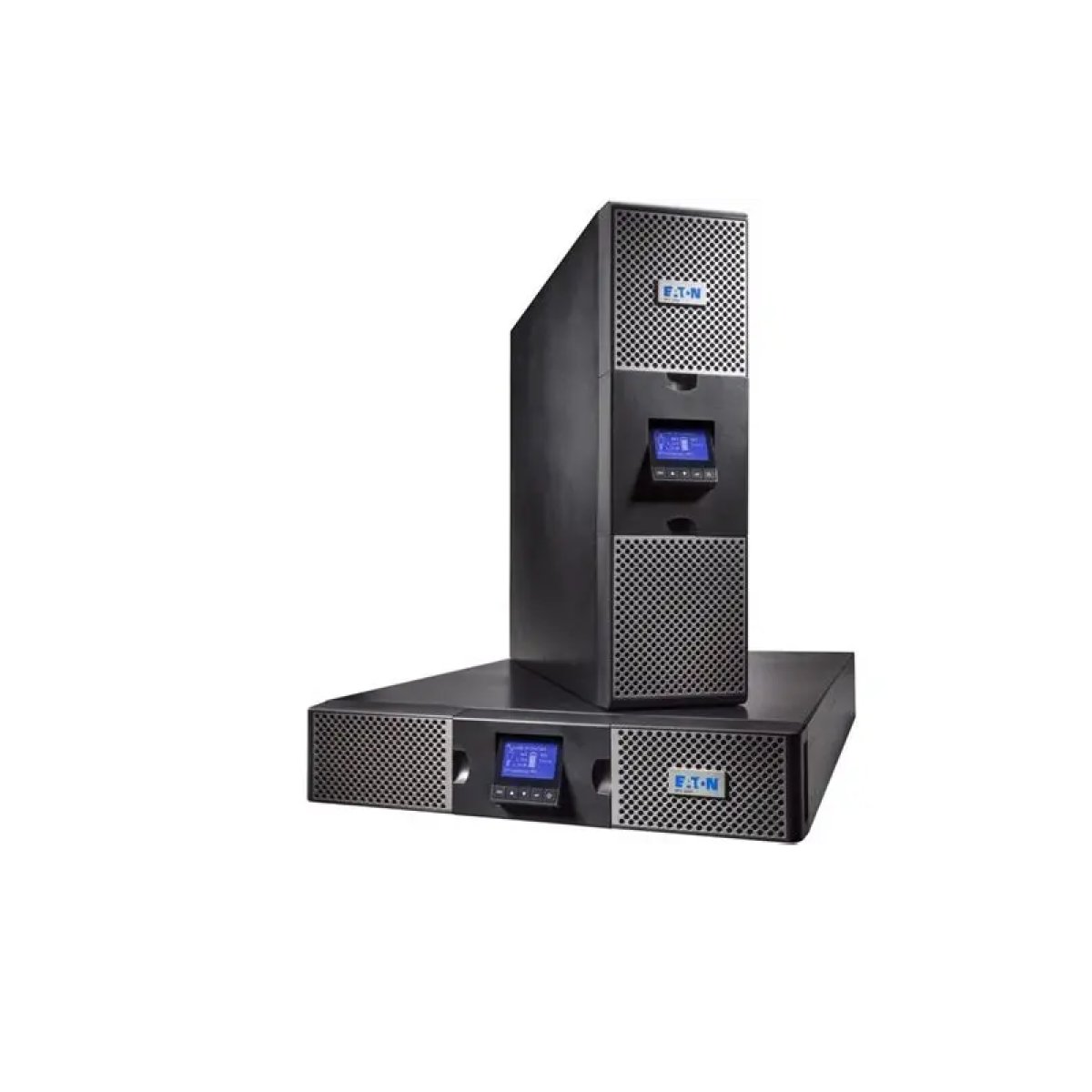

Form Factor: Highly flexible convertible design (Rackmount 2U or standalone Tower) that fits smoothly into server racks or modern office environments.
Battery Management: Features Eaton's patented ABM® (Advanced Battery Management) technology, which uses a 3-stage charging cycle to significantly extend battery service life by up to 50% and provides advance warning for battery replacement.
Manageability: Equipped with a graphical LCD interface for clear status readouts, energy metering (kWh monitoring down to outlet groups), and slots for optional network/communication cards.
Key SpecificationsFeature2kVA Model (e.g., 9SX / 9PX)3kVA Model (e.g., 9SX / 9PX)Power Rating (VA / Watts)2000 VA / 1800W3000 VA / 2700WEfficiencyUp to 93–95% in online mode, up to 98% in high-efficiency/ECO modeUp to 93–95% in online mode, up to 98% in high-efficiency/ECO modeInput Voltage RangeTypically 176V–276V (or down to 100V–120V with derating)Typically 176V–276V (or down to 100V–120V with derating)Nominal Voltage200 / 208 / 220 / 230 / 240V200 / 208 / 220 / 230 / 240VOutput ConnectionsMultiple IEC C13 outlets (e.g., 6 to 8 sockets) with programmable load segmentsIEC C13 and C16/C19 sockets supporting heavier loadsCommunication PortsUSB, Serial RS232, and mini-terminal blocks for Remote Power Off (RPO)USB, Serial RS232, and mini-terminal blocks for Remote Power Off (RPO)Expansion Slots1 slot for optional Network-M2, ModBus, or Relay cards1 slot for optional Network-M2, ModBus, or Relay cardsCommon UsesIT & Networking: Small-to-medium server rooms, network switches, routers, firewalls, and corporate storage arrays.
Telecom & Security: VoIP communication infrastructure, IP camera surveillance control systems, and access control hardware.
Industrial & Laboratory: Small automation controllers, precision lab testing instruments, and point-of-sale (POS) clusters.
