High-Voltage Vacuum Circuit Breaker (VCB)

• Arc Quenching: It uses a high-vacuum environment (contained in the dark-colored vertical "bottles" or interrupters seen in the image) to rapidly extinguish the electrical arc that forms when contacts separate.
• Spring-Operated Mechanism: The unit utilizes a modular spring-stored energy system. Energy is typically stored by an internal motor or manually using a charging handle.
• Speed: It can interrupt current flow within milliseconds, providing fast protection to downstream equipment.

• Rated Voltage: 12 kV.
• Rated Current: Typically ranges from 630A to 1250A, but can go higher (up to 4000A).
• Breaking Capacity: Typically rated for short-circuit currents between 20kA and 40kA.
• Service Life: Highly durable, often rated for 20,000 mechanical operations with minimal maintenance.

Visual Components

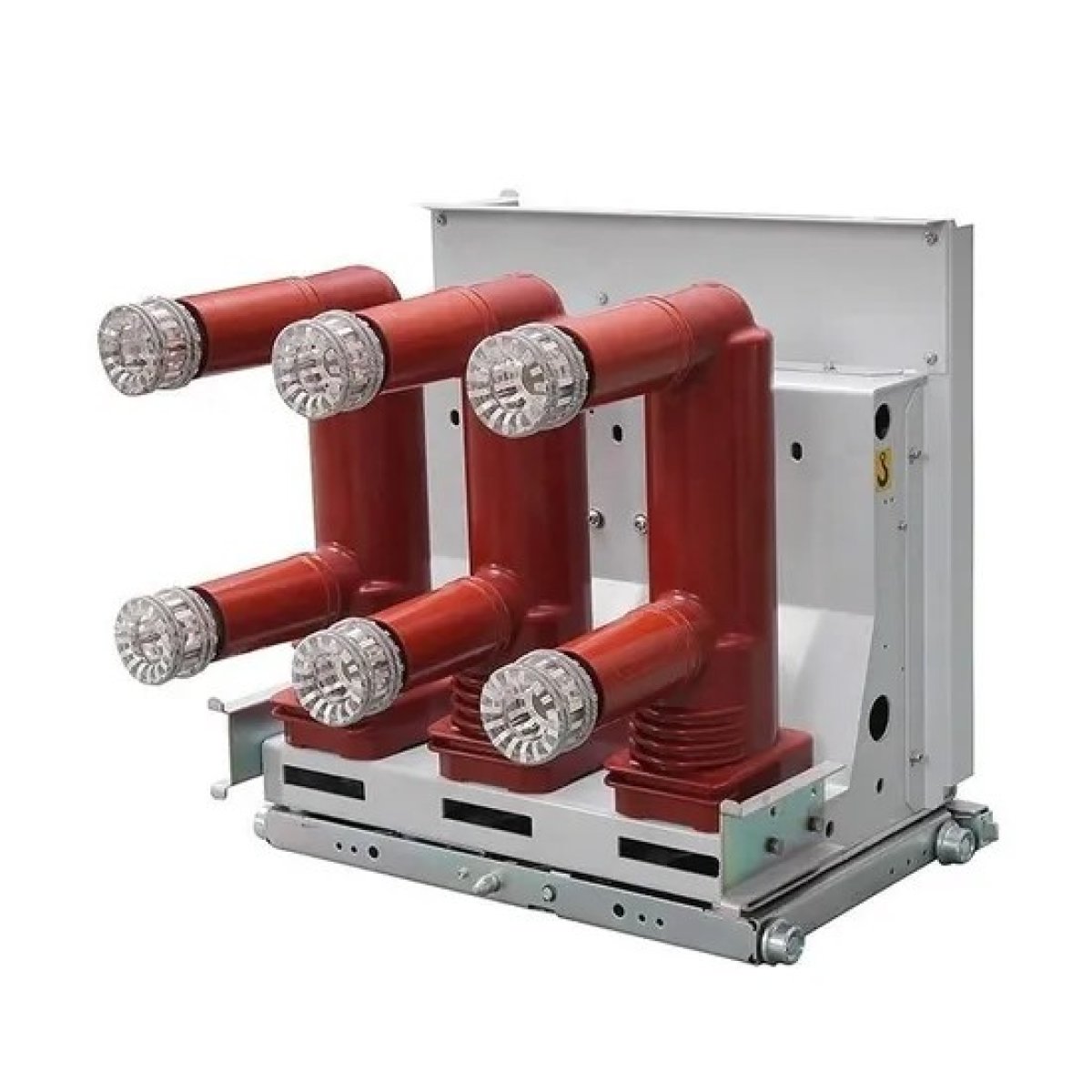

Dark Insulated Cylinders (Poles): Housing for the vacuum interrupters where the actual current interruption occurs.

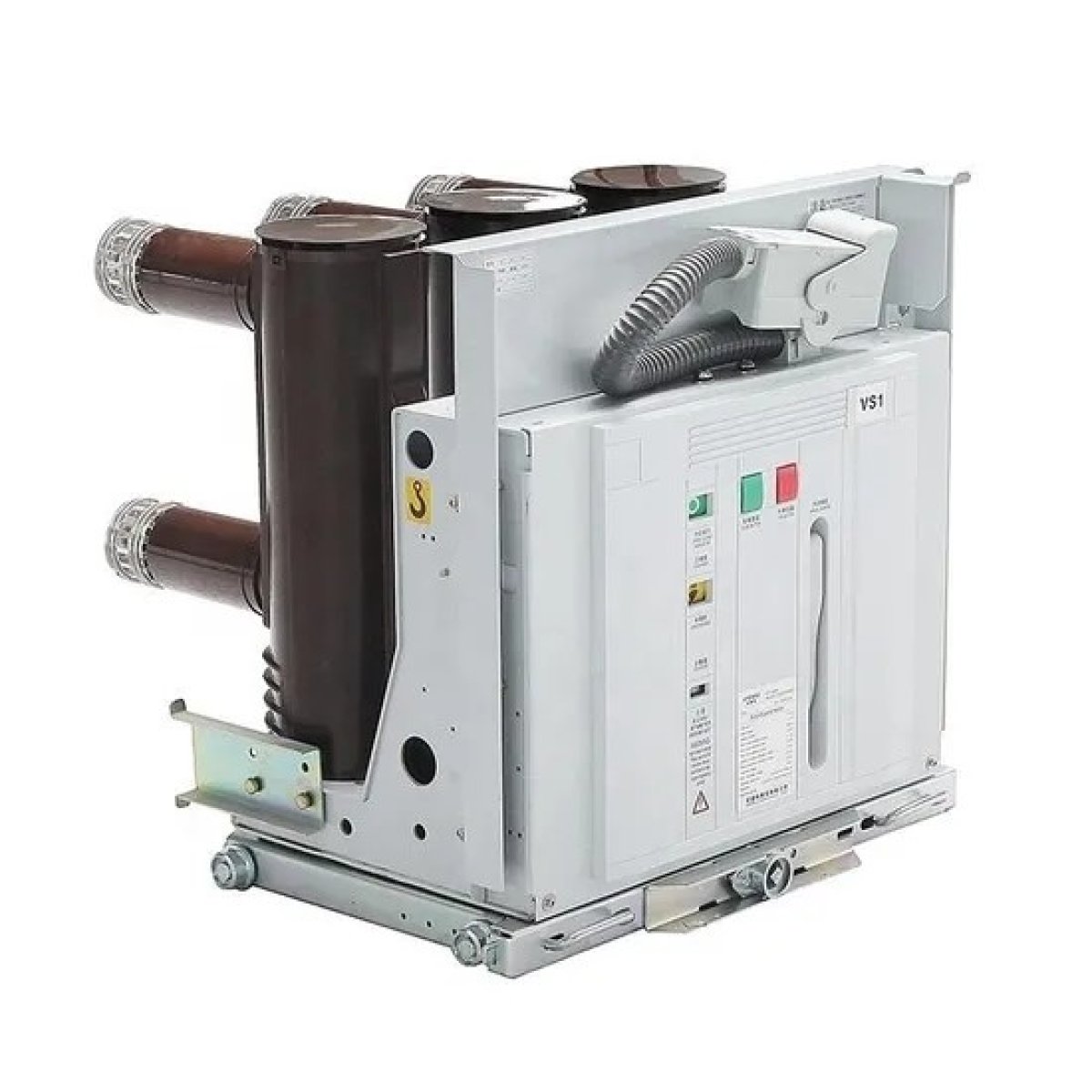

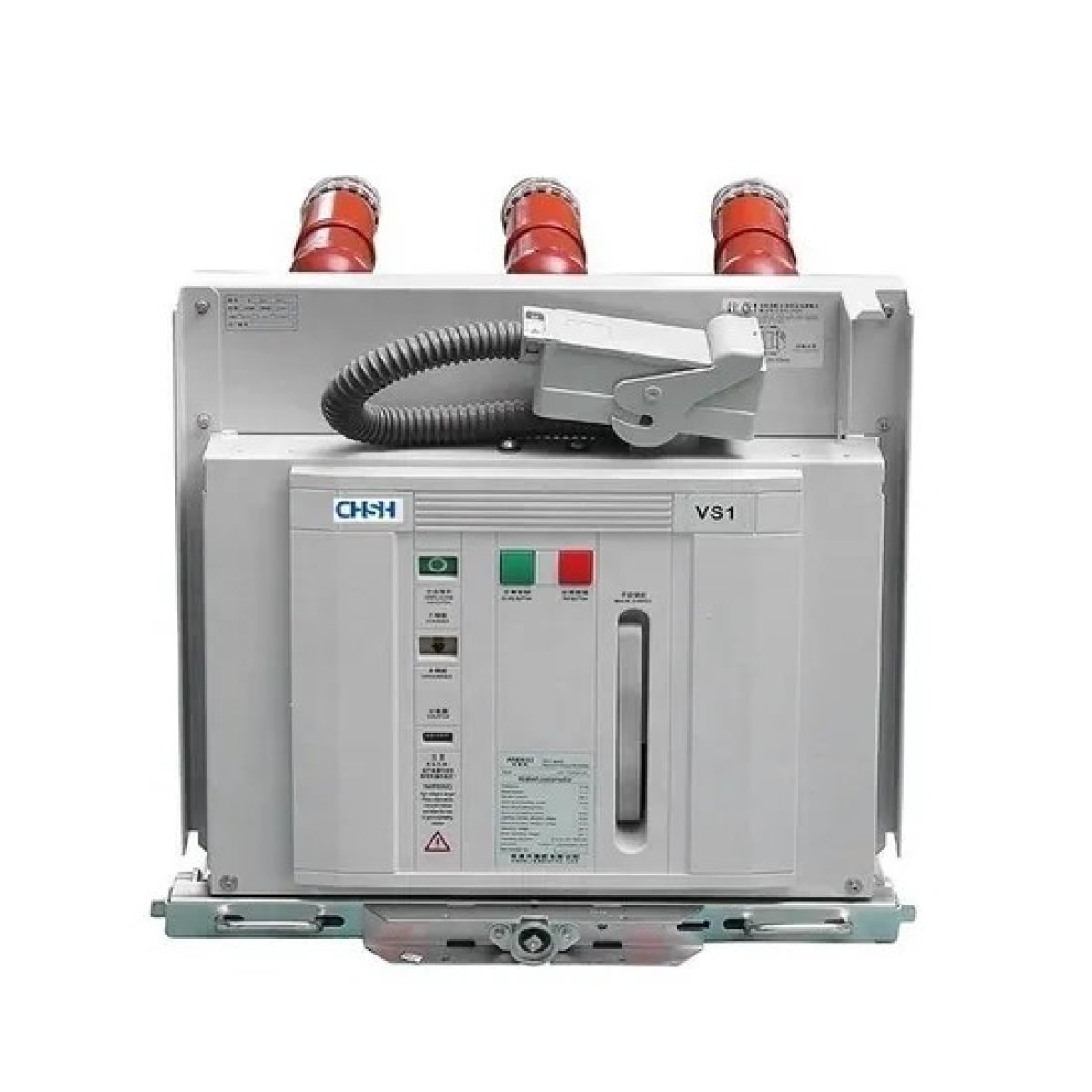

Front Control Panel: Includes red and green push buttons for manual opening/closing, a mechanical indicator for "charged/discharged" spring status, and an operations counter.

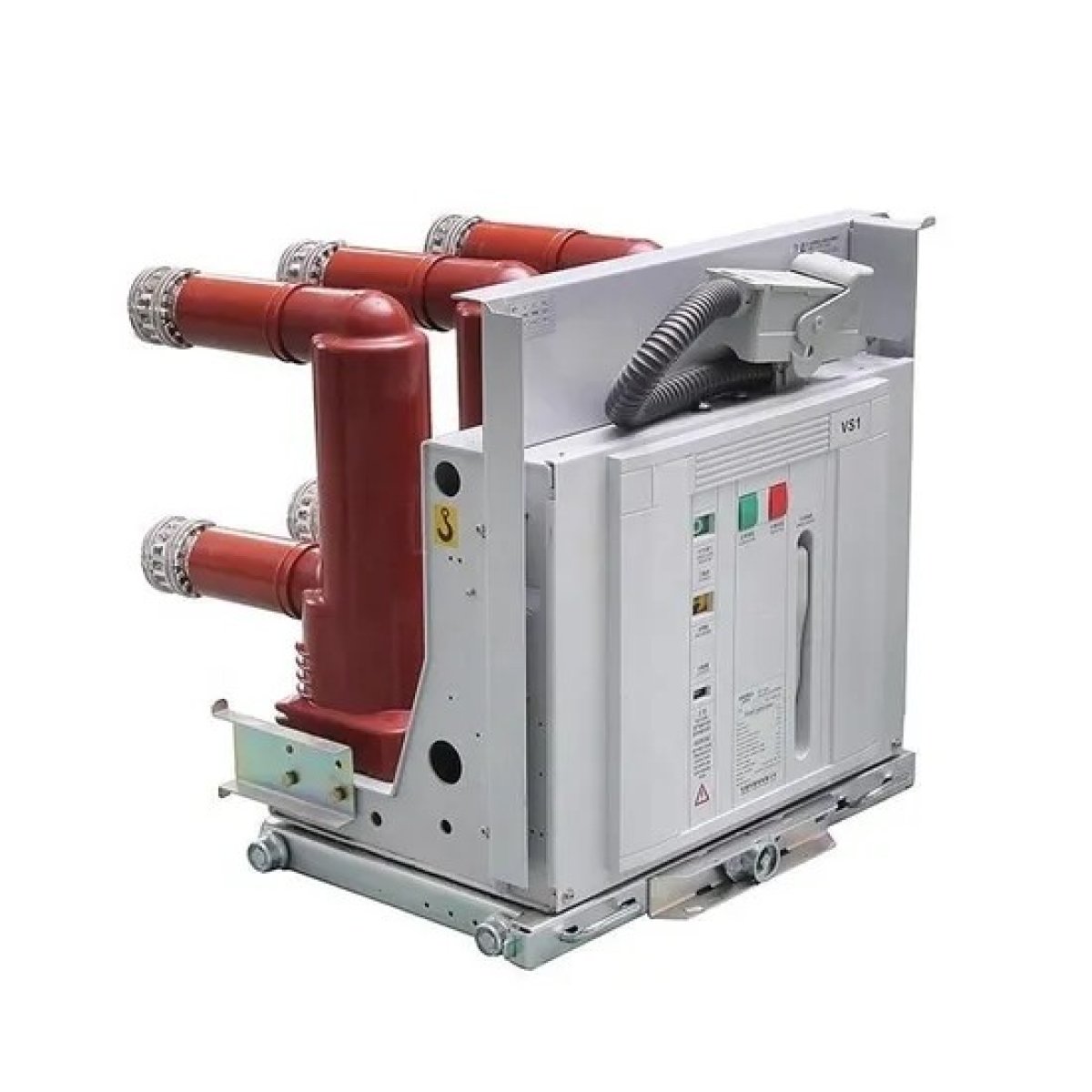

Handcart Frame: The wheeled base (if equipped) allows the unit to be "racked" in or out of a switchgear panel like the KYN28-12 for safe maintenance.
