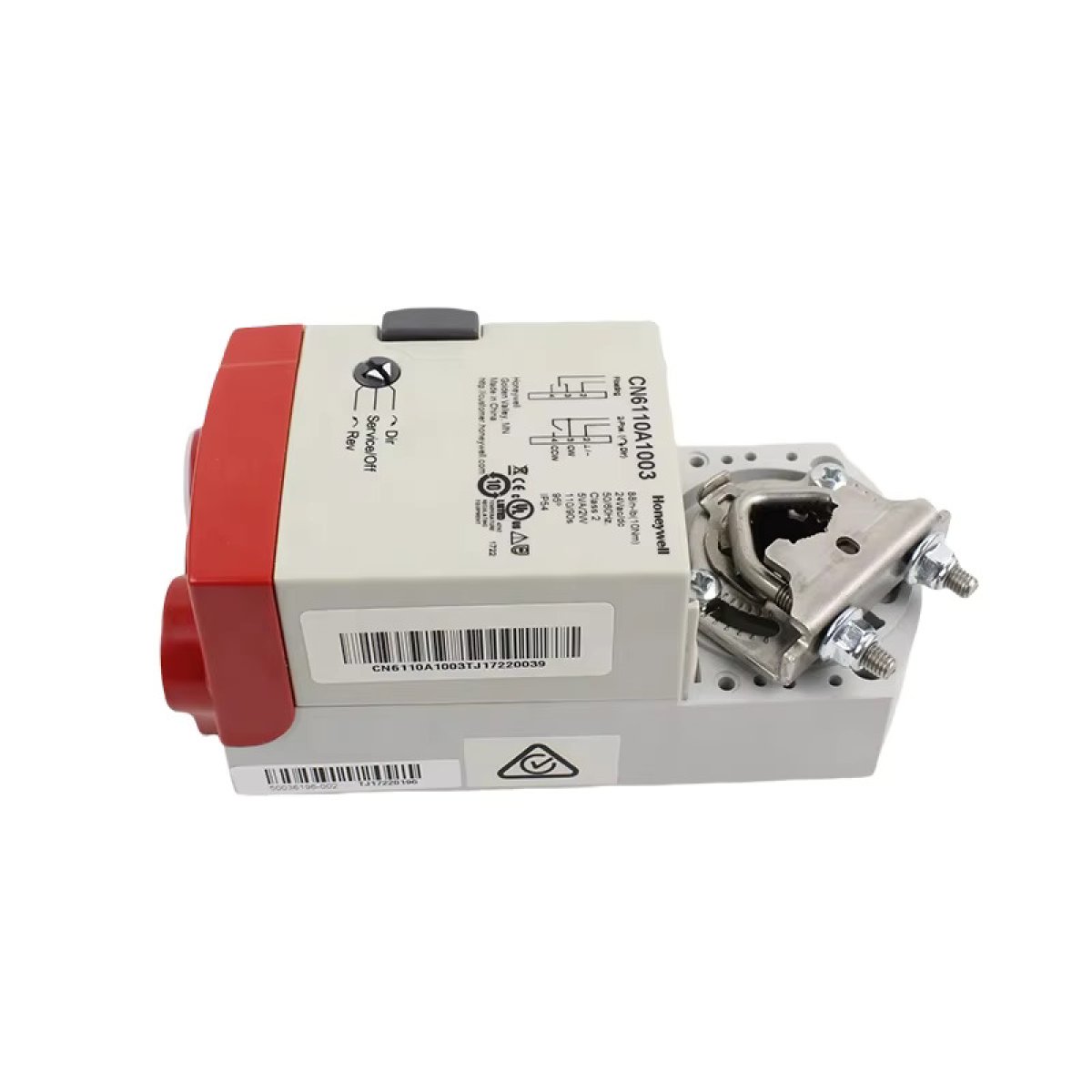

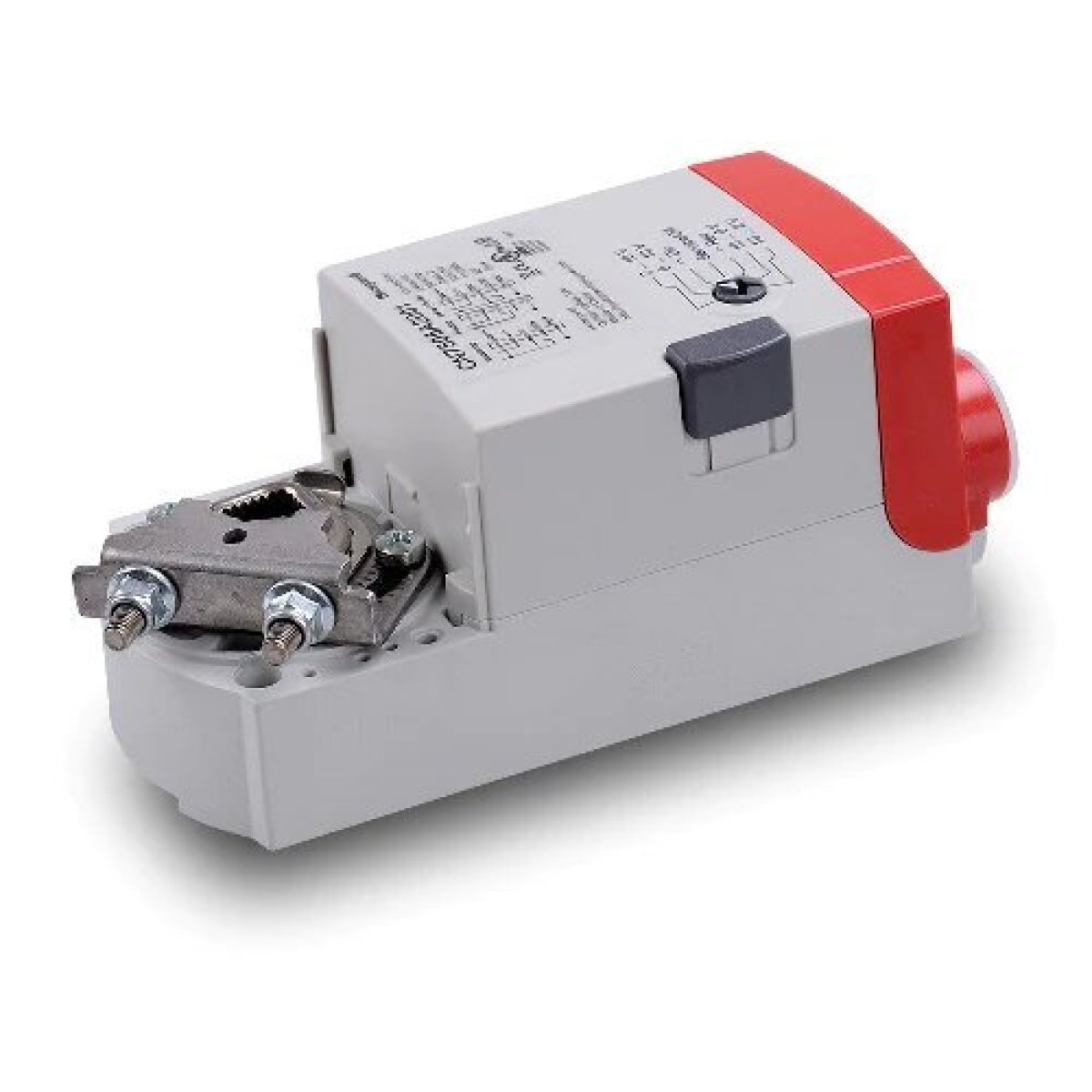

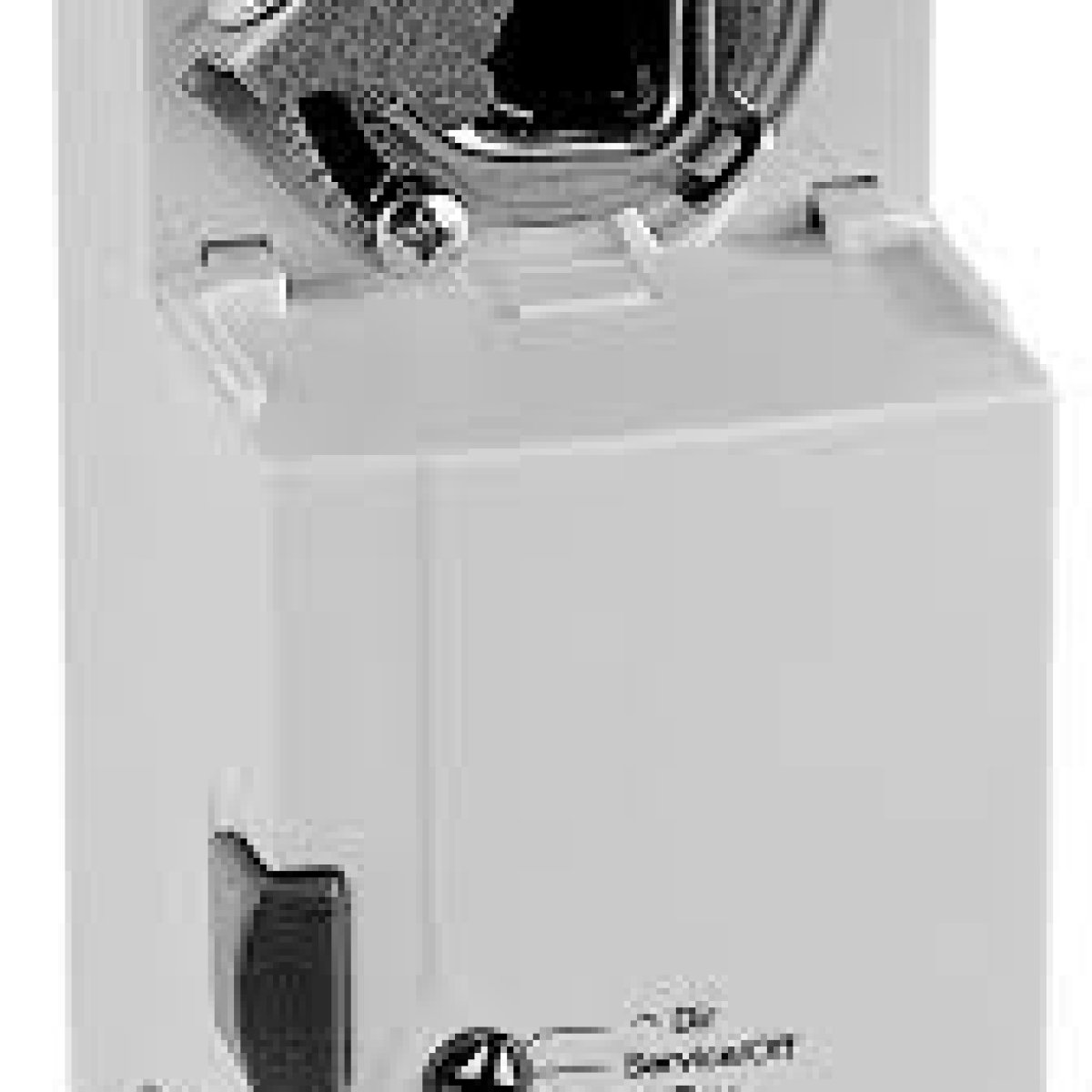

This is a Honeywell SmartAct N05 or N10 series non-spring return, direct-coupled damper actuator [1, 4, 9].
These actuators are used in HVAC systems to control air dampers, VAV units, and air handling units [1, 4, 9].
Key Specifications
- Models: Honeywell N05 (5 Nm torque) and N10 (10 Nm torque) [1, 4, 9].
- Power: Operates on 24 VAC/VDC [4, 16].
- Control Type: Supports modulating (0/2-10 Vdc), floating, and 2-position/3-point control [1, 4, 9].
- Rotation: Features a 95° rotation stroke with adjustable mechanical end limits [4, 9].
Core Features
- Universal Shaft Adapter: Allows for easy mounting on different damper shaft sizes [4, 9].
- Manual Override: Includes a clutch button for manual adjustment without power [4, 9].

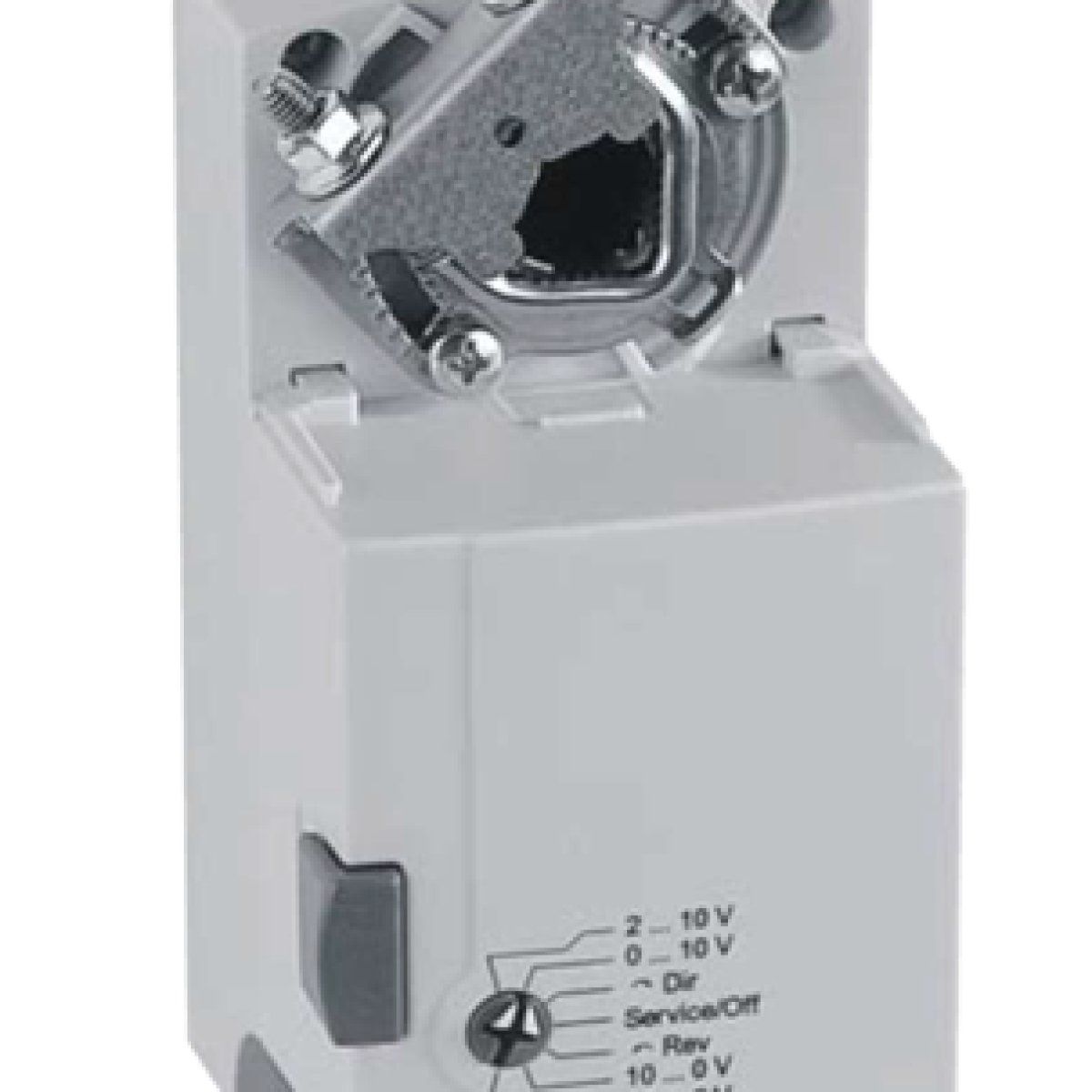

- Mode Selector: A switch to select control signal type and rotation direction (Direct or Reverse) [4, 9].
