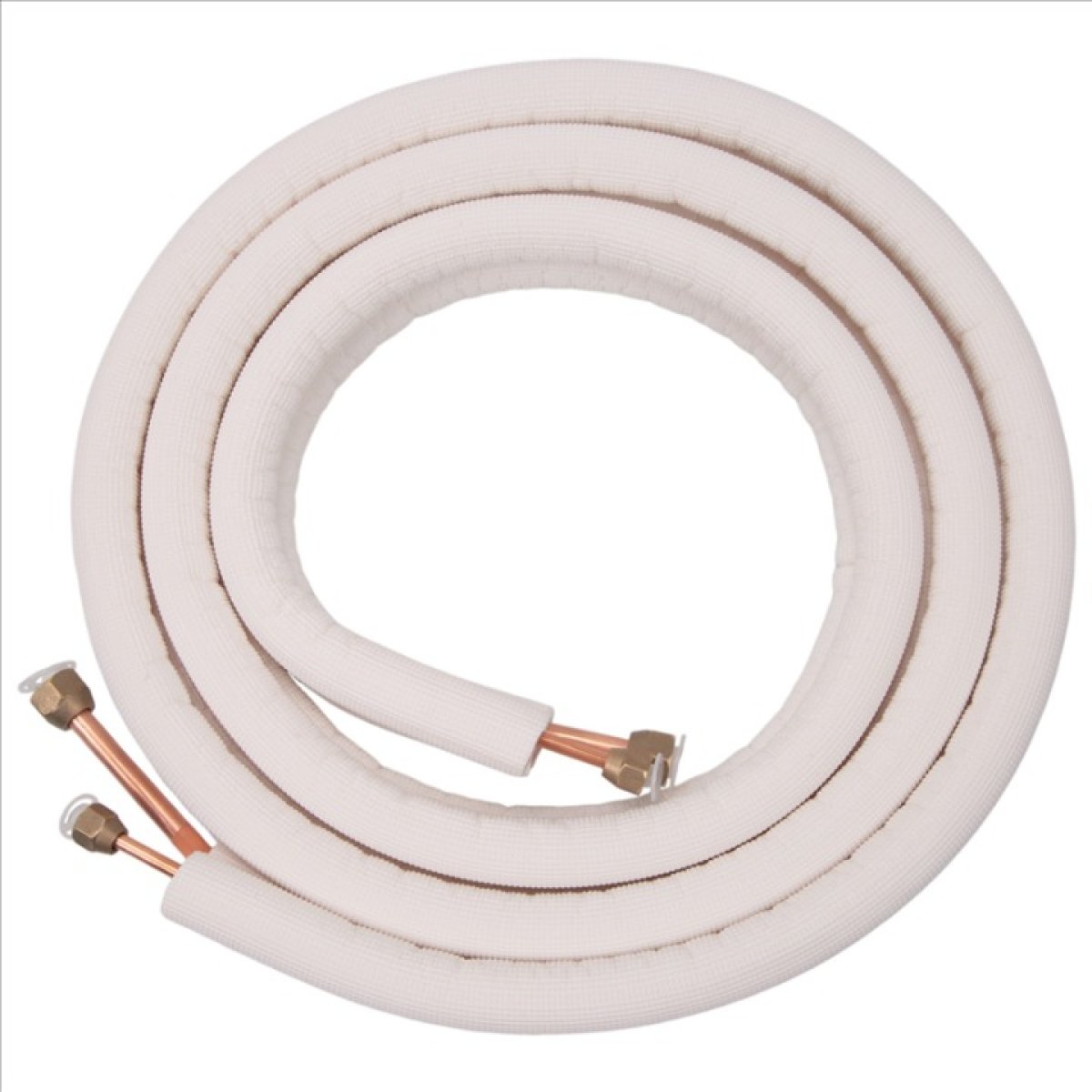

An insulated copper line set is a pair of pre-insulated copper tubes used to transport refrigerant between an HVAC system's indoor evaporator and outdoor condenser. The thick white insulation prevents thermal loss and protects the surroundings from condensation dripping. Each end is typically equipped with flare nuts to allow for a quick, leak-proof mechanical connection without the need for specialized brazing tools in some installations.
The line set is the "circulatory system" of an air conditioner, carrying refrigerant in different states to facilitate the heat-exchange process.
- Dual-Pipe System:
- Suction Line: The larger diameter pipe carries cold, low-pressure gas from the indoor unit back to the outdoor compressor.
- Liquid Line: The smaller diameter pipe carries high-pressure liquid refrigerant from the outdoor unit to the indoor expansion valve.
- Key Components & Materials:
- Copper Tubing: High-grade, flexible copper that is easy to bend around corners during installation while remaining strong enough to hold high-pressure refrigerants like R-410A or R-32.

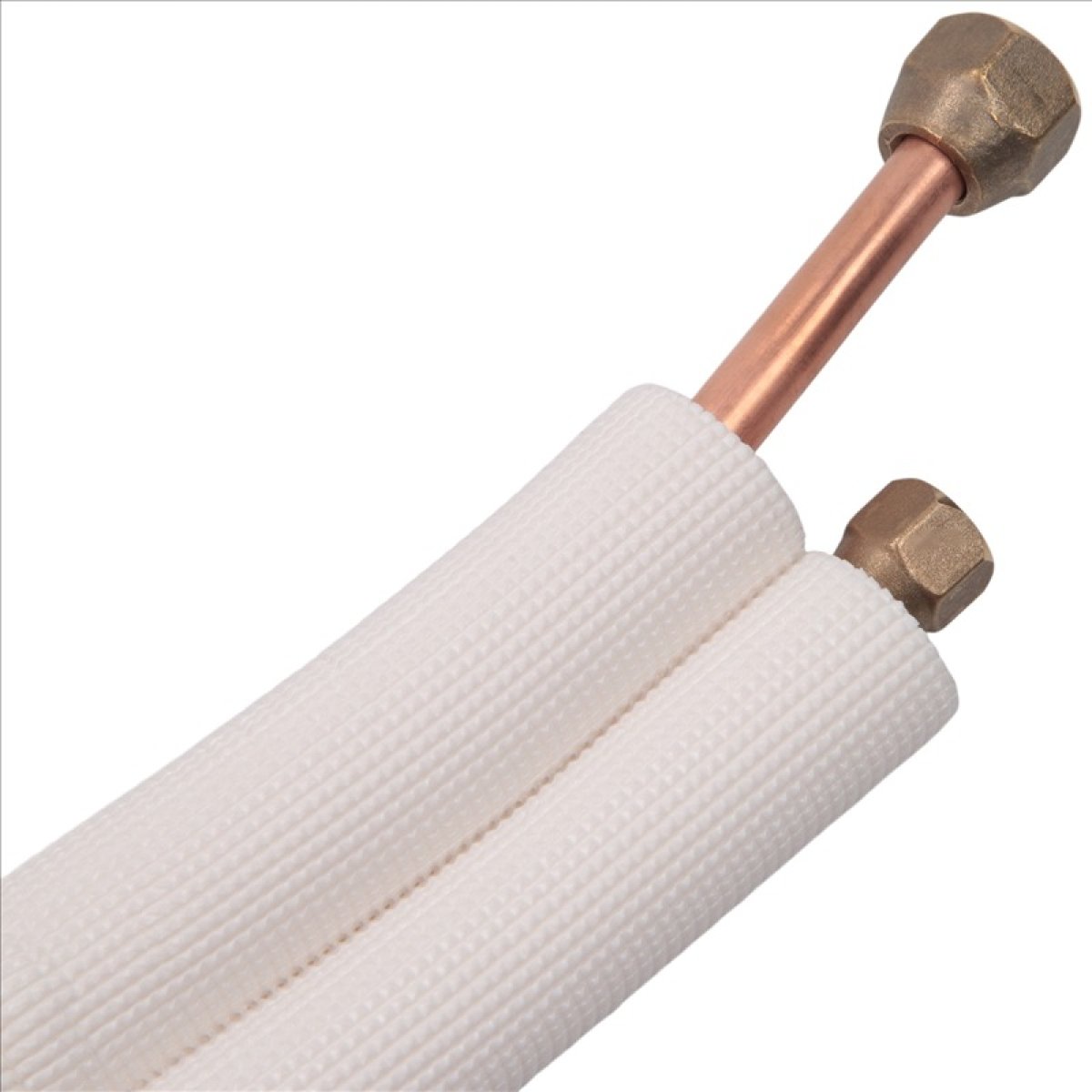

- PE (Polyethylene) Insulation: The white, UV-resistant foam coating prevents the cold suction line from "sweating" (condensing moisture) inside walls or ceilings, which could cause mold or water damage.

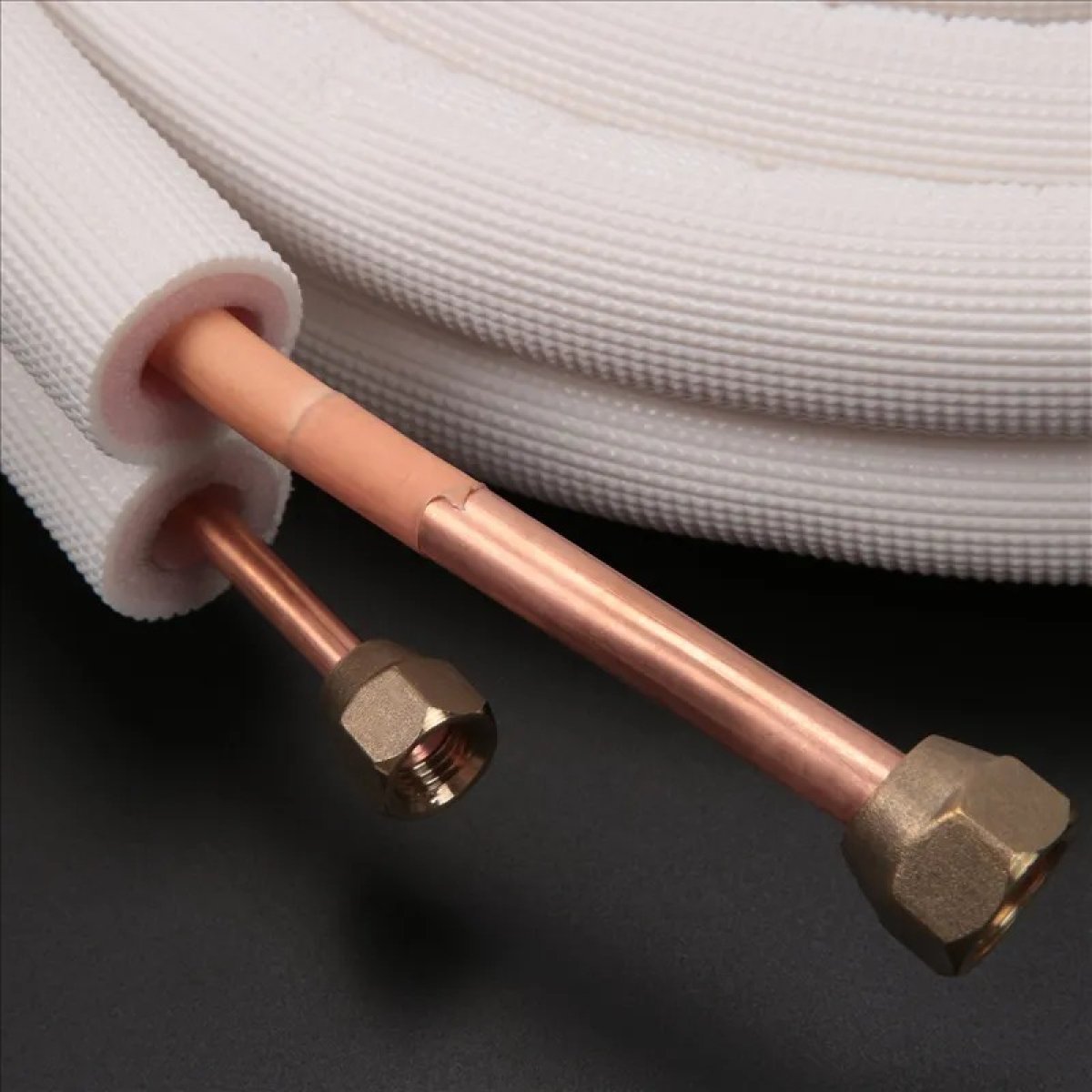

- Brass Flare Nuts: These threaded fittings (seen at the tips) create a high-pressure seal when tightened against a flared copper end, making them a standard for "mini-split" installations.
- Primary Benefits:
- Energy Efficiency: The high-quality insulation ensures that the refrigerant maintains its temperature as it travels, which helps the system run more efficiently and lowers electricity costs.
- Ease of Installation: Pre-insulated and pre-flared lines significantly reduce the time and technical difficulty of setting up a new AC unit.
