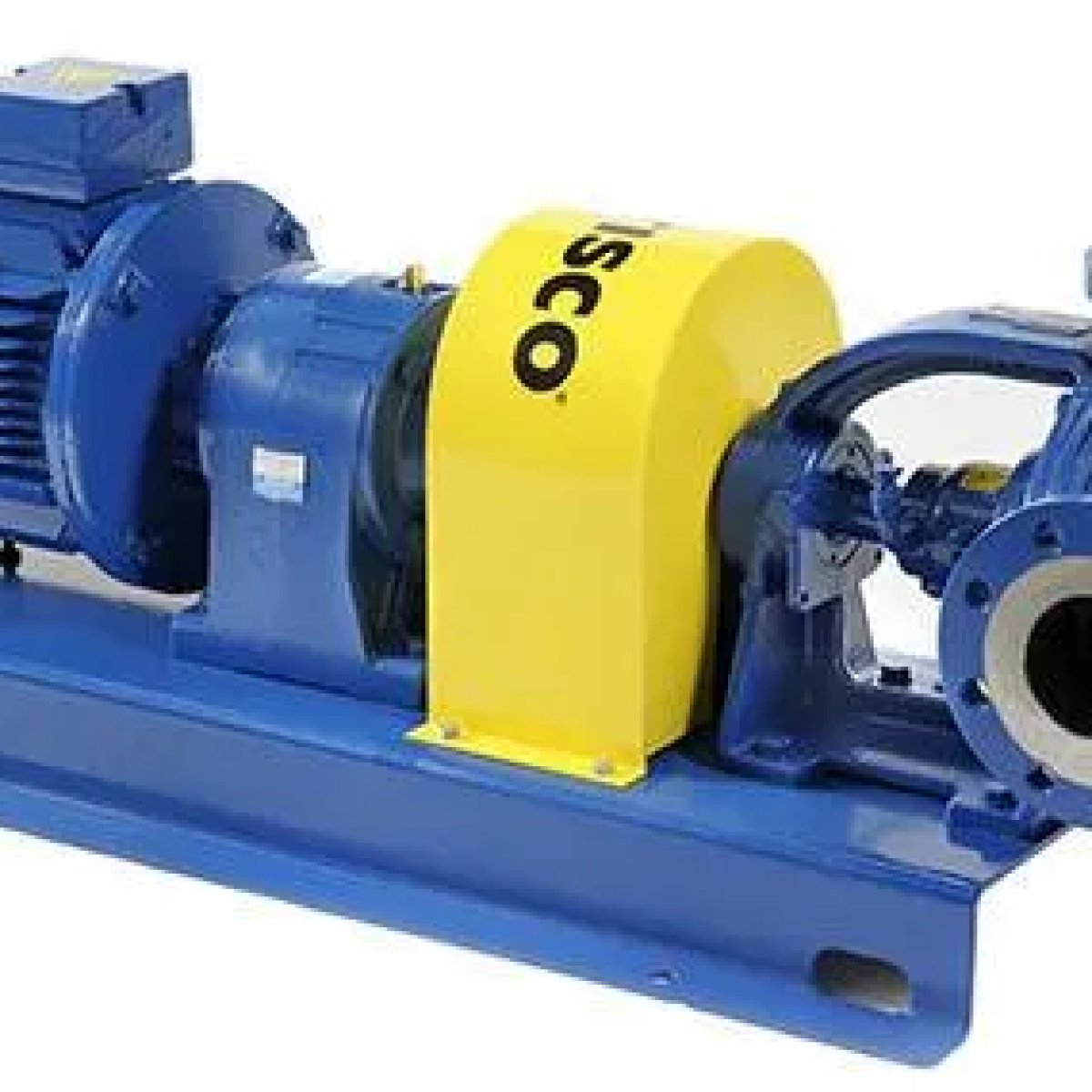

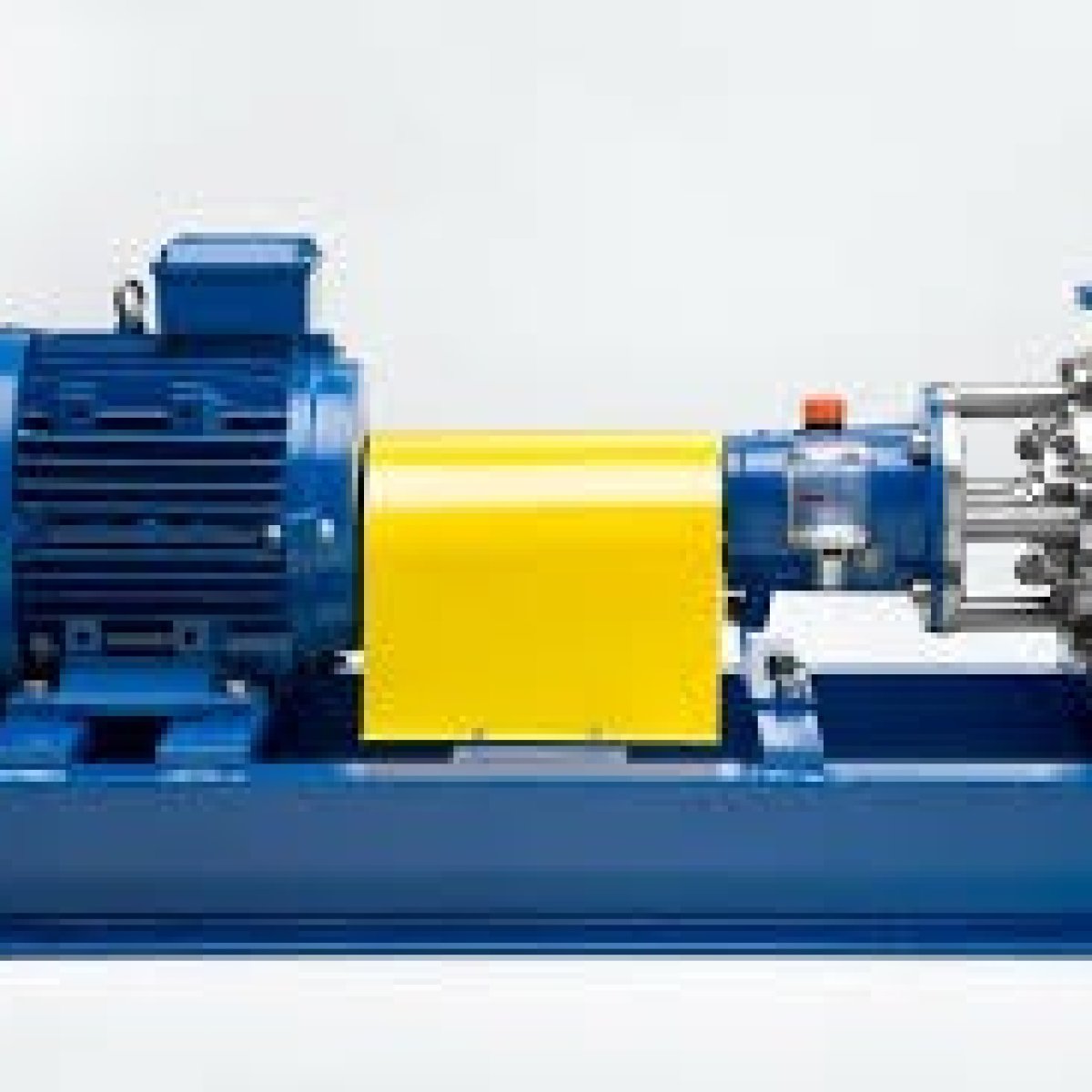

This is a professional-grade Positive Displacement Internal Gear Pump driven by an electric motor. It is specifically designed to handle a wide range of liquids with varying viscosities, from thin solvents to thick polymers. Known for its sturdy cast iron construction and smooth, non-pulsating flow, it is a reliable choice for the chemical, petroleum, and food industries.
Long Description
Varisco V Series pumps are engineered for high-performance fluid transfer where a consistent and gentle flow is required.
- How it Works: The pump operates using two intermeshing gears—a larger outer gear (rotor) and a smaller inner gear (idler). As they rotate, fluid is trapped in the pockets between the gear teeth and carried from the suction to the discharge side. A crescent-shaped spacer divides the liquid and acts as a seal between the ports.
- Viscosity Handling: It excels at moving high-viscosity liquids like bitumen, resins, chocolate, and molasses. Because the gears rotate at lower speeds compared to centrifugal pumps, it prevents "shearing" or damaging delicate fluids.

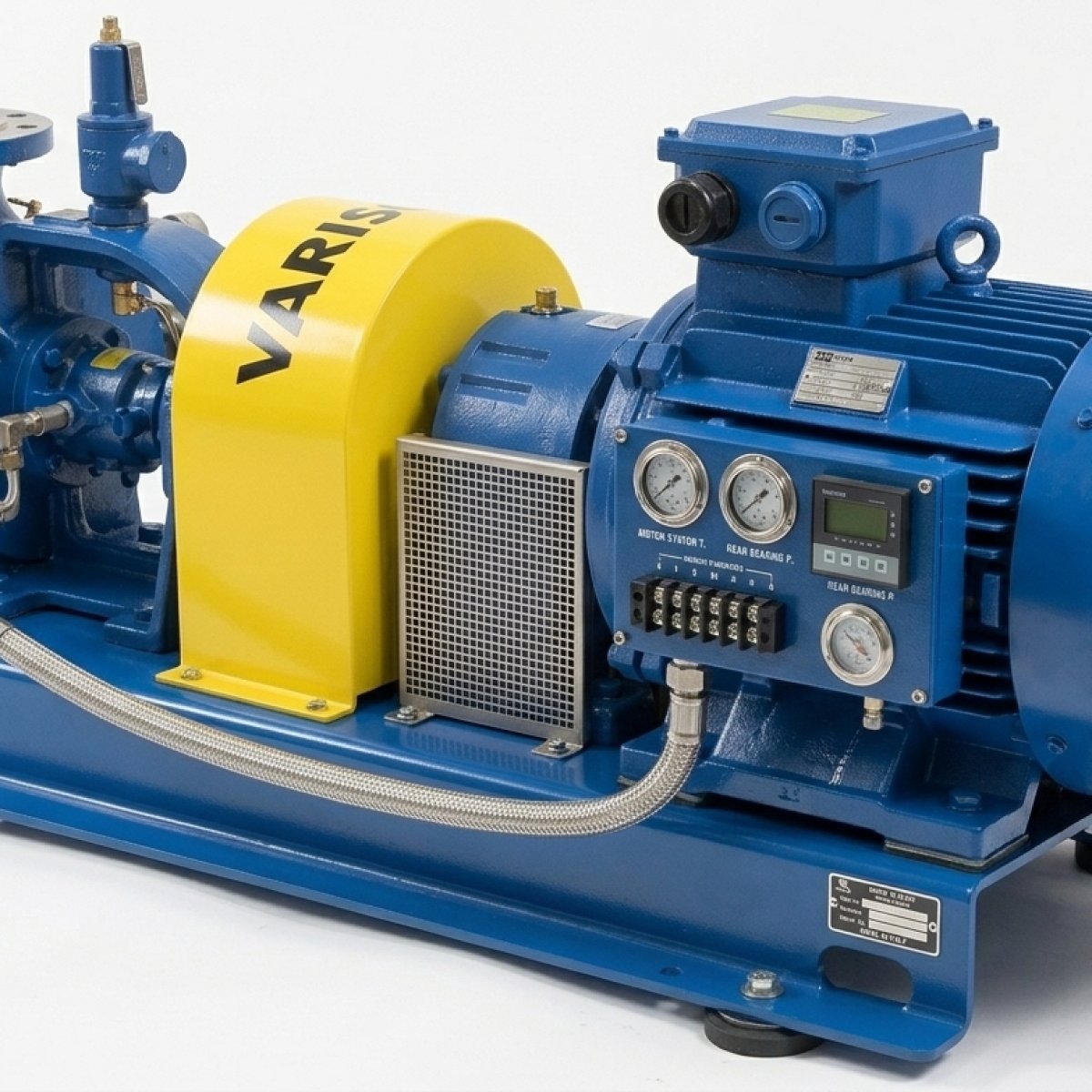

- Rugged Design: The unit is mounted on a rigid steel baseplate which ensures perfect alignment between the motor and the pump. The yellow coupling guard [Image Content] provides a critical safety barrier to protect operators from rotating parts.
- Customizable: These pumps can be equipped with heating jackets for fluids that solidify at room temperature and various mechanical seal options to handle abrasive or corrosive chemicals safely.
Medical Disclaimer: Information regarding food-grade applications is general; always verify specific material compatibility and sanitary certifications for your intended use
