A Punch Down Tool is a spring-loaded device that pushes a wire into a terminal slot while simultaneously trimming off the excess copper. It ensures a secure, vibration-resistant electrical connection without the need for soldering or stripping the wire insulation by hand.
The punch down tool is the most essential instrument for anyone performing permanent "behind-the-wall" network cabling. It is designed to work with the "V" shaped metal contacts found in professional networking hardware.
- Impact Mechanism: Most professional tools have an internal spring mechanism. When you push down, it "clicks" with a specific amount of force, ensuring the wire is seated at the perfect depth every time. You can often adjust this force (Hi/Low) via a dial.

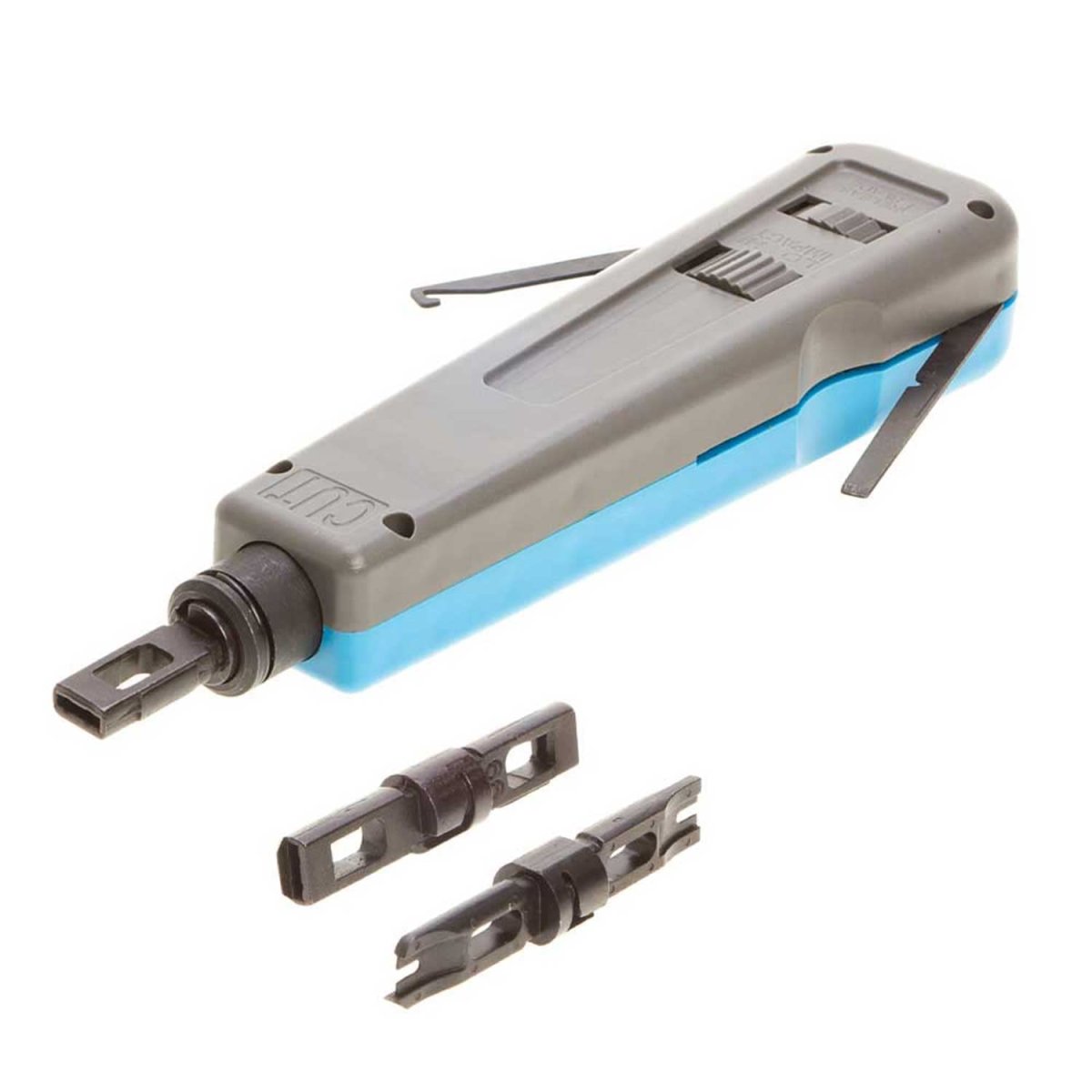

- The Blade: The tool uses interchangeable blades, the most common being the 110 blade (for Ethernet) and the 66 blade (for older telephone systems). One side of the blade is for seating the wire, while the other side has a sharp "cut" edge to snip the tail of the wire clean.

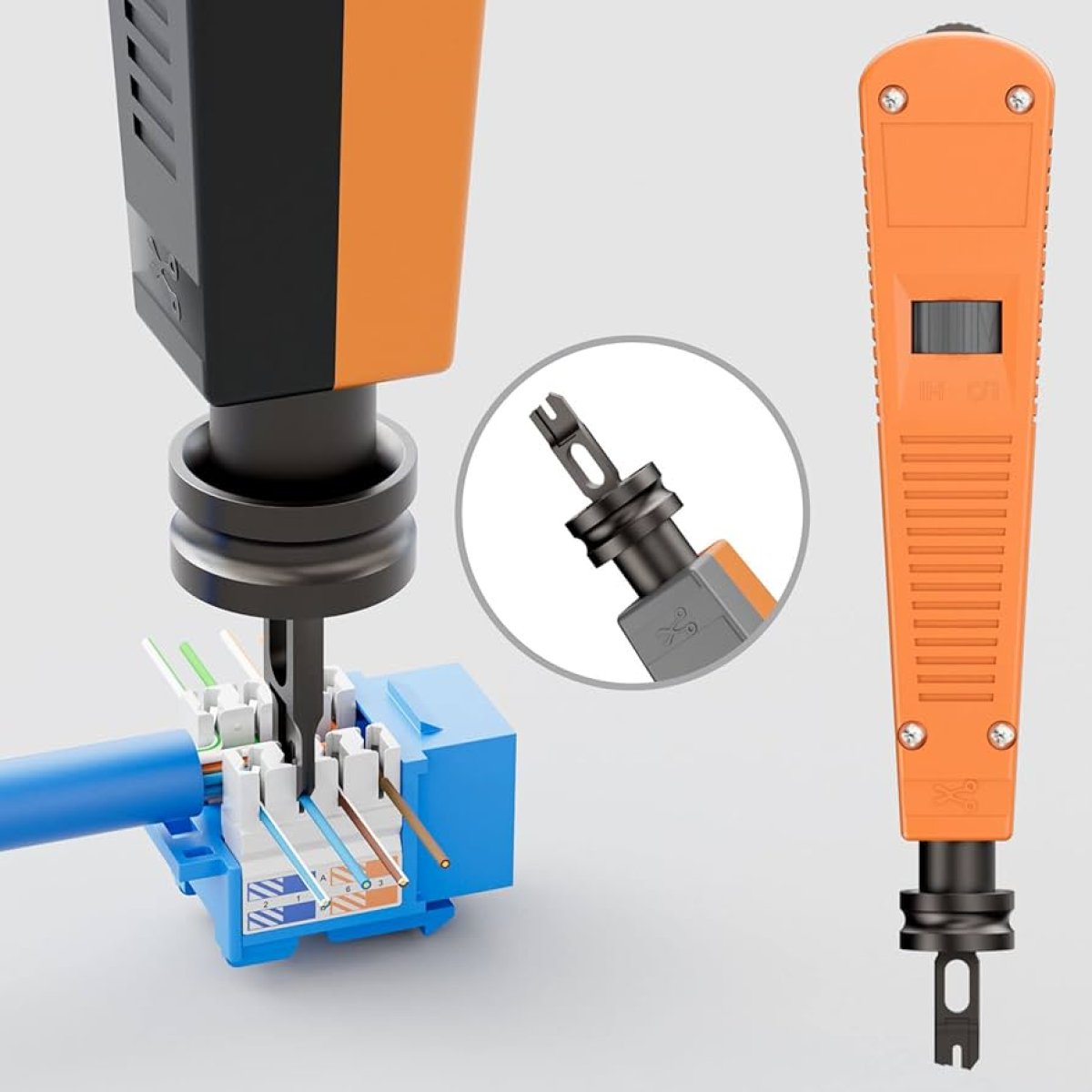

- Insulation Displacement: You do not strip the individual colored wires. The tool pushes the wire into the sharp metal "V" of the jack, which pierces the plastic coating to make direct contact with the copper core.

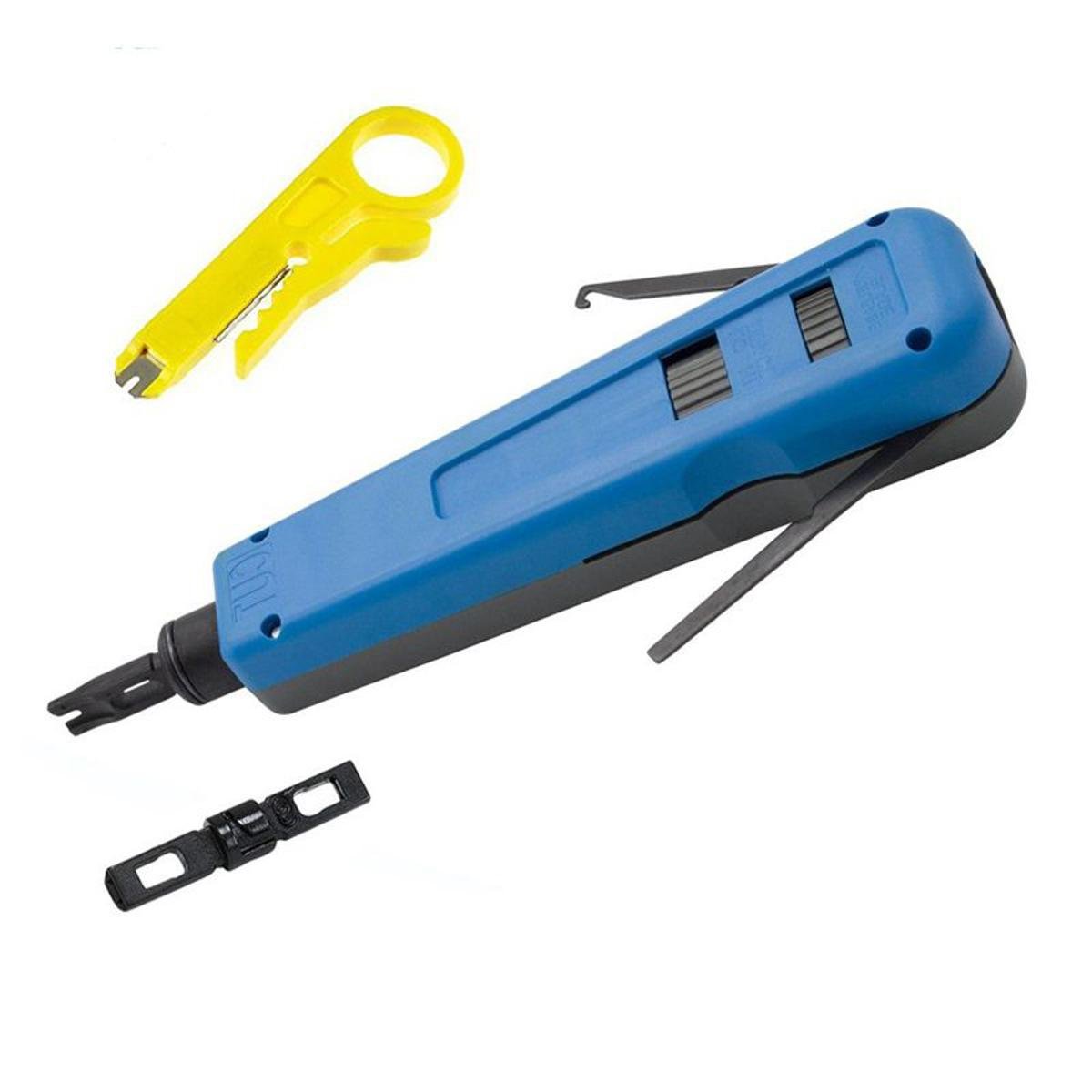

- Built-in Hooks: Many high-quality punch down tools include small fold-out hooks or "spudgers" used to pull a wire out of a slot if you make a mistake or need to re-terminate a jack.
