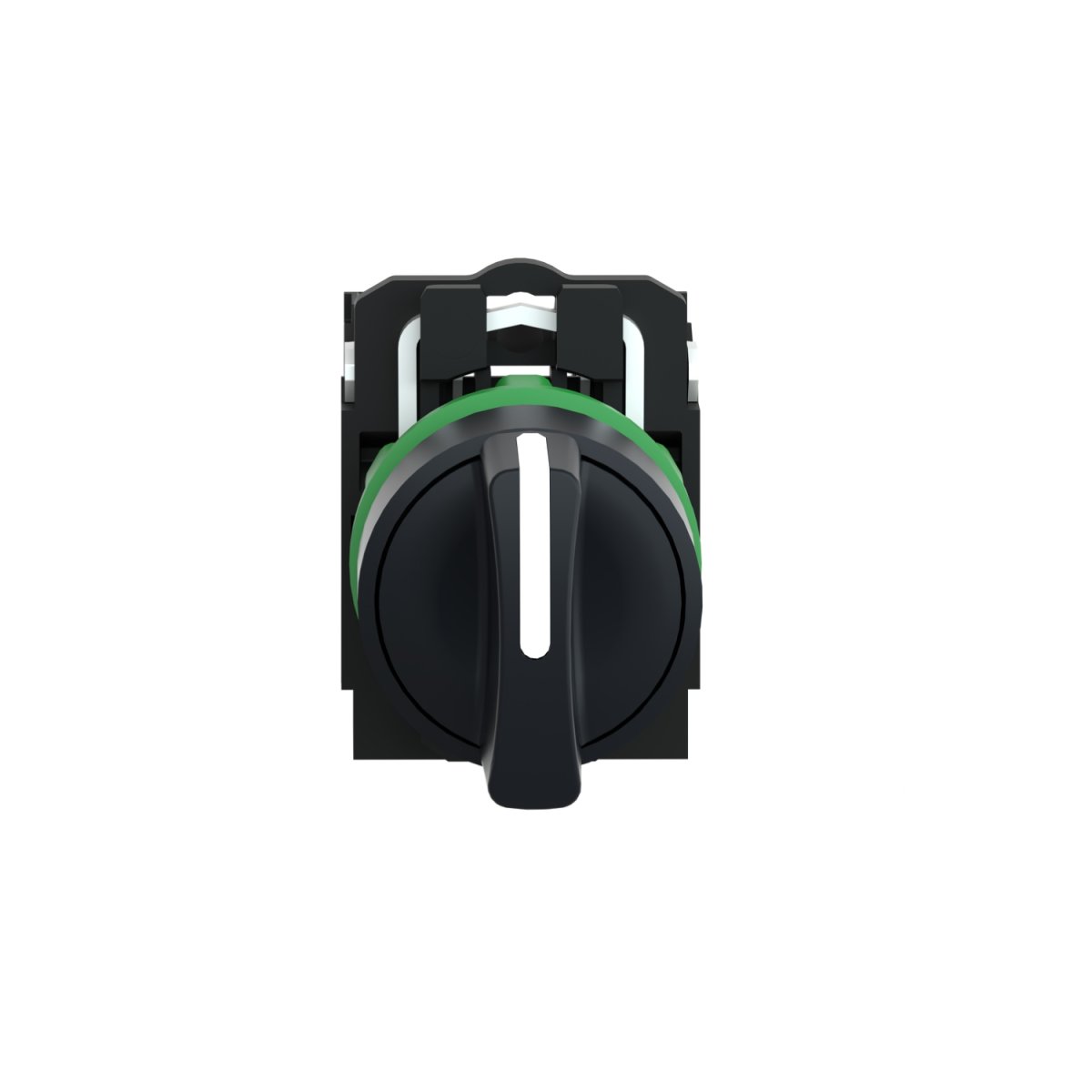

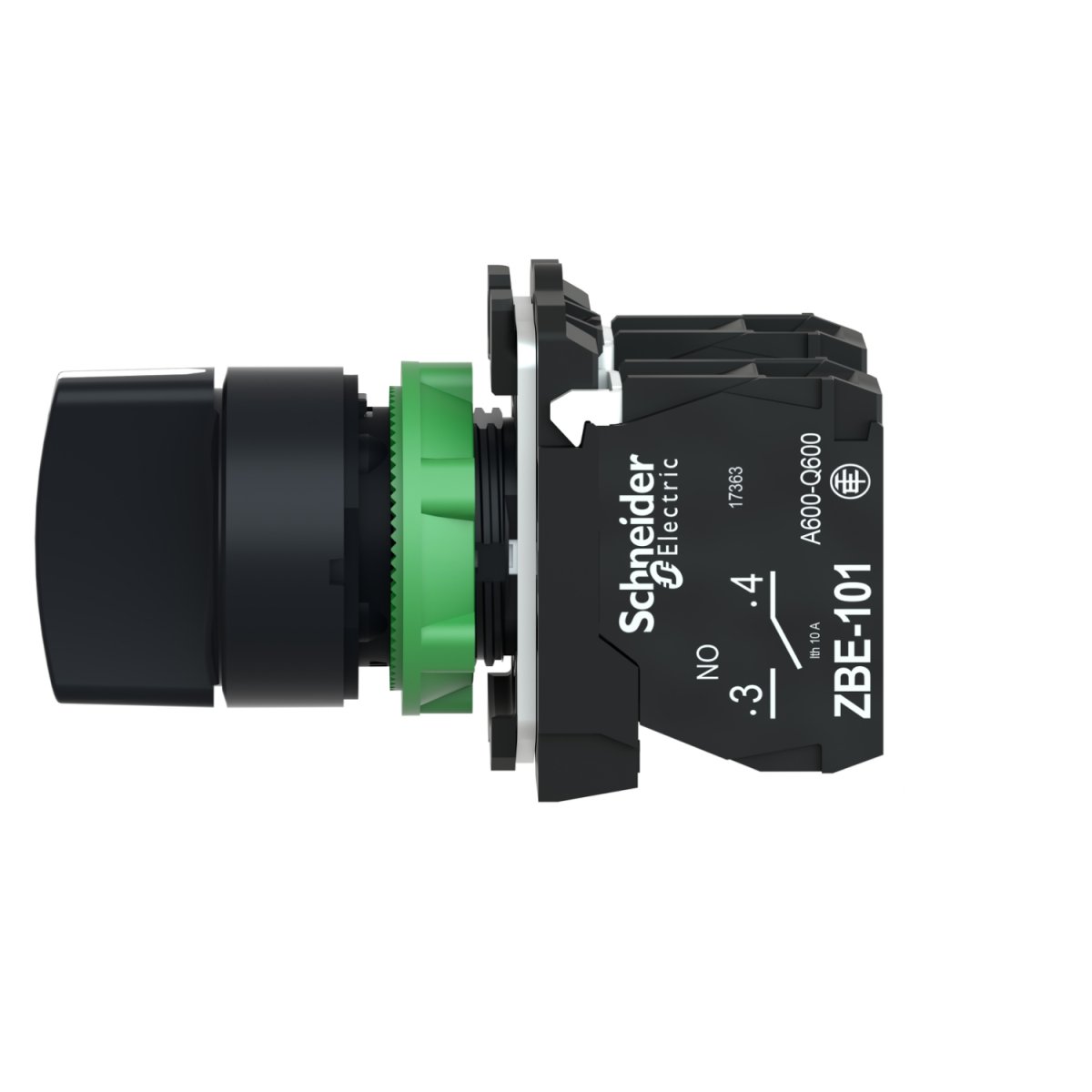

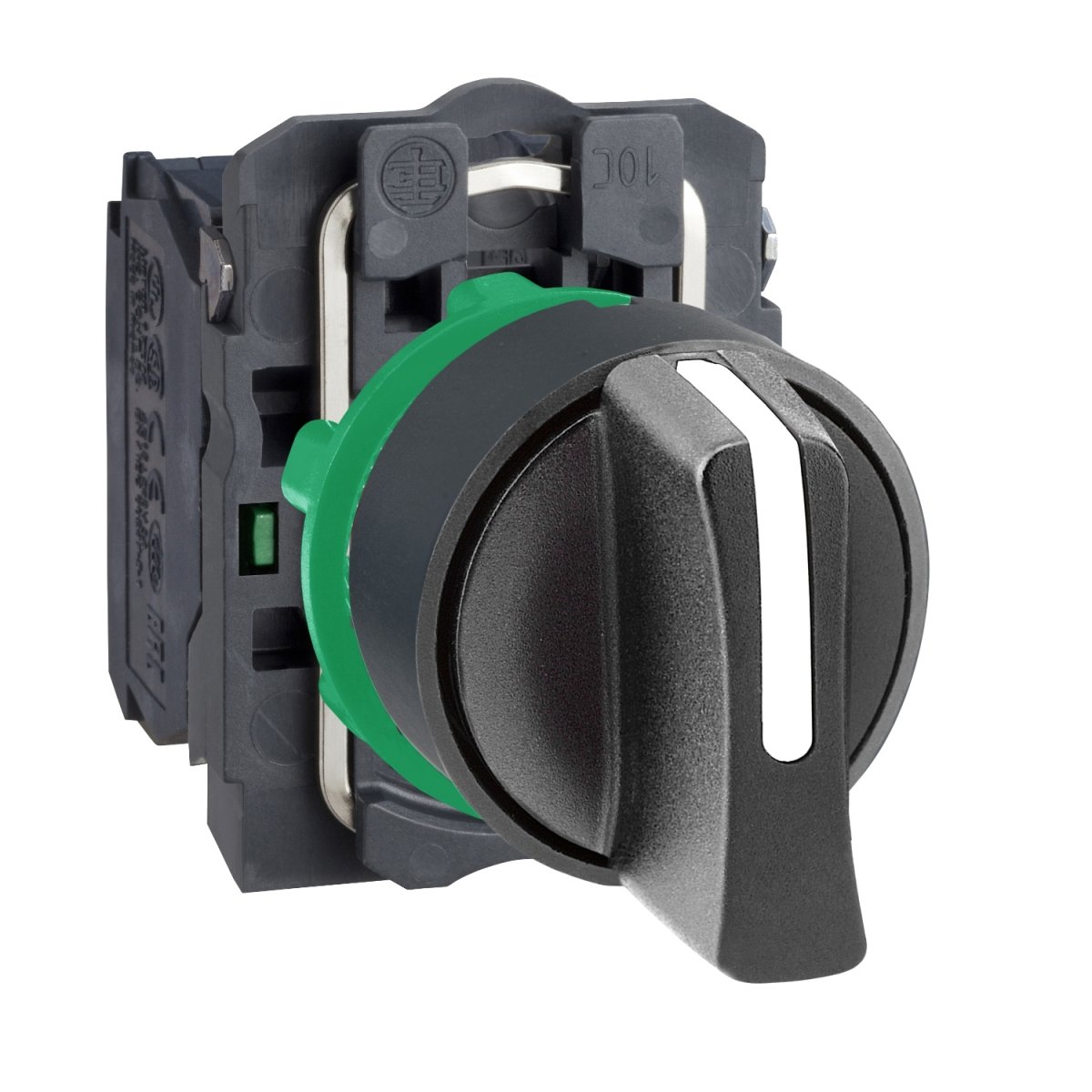

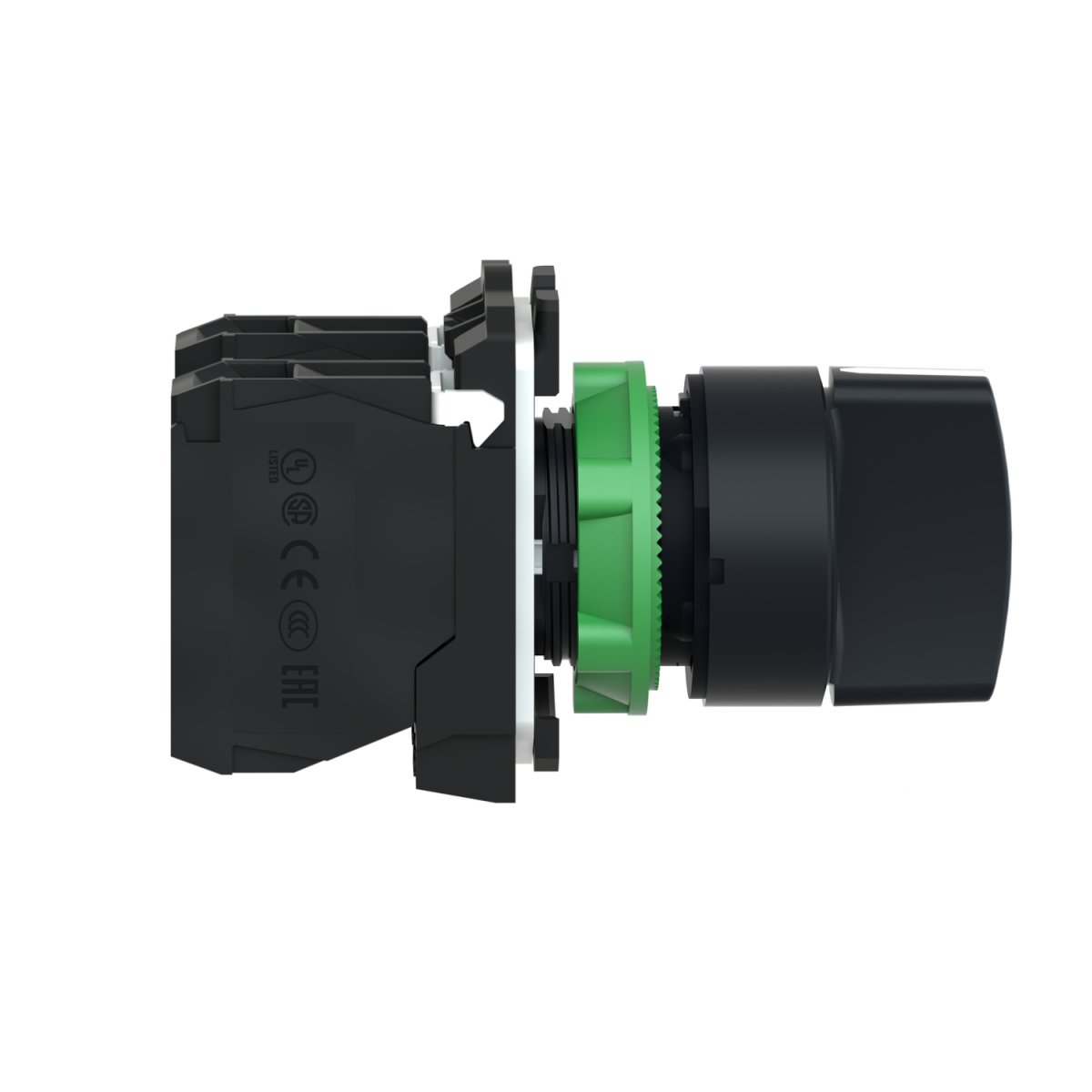

Electric Harmony XB5 Selector Switch, specifically a model from the Ø22 mm plastic modular range. These are industrial-grade control switches used for machine operation, process control, and signaling in harsh environments.

Key Specifications & Features

Modular Design: The unit consists of a separate operator head (the black handle), a mounting base, and modular contact blocks that can be customized for different electrical circuits.
Operator Type: Most models in this visual style are either 2-position (90°) or 3-position (+/- 45°). They typically operate with a stay-put (maintained) mechanism, meaning they remain in the position they are turned to.
Durability: Features a robust plastic bezel that is resistant to chemicals, dust, water, and vibration. It carries high-level protection ratings including IP66, IP67, and IP69K.
Installation: Designed for quick mounting into standard 22.5 mm panel cut-outs.
Electrical Ratings: Typically rated for a conventional thermal current of 10A. Common operational currents include 3A at 240V AC.
