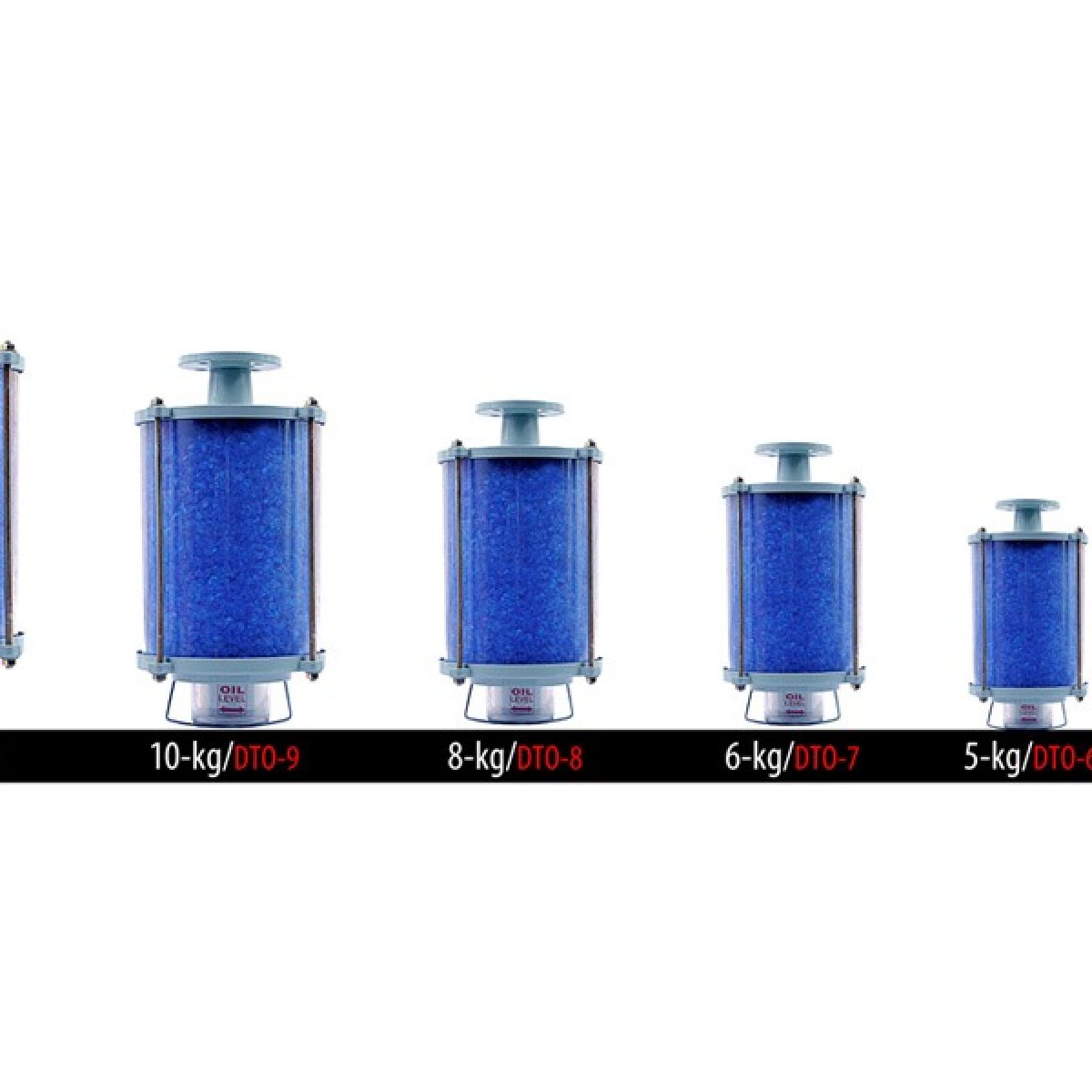

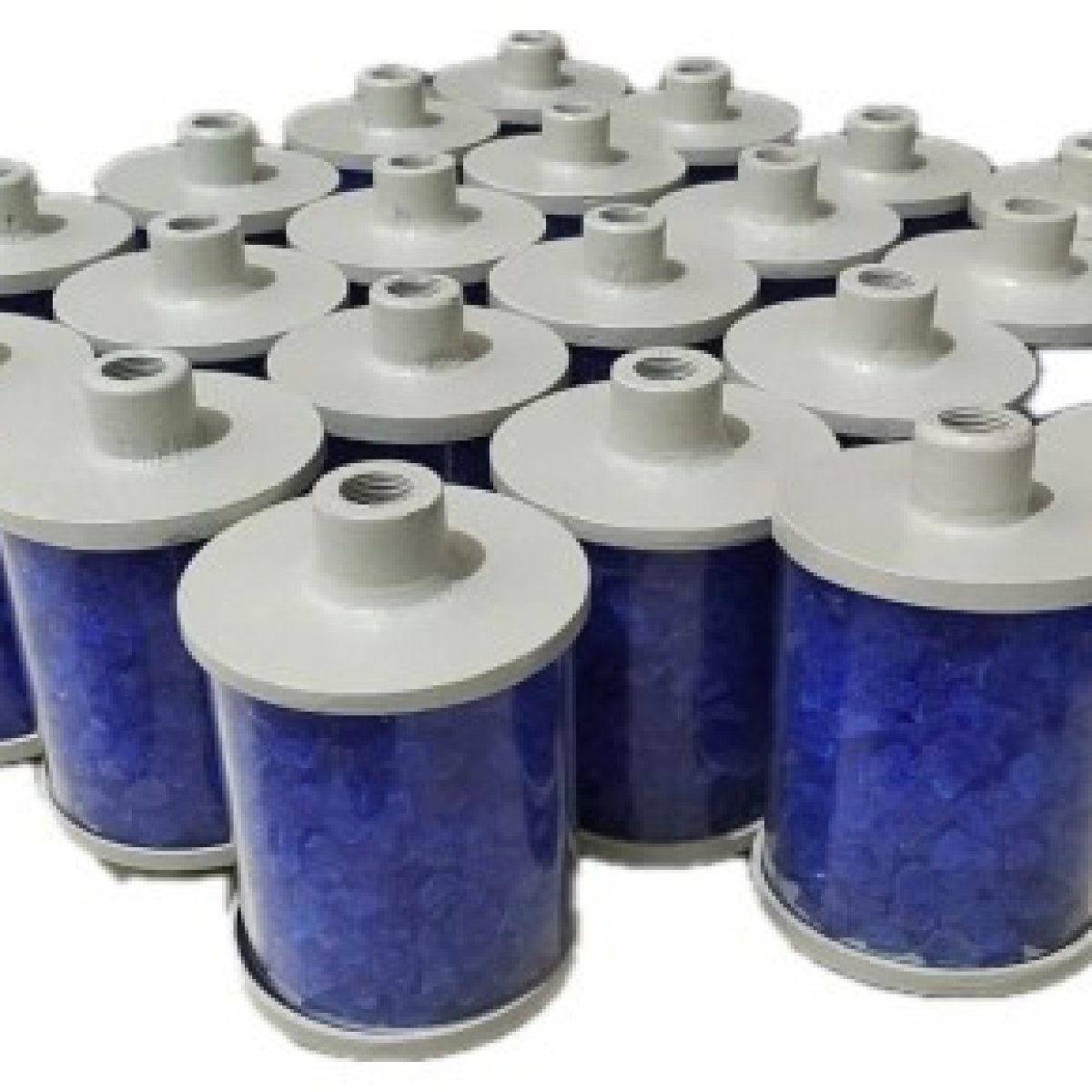

A silica gel breather is a dehydrating device installed on the conservator tank of a transformer. It contains a chamber of silica gel beads that absorb moisture from incoming air, ensuring only dry, clean air enters the system. This prevents the degradation of the insulating oil’s dielectric strength, which is critical for preventing internal short circuits.
The breather acts as a primary defense against environmental contaminants that could drastically shorten the lifespan of a transformer. [
1]
- The "Breathing" Process:
- When the transformer is under load, the oil heats up and expands, pushing air out of the conservator tank.
- When the load decreases or the transformer cools, the oil contracts, creating a vacuum that draws ambient air in through the breather.

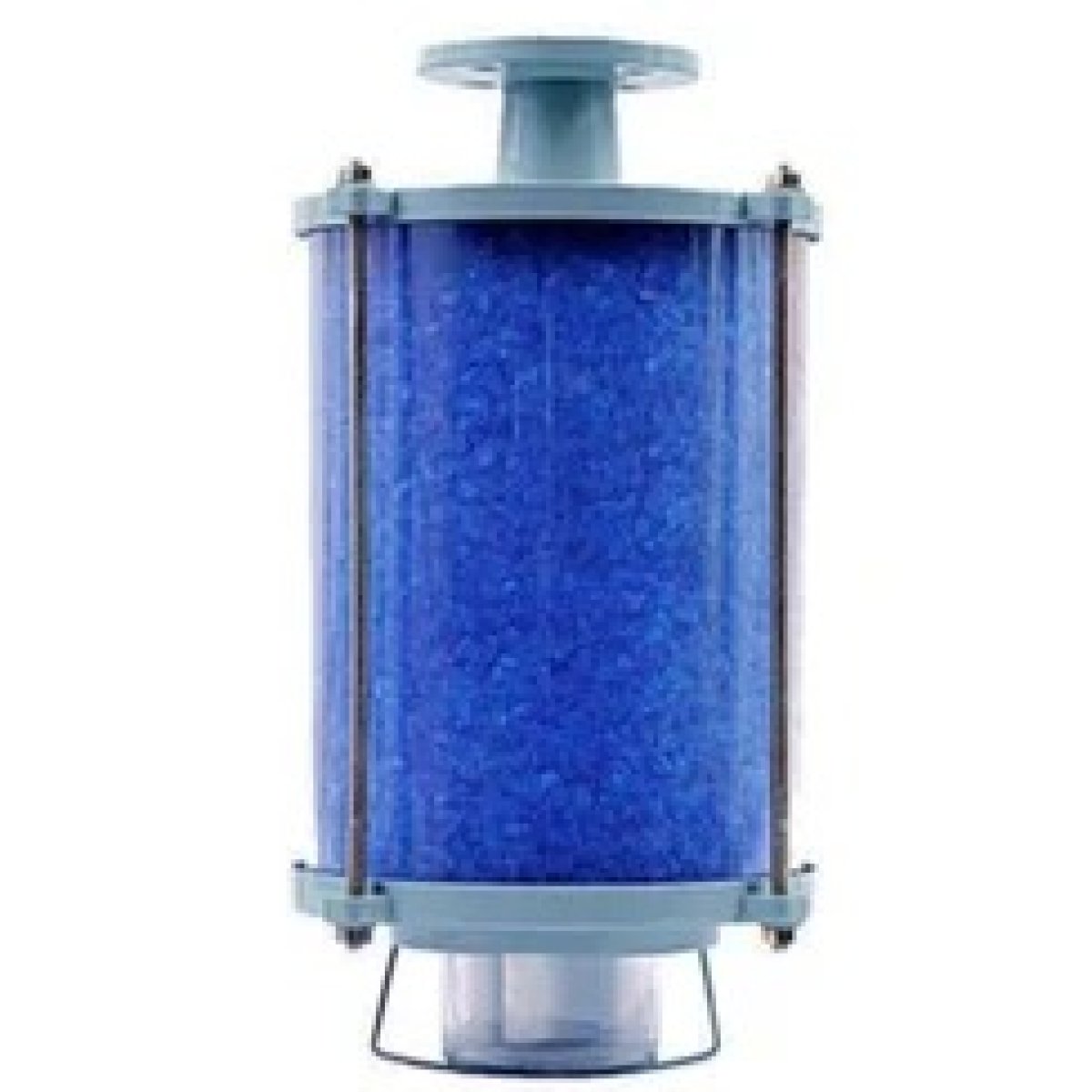

- Key Components:
- Silica Gel Chamber: A transparent cylinder filled with desiccant beads (typically 2–5mm in size) that trap water vapor.
- Oil Seal Cup: A small cup at the bottom containing a layer of transformer oil. It acts as a primary filter to trap dust particles and prevents the silica gel from constantly being exposed to atmospheric moisture when the transformer is not breathing.
- Connecting Pipe: Links the breather to the top of the conservator tank.
- Visual Color Indicators:
- Blue (Dry): New or freshly regenerated gel is dark blue.
- Pink (Saturated): As it absorbs moisture, the gel turns pink, indicating it can no longer protect the transformer.
- Orange to Green: Some eco-friendly versions use orange gel that turns dark green when saturated.
