<p>A high-efficiency power conversion unit designed to bridge your solar panel array with the local utility grid. This intelligent inverter converts the variable Direct Current (DC) generated by solar modules into synchronized Alternating Current (AC), allowing you to power your home directly and export surplus energy back to the grid for credits.</p>

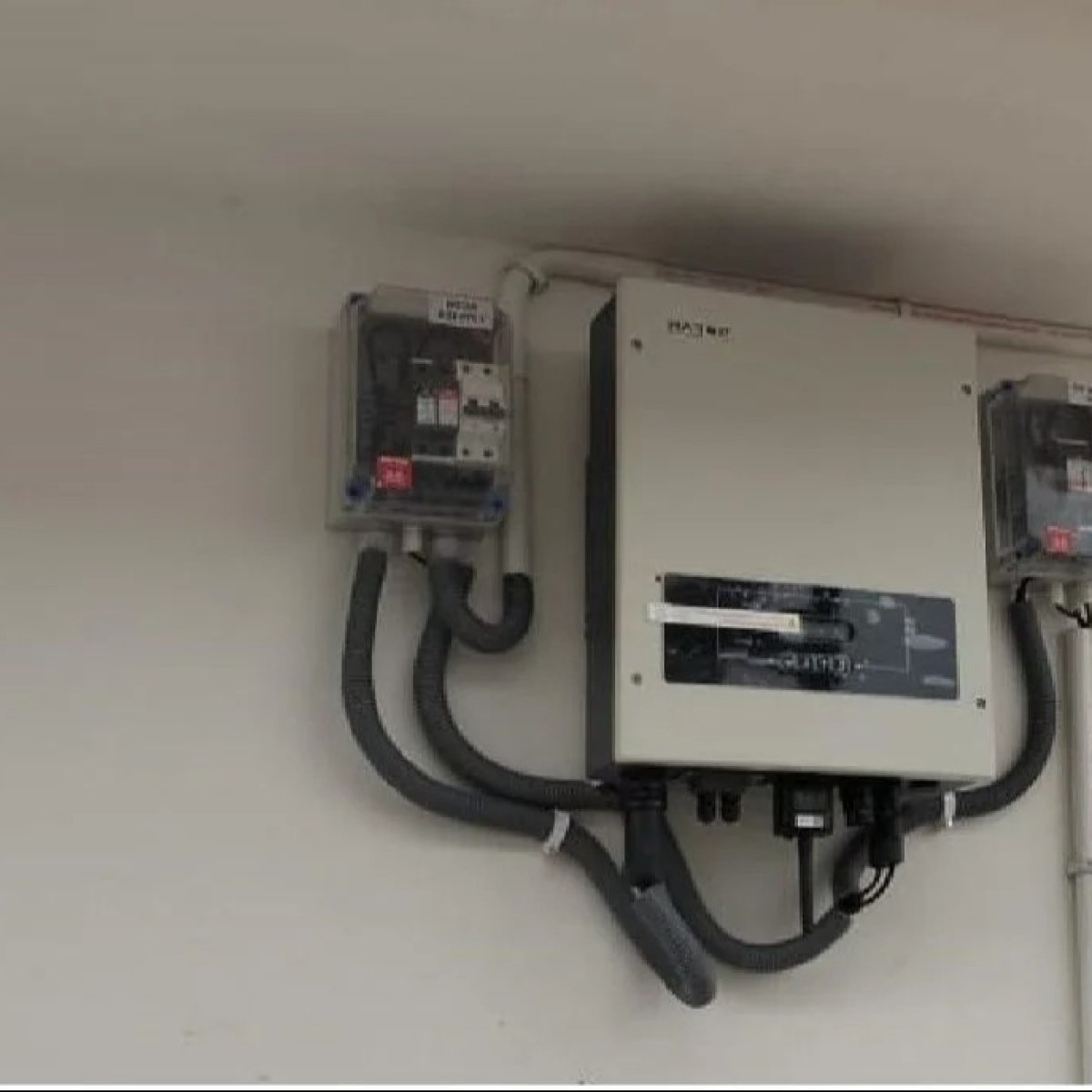

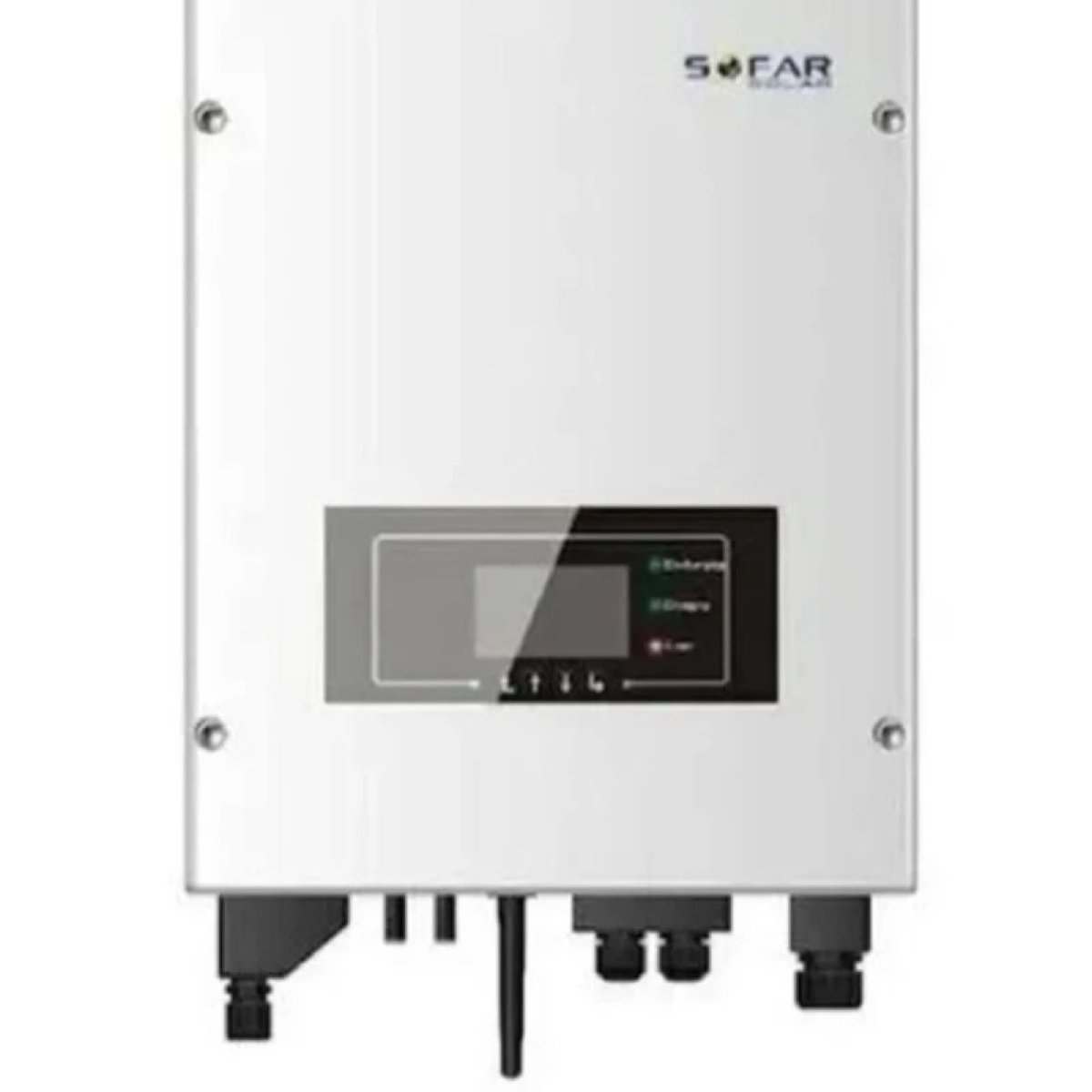

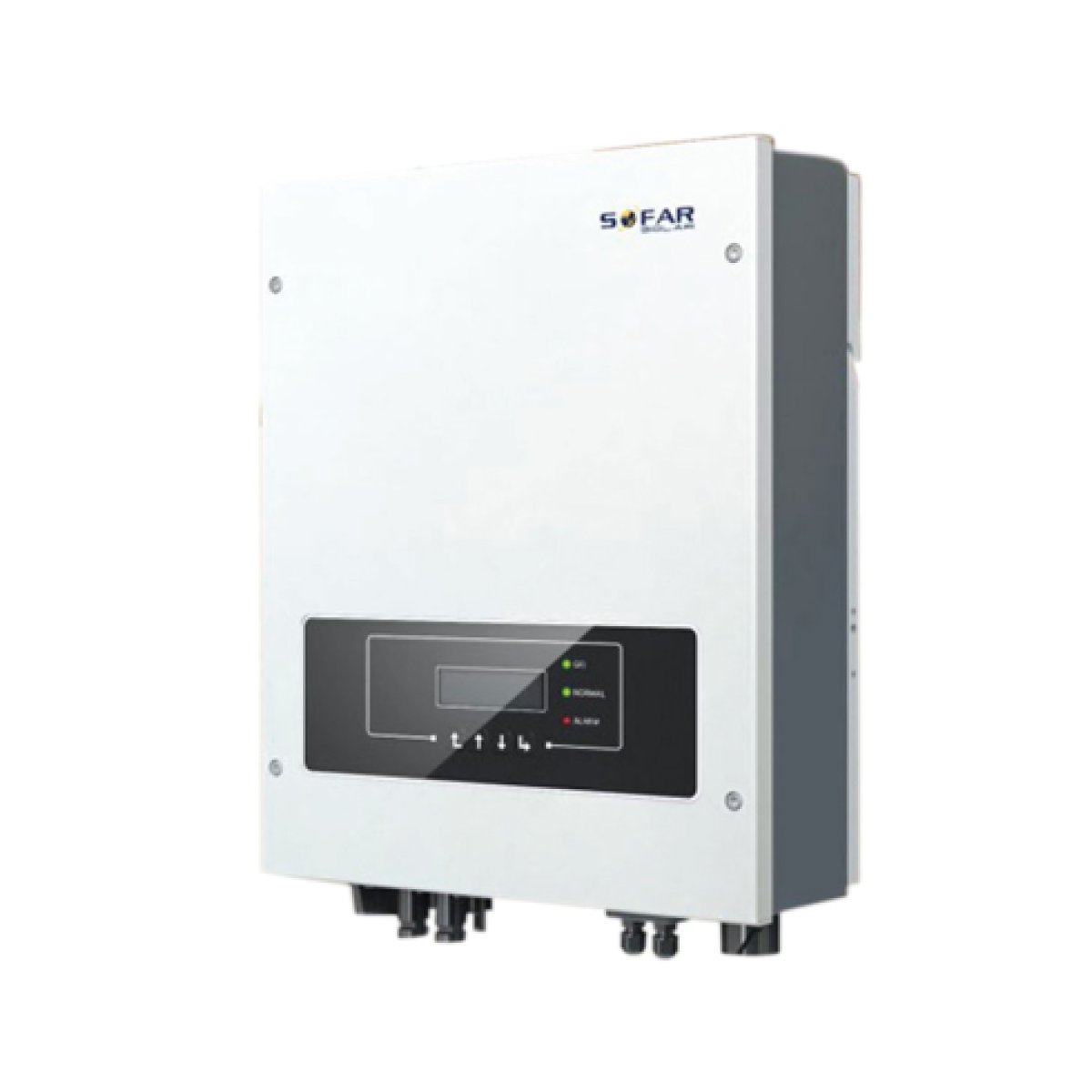

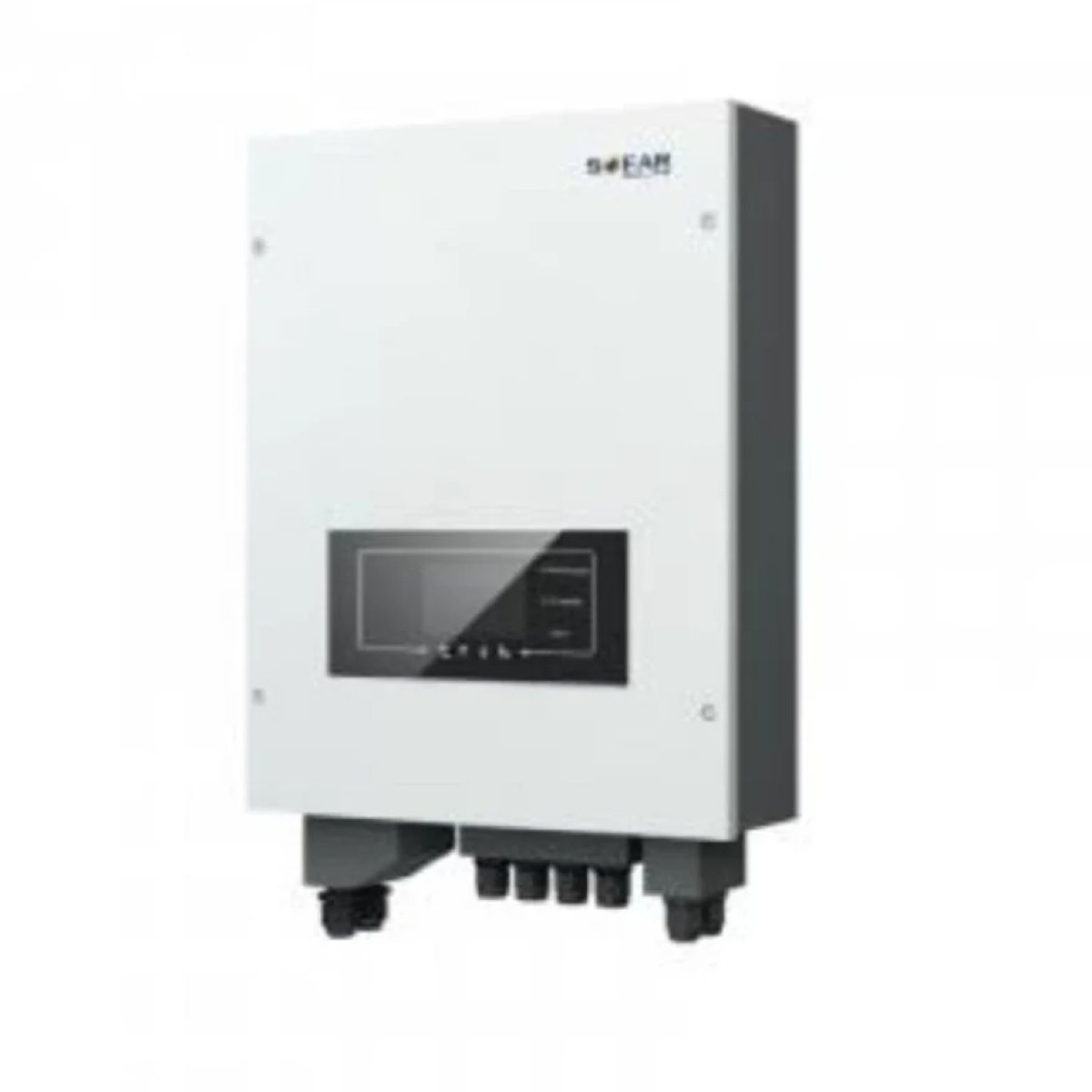

The Solar Grid-Tie Inverter is the "brain" of a modern rooftop solar system. It is a transformerless, high-performance device that ensures your solar energy is used effectively while maintaining a seamless connection to the public power network.
How It Works: The inverter uses a real-time Maximum Power Point Tracking (MPPT) algorithm to extract the highest possible wattage from your panels under varying sunlight conditions. It then synchronizes the output voltage and frequency perfectly with your local grid (e.g., 230V at 50Hz) so that your appliances can draw from solar power first, reducing your electricity bill automatically.
Key Features & Safety:
Dual MPPT Trackers: Allows for two separate strings of solar panels (e.g., one on the East roof and one on the West) to operate independently at their highest efficiency.
Smart Monitoring: Built-in RS485 and optional Wi-Fi/Ethernet connectivity allow you to track real-time power generation and system health via a smartphone app.
Built-in Protections: Includes DC reverse polarity protection, anti-islanding (to prevent feeding the grid during a power outage), ground fault monitoring, and over-temperature protection.
Rugged Design: Rated IP65 for dust and water resistance, making it suitable for both indoor and outdoor installations.
Natural Cooling: Designed with an efficient heat-sink system that operates silently without the need for noisy internal fans.
Technical Specifications
