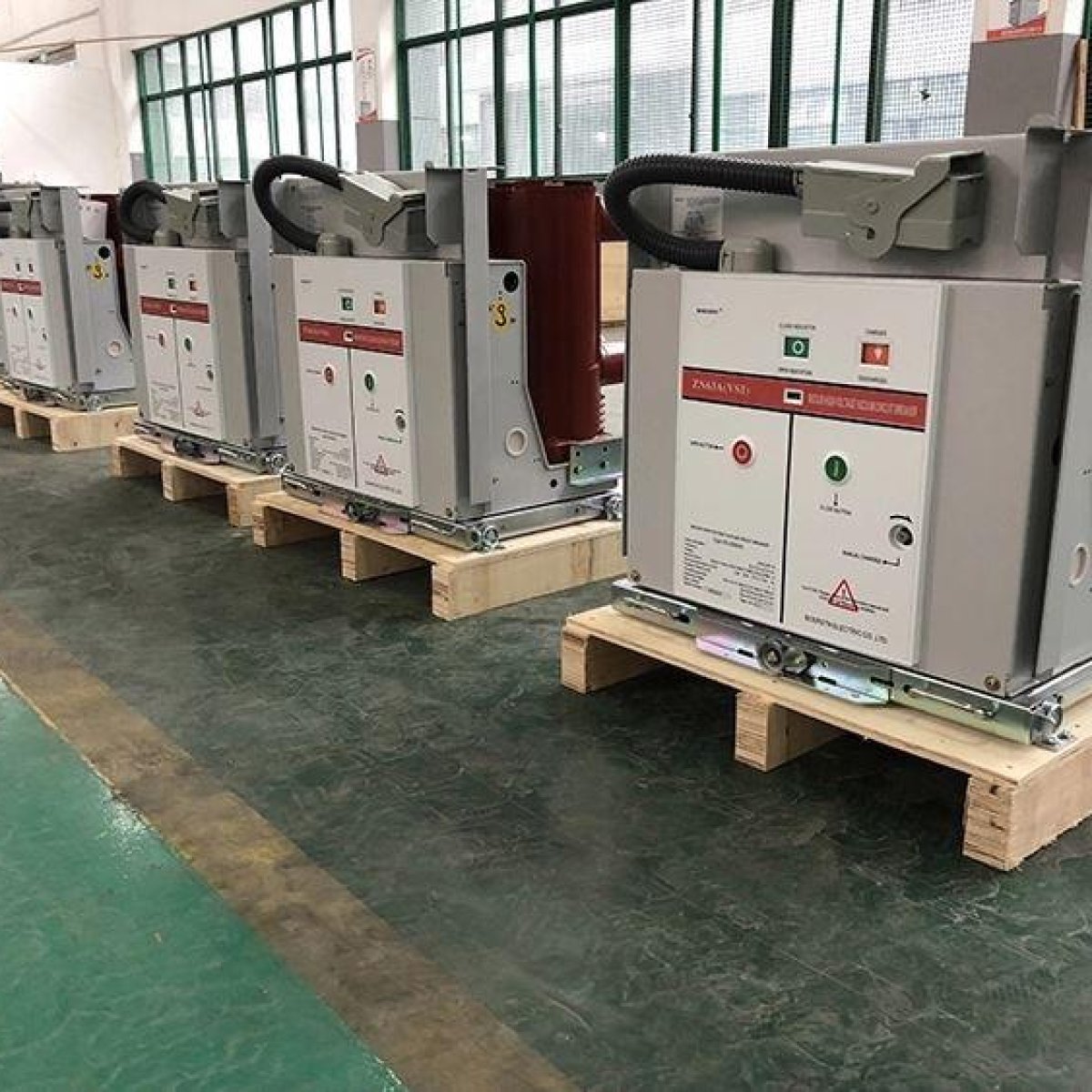

Vacuum circuit breakers (VCBs) act as essential safety and control switches in electrical networks, interrupting high-voltage fault currents inside a vacuum chamber to protect equipment from overloads and short circuits.
CategoryFeatures / DetailsCommon UseAdvantagesCommon Applications🌌 Vacuum Technology
⚡ Fast fault clearing
💥 High interrupting capacity

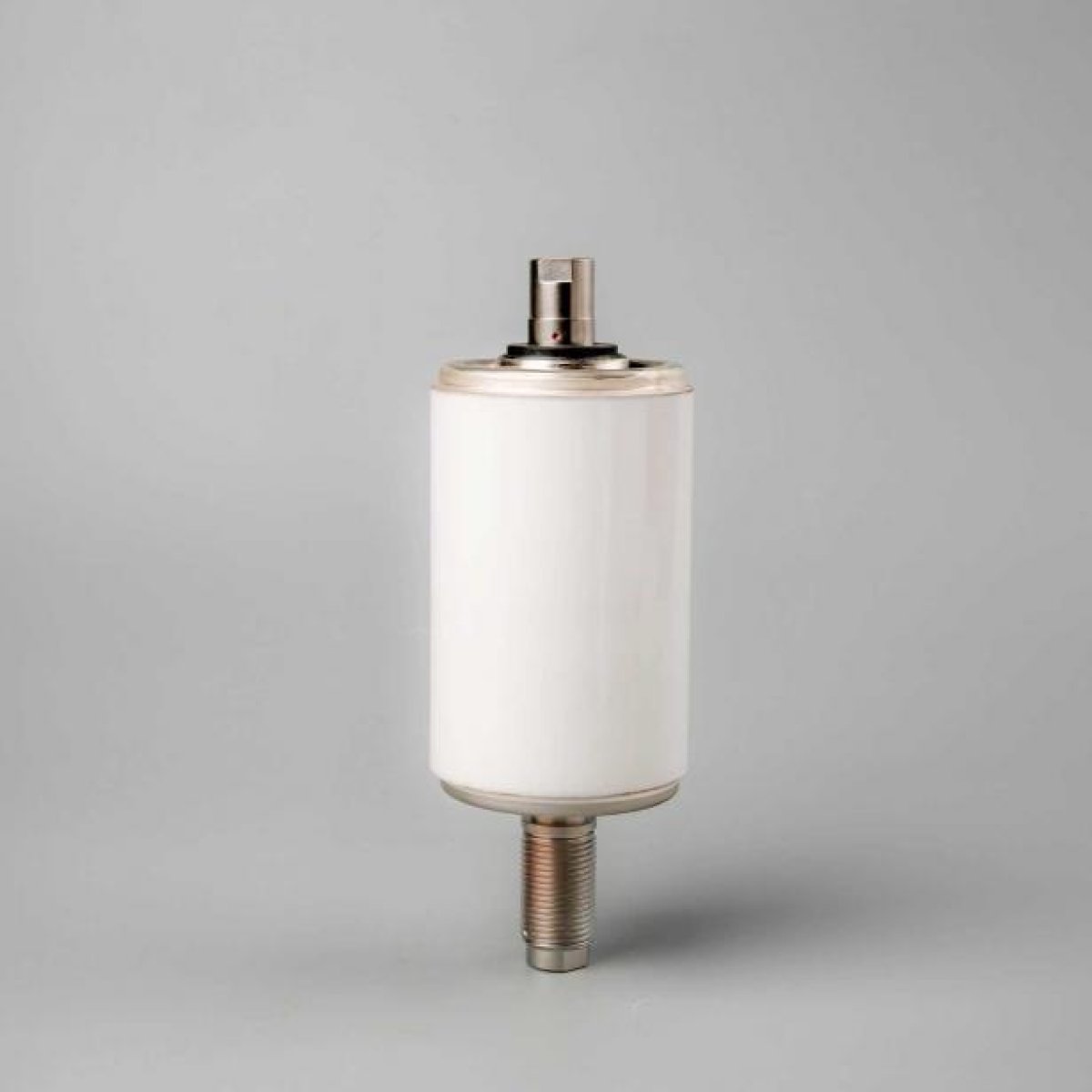

🌌 Vacuum interrupter arc quenching
🛡️ Circuit protection
🔄 Switching operations
🛡️ High reliability
🔥 Excellent arc extinguishing
⚡ Utility substations
🏭 Industrial substations
🛠️ Maintenance & Life
⏳ Long service life
🛠️ Low maintenance requirements
⚙️ Continuous switching
🔌 Isolation & routine control
⏳ Long operating life
🛠️ Minimal maintenance overhead
🏭 Manufacturing plants
⚙️ Motor control centers
🌱 Design & Safety
🛢️ Oil-free & gas-free build
📦 Compact enclosed units

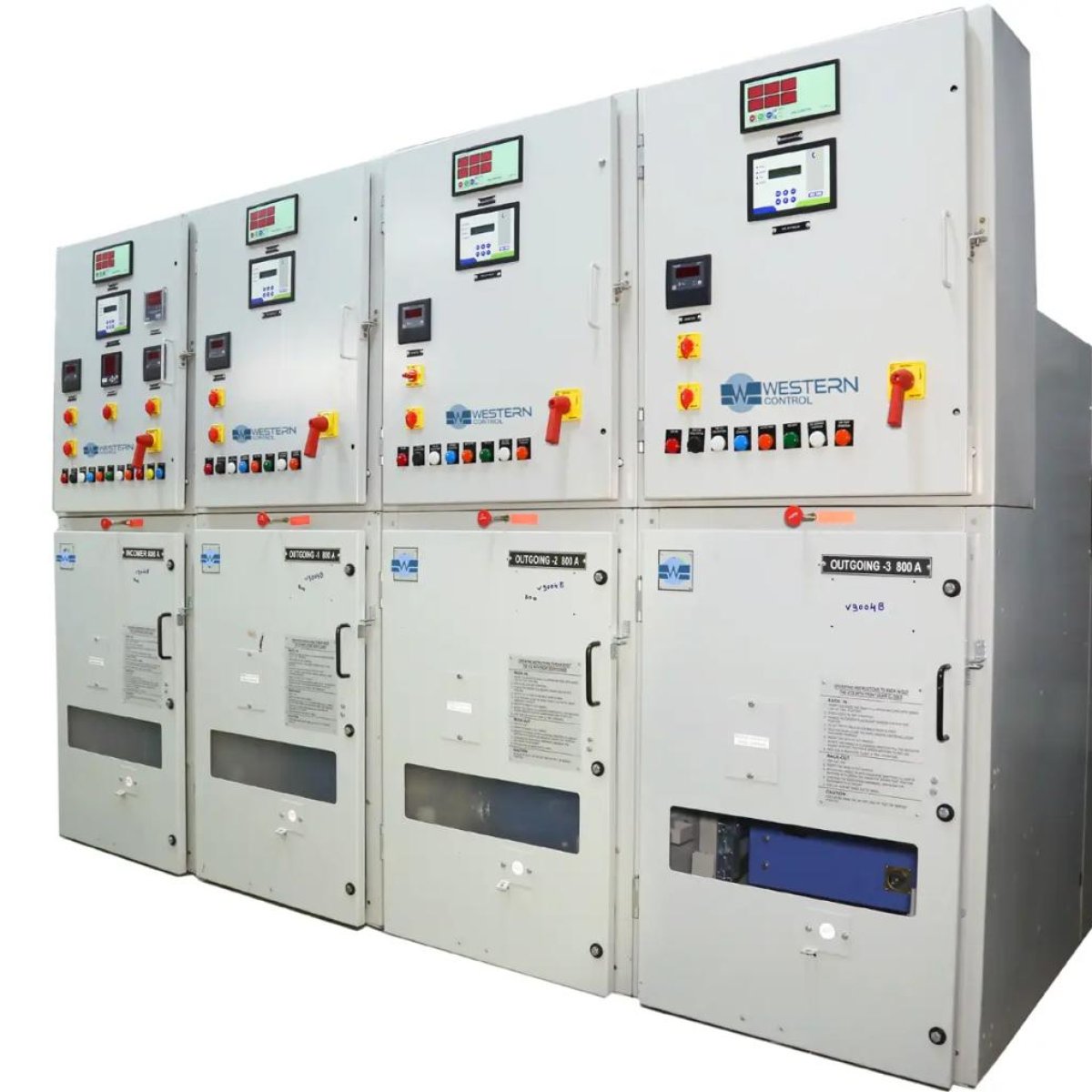

🏢 Indoor switchgear integration
🌤️ Outdoor yard installation
🌱 Environmentally friendly
✅ High operational reliability
🏢 Commercial facilities
🏭 Factories
Vacuum Circuit Breaker Types

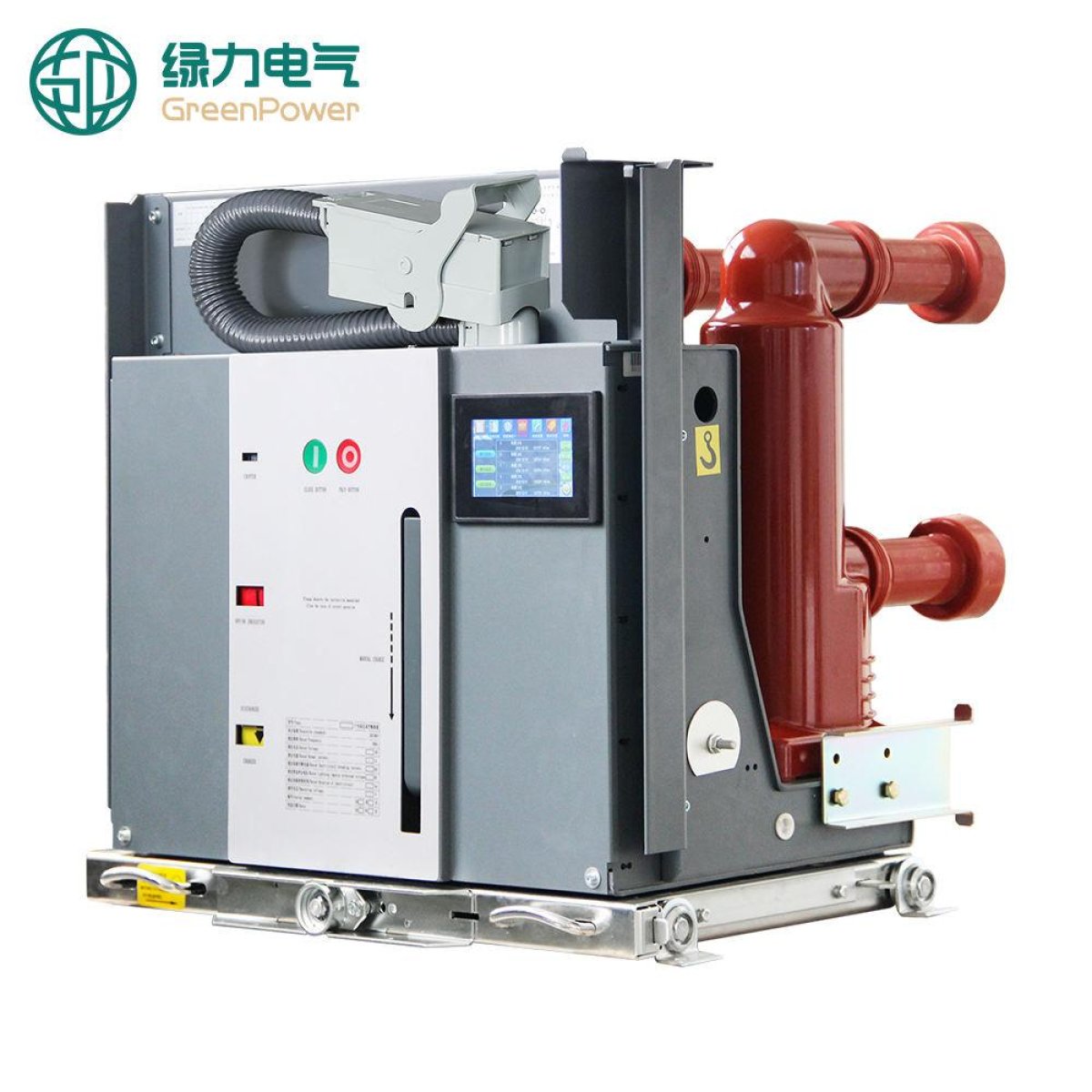

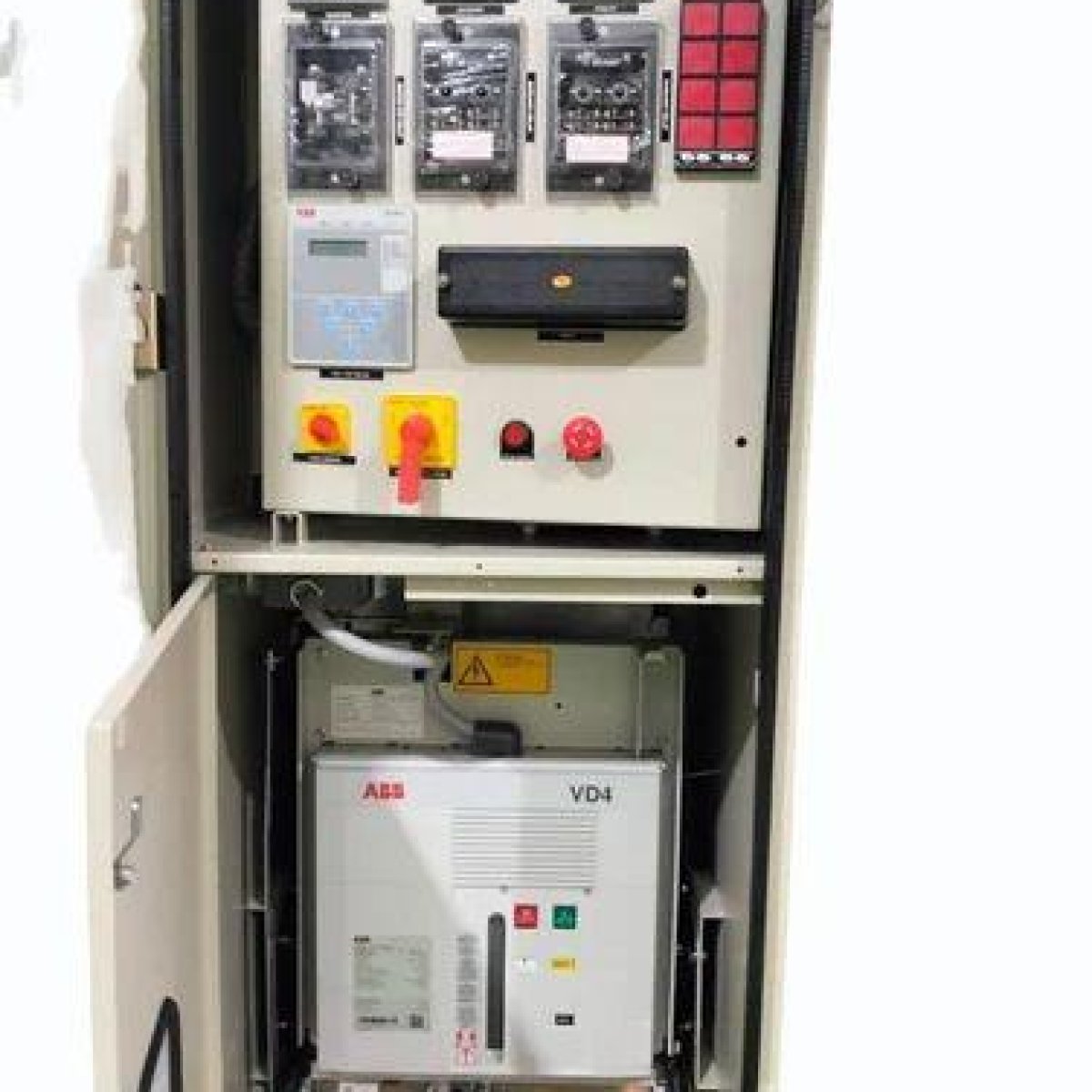

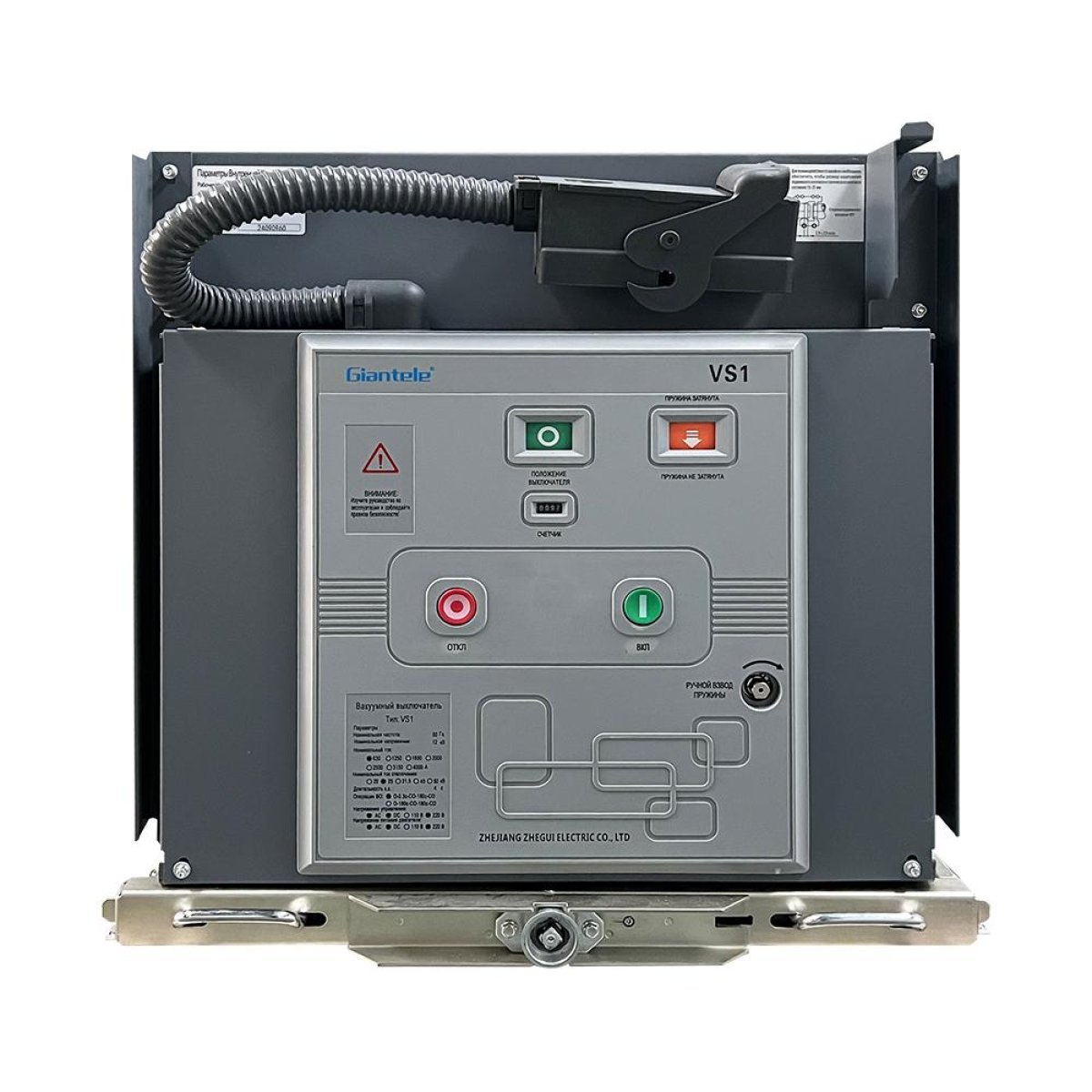

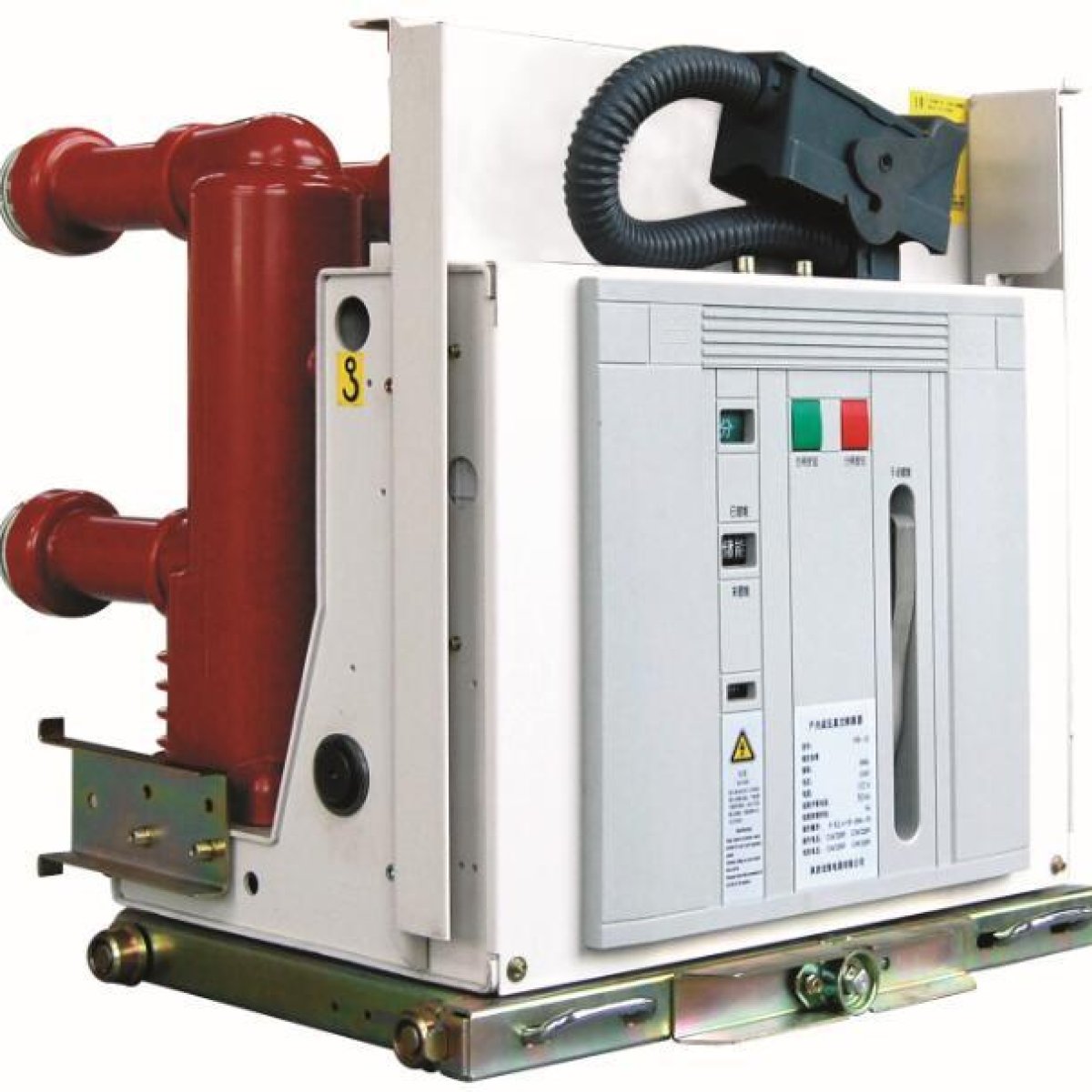

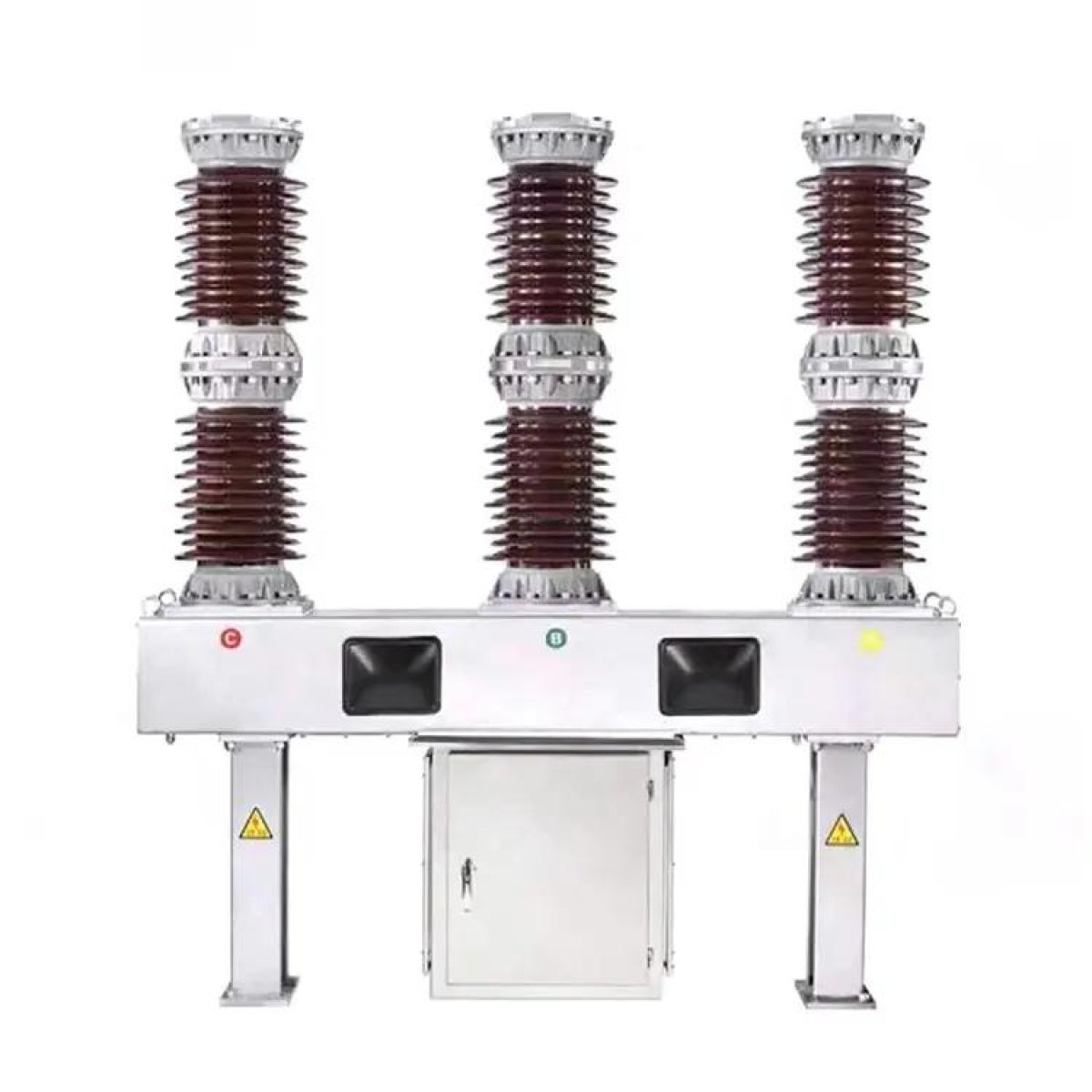

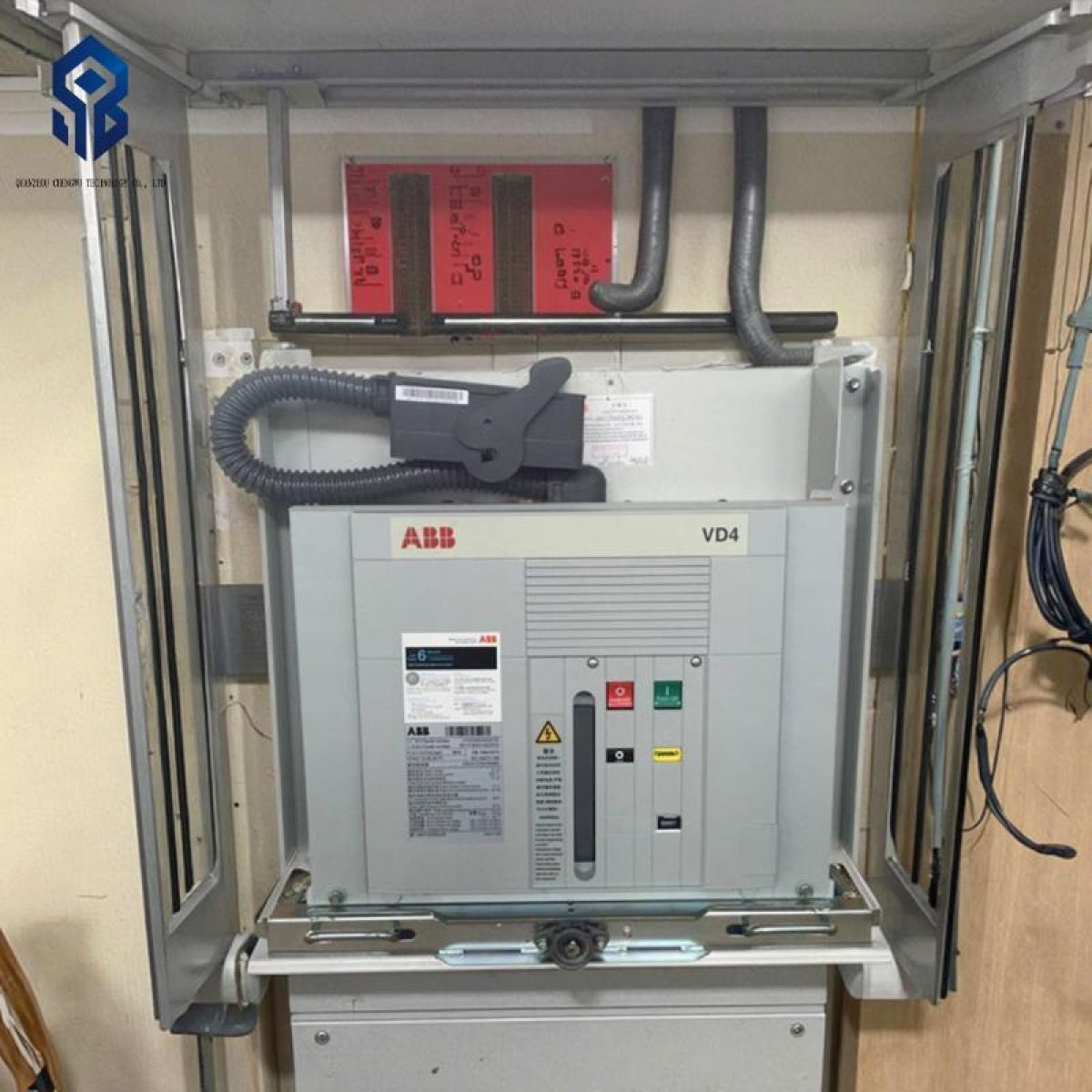

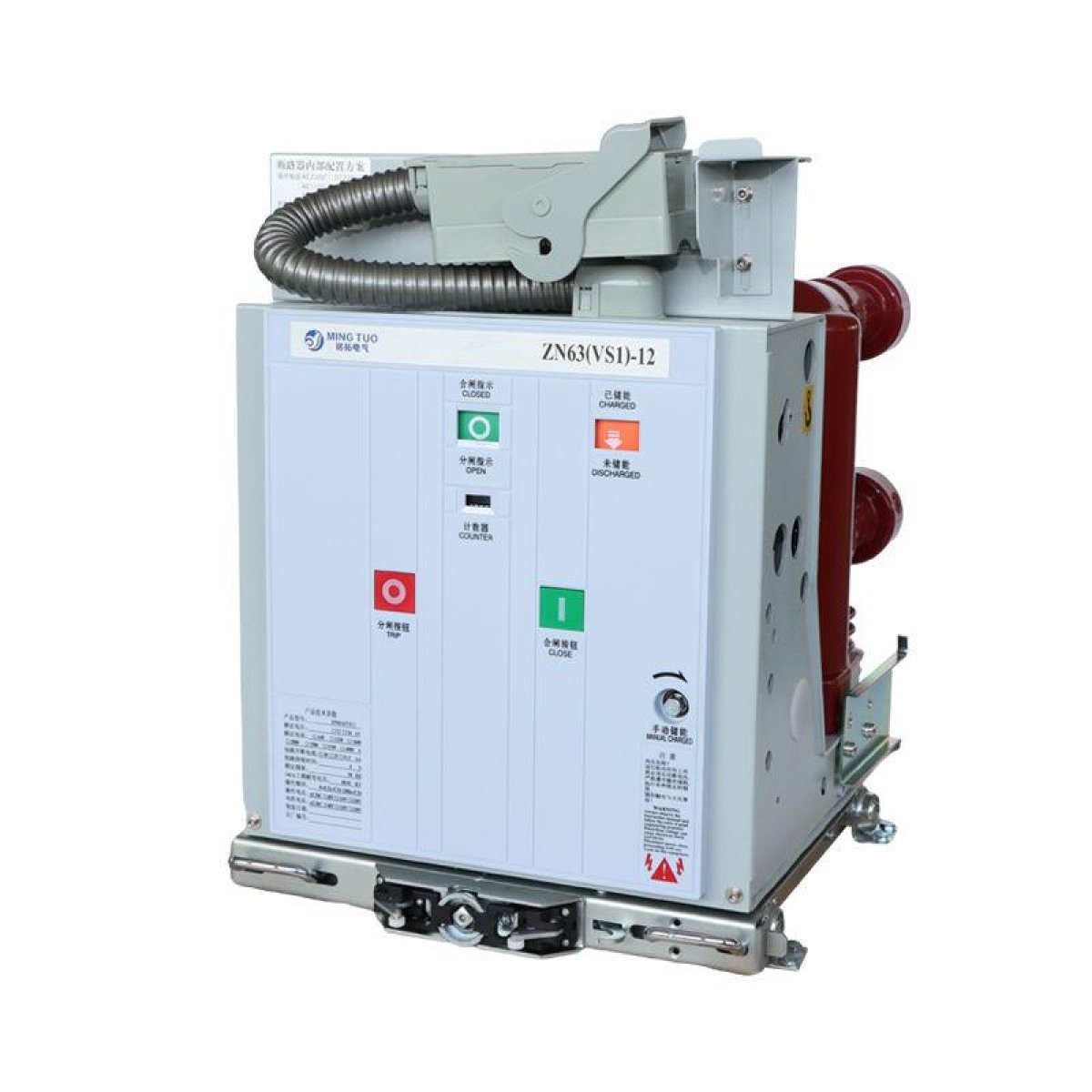

TypeDescriptionPrimary Deployment🏢 Indoor VCBCompact units designed to fit inside metal-clad switchgear assembliesIndoor substations, factory power rooms🌤️ Outdoor VCBWeather-proofed breakers designed to handle extreme environmental elementsOpen-air utility yards, transmission sites🔄 Withdrawable VCBDraw-out unit on a rackable trolley for easy removal and isolationHigh-uptime industrial switchboards
