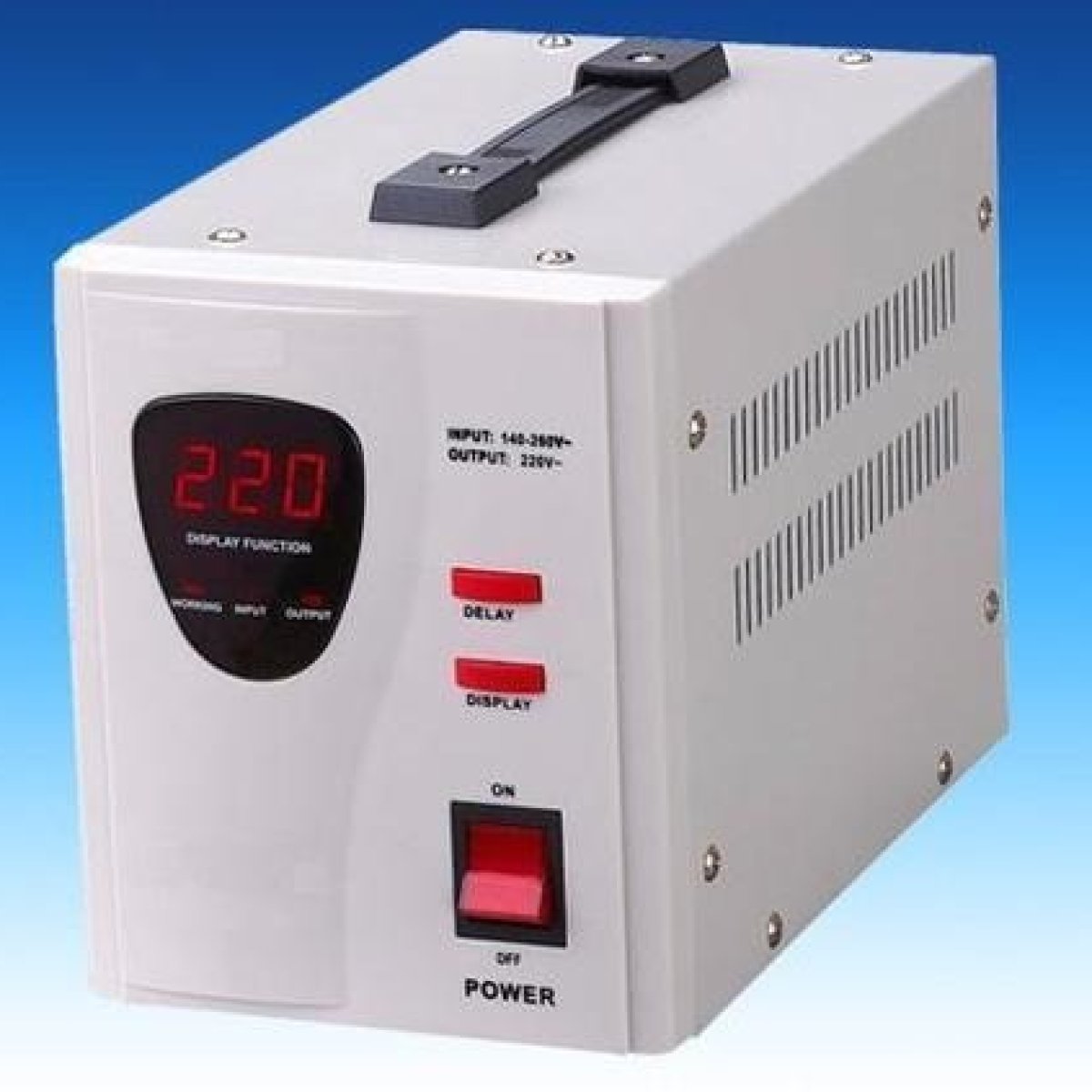

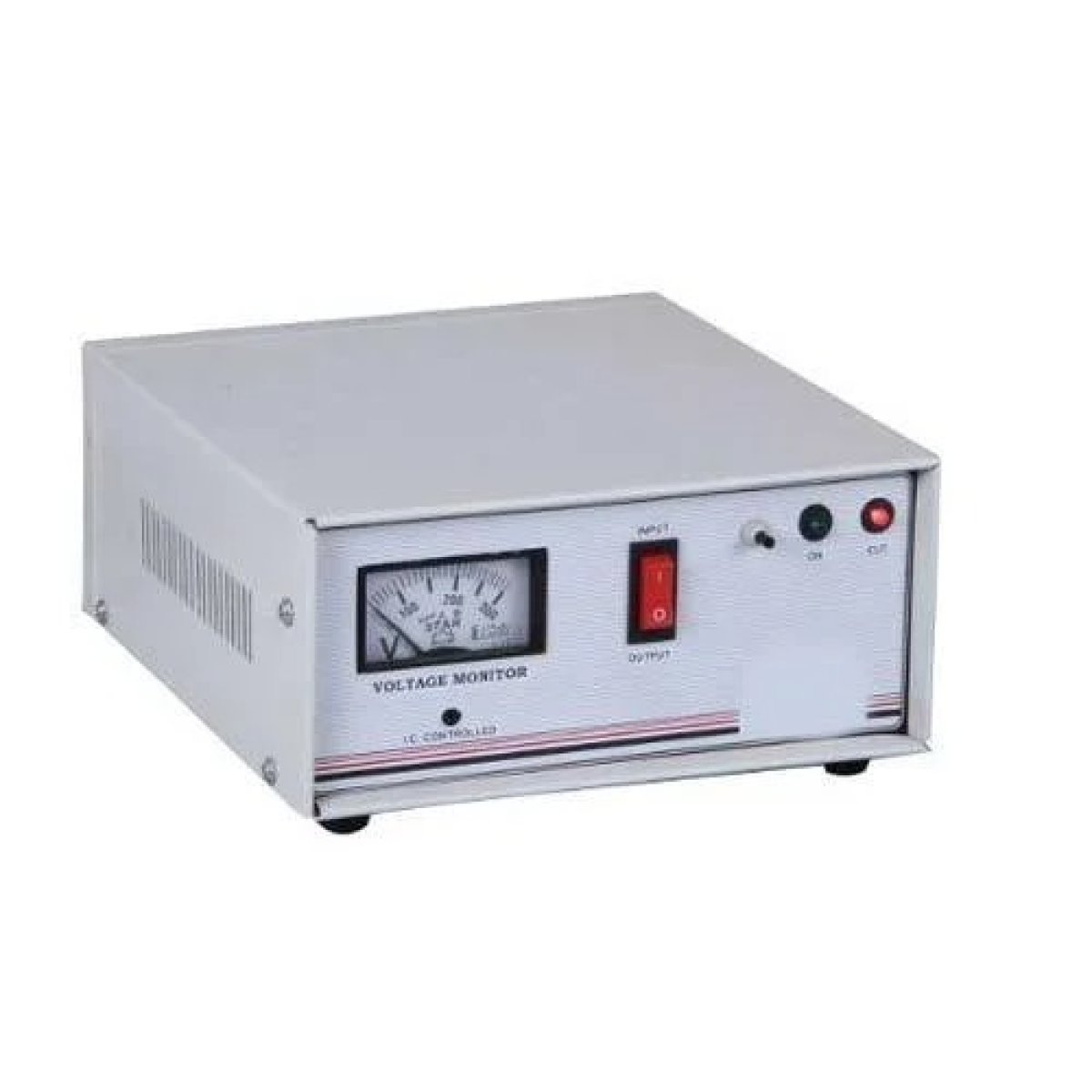

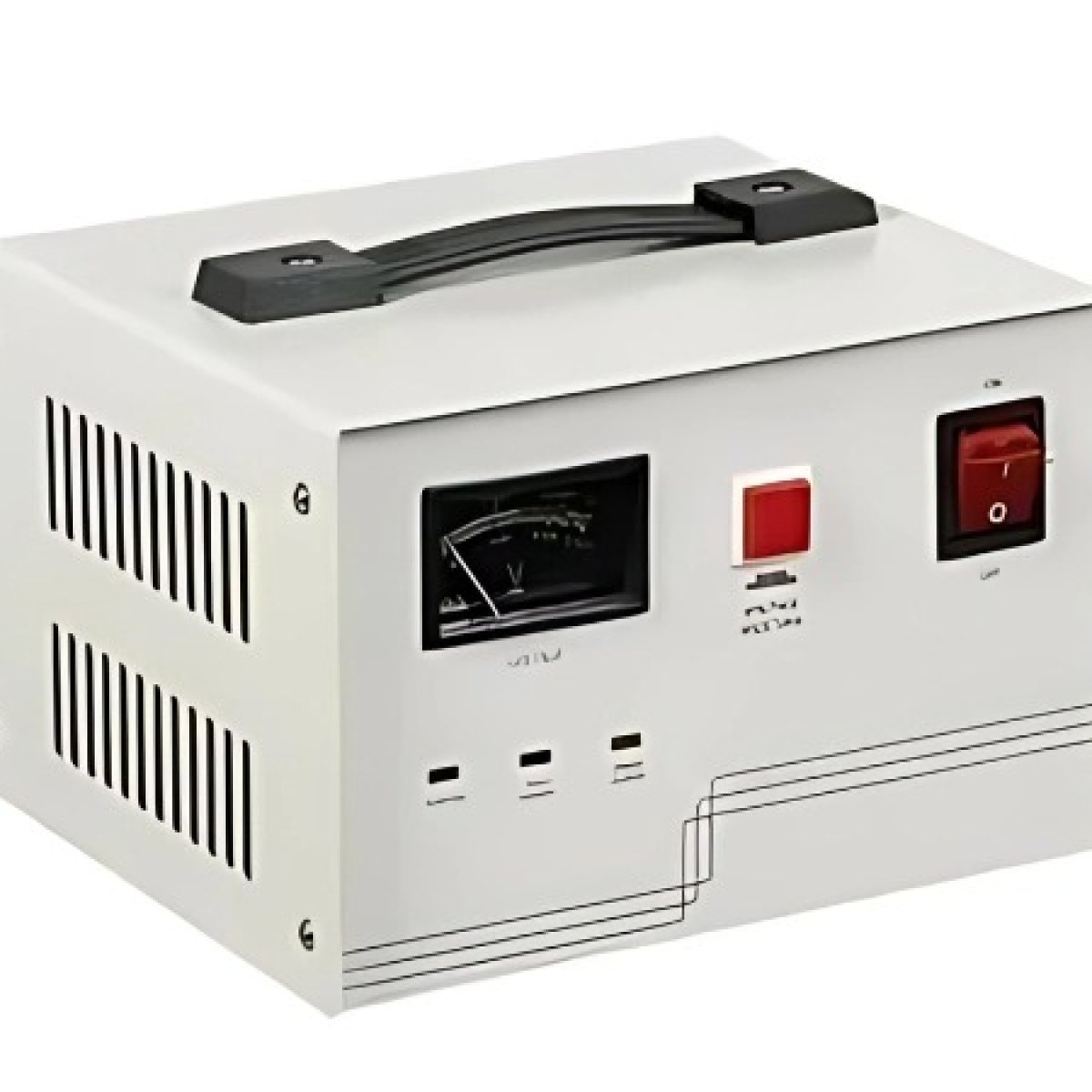

A voltage stabilizer is an electrical device designed to automatically maintain a constant voltage level to connected appliances, protecting them from harmful fluctuations in the power supply. By performing "Buck" (lowering high voltage) and "Boost" (raising low voltage) operations, it acts as a critical buffer between an unstable power grid and sensitive electronics like refrigerators, air conditioners, and computers
Voltage stabilizers are essential in regions with inconsistent power infrastructure to prevent permanent damage to internal circuitry, such as burnt compressors in ACs or data corruption in servers. They function by continuously monitoring the incoming mains supply and comparing it against a stable reference voltage; if a deviation is detected, a control circuit triggers an adjustment mechanism to bring the output back into a safe operating window (typically around 220V or 230V).
Primary Types and Mechanisms
As of 2026, the technology is divided into four main categories based on accuracy and response speed:

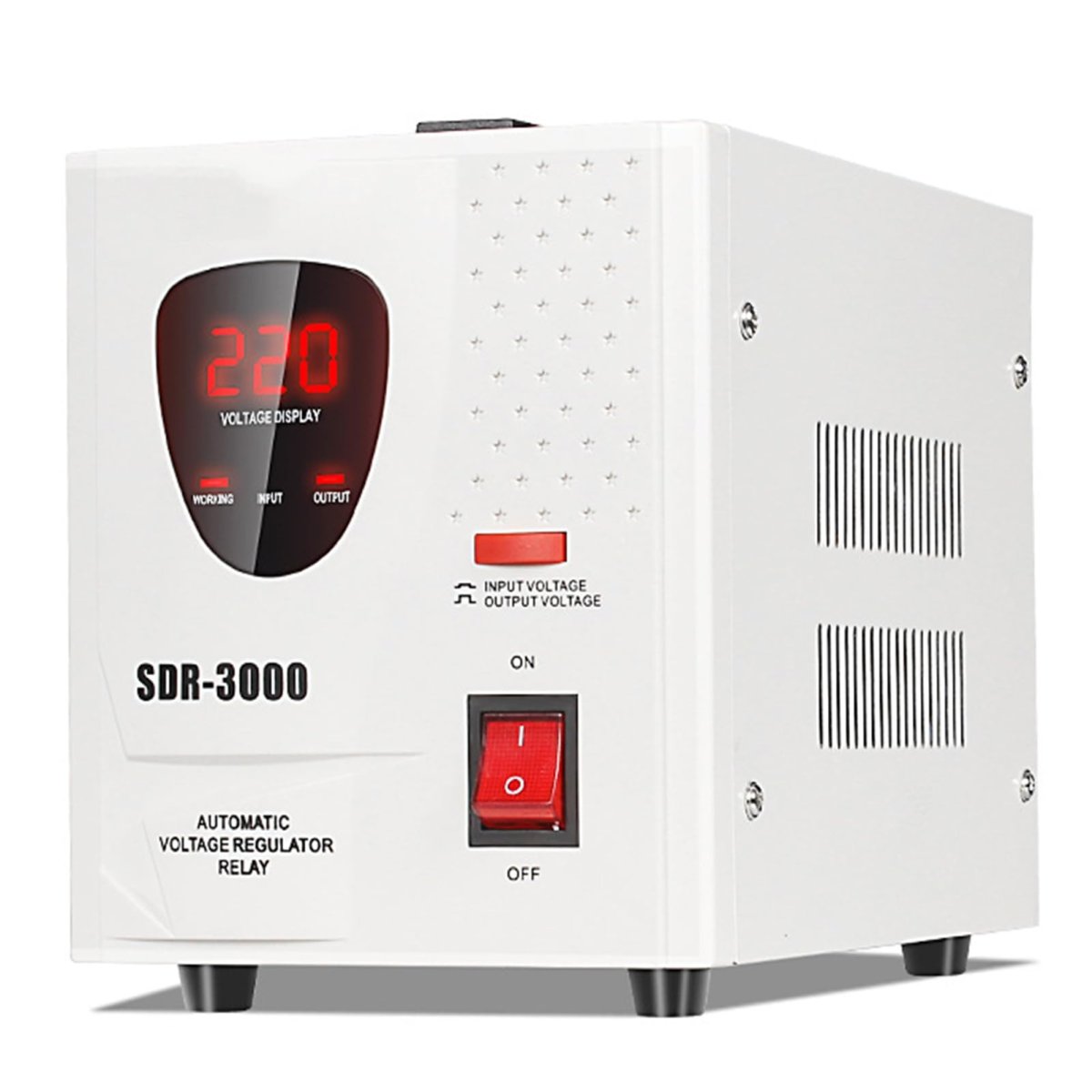

- Relay-Type Stabilizers: The most common and cost-effective choice for home use. They use electromagnetic relays to switch between transformer taps. While reliable for basic appliances, they have a slower response time and an accuracy range of roughly ±5% to ±10%.
- Servo-Controlled Stabilizers: These use a high-torque servo motor to move an arm on a toroidal autotransformer. They offer very high precision (±1% accuracy) and are ideal for sensitive industrial machinery, medical equipment (like MRI machines), and whole-home stabilization.
- Static (Solid-State) Stabilizers: These feature no moving parts, instead using electronic converters (like IGBTs or SCRs) to regulate voltage. They provide near-instantaneous response times (less than 10 milliseconds) and are perfect for mission-critical IT infrastructure and high-speed CNC machines.
- Constant Voltage Transformers (CVT): These rely on magnetic saturation to provide an isolated and stable output. They are exceptionally durable and effective at filtering electrical noise, making them suitable for laboratory environments.
Key Features to Look For in 2026
- Digital Displays: Real-time LCD or LED readouts showing both input and output voltage levels.
- Time Delay Systems: Protects compressors (especially in fridges and ACs) by delaying power restoration for 2–3 minutes after a cut-off to prevent short-cycling damage.
- Thermal Overload Protection: Automatically shuts down the unit if internal temperatures rise too high due to excessive load.
- AI & IoT Integration: Modern high-end stabilizers now feature remote monitoring through apps, allowing users to log voltage data and receive predictive maintenance alerts
