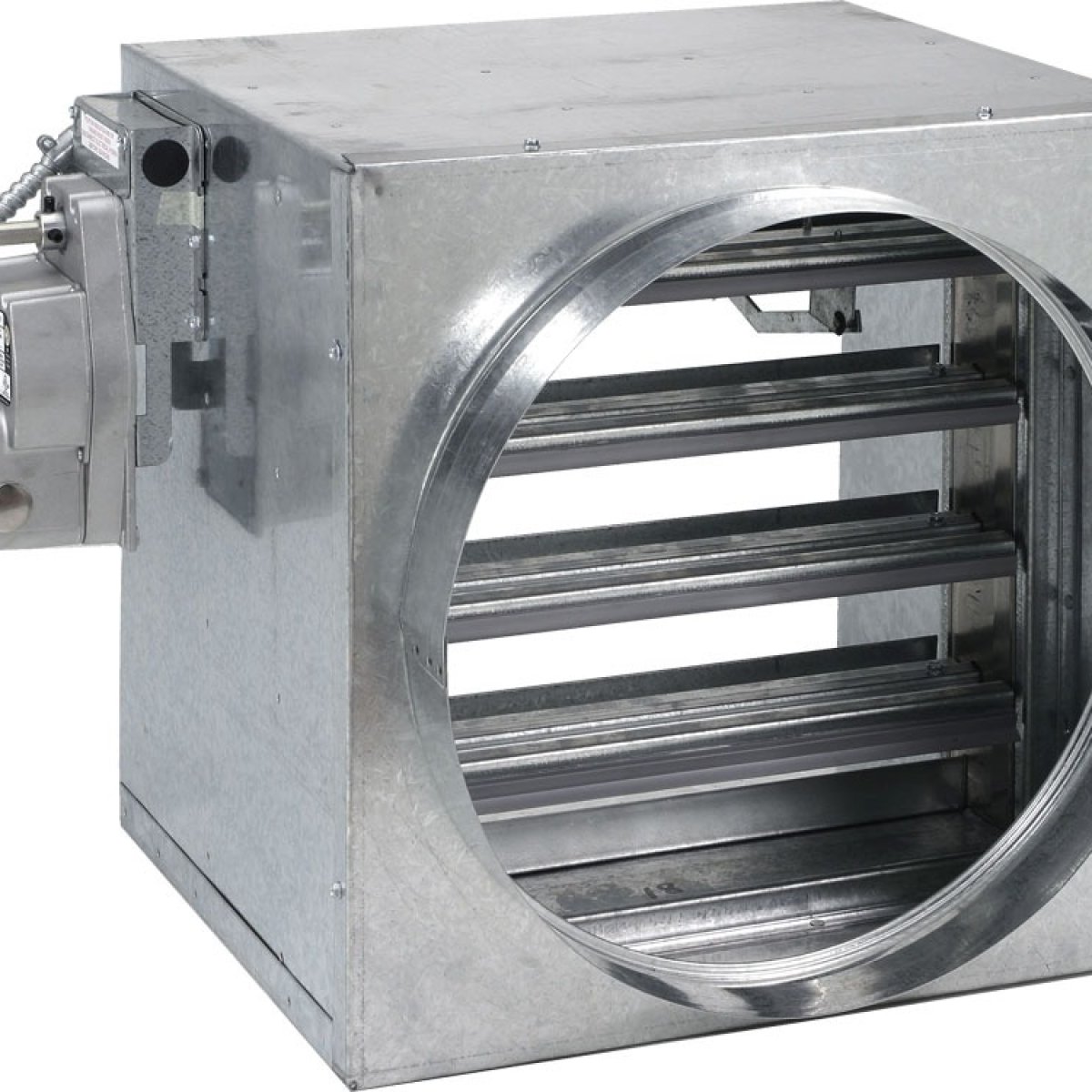

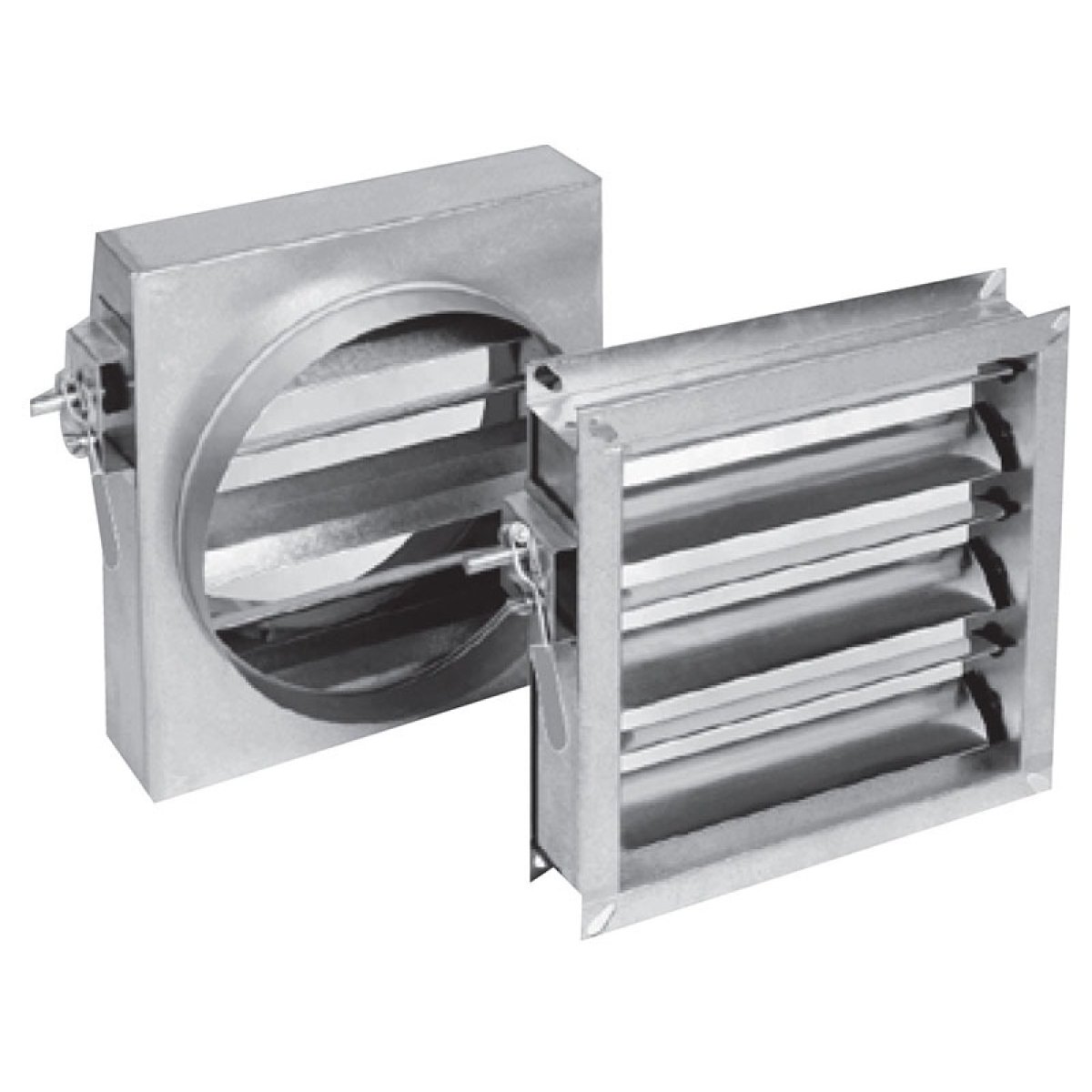

HVAC Volume Control Damper (VCD)

A volume control damper is a mechanical device installed within HVAC ductwork to regulate and balance the flow of air through the system. By manually or automatically adjusting the position of its internal blades, it controls the amount of heated or cooled air directed to different zones of a building.

VCDs are essential for "air balancing," a process that ensures each room receives the exact volume of air required for comfort and efficiency. [1, 2]
  • Operating Principle:
    • The damper uses movable blades to change the cross-sectional area of the duct.
    • When the blades are parallel to the airflow, the damper is fully open. As they rotate to a perpendicular position, they gradually restrict and eventually shut off the airflow.
  • Key Components:
    • Frame and Blades: Typically constructed from heavy-duty galvanized steel, stainless steel, or aluminum to resist corrosion.

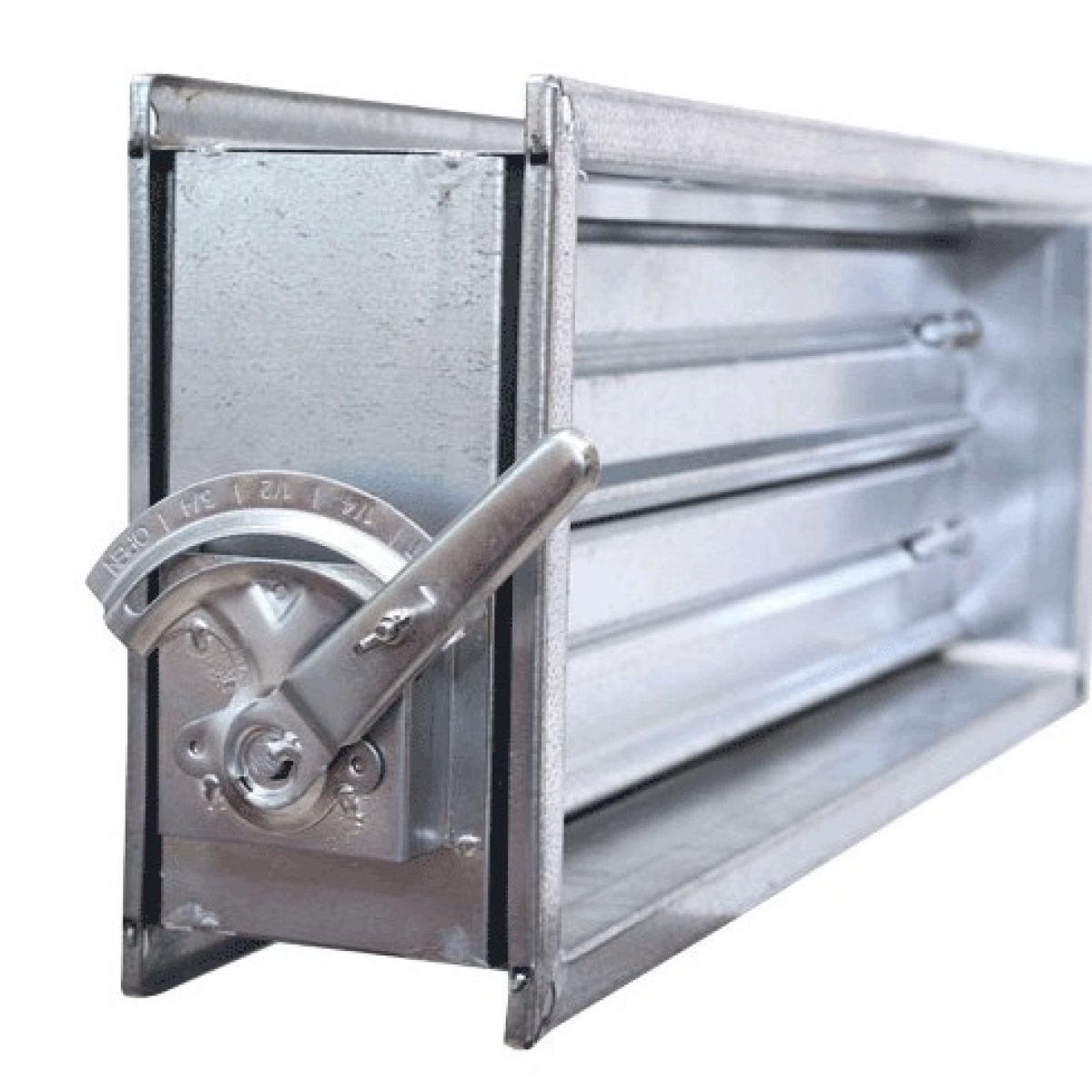

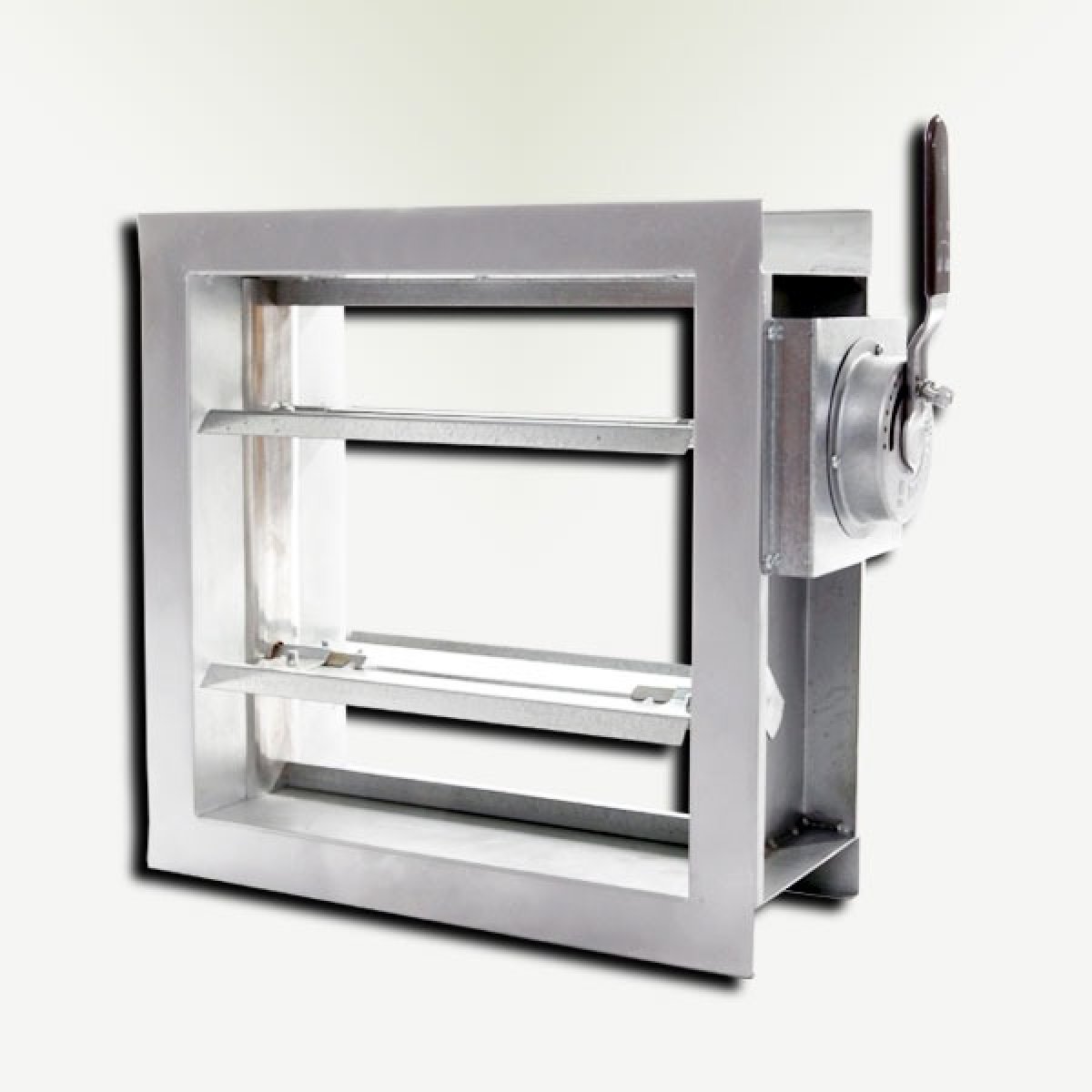

    • Manual Quadrant: The external handle (visible on the side of both units in your image) features a locking nut and a scale to indicate the blade's position.

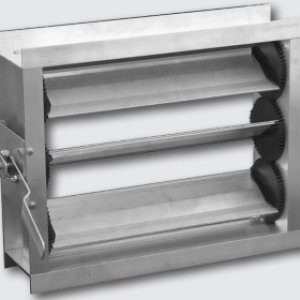

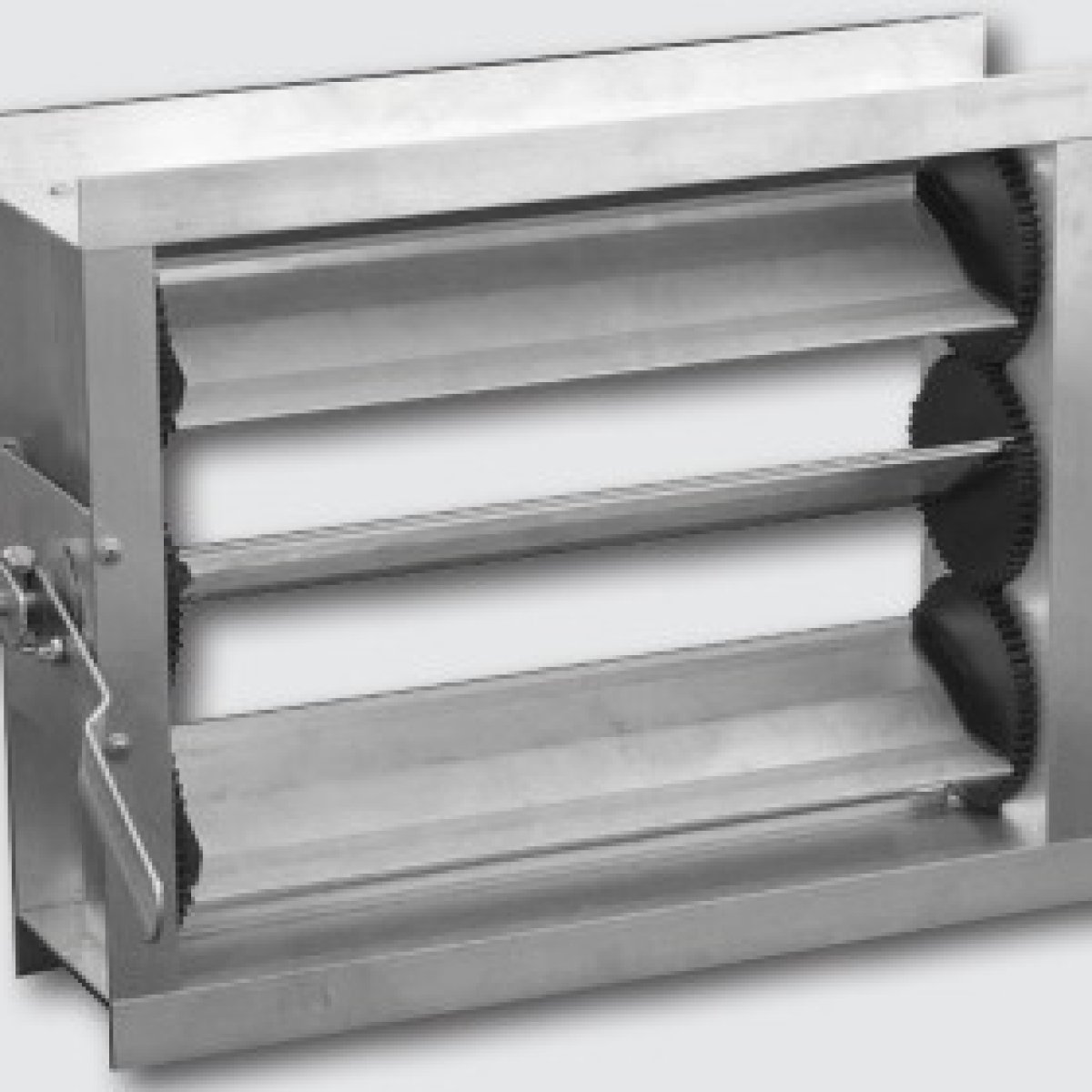

    • Blade Types: Rectangular dampers often use opposed blades (rotating in opposite directions) for smoother, more precise control with less turbulence compared to single-blade models.
  • Primary Functions:
    • Zoning: Allows users to adjust airflow to specific zones, which helps in maintaining personalized comfort levels and reducing energy waste.
    • System Balancing: Prevents noise and pressure imbalances by ensuring air is distributed evenly across all duct branches.
    • Maintenance Isolation: Can be fully closed to isolate sections of ductwork during repairs without shutting down the entire HVAC system.
