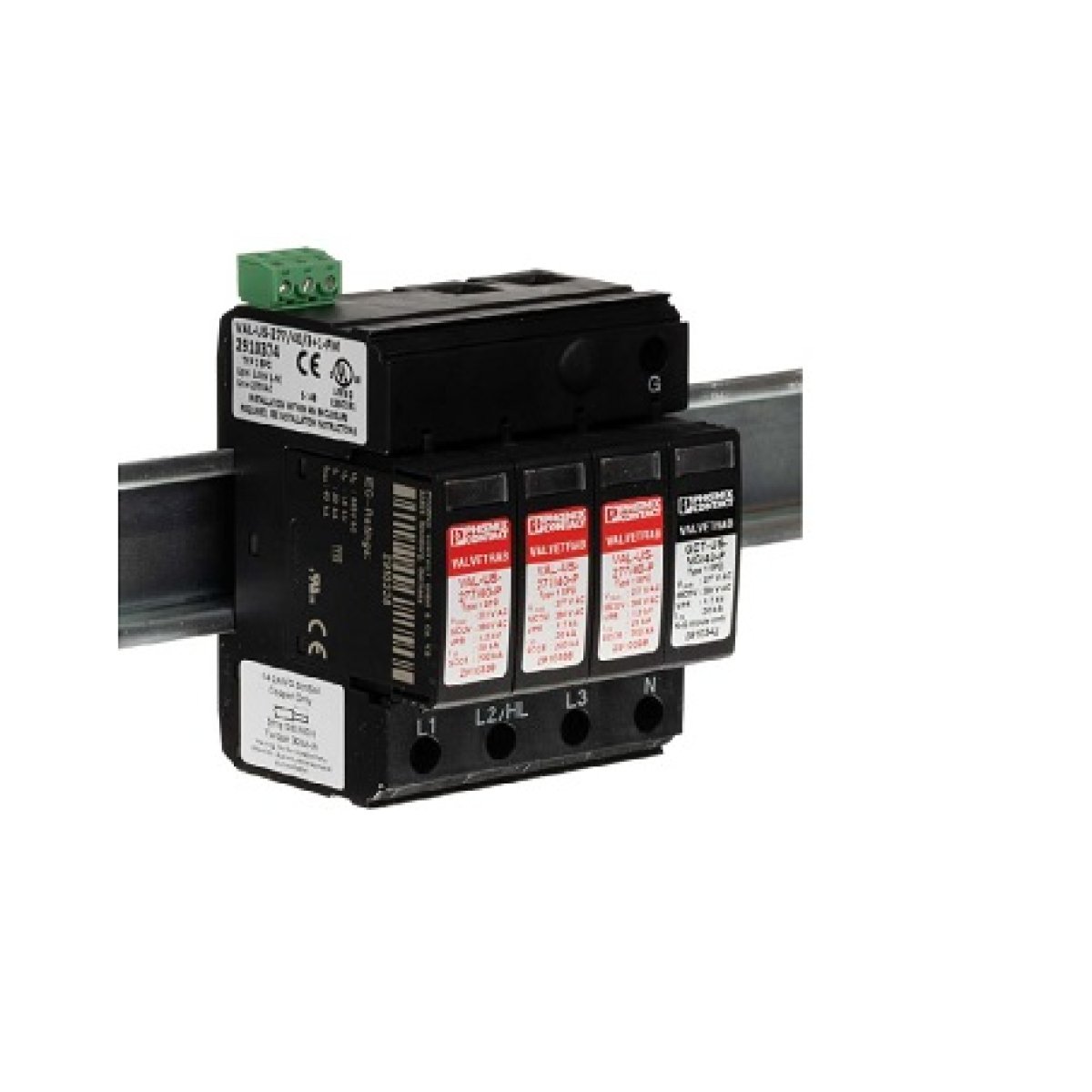

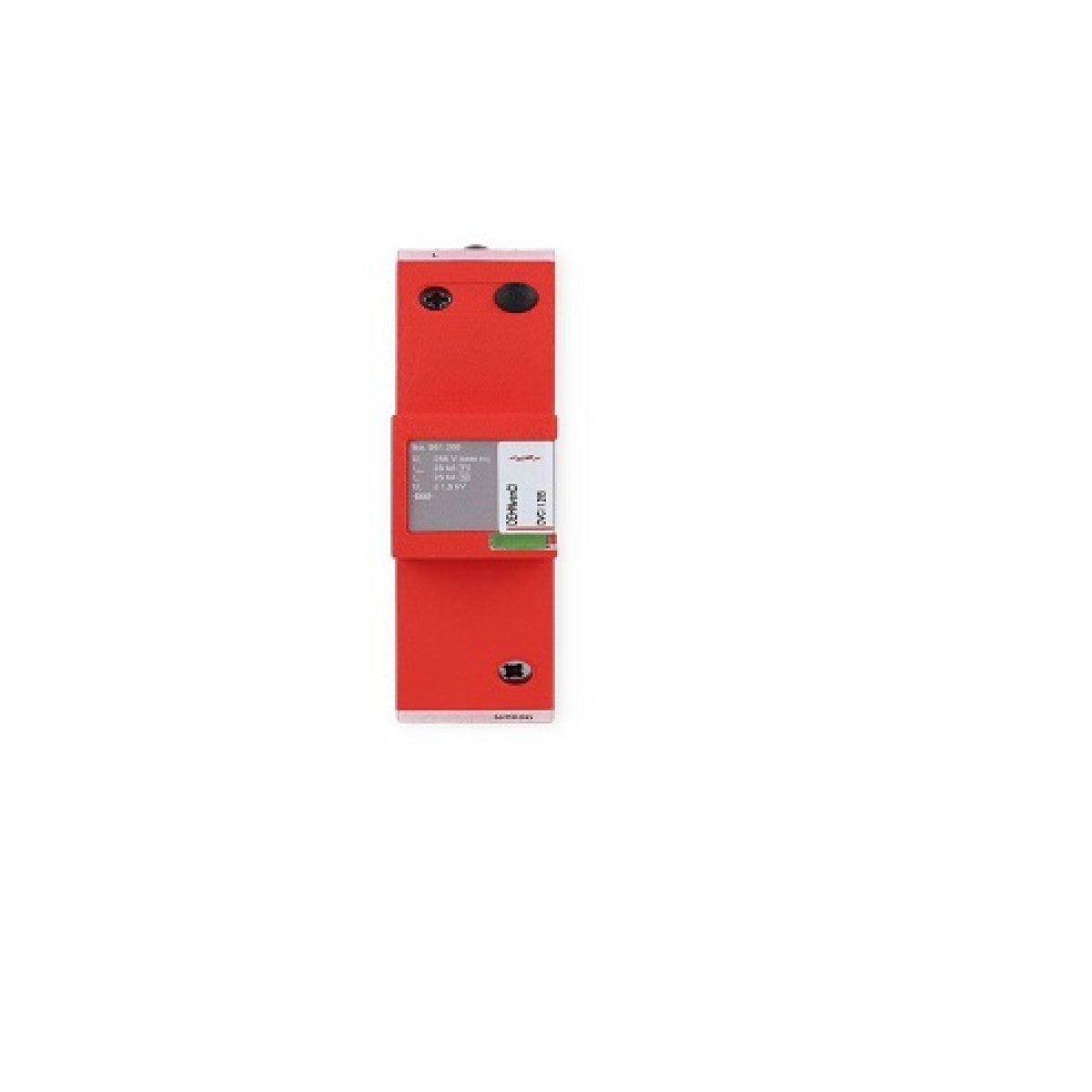

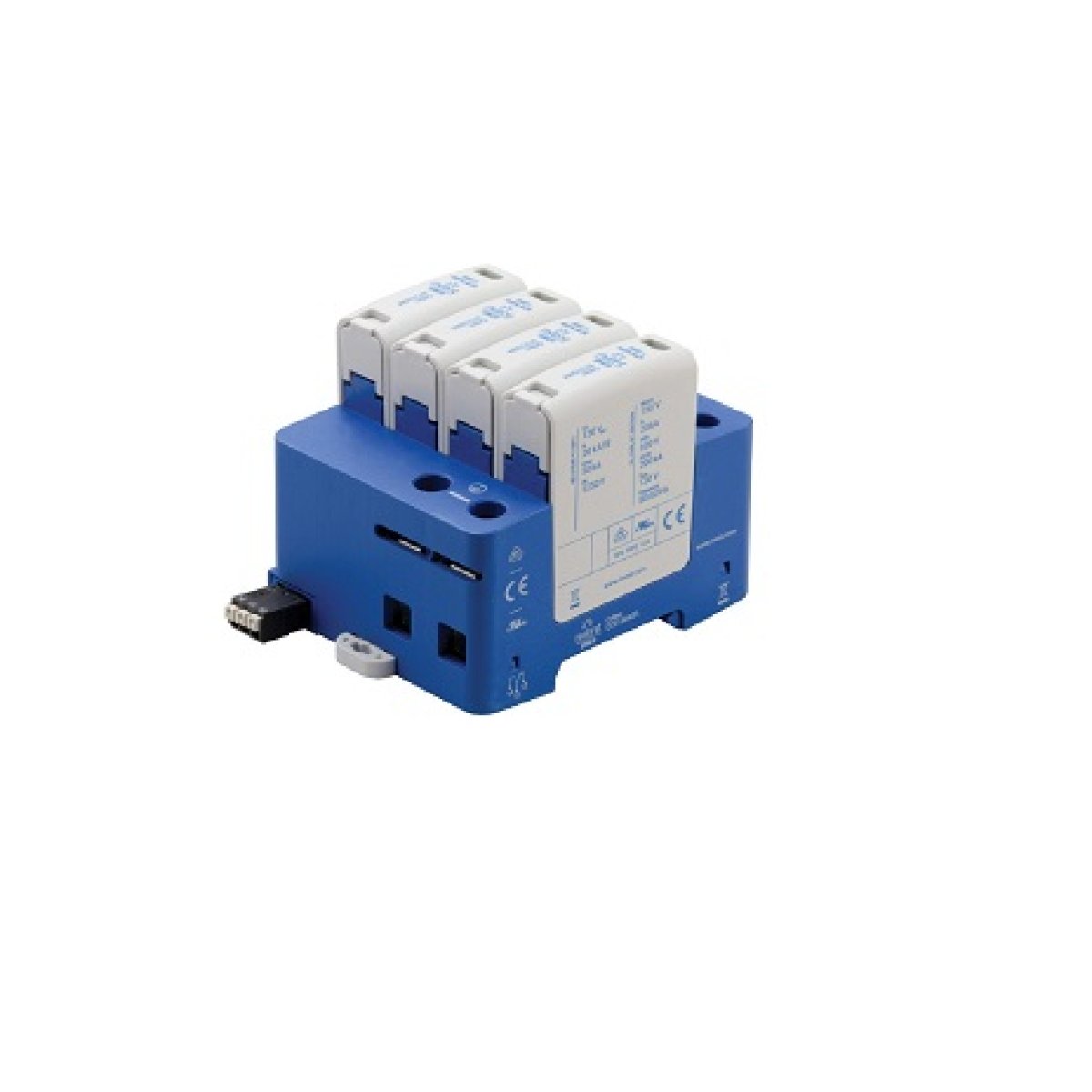

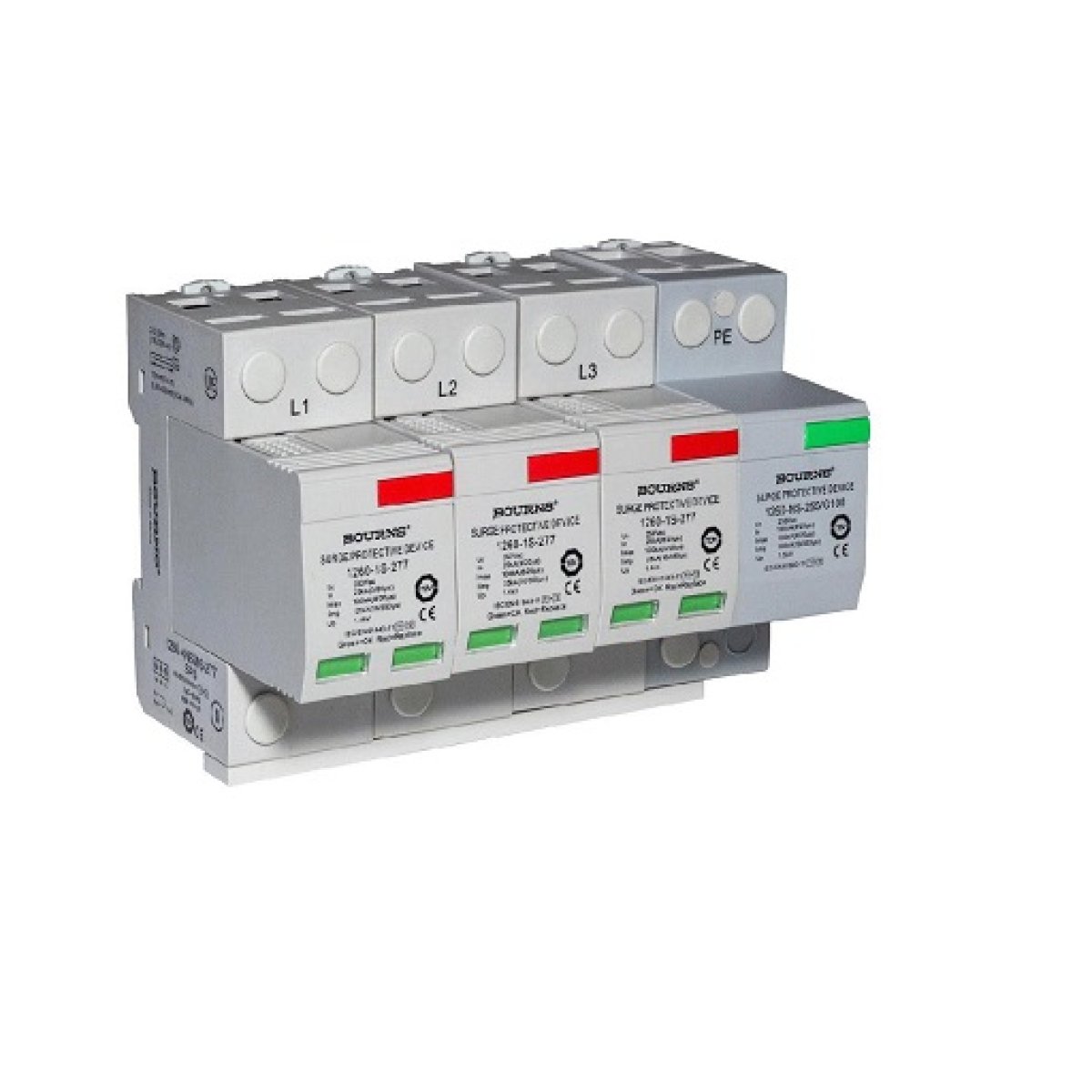

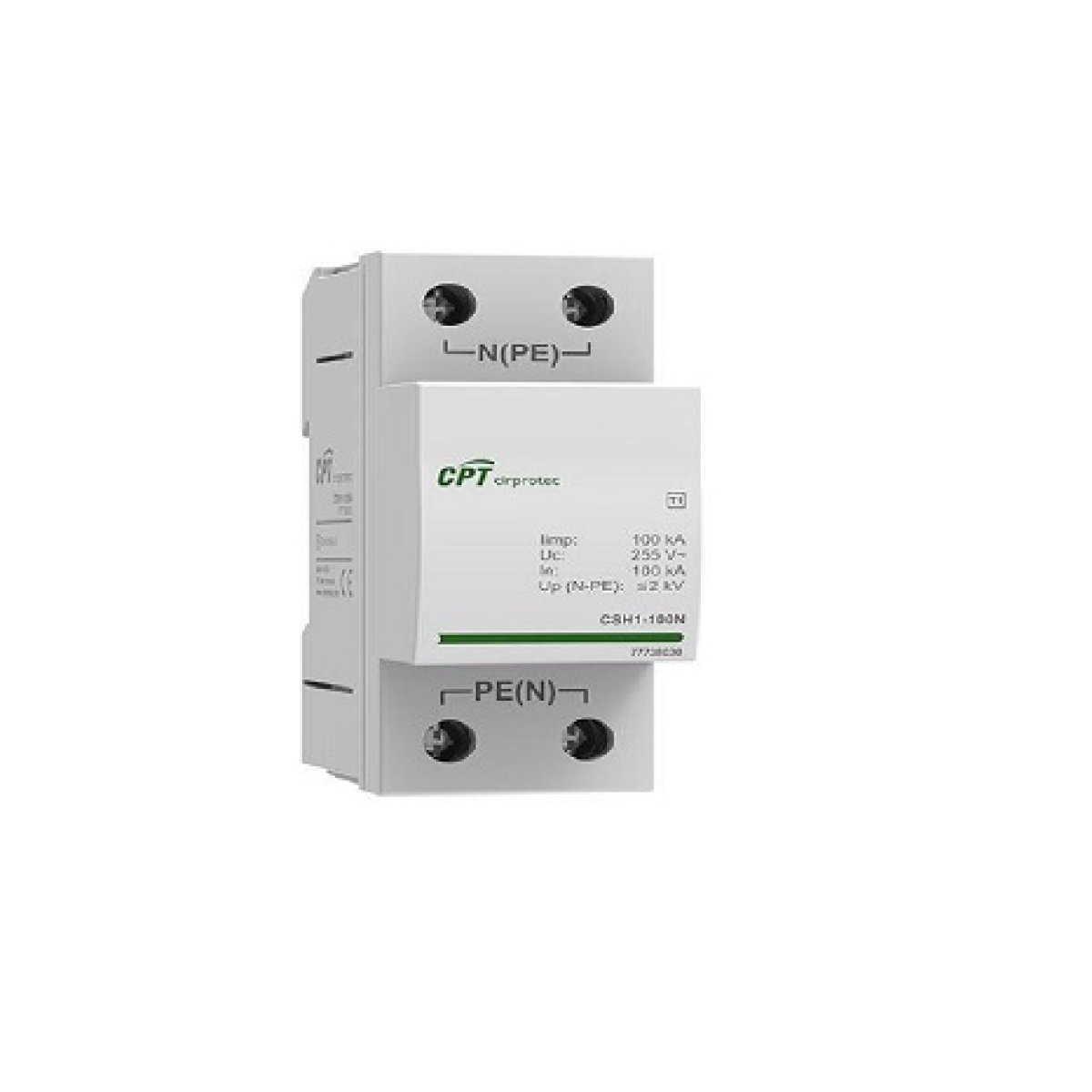

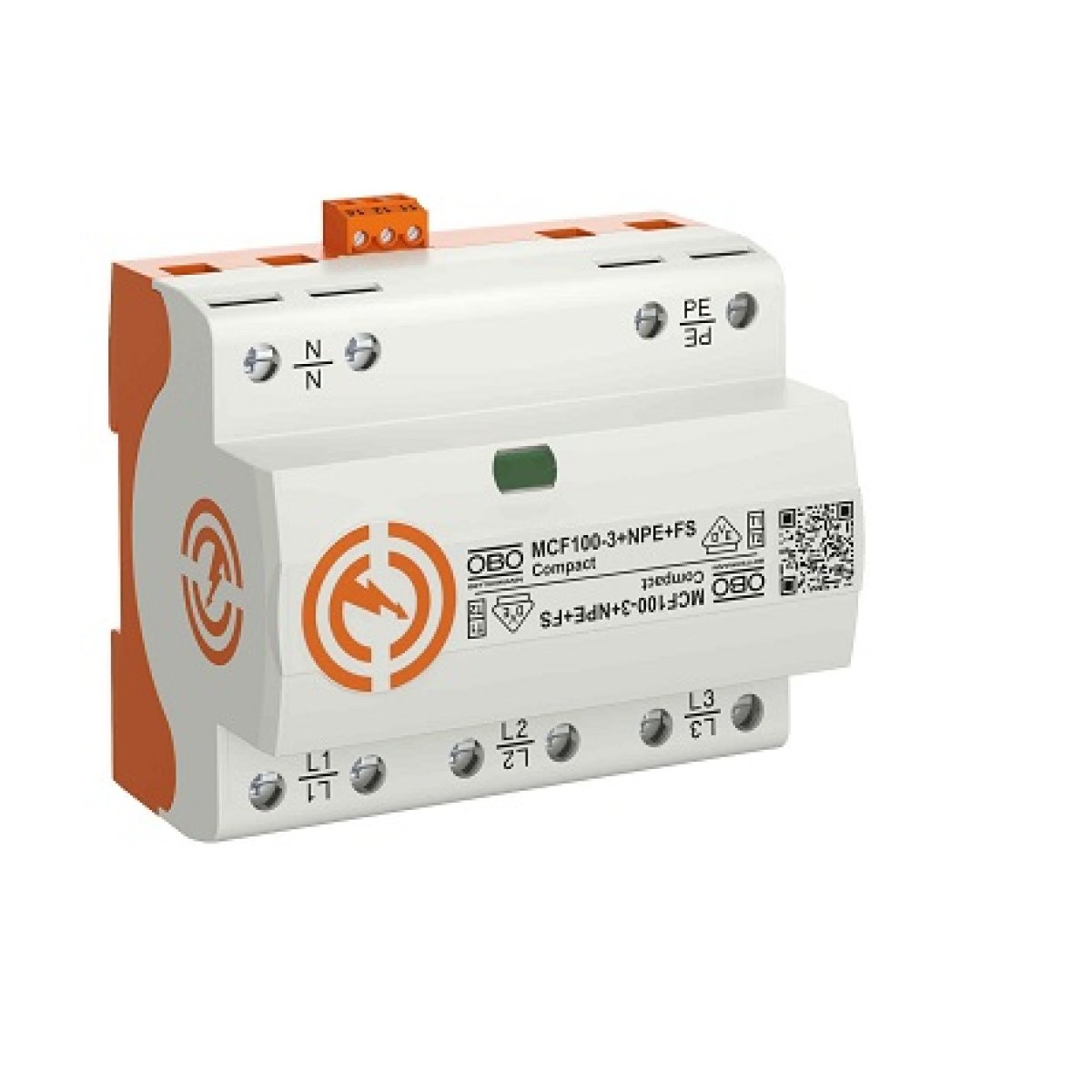

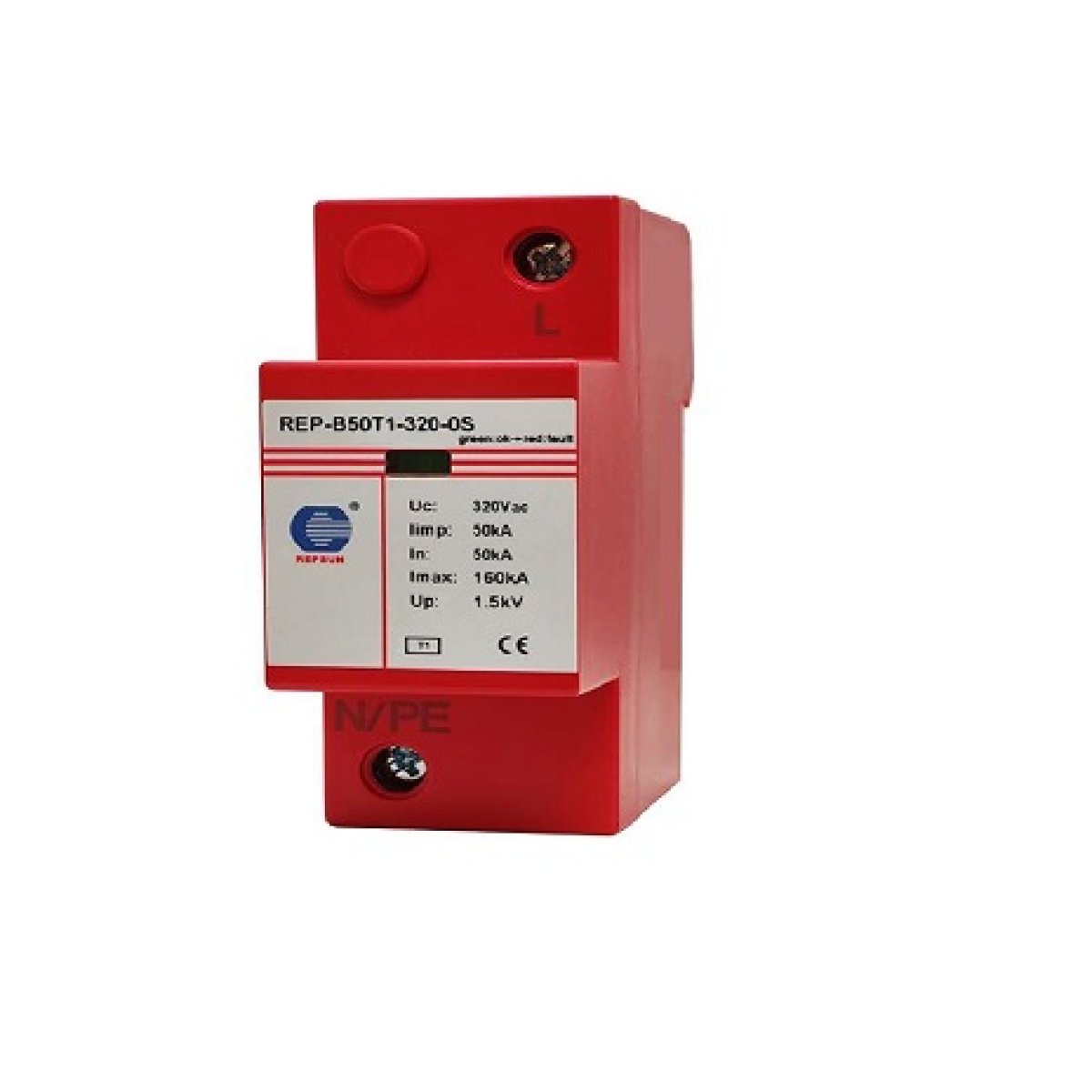

Type 1 Surge Protection Device

A Type 1 Surge Protection Device (SPD) is designed to protect an electrical installation against high-energy surges, including those associated with direct lightning-current effects where the installation's protection design requires it. It is selected according to the building's lightning protection arrangement, earthing system, prospective fault current, and electrical distribution design. It is not a substitute for lower-level protection where coordinated protection is required.

Key Specifications:

• SPD classification: Type 1
• Test classification: Typically Class I under applicable IEC standards
• Maximum continuous operating voltage: System-dependent
• Impulse current rating (Iimp): Manufacturer-specified
• Poles: Selected for the supply system
• Backup protection: As specified by the manufacturer
• Installation: Appropriate main distribution board

Common Applications:

• Main electrical distribution boards
• Buildings with external lightning protection
• Electrical systems requiring Type 1 surge protection
• Coordinated building power protection
